PCM Electrical Connections

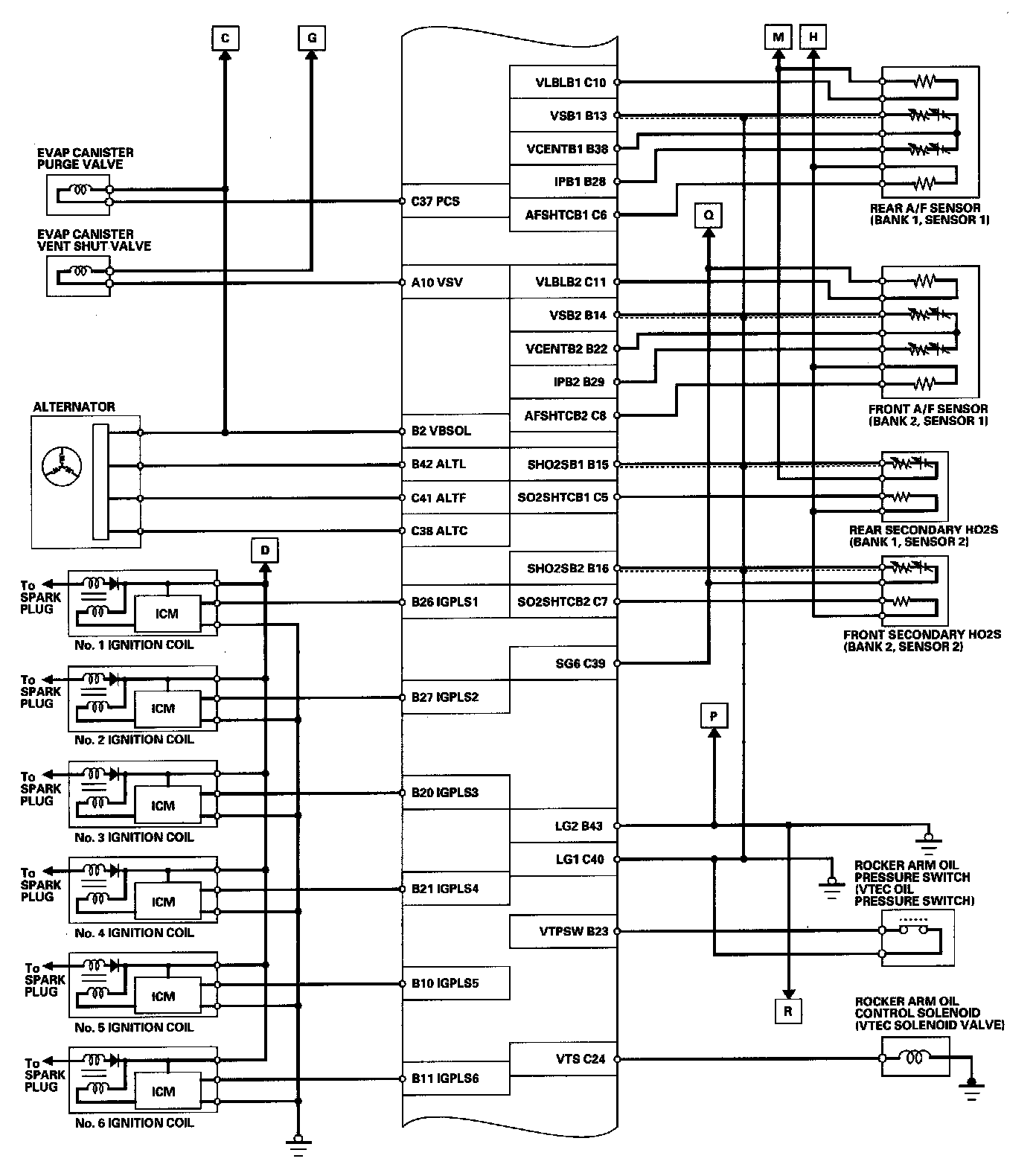

PCM Electrical Connection Part 1:

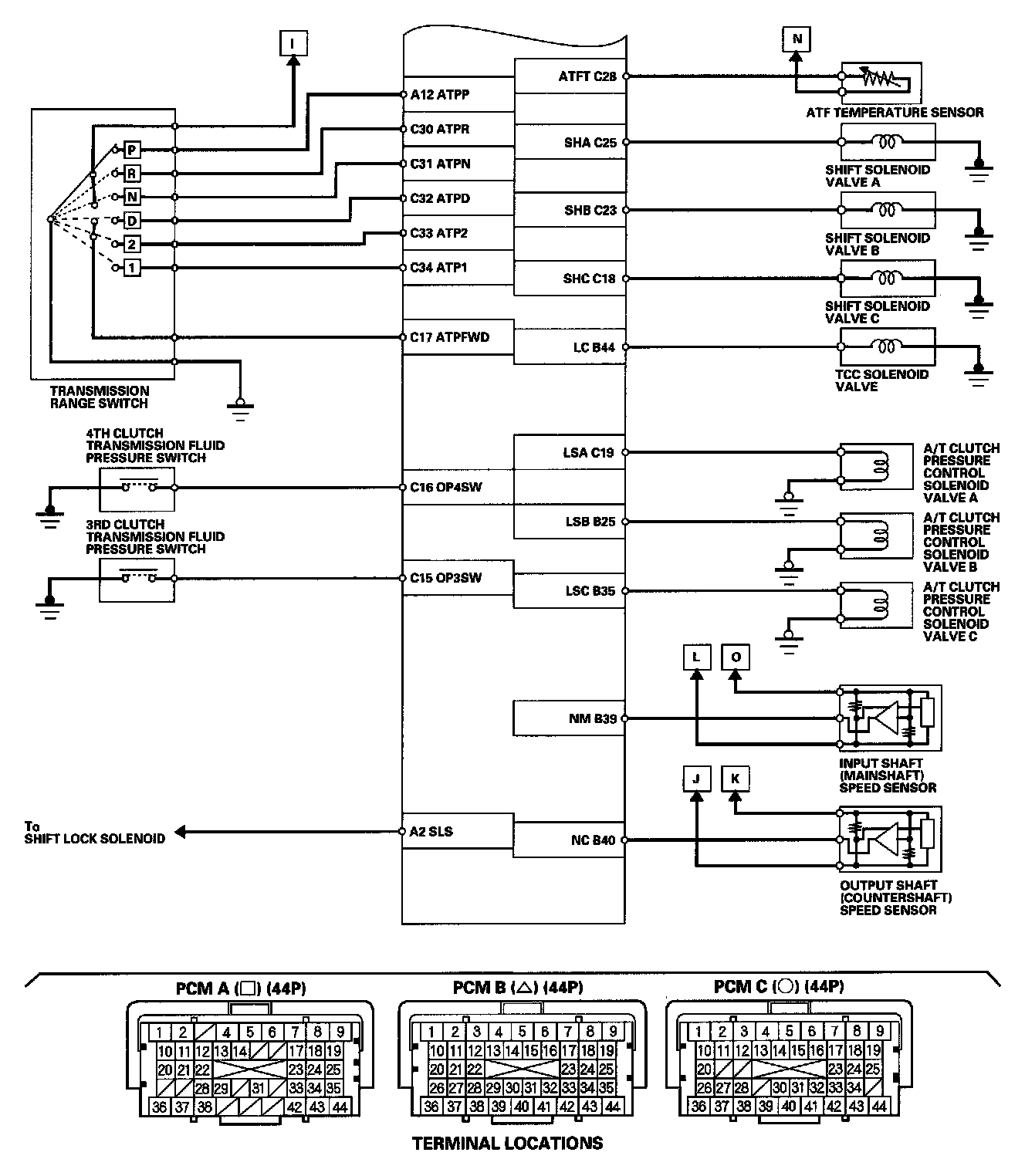

PCM Electrical Connection Part 2:

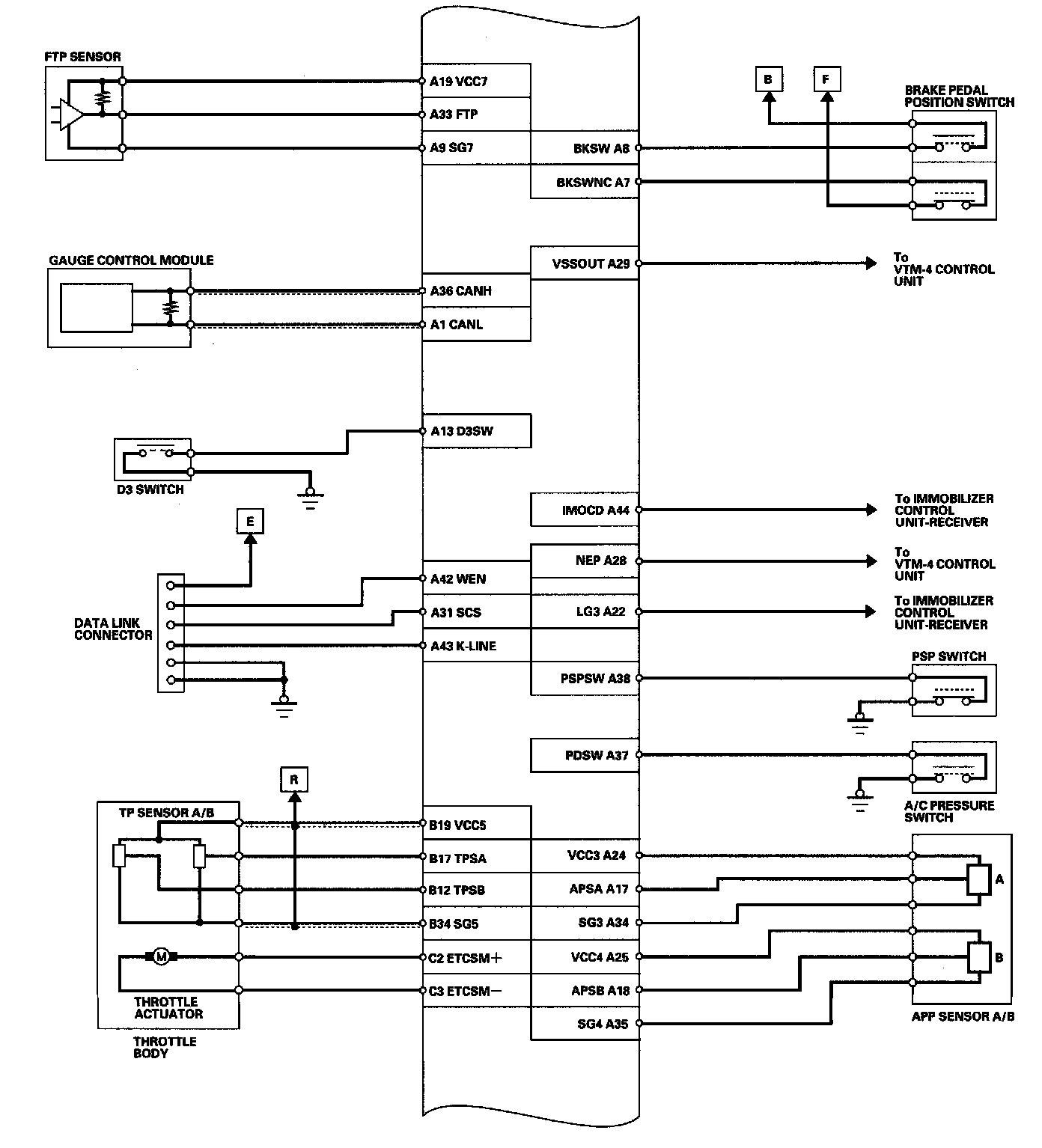

PCM Electrical Connection Part 3:

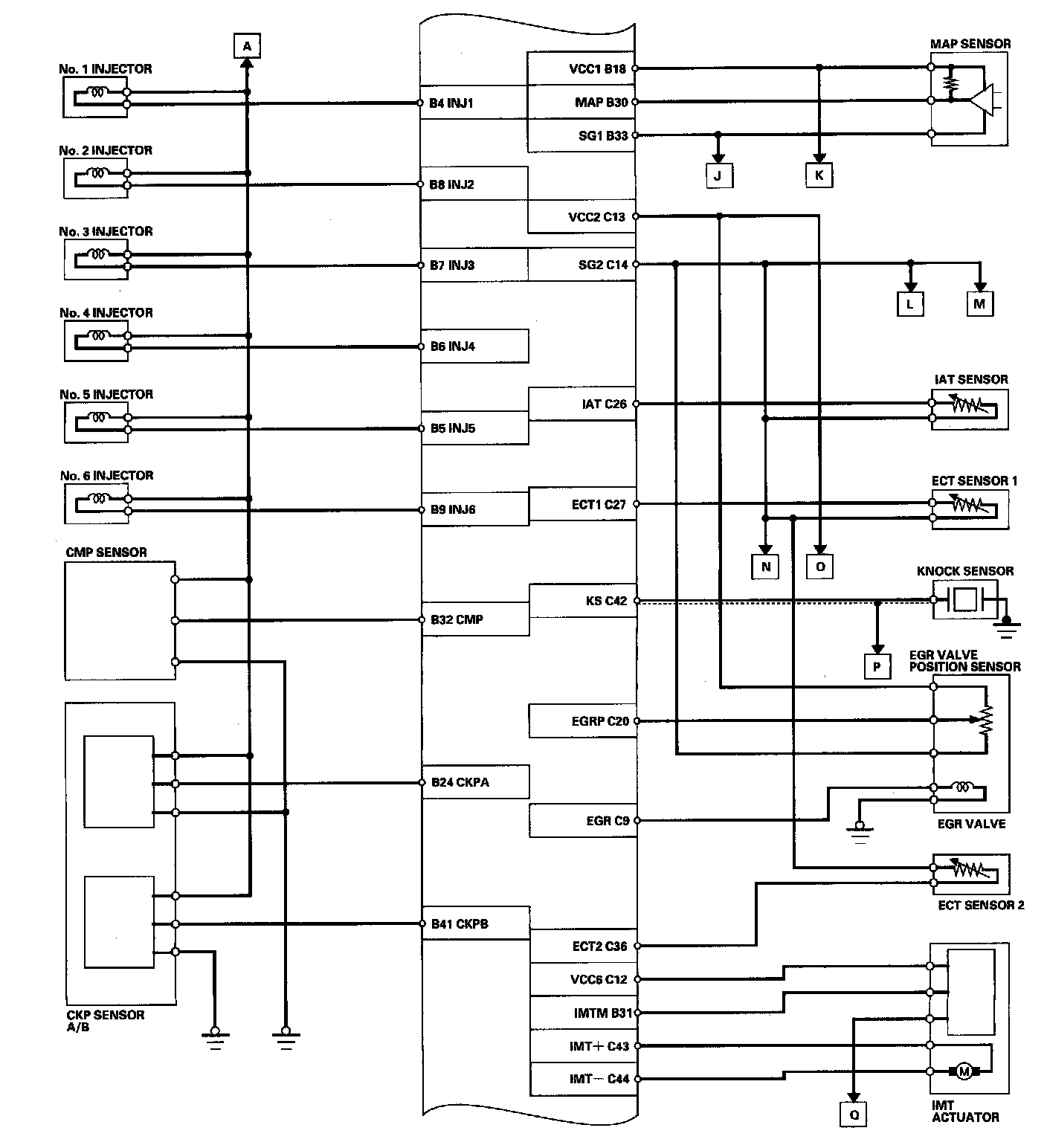

PCM Electrical Connection Part 4:

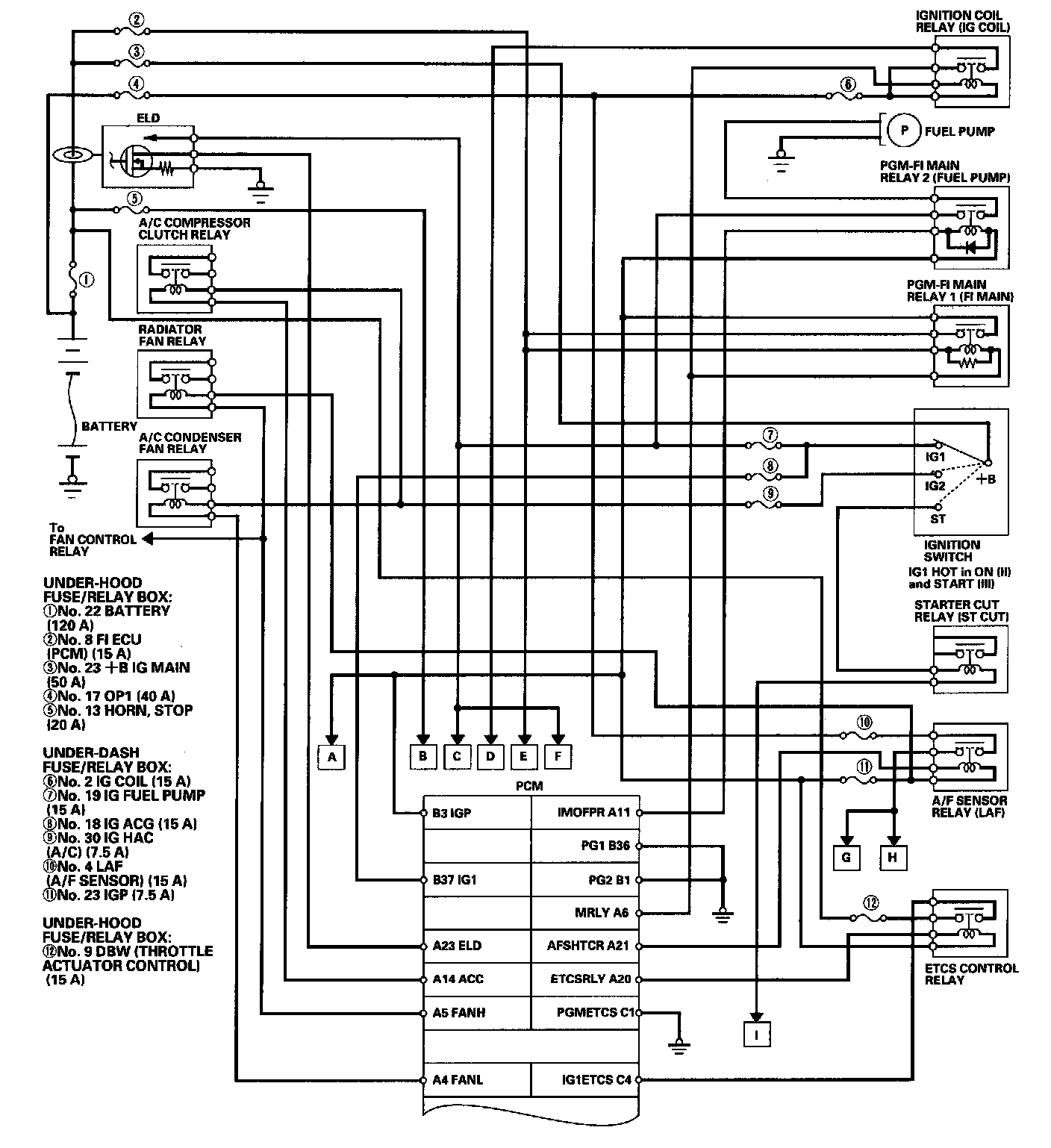

PCM Electrical Connection Part 5:
