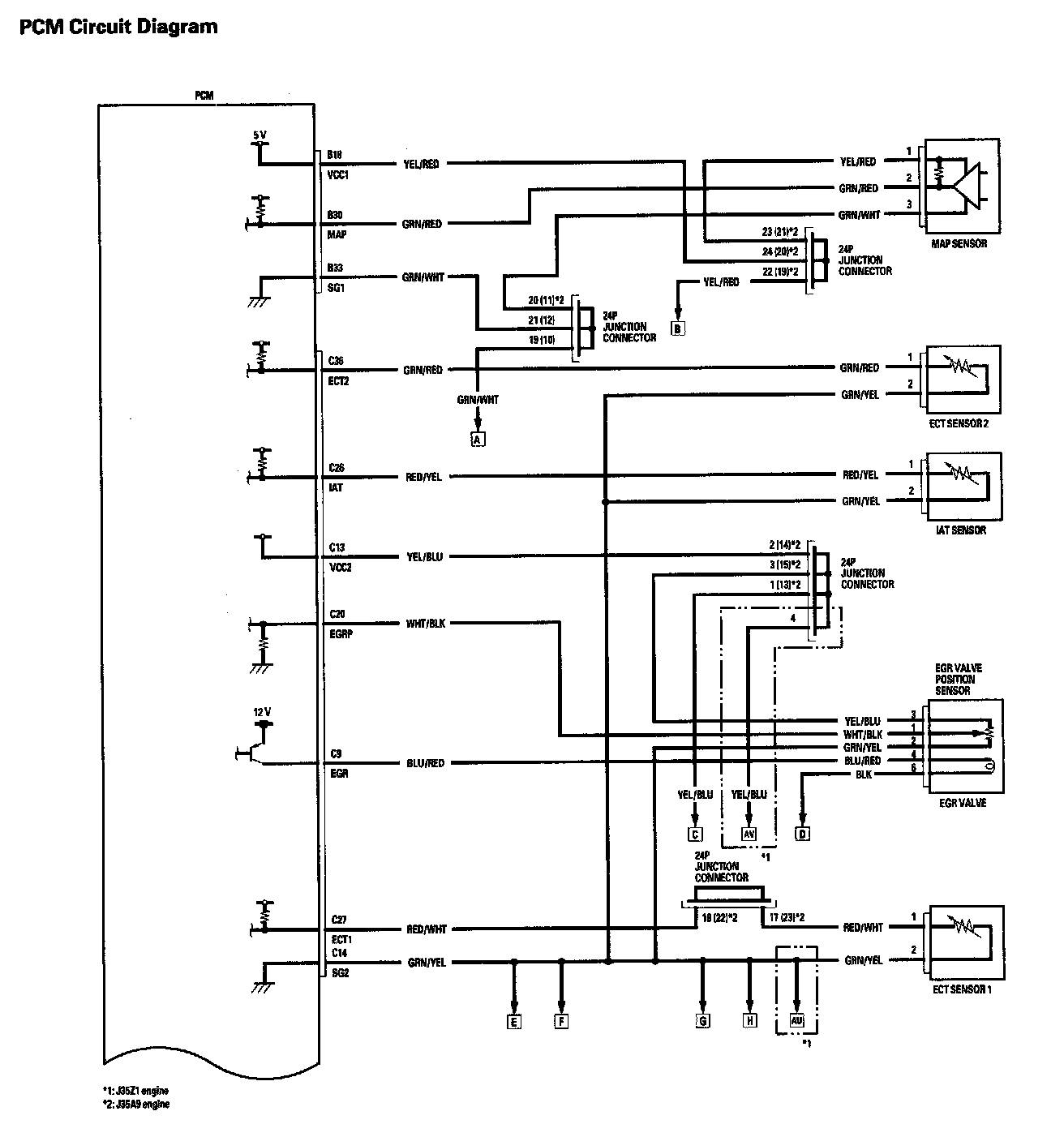

PCM Circuit Diagram

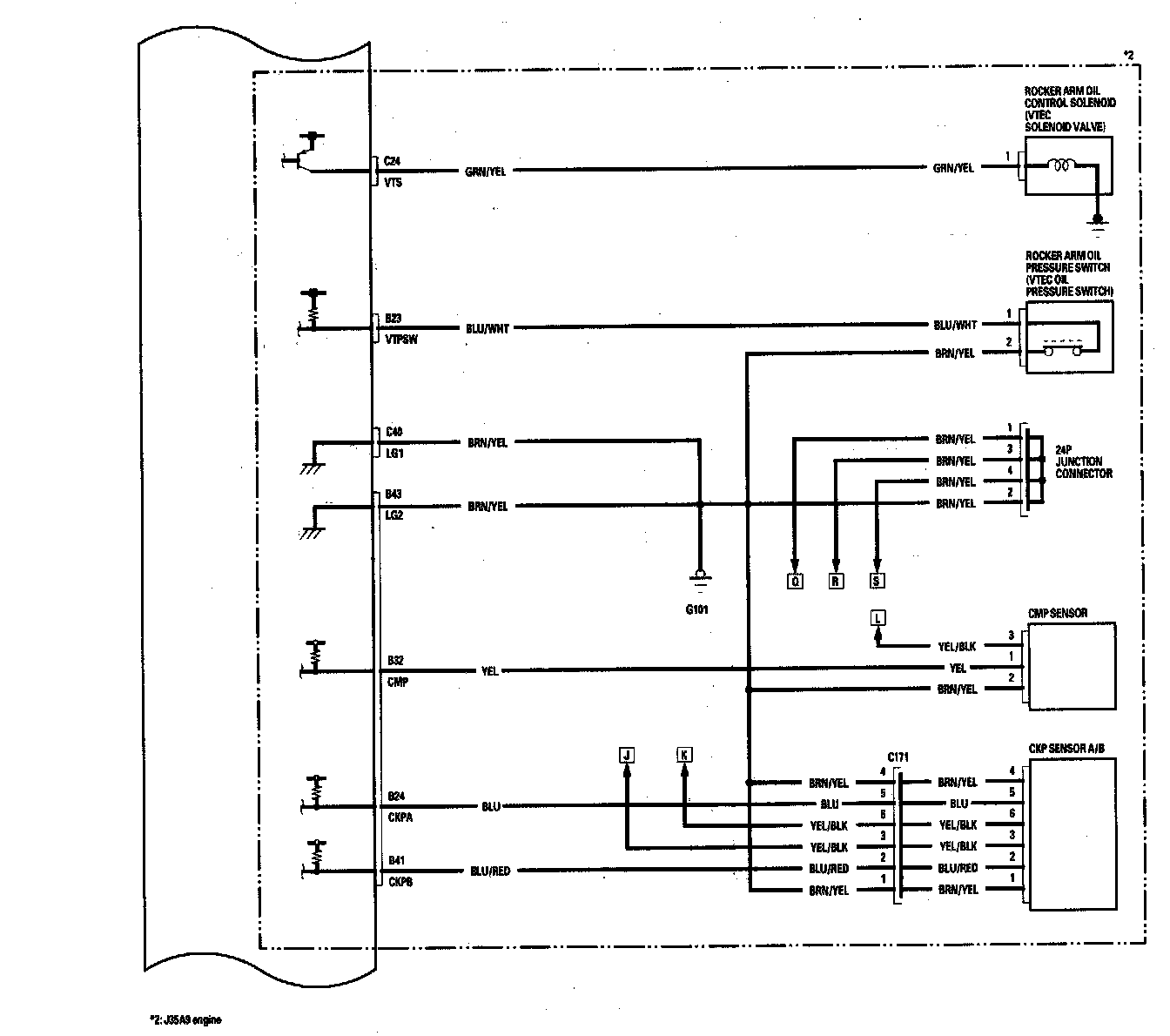

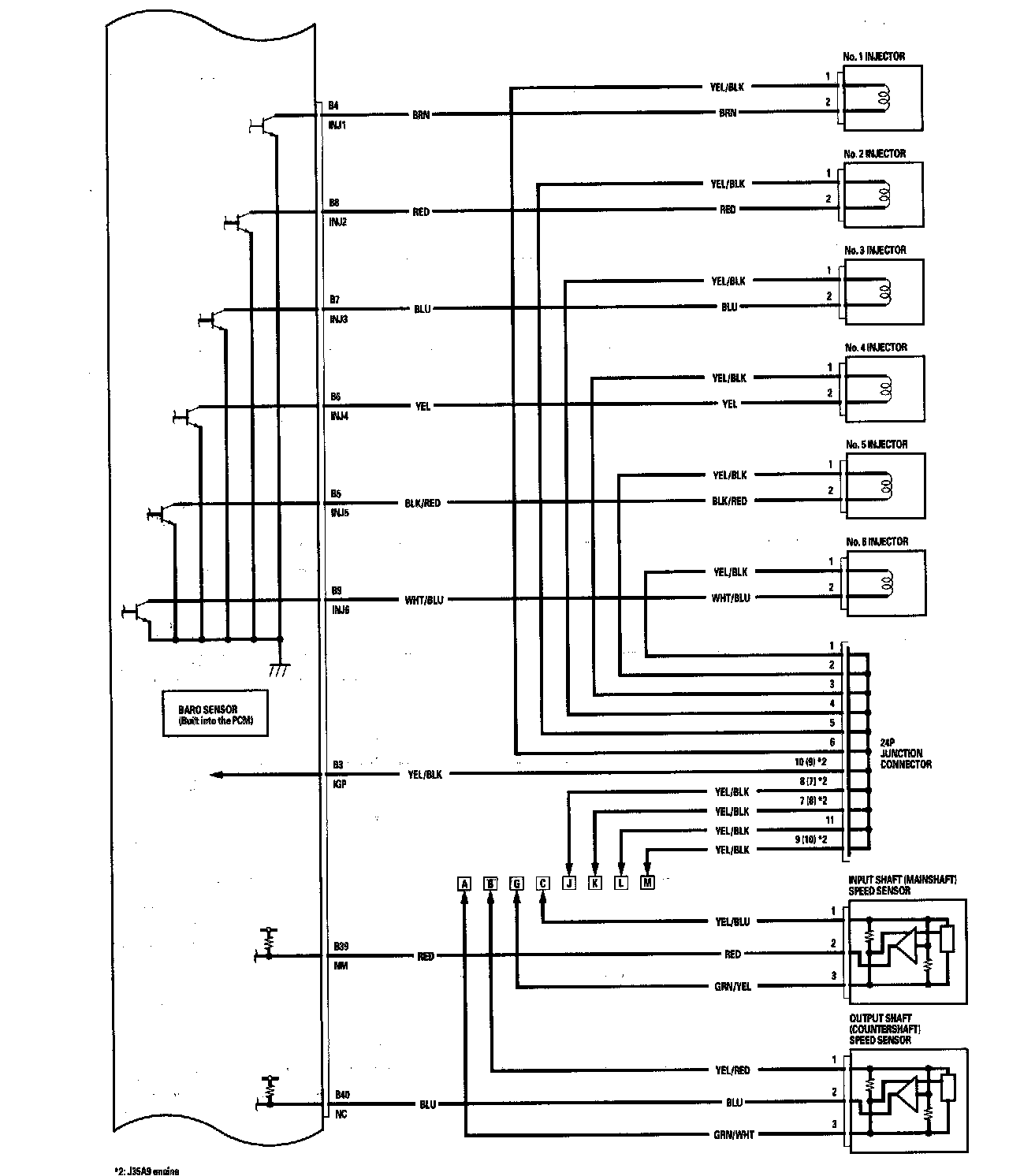

PCM Circuit Diagram Part 1:

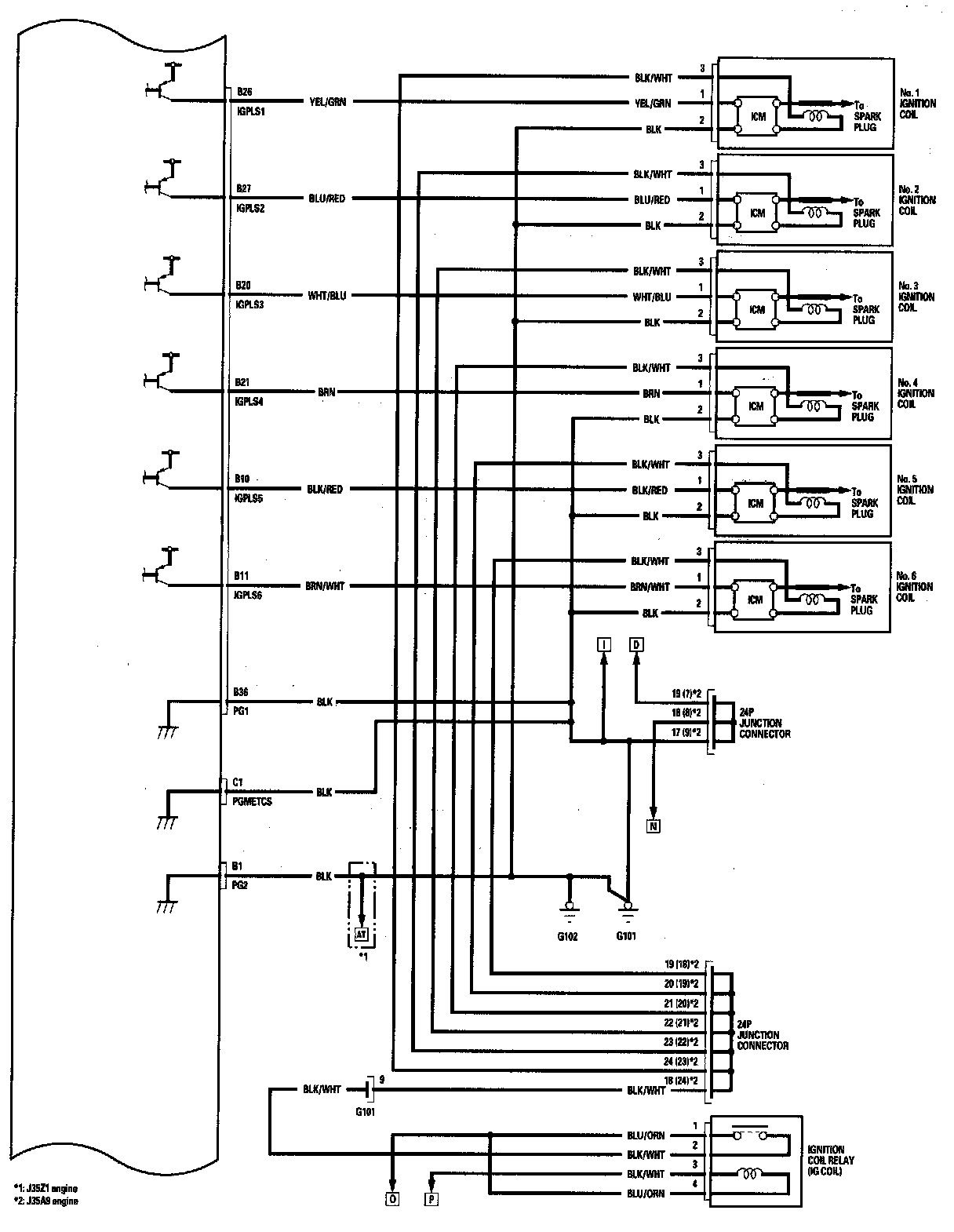

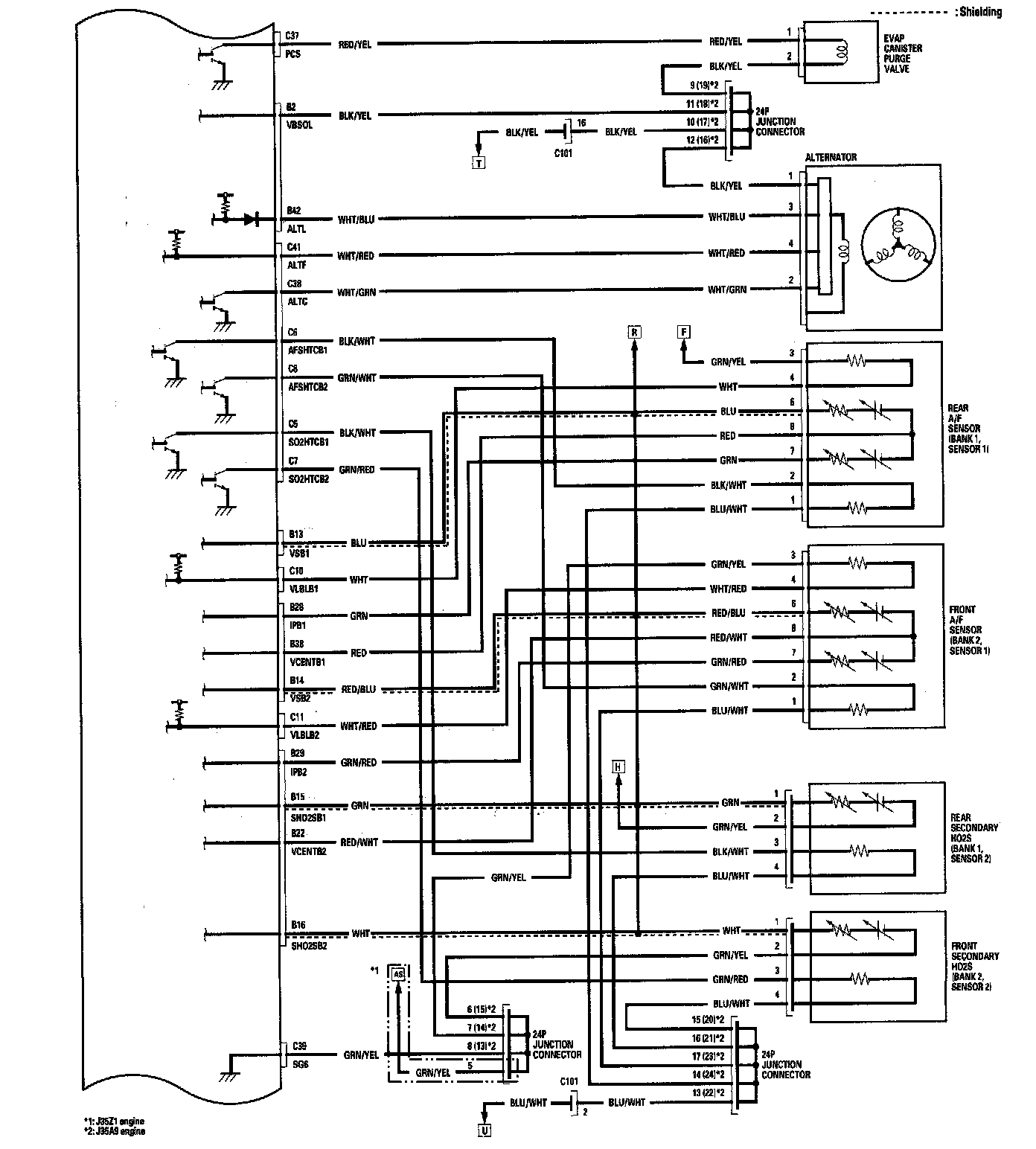

PCM Circuit Diagram Part 2:

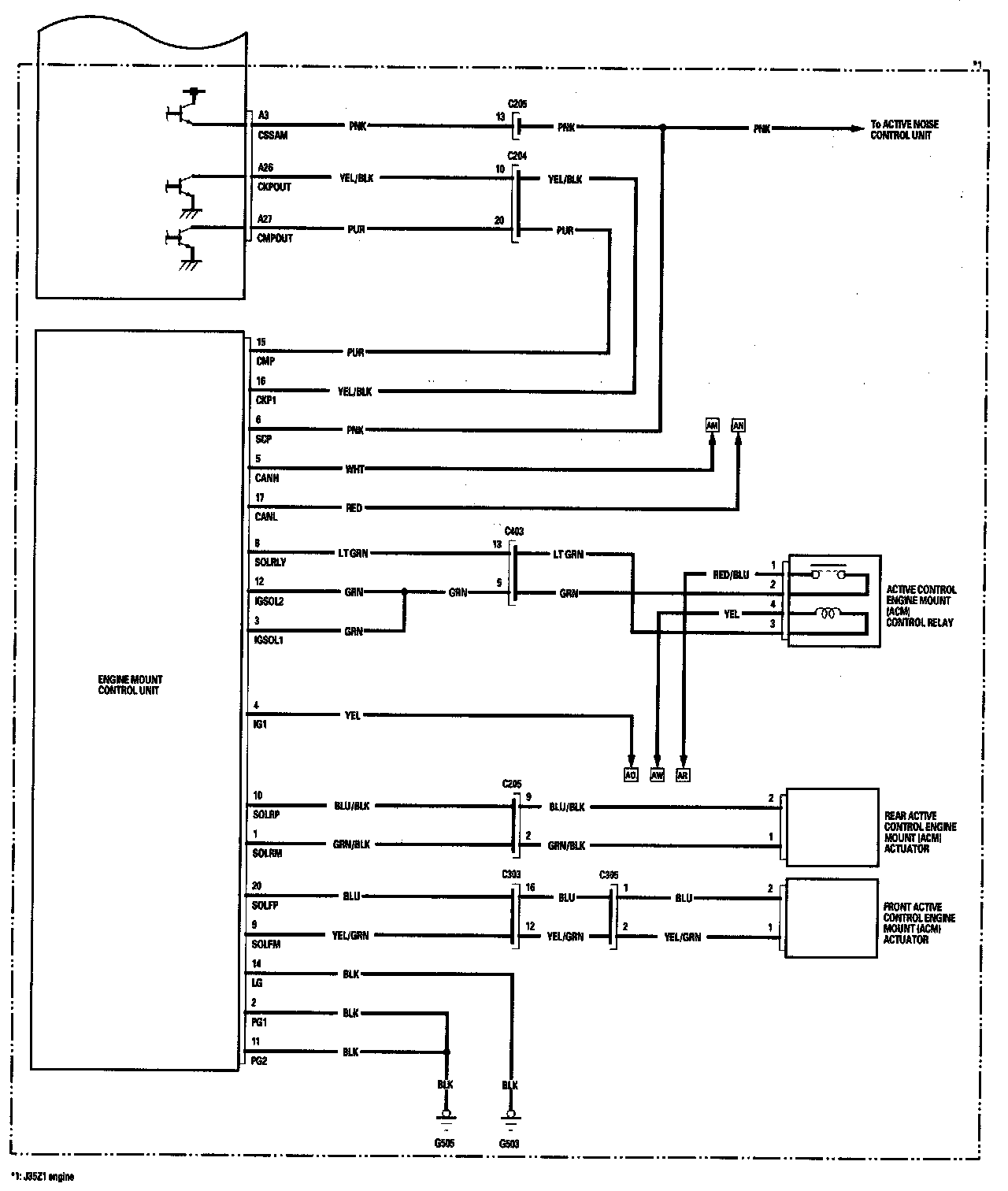

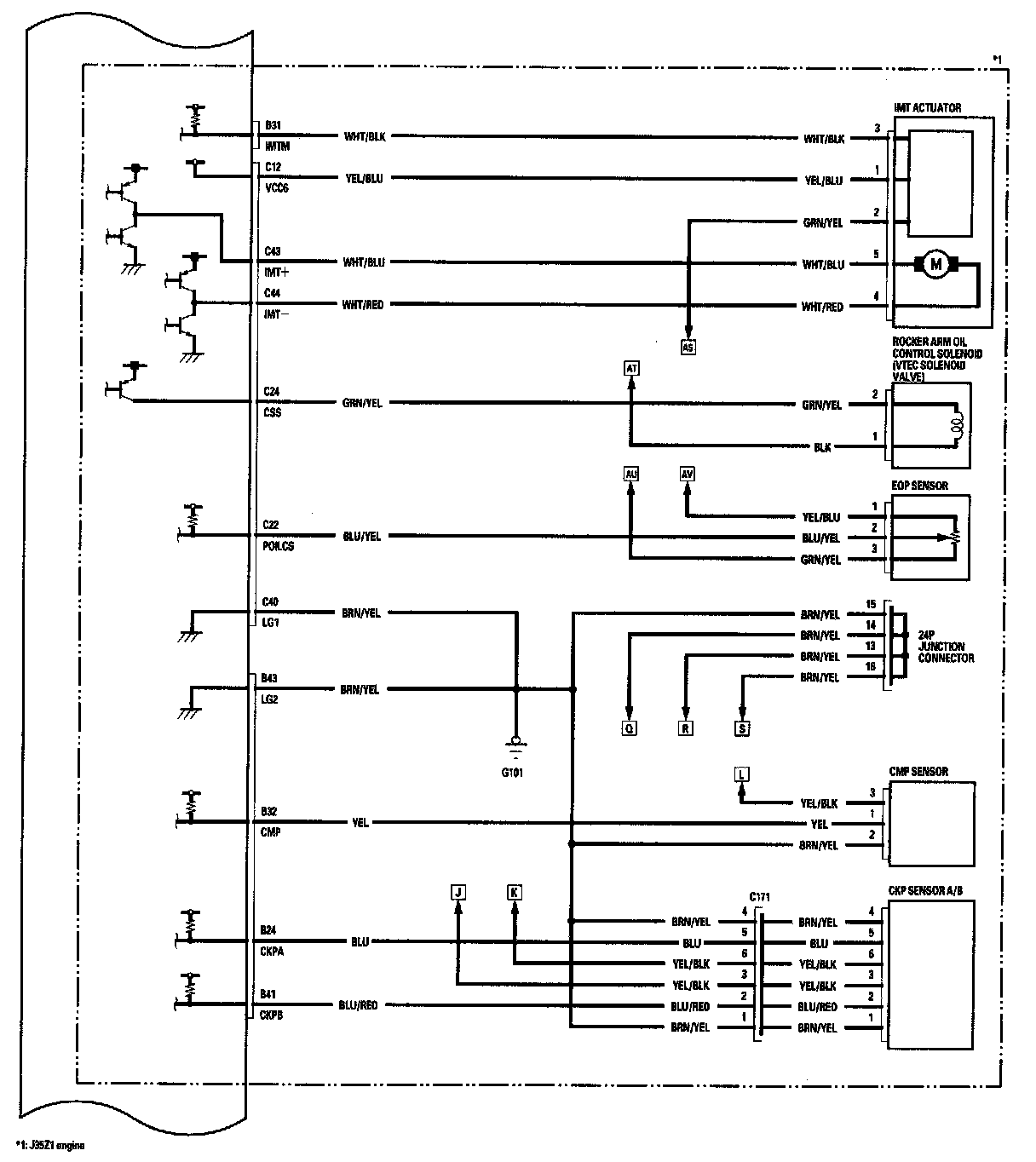

PCM Circuit Diagram Part 3:

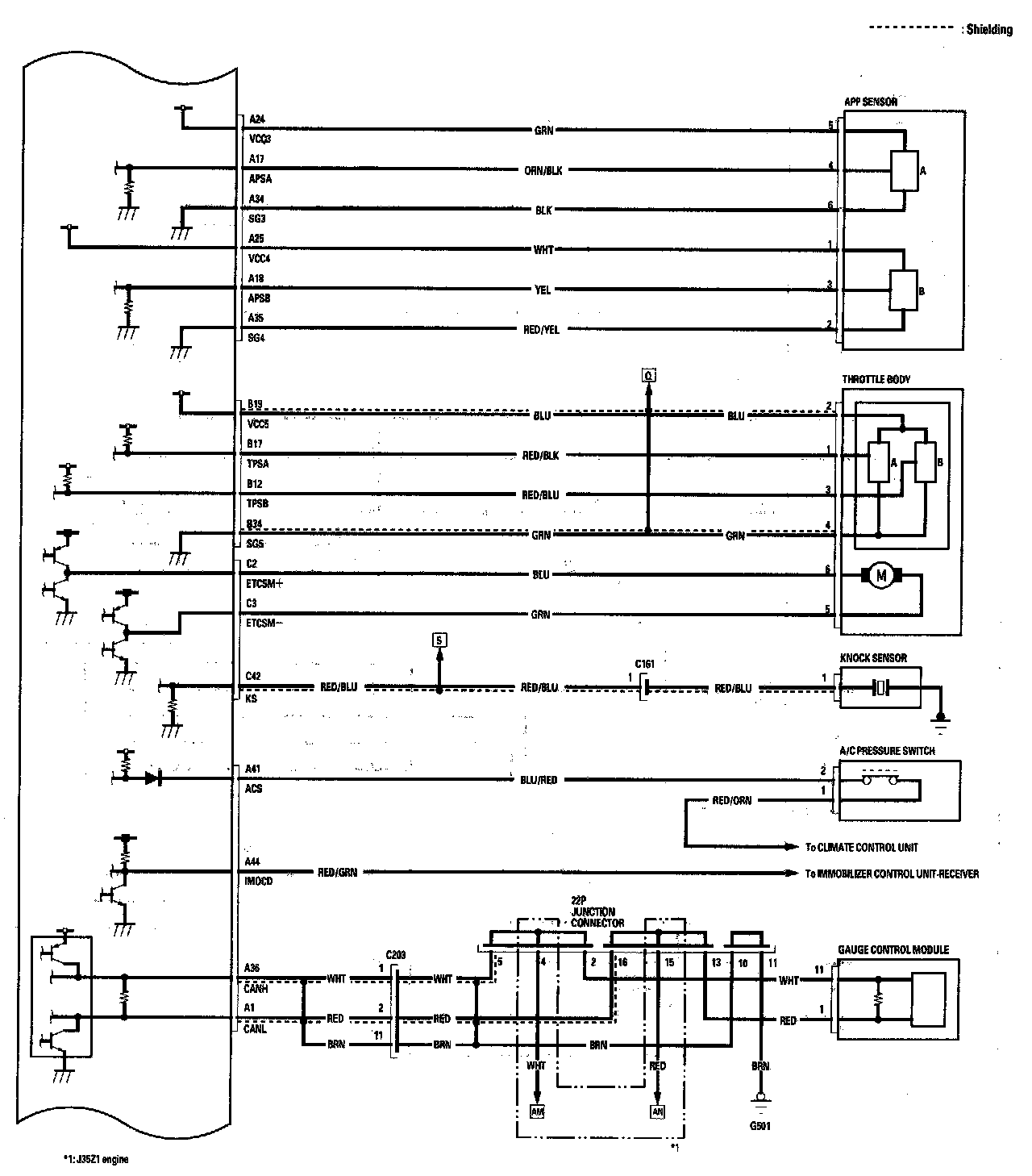

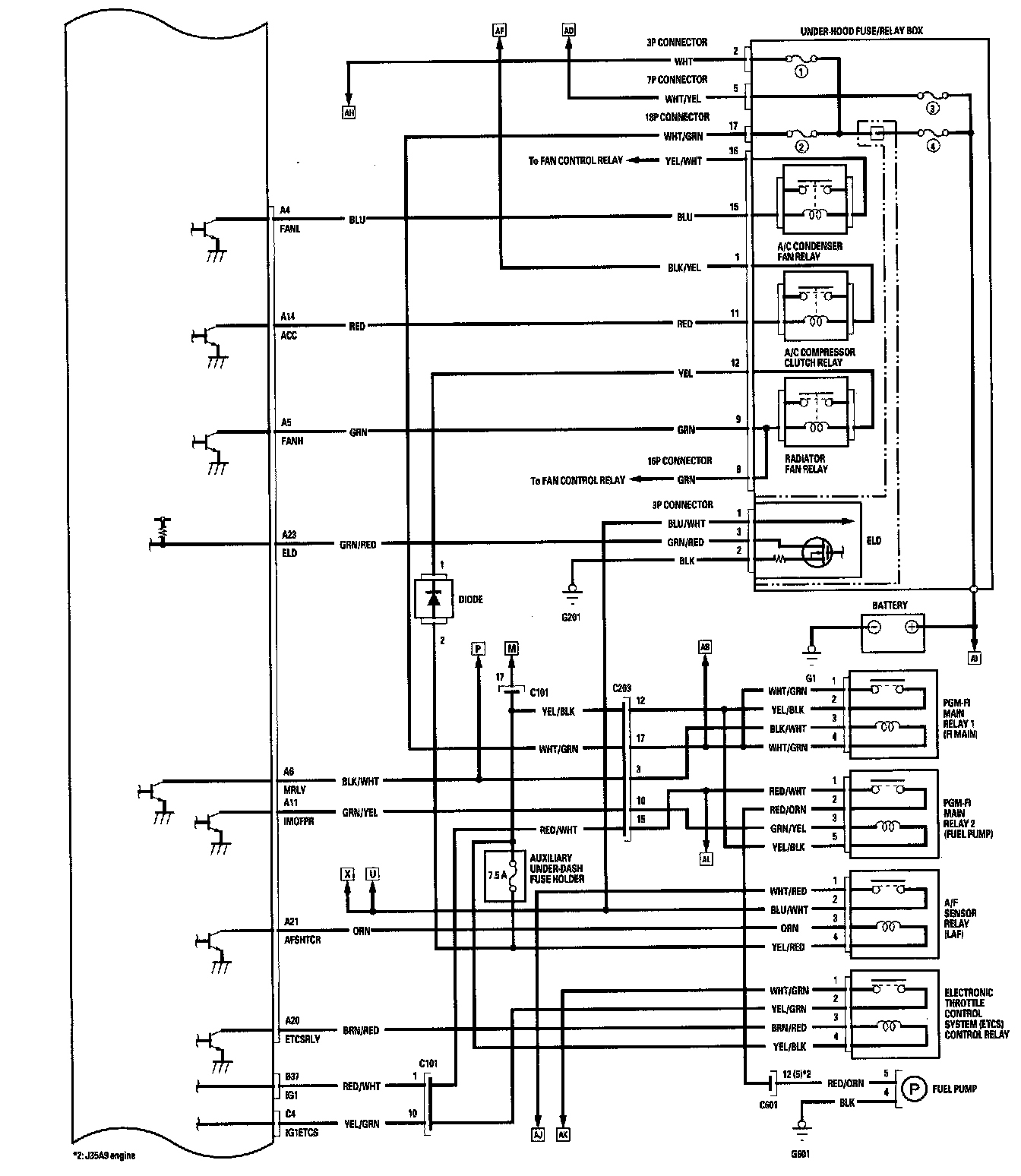

PCM Circuit Diagram Part 4:

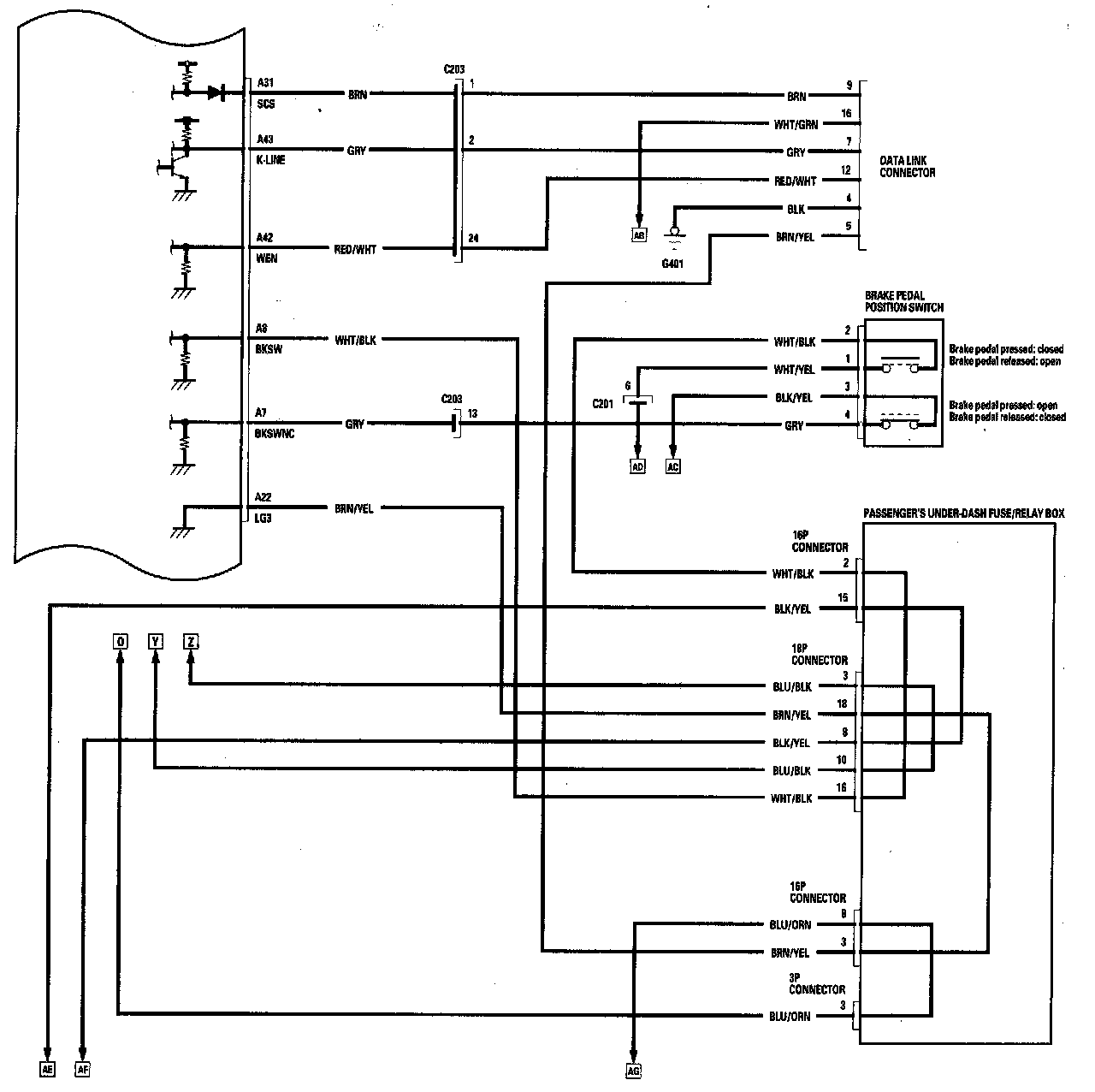

PCM Circuit Diagram Part 5:

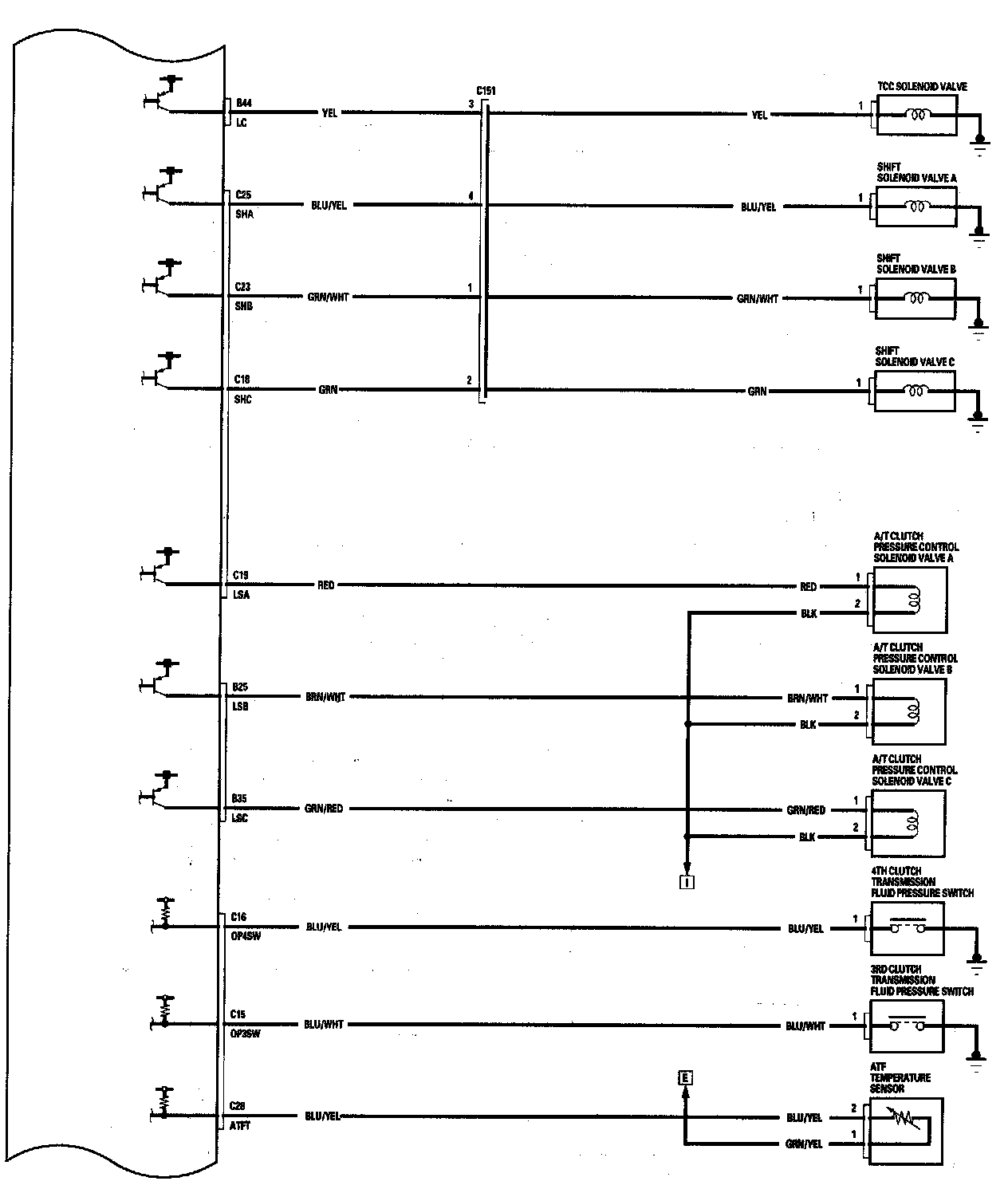

PCM Circuit Diagram Part 6:

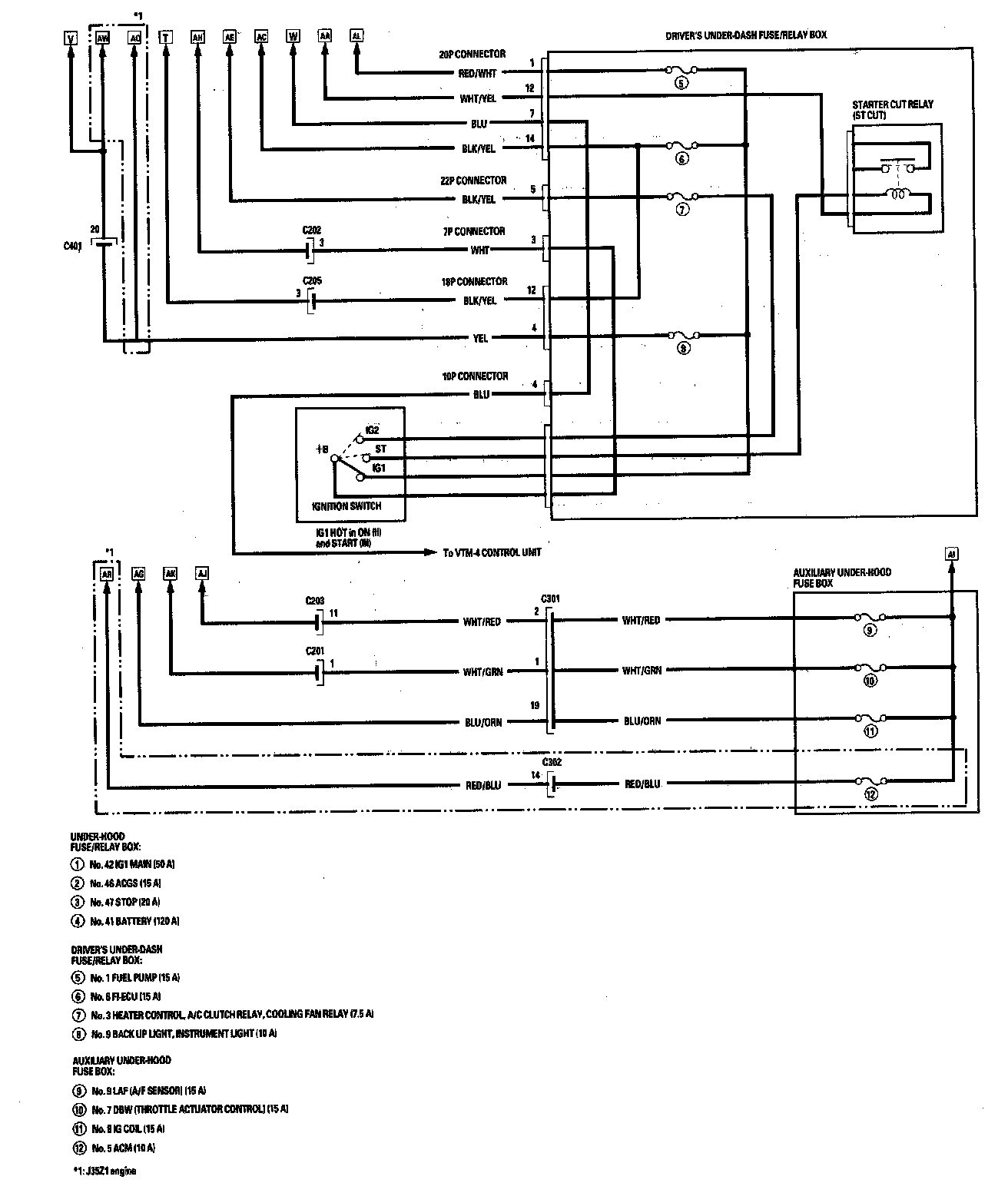

PCM Circuit Diagram Part 7:

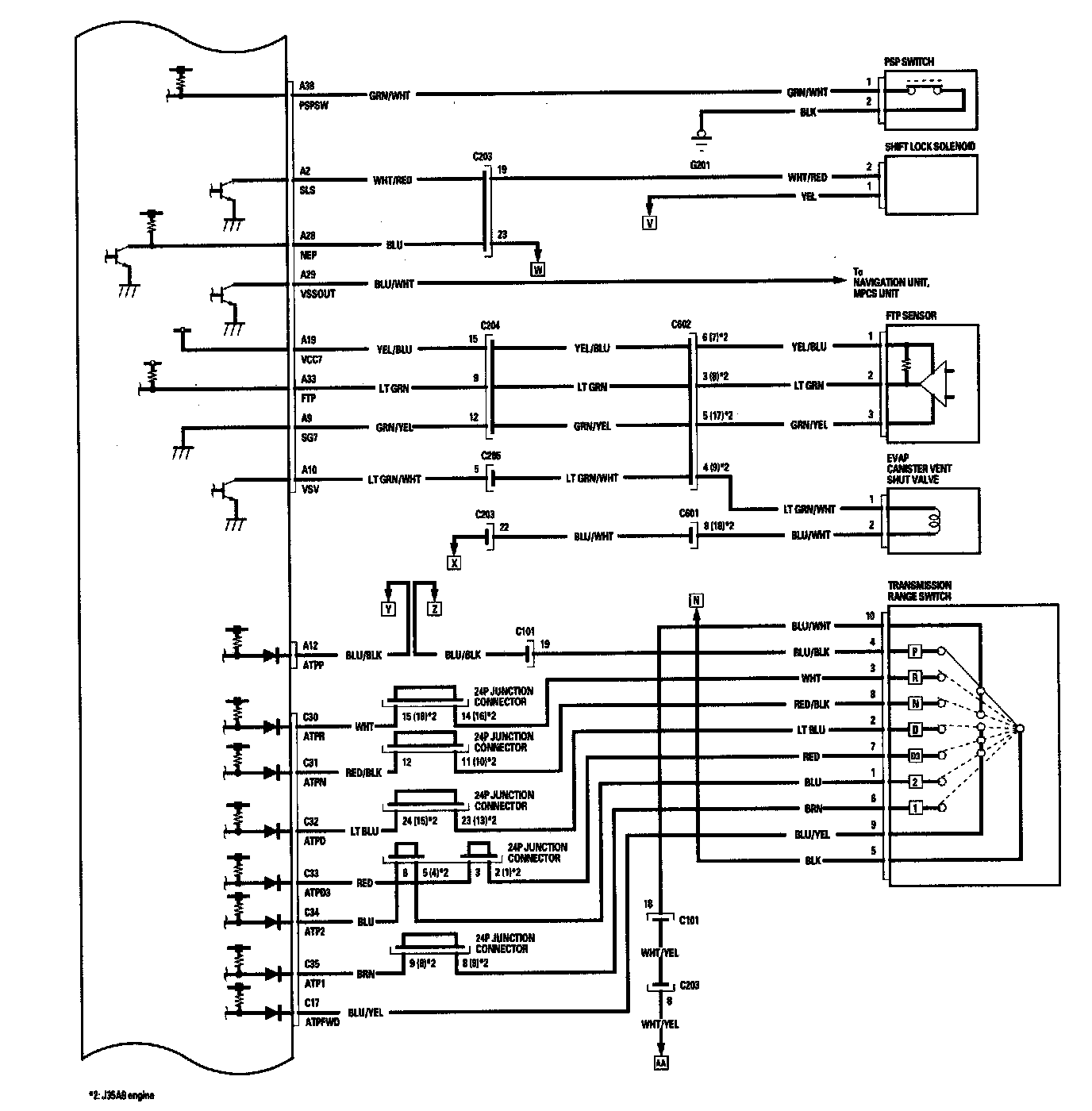

PCM Circuit Diagram Part 8:

PCM Circuit Diagram Part 9:

PCM Circuit Diagram Part 10:

PCM Circuit Diagram Part 11:

PCM Circuit Diagram Part 12:

PCM Circuit Diagram Part 13:
