Multiple Junction Connector

311. C405 (Junction Connector):

312. C407 (Junction Connector):

314. C502 (Junction Connector) (LX; Canada: DX):

315. C508 (Junction Connector):

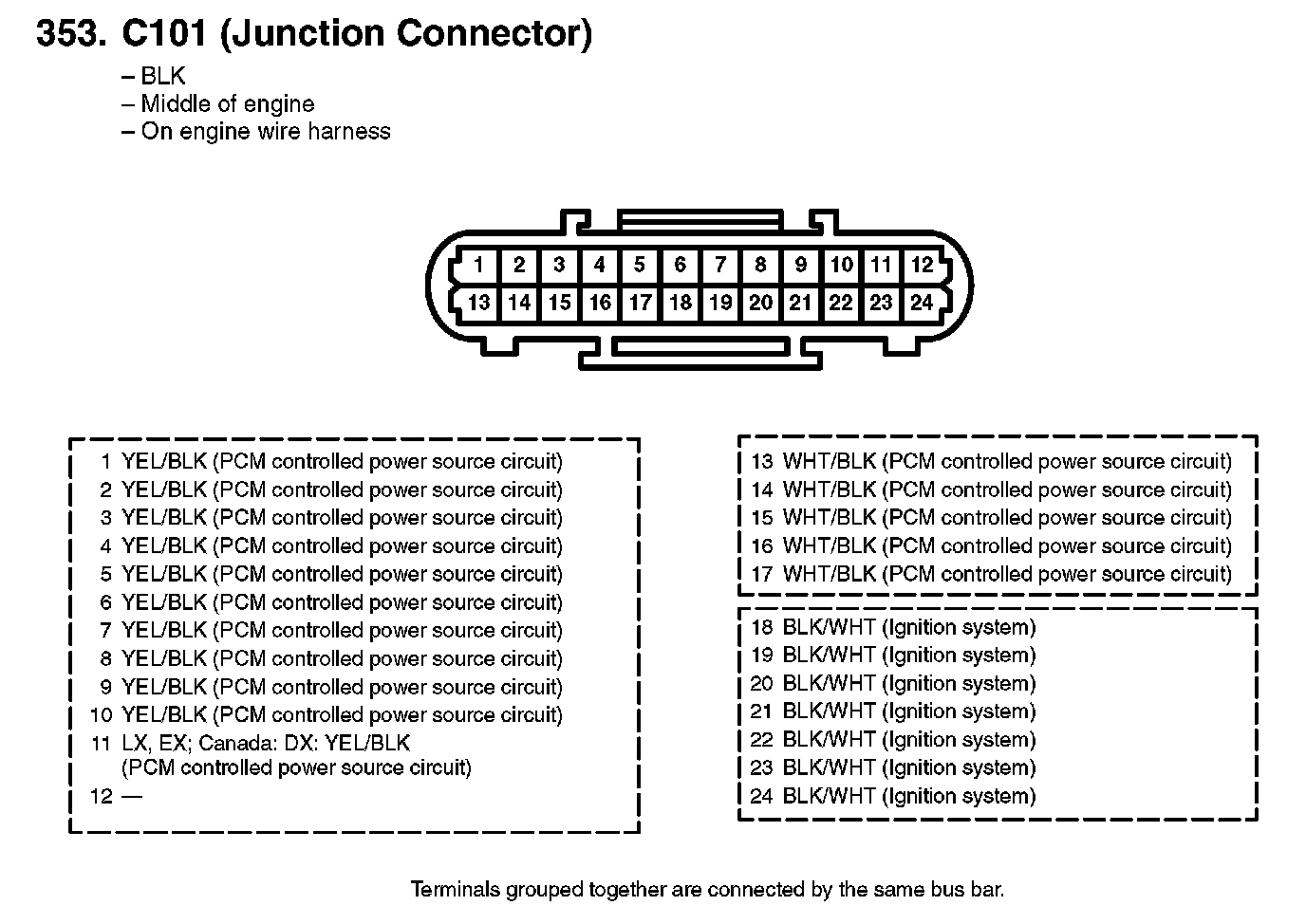

353. C101 (Junction Connector):

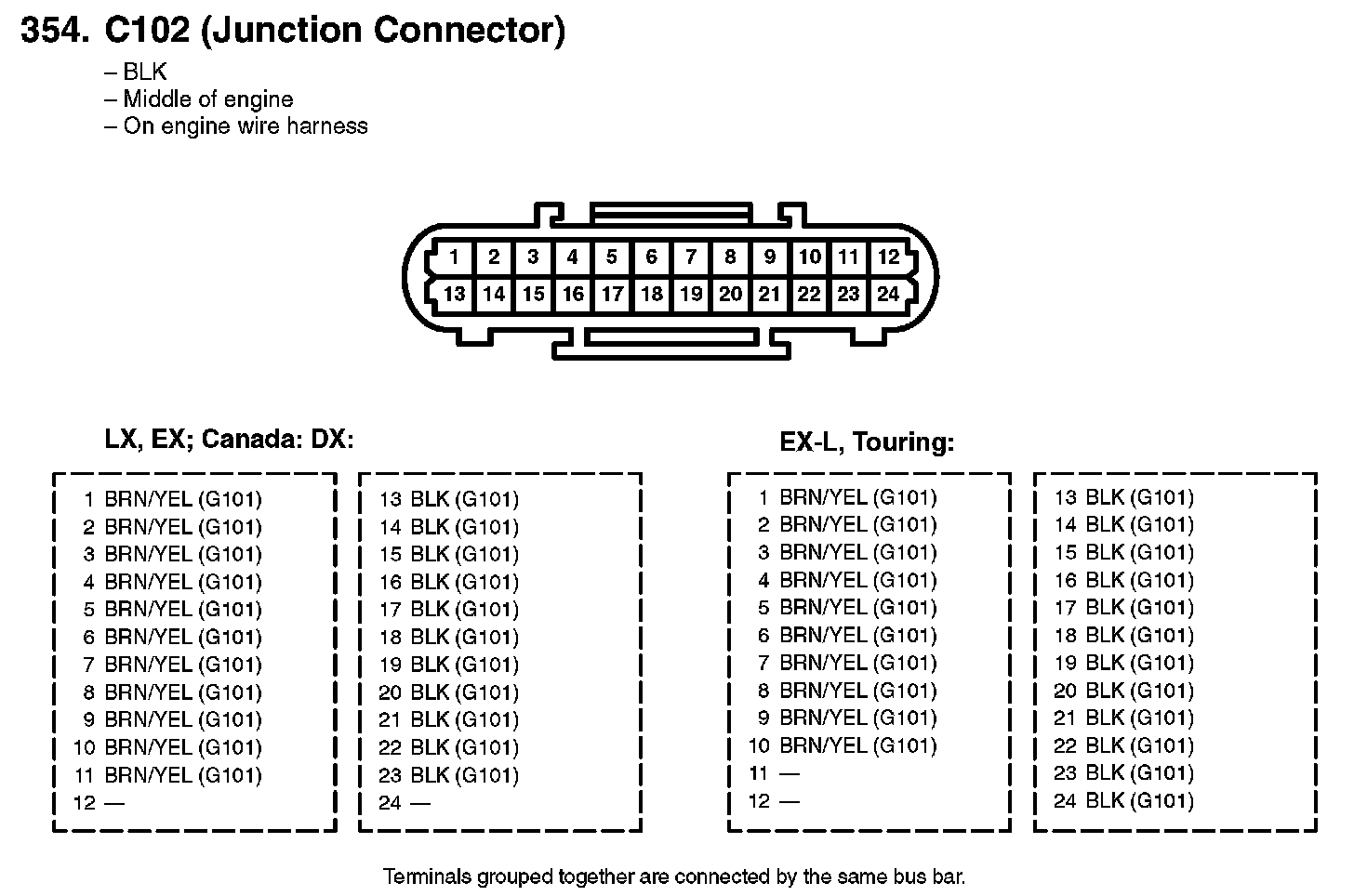

354. C102 (Junction Connector):

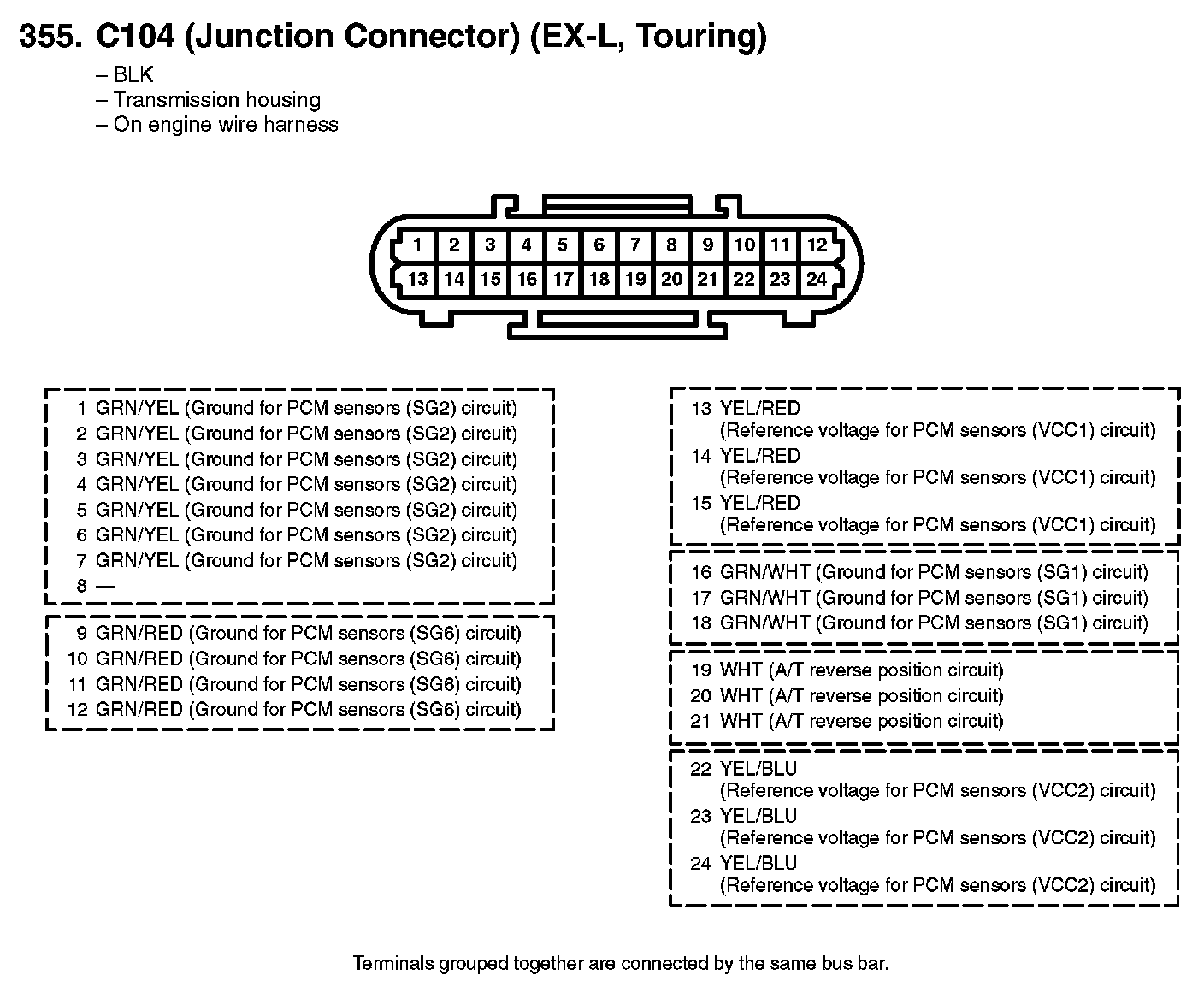

355. C104 (Junction Connector) (EX-L, Touring):

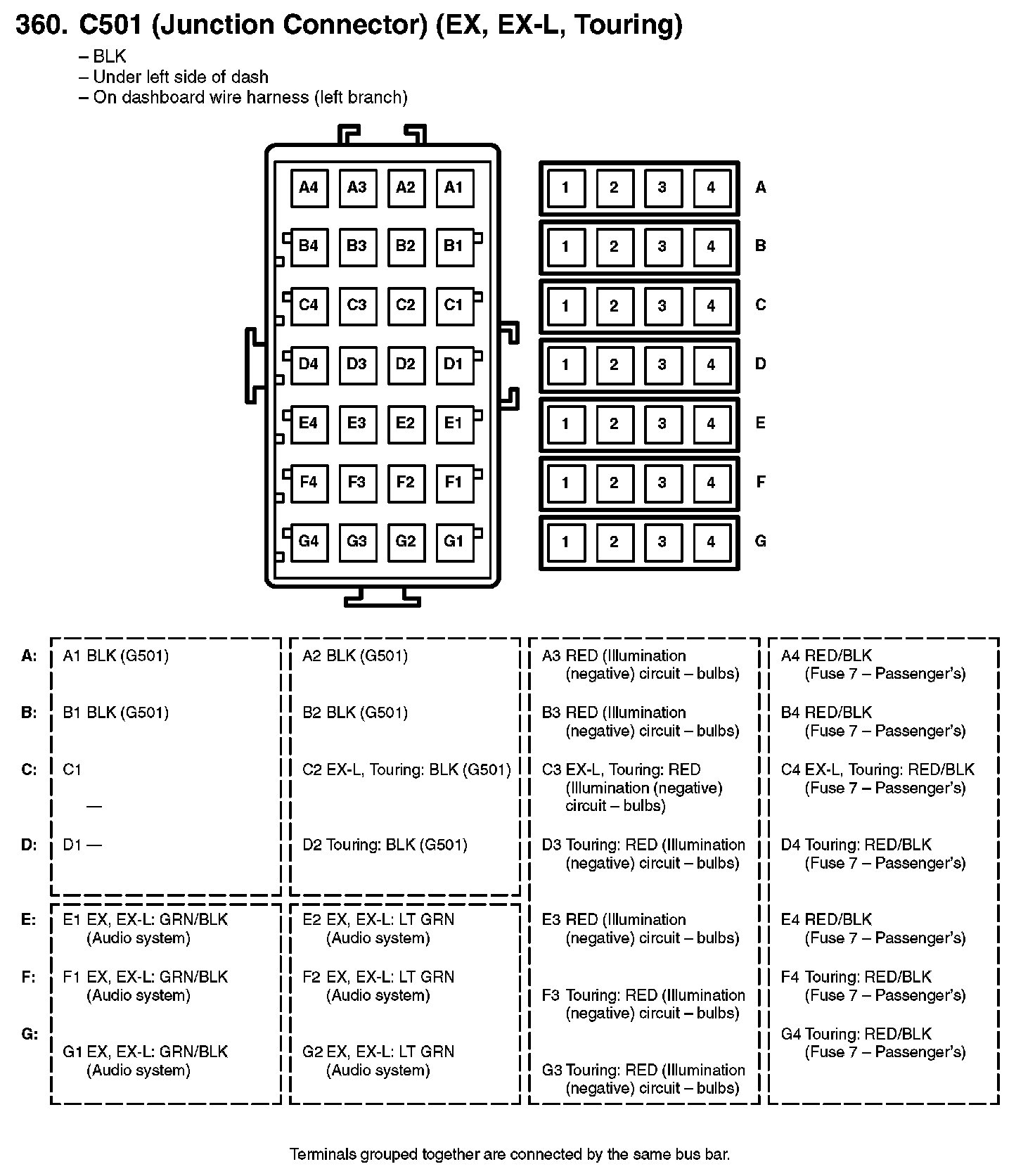

360. C501 (Junction Connector) (EX, EX-L, Touring):

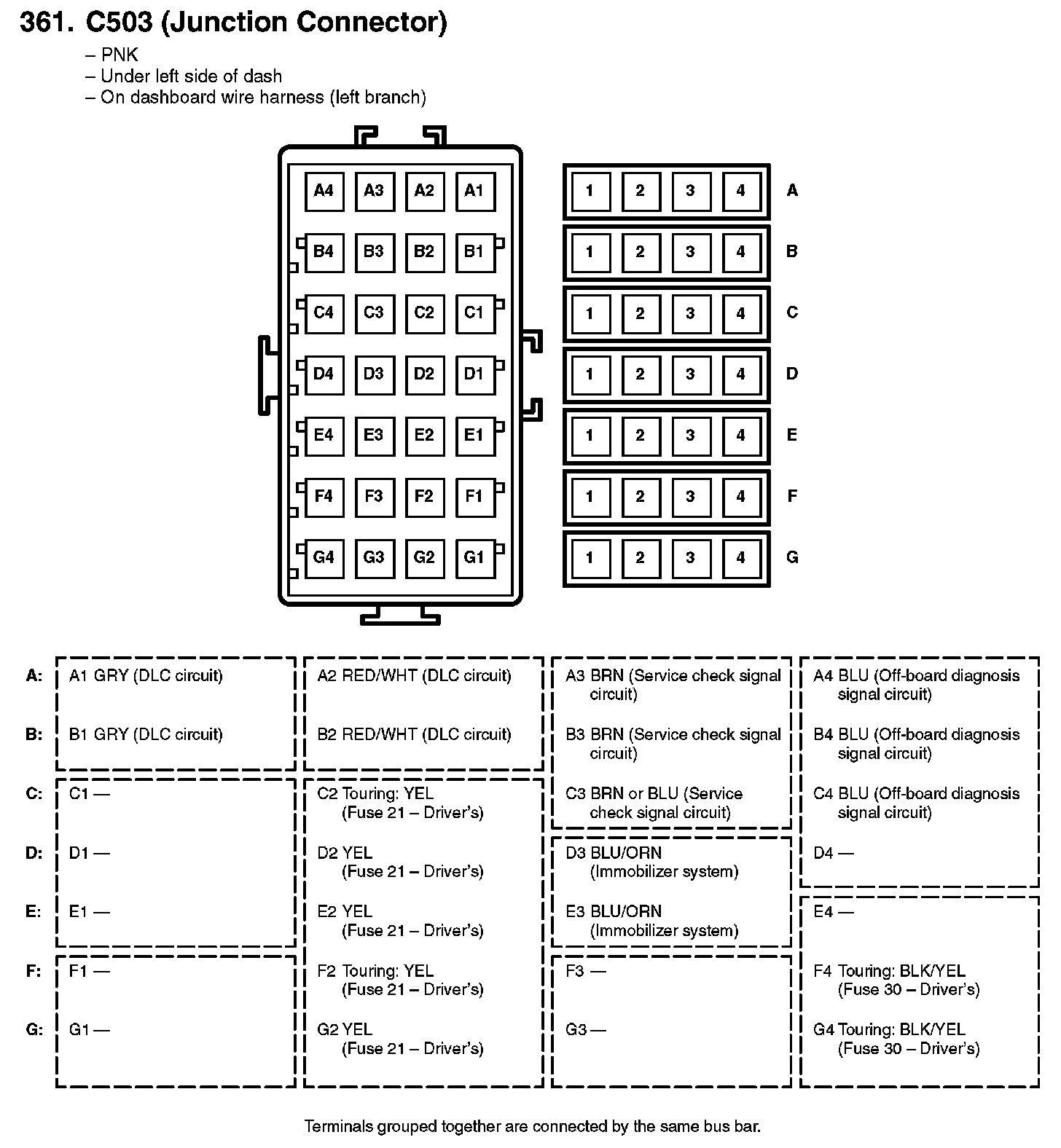

361. C503 (Junction Connector):

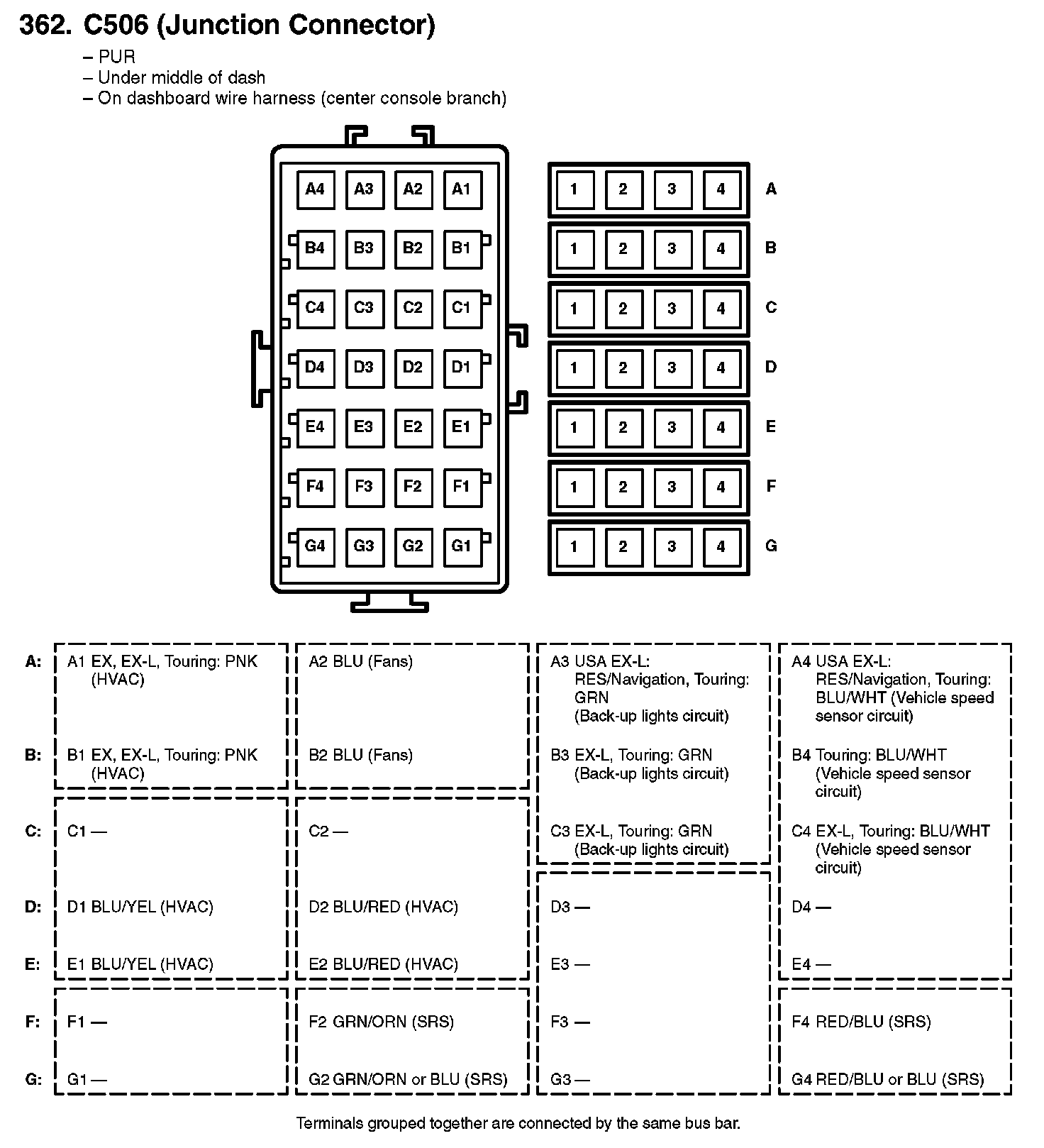

362. C506 (Junction Connector):

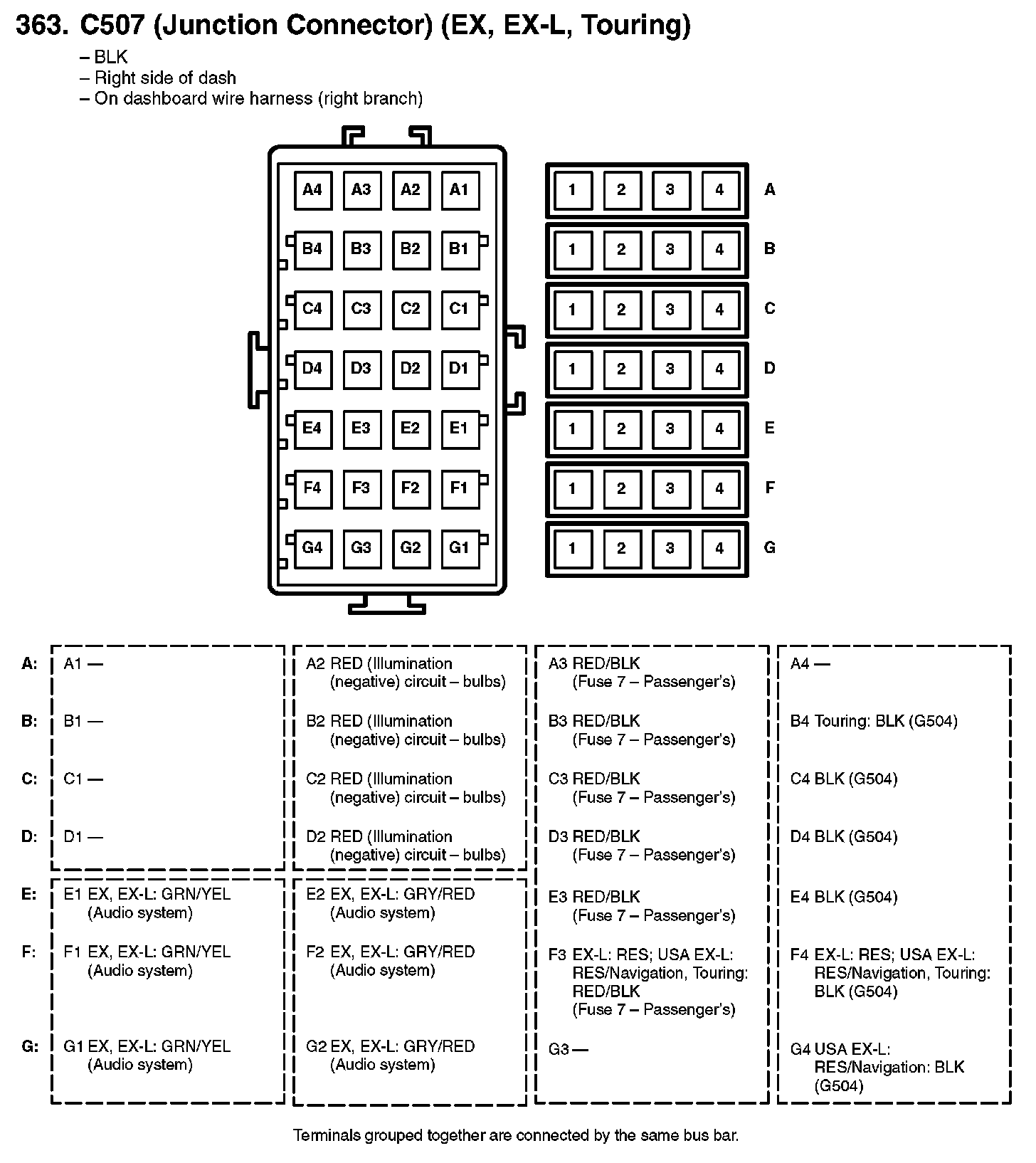

363. C507 (Junction Connector) (EX, EX-L, Touring):

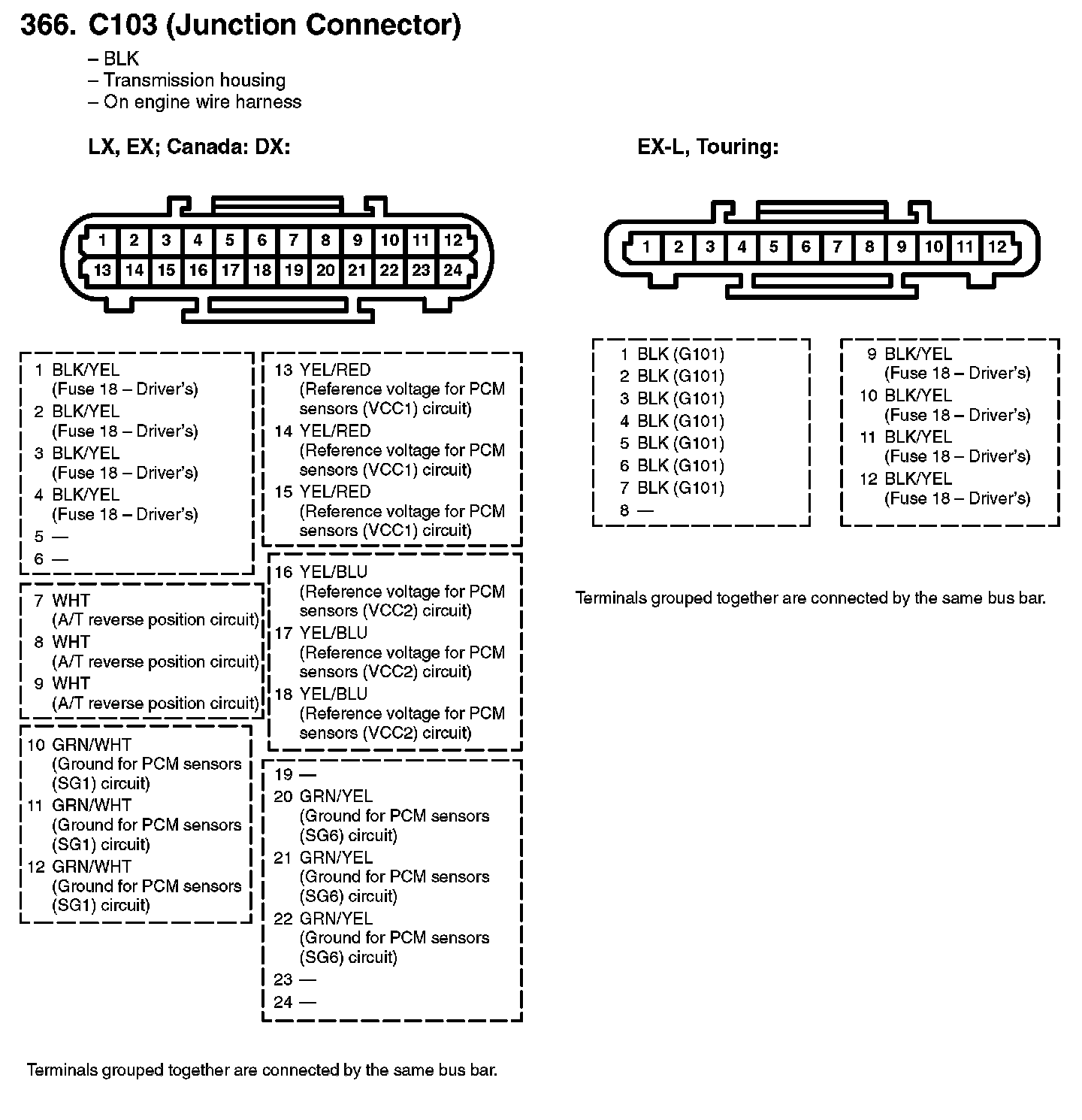

366. C103 (Junction Connector):
