Electronic Brake Control Module

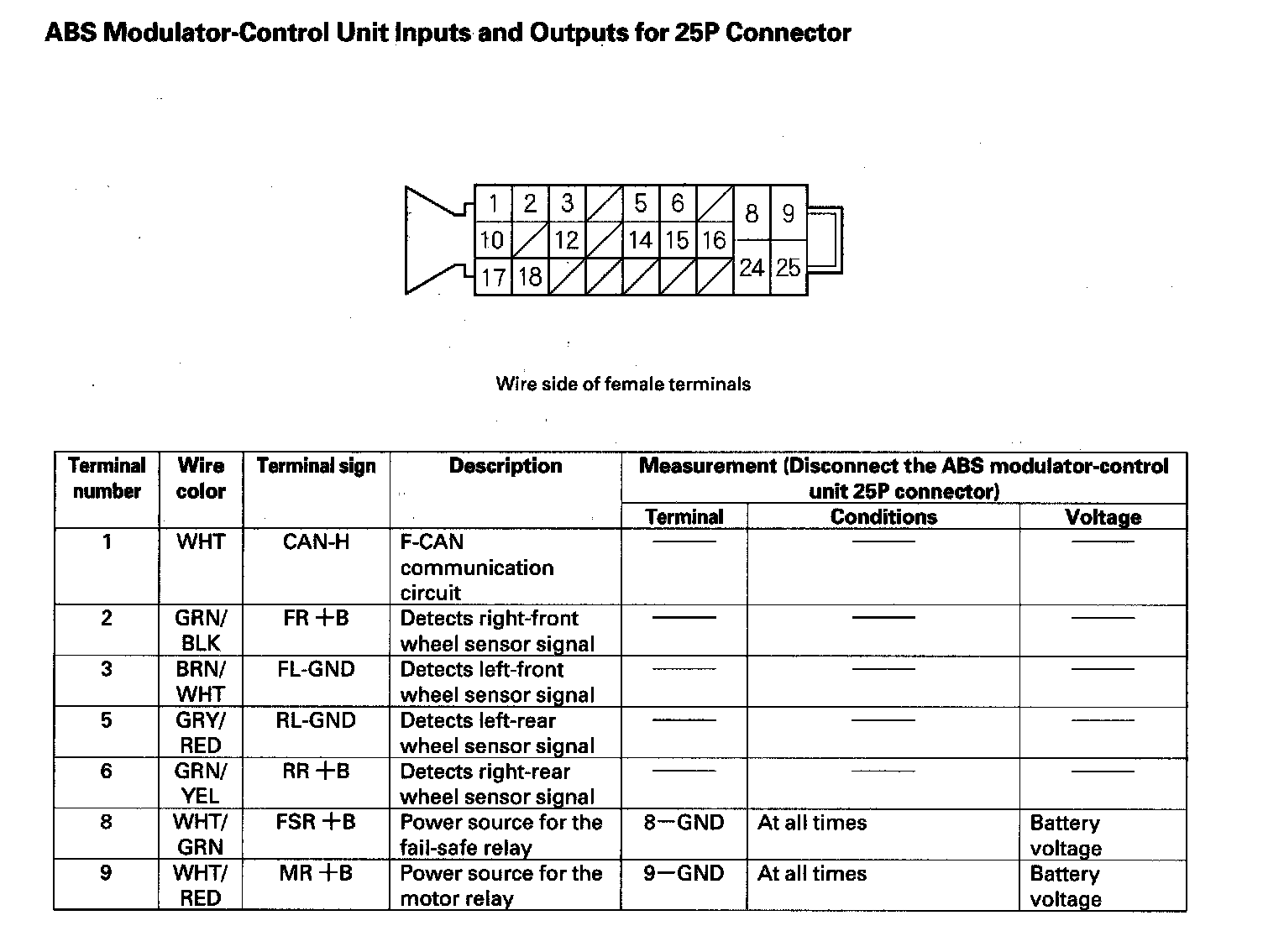

ABS Modulator-Control Unit Inputs And Outputs For 25P Connector (Part 1):

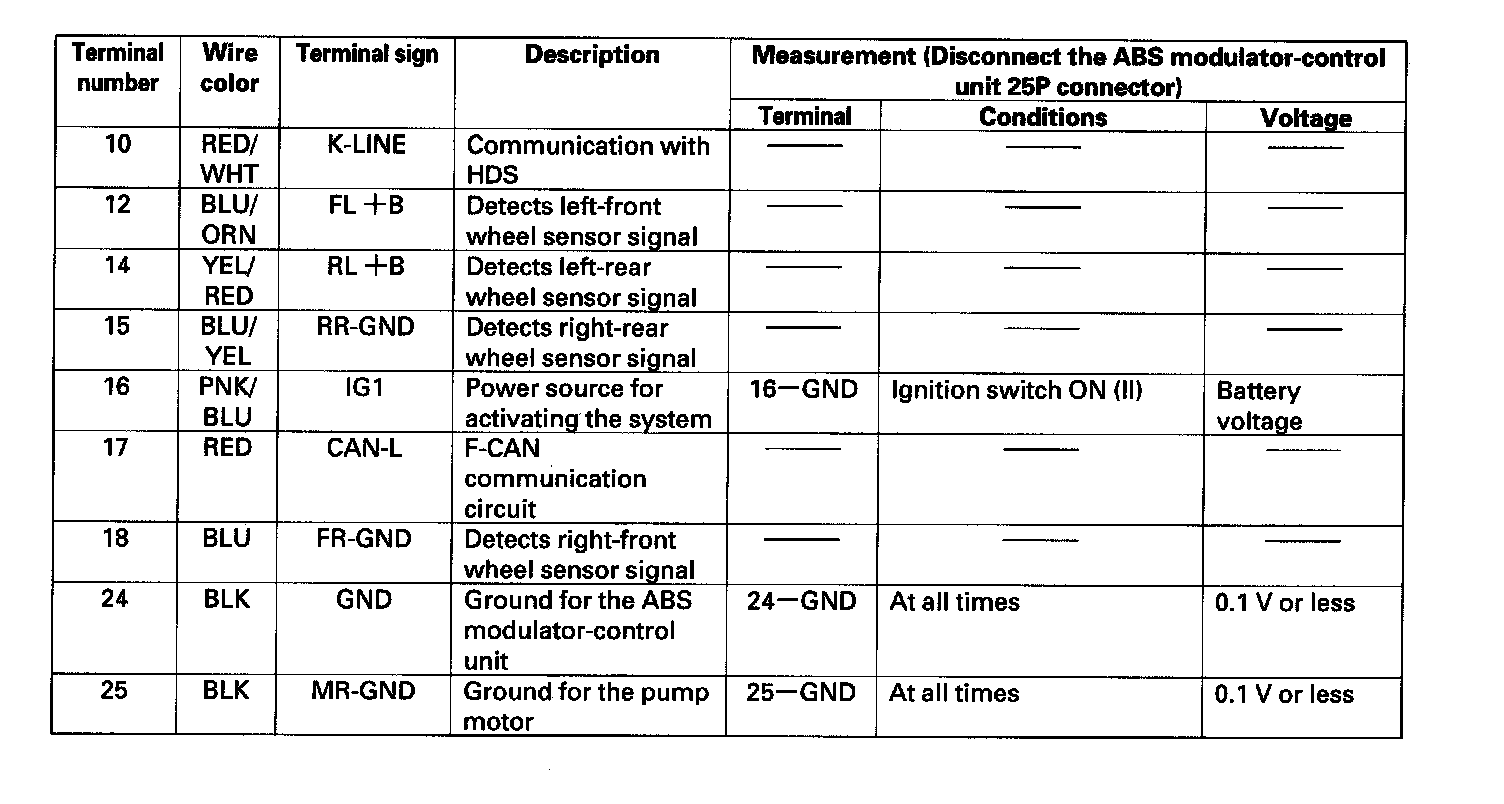

ABS Modulator-Control Unit Inputs And Outputs For 25P Connector (Part 2):
197. ABS Modulator-Control Unit:
