Drive Belt Auto-tensioner Removal/Installation

Remove the drive belt (see DRIVE BELT REPLACEMENT ).
Remove the power steering (P/S) pump without disconnecting the P/S hoses.

Fig 1: Power Steering (P/S) Pump Bolts With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.

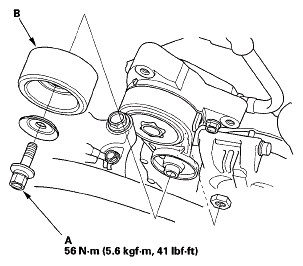

Remove the pulley bolt (A), and remove the tensioner pulley (B).

Fig 2: Pulley Bolt With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.

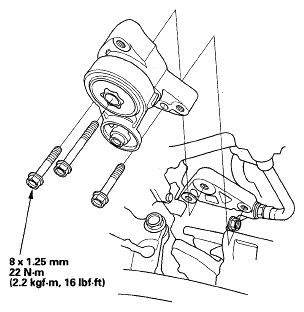

Remove the auto-tensioner.

Fig 3: Auto-Tensioner Bolts With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the auto-tensioner in the reverse order of removal.
