Fluid Line/Hose: Service and Repair

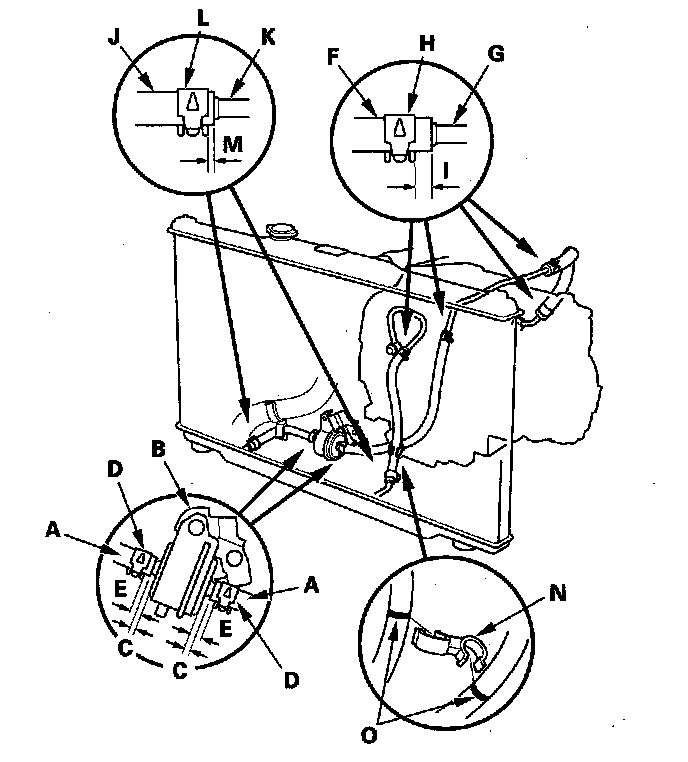

ATF Cooler Hose Replacement1. Slide the ATF cooler hoses (A) on the ATF filter (B) until they are 5 - 7 mm (0.20 - 0.28 in.) (C) away from the filter housing.
2. Secure the hoses with the clips (D) at 10 - 12 mm (0.39 - 0.47 in.) (E) from the filter housing.
3. Slide the ATF cooler hoses (F) over the ATF cooler lines (G), then secure the hoses with the clips (H) at 6 - 8 mm (0.24 - 0.31 in.) (I) from the hose ends.
4. Slide the ATF cooler hoses (J) over the ATF cooler lines (K) under the radiator, then secure the hose with the clips (L) at 24 mm (0.08 - 0.16 in.) (M) from the hose ends.
5. Install the hose clamp (N) at the marks (O) on the ATF cooler hoses.
