Pinout Values and Diagnostic Parameters

PCM A/T Control System Input and Output

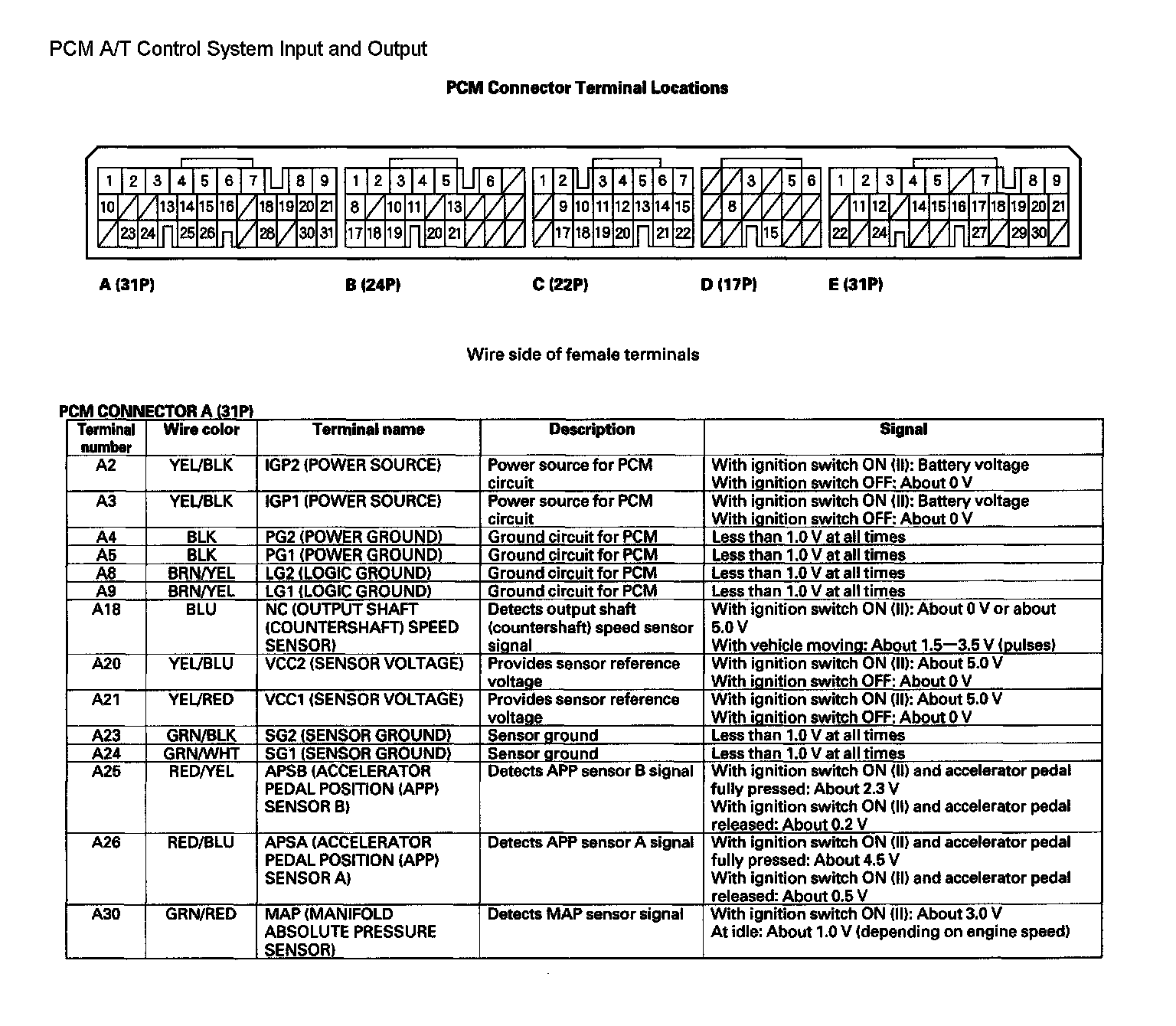

PCM A/T Control System Input and Output (Part 1):

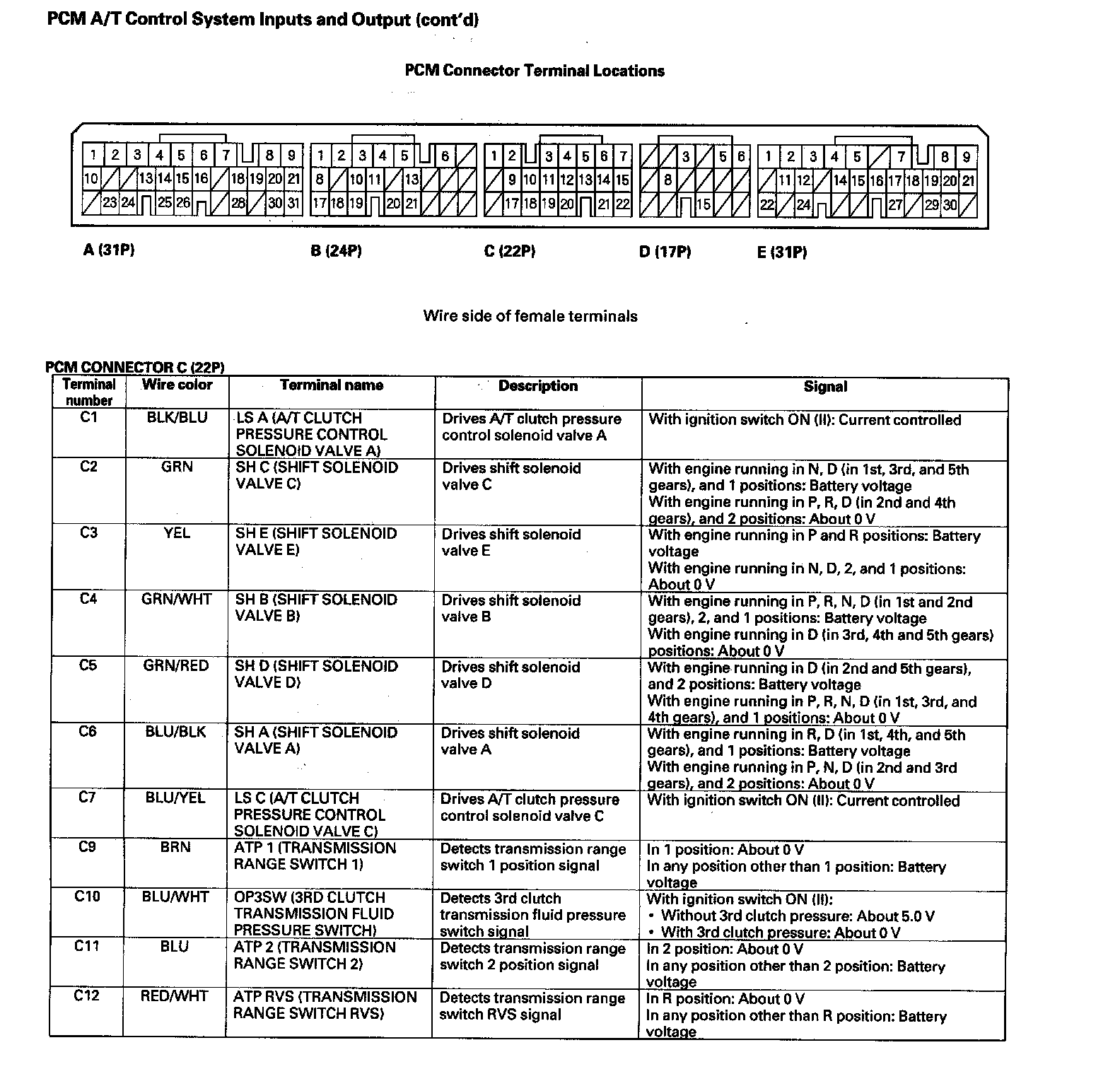

PCM A/T Control System Input and Output (Part 2):

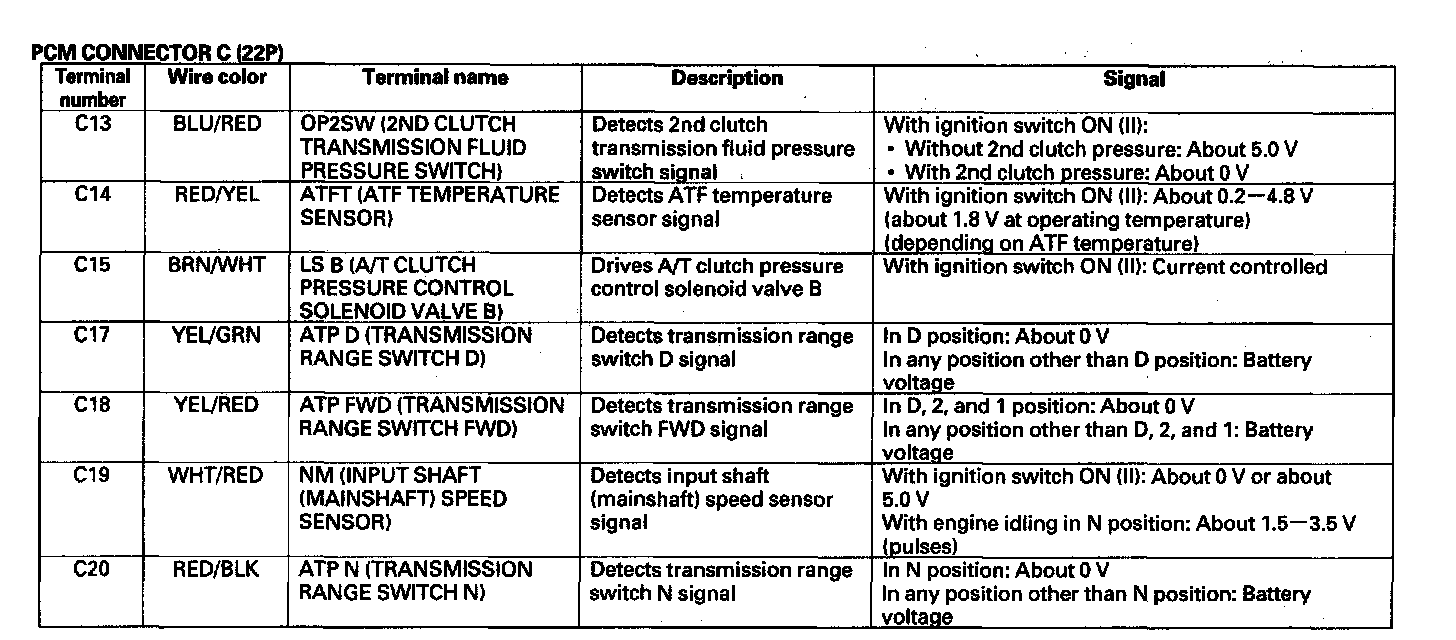

PCM A/T Control System Input and Output (Part 3):

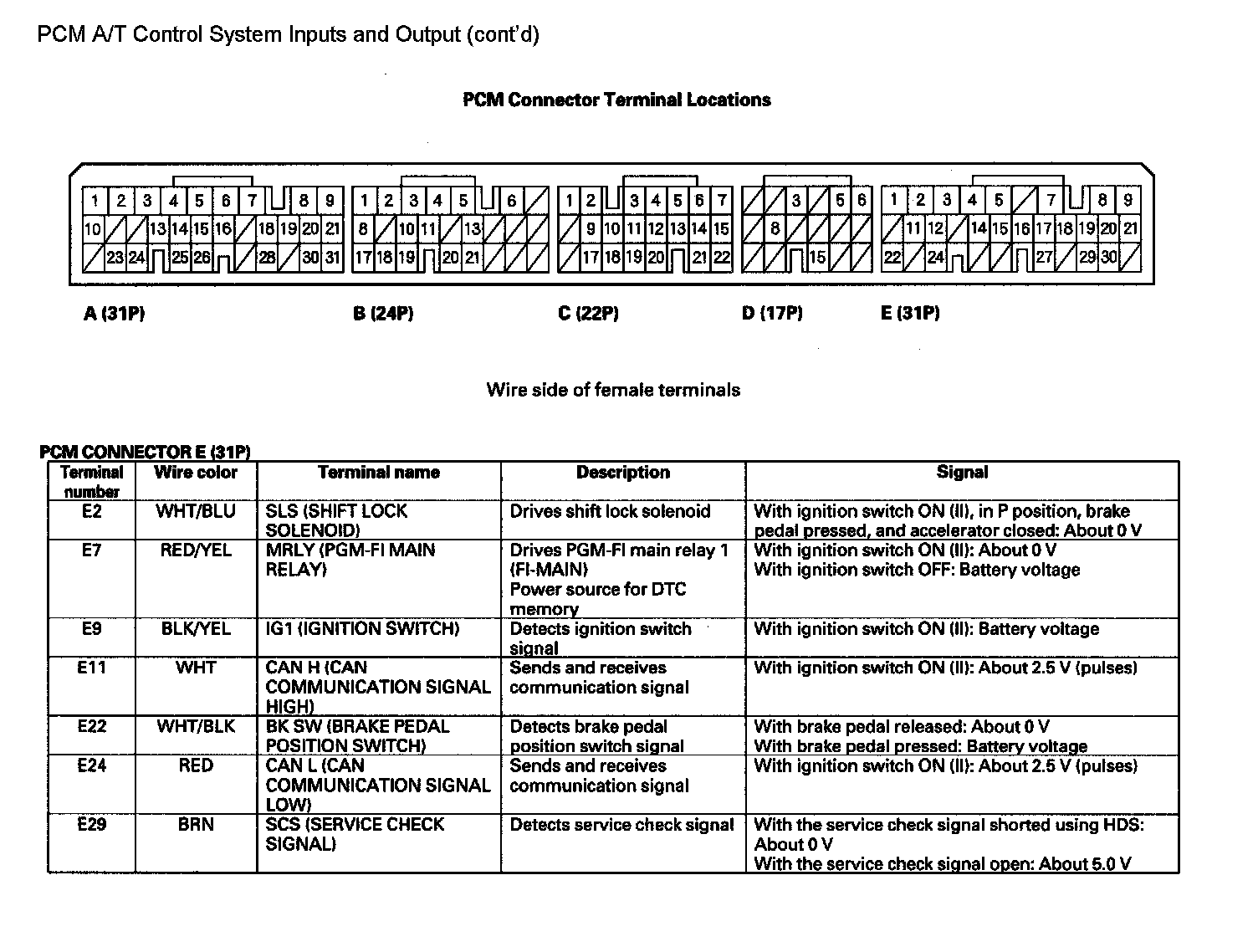

PCM A/T Control System Input and Output (Part 4):




PCM A/T Control System Input and Output (Part 5):
