Traction Control Module: Locations

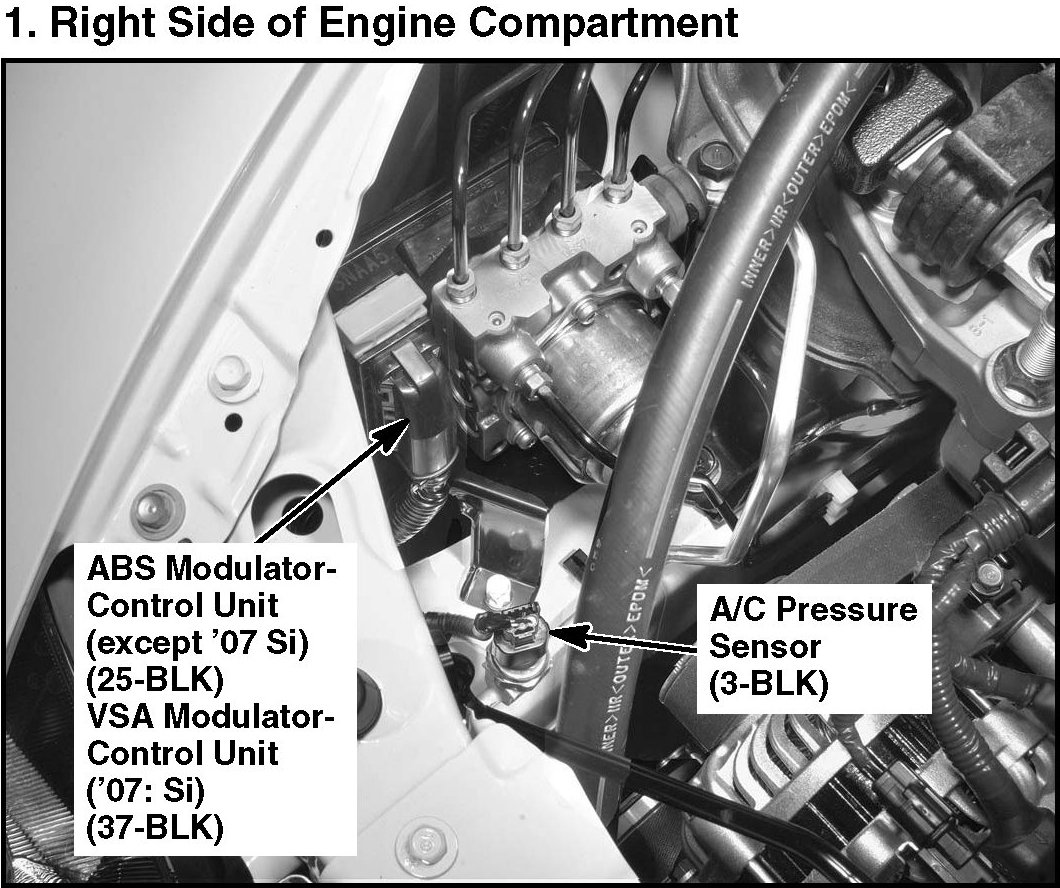

1. Right Side Of Engine Compartment:

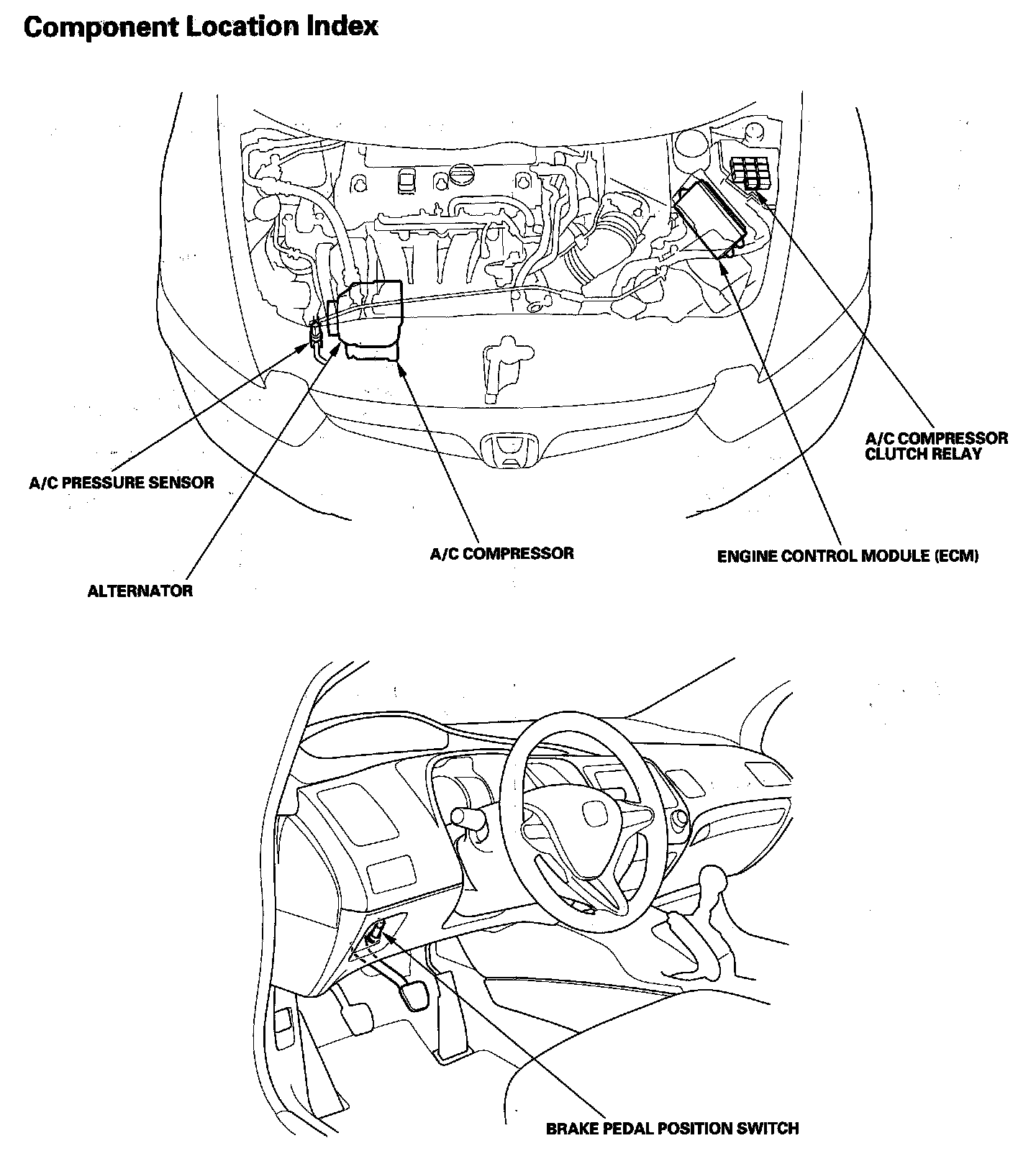

Idle Control System Component Location Index:

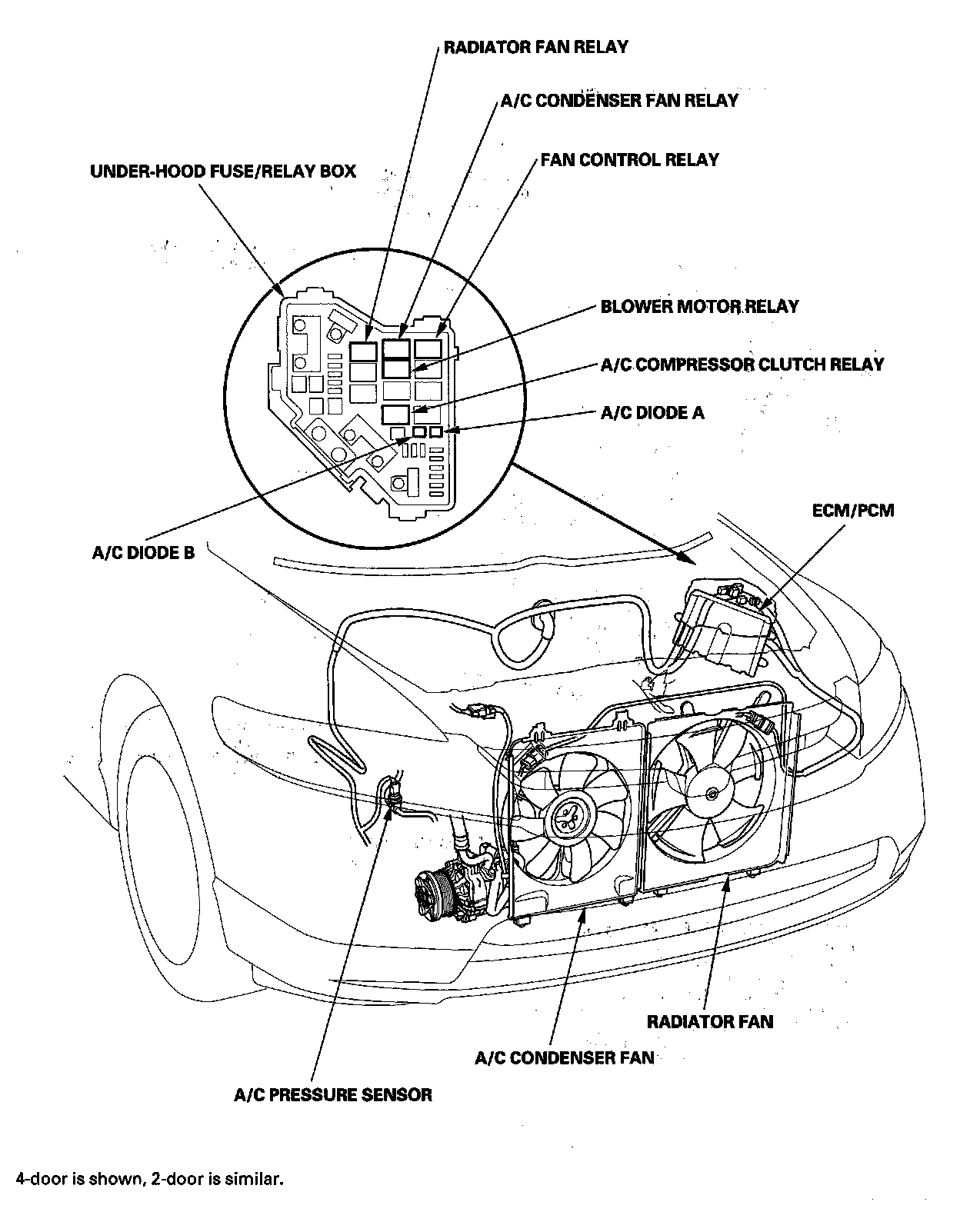

Heating/Air Conditioning Component Location Index:
