Variable Valve Timing Pressure Switch: Locations

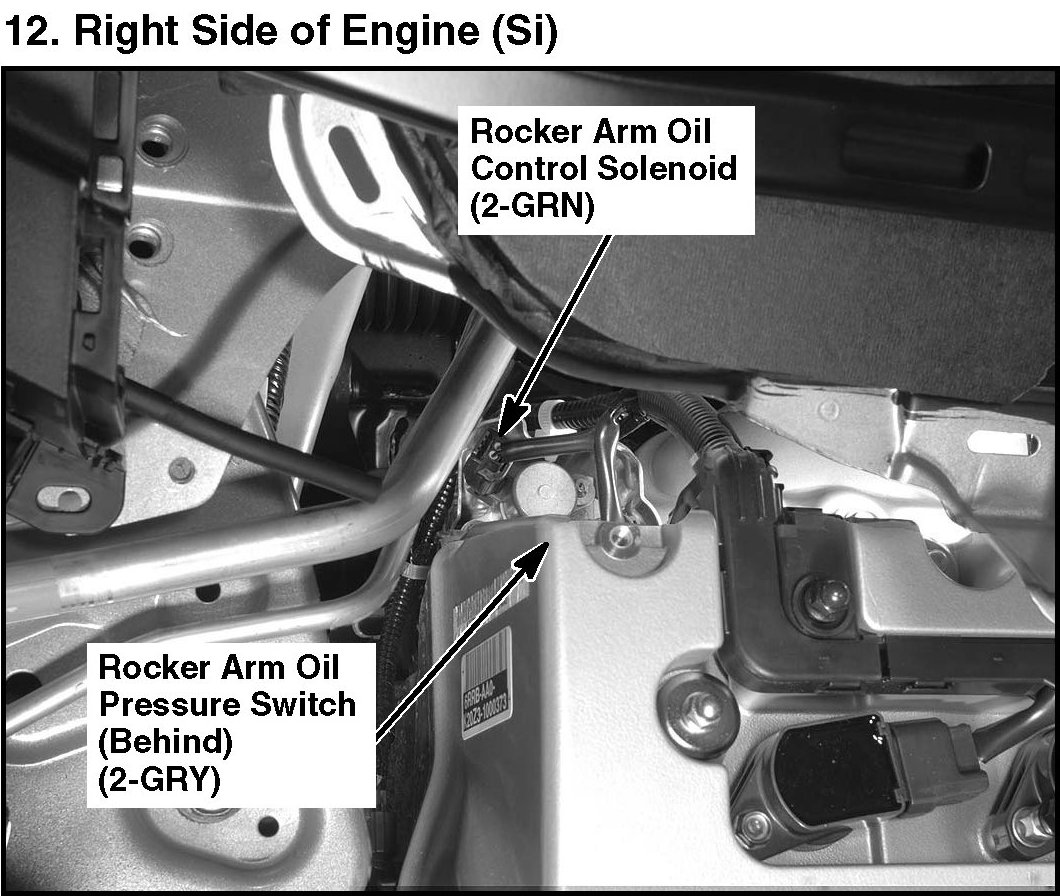

12. Right Side Of Engine (Si):

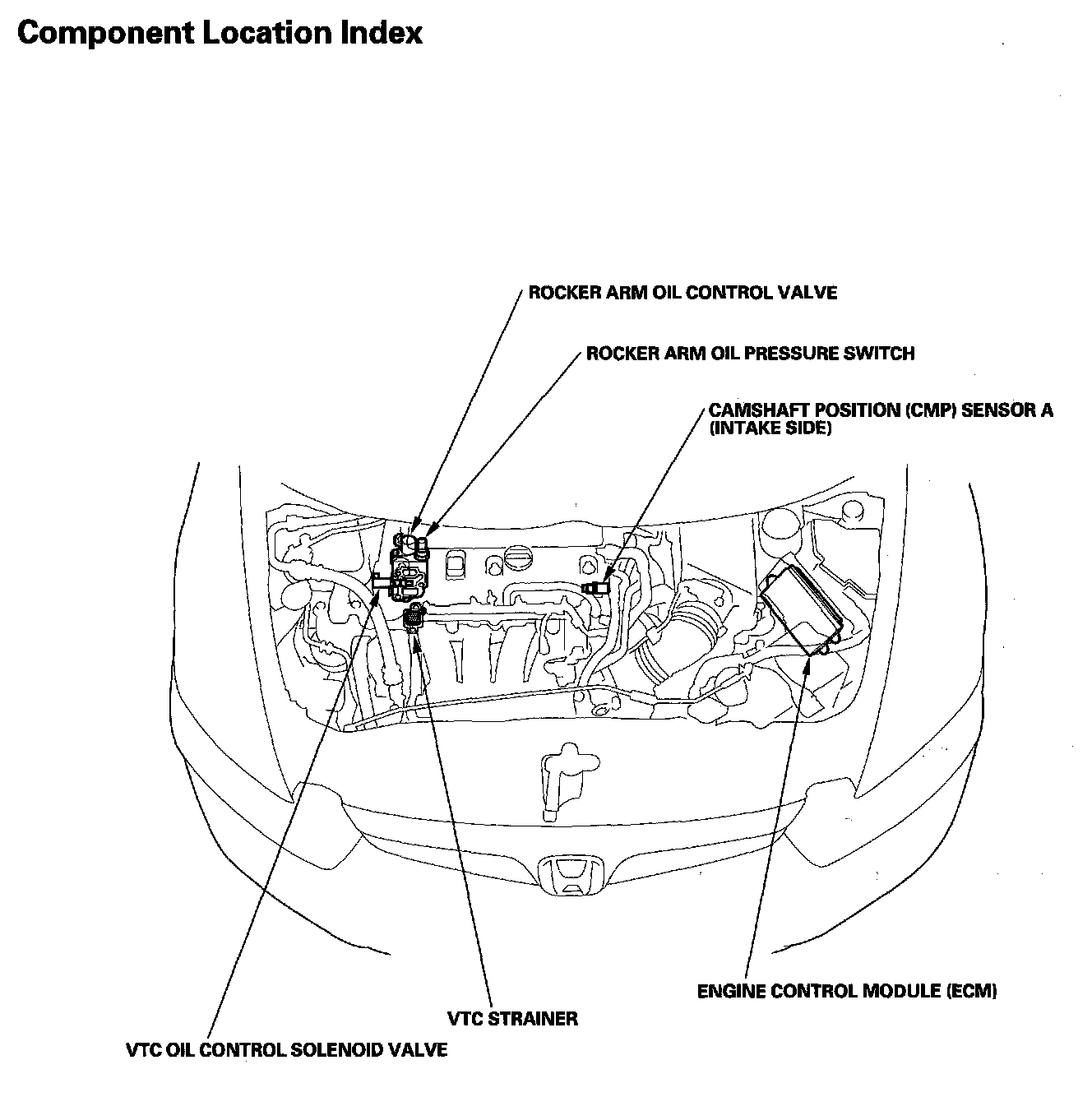

VTEC/VTC Component Location Index:
