Multiple Junction Connector

183. C206 (Junction Connector):



210. C503 (Junction Connector) (USA 2-door: LX; 4-door: EX):



211. C753 (Junction Connector) (Canada 4-door: LX, EX):

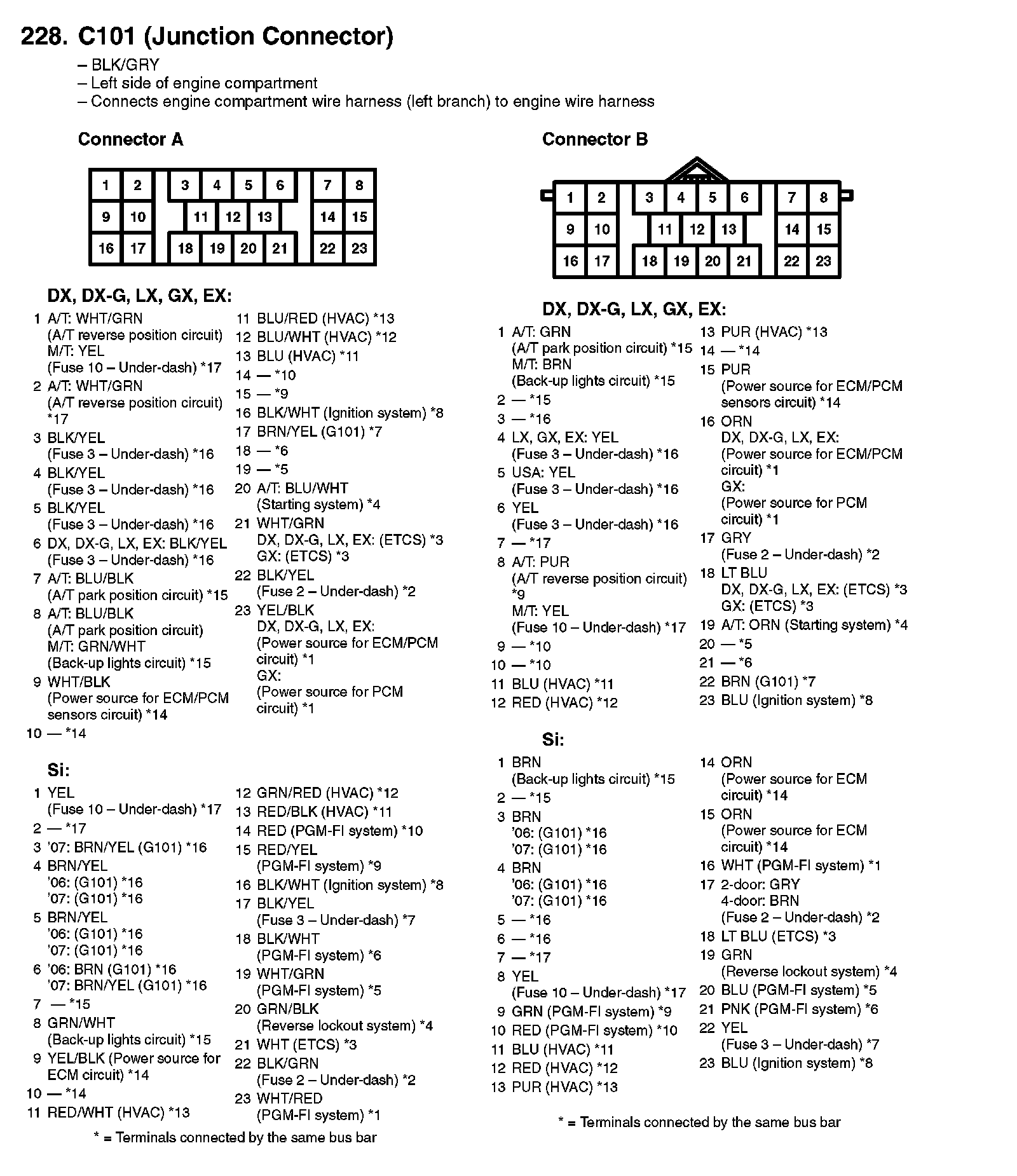

228. C101 (Junction Connector):

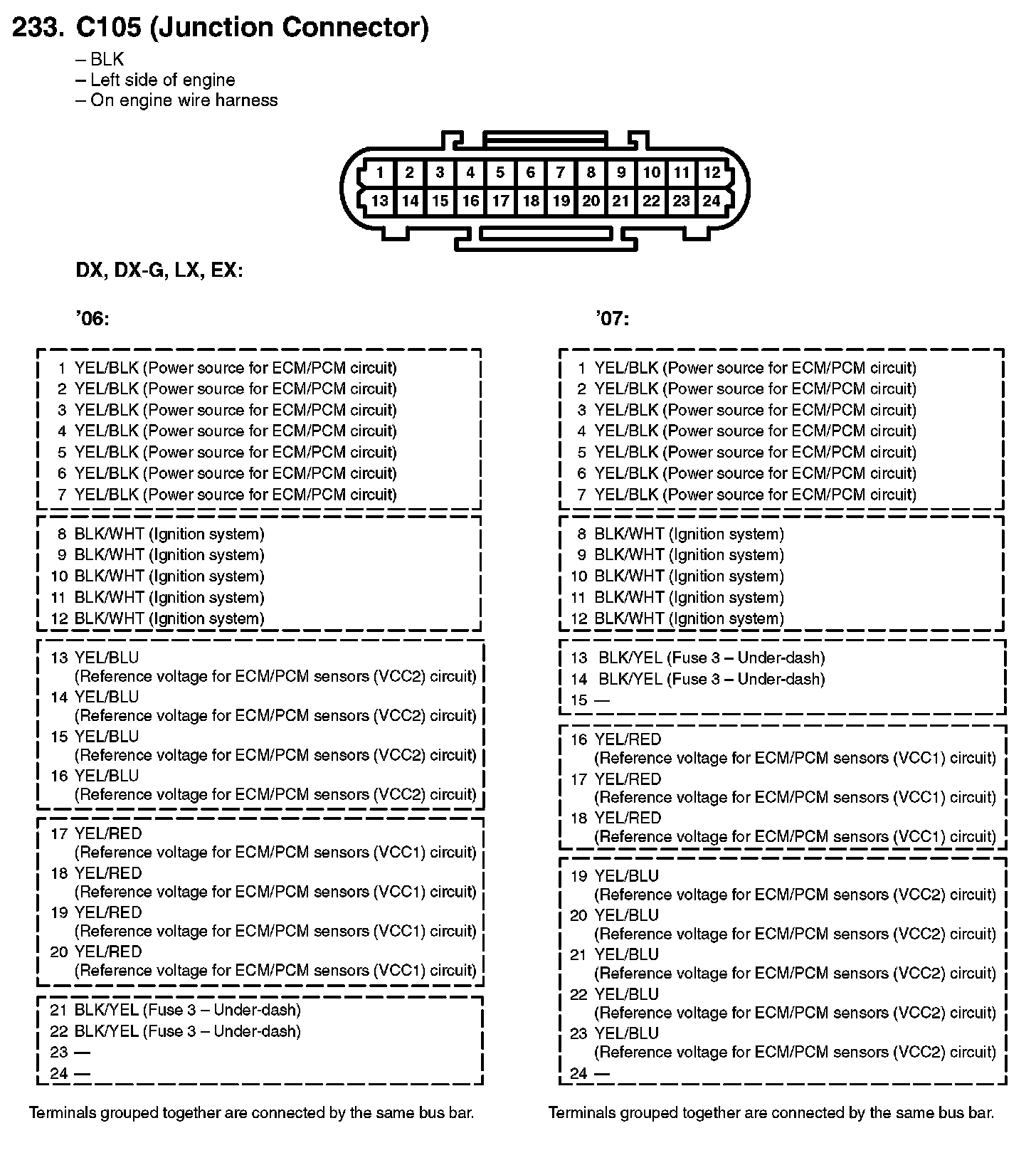

233. C105 (Junction Connector):

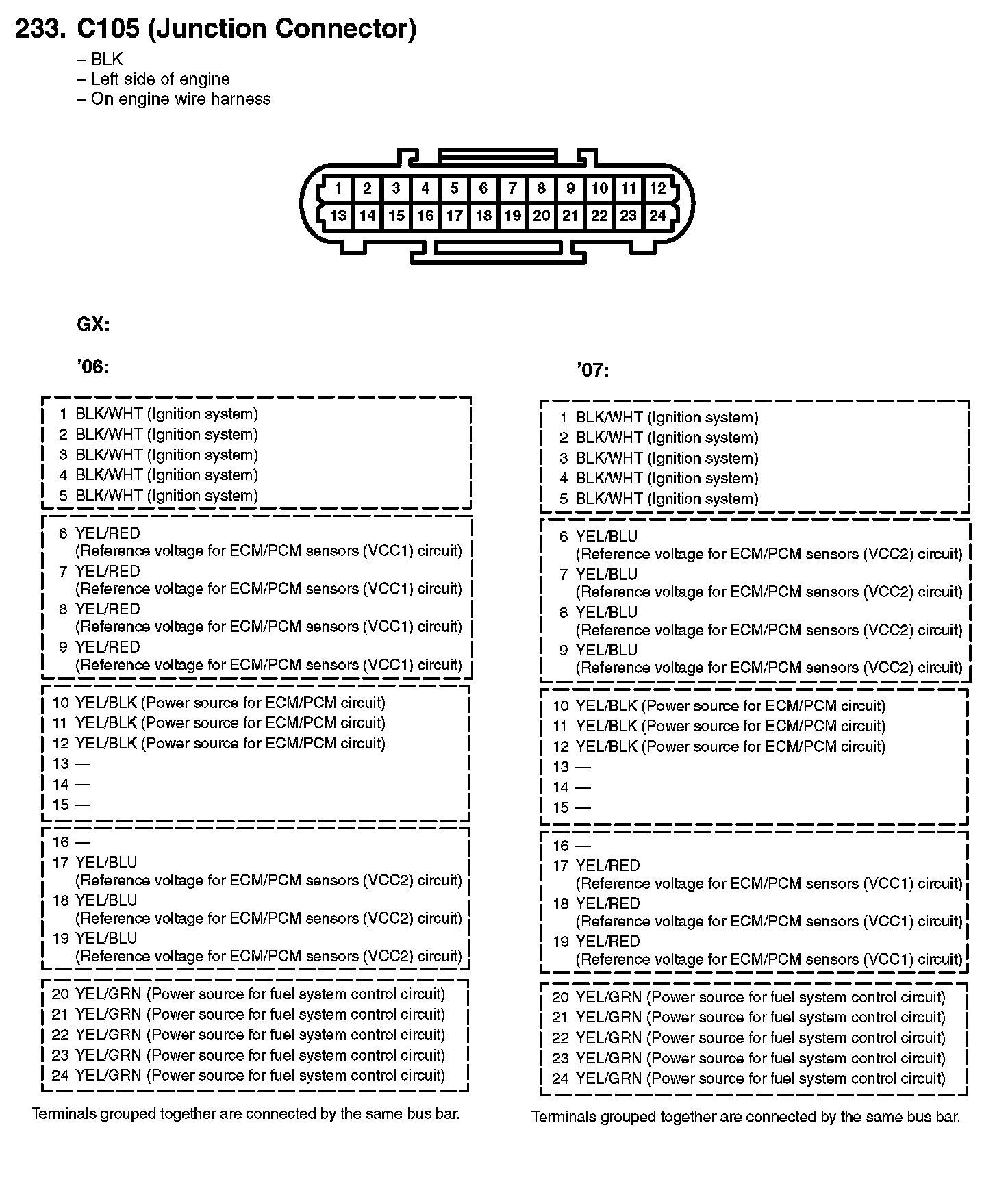

233. C105 (Junction Connector):

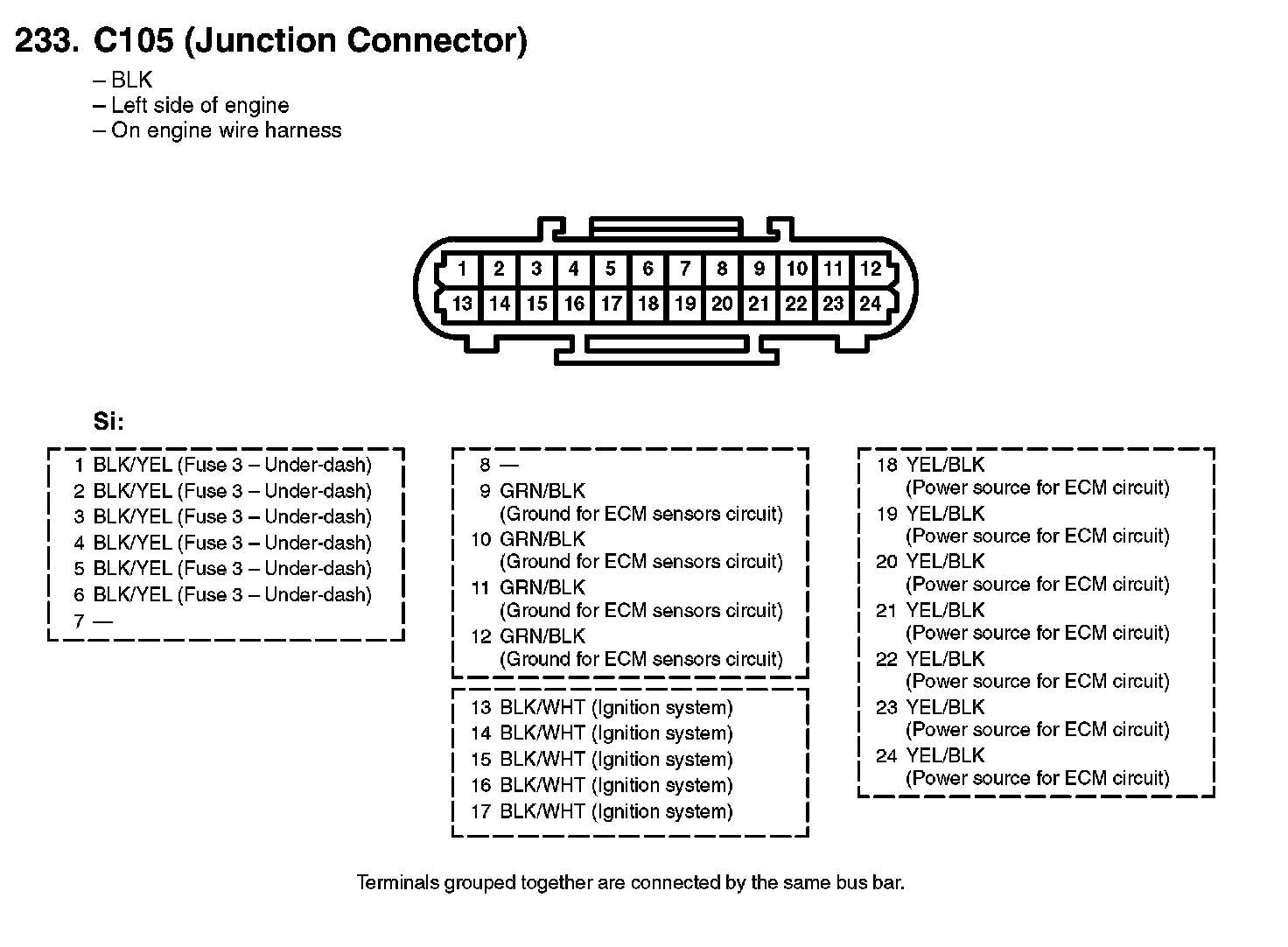

233. C105 (Junction Connector):
