View 251-275: 253

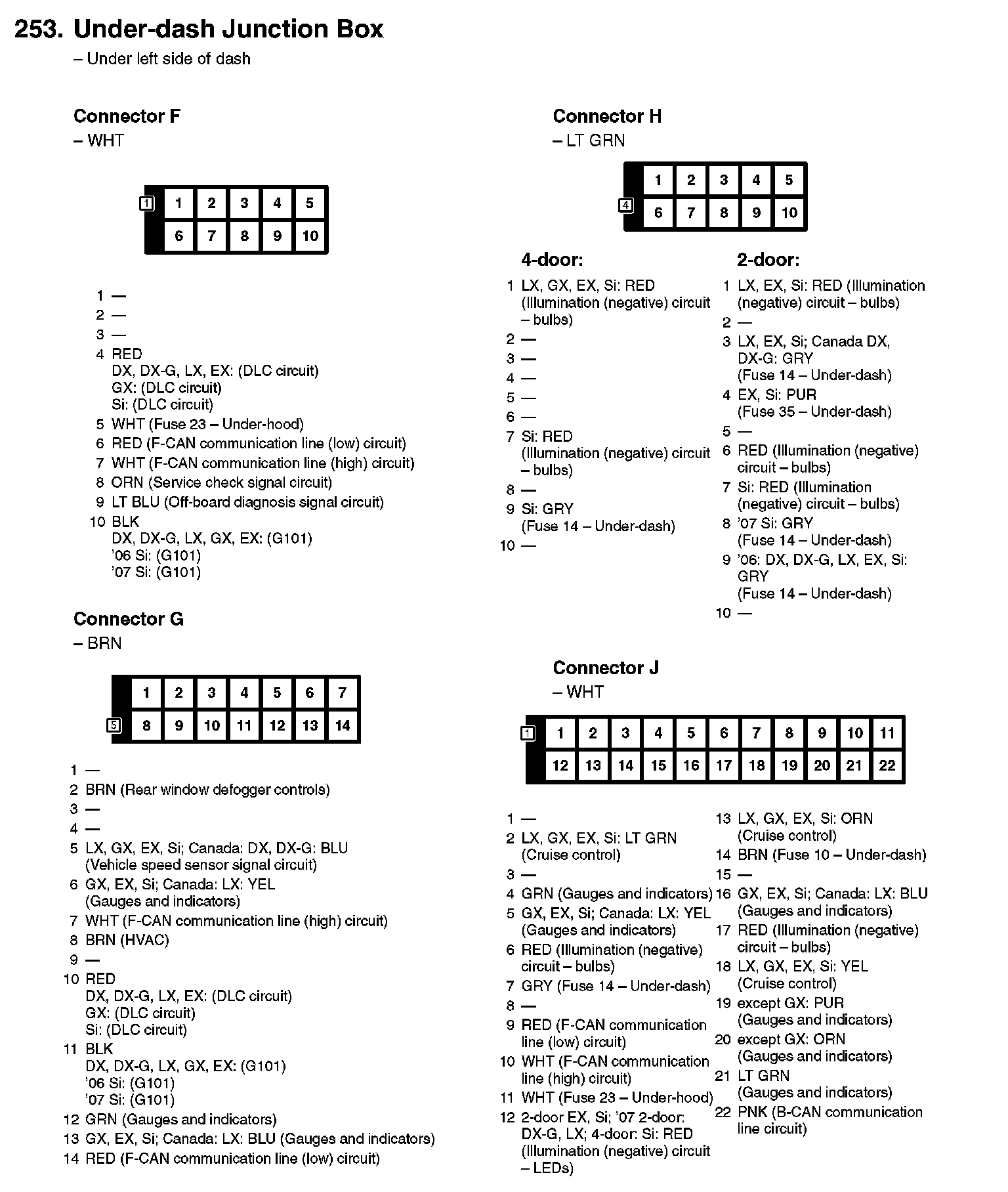

253. Under-dash Junction Box:

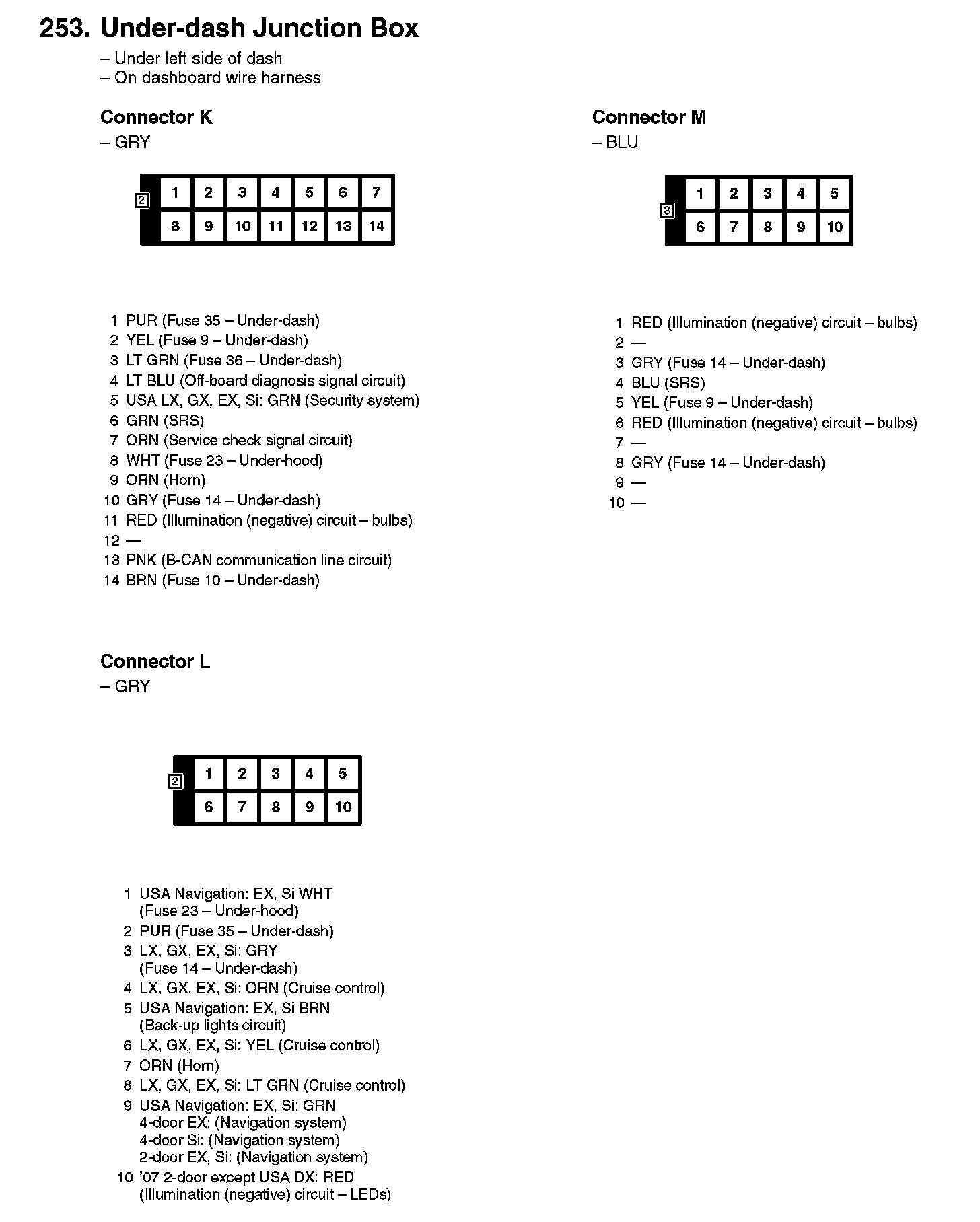

253. Under-dash Junction Box:

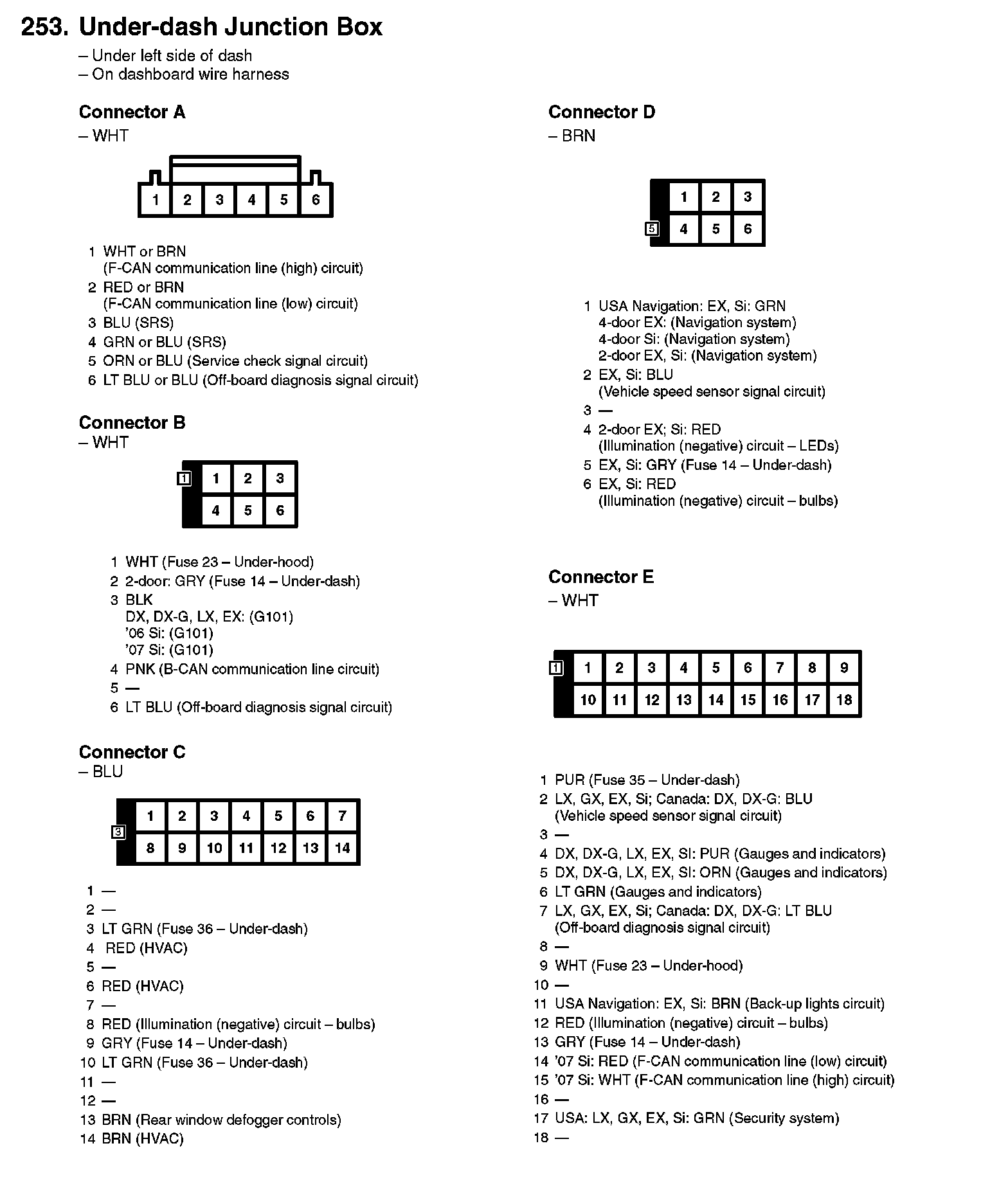

253. Under-dash Junction Box:
