PCM/ECM Circuit Diagrams

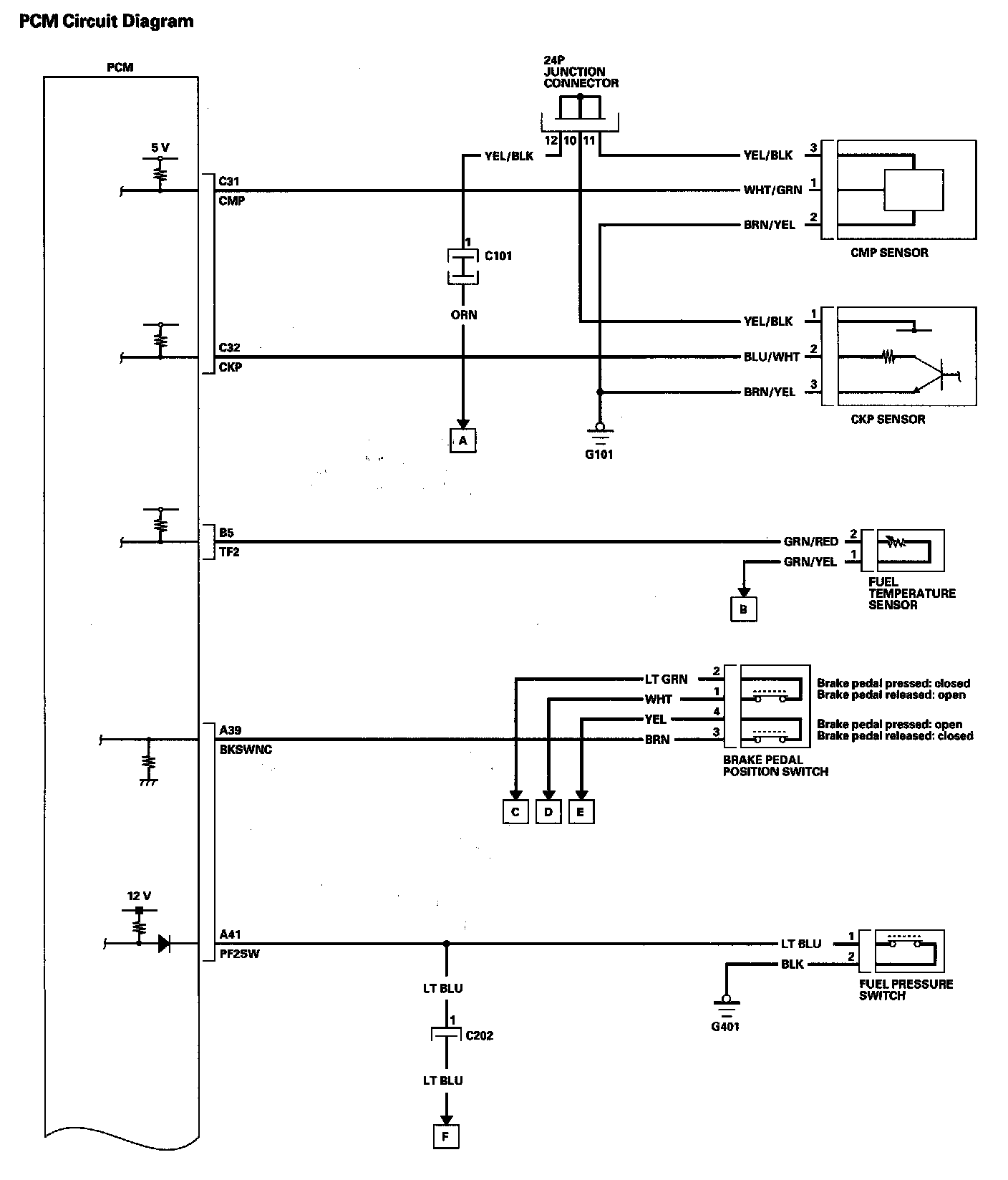

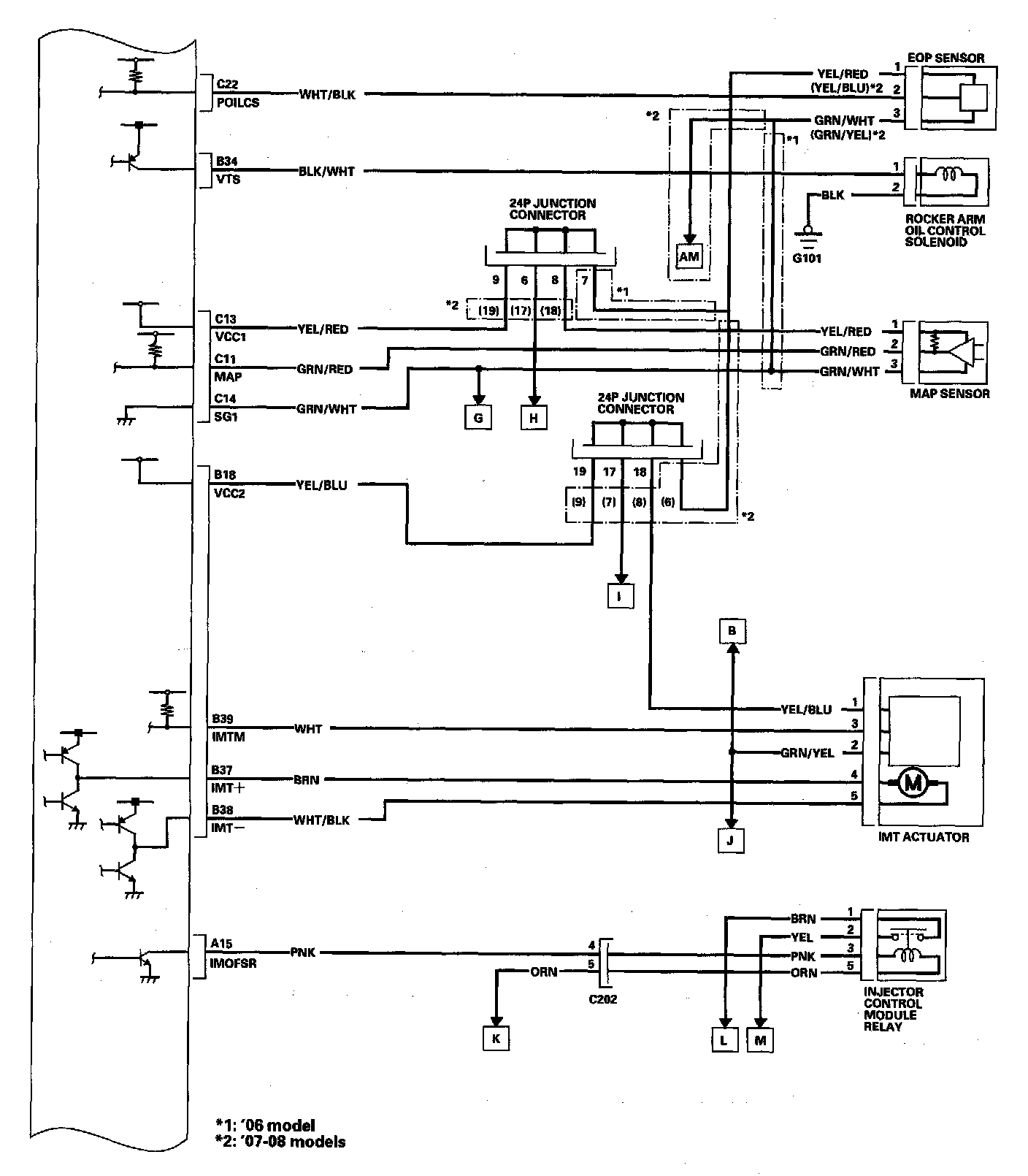

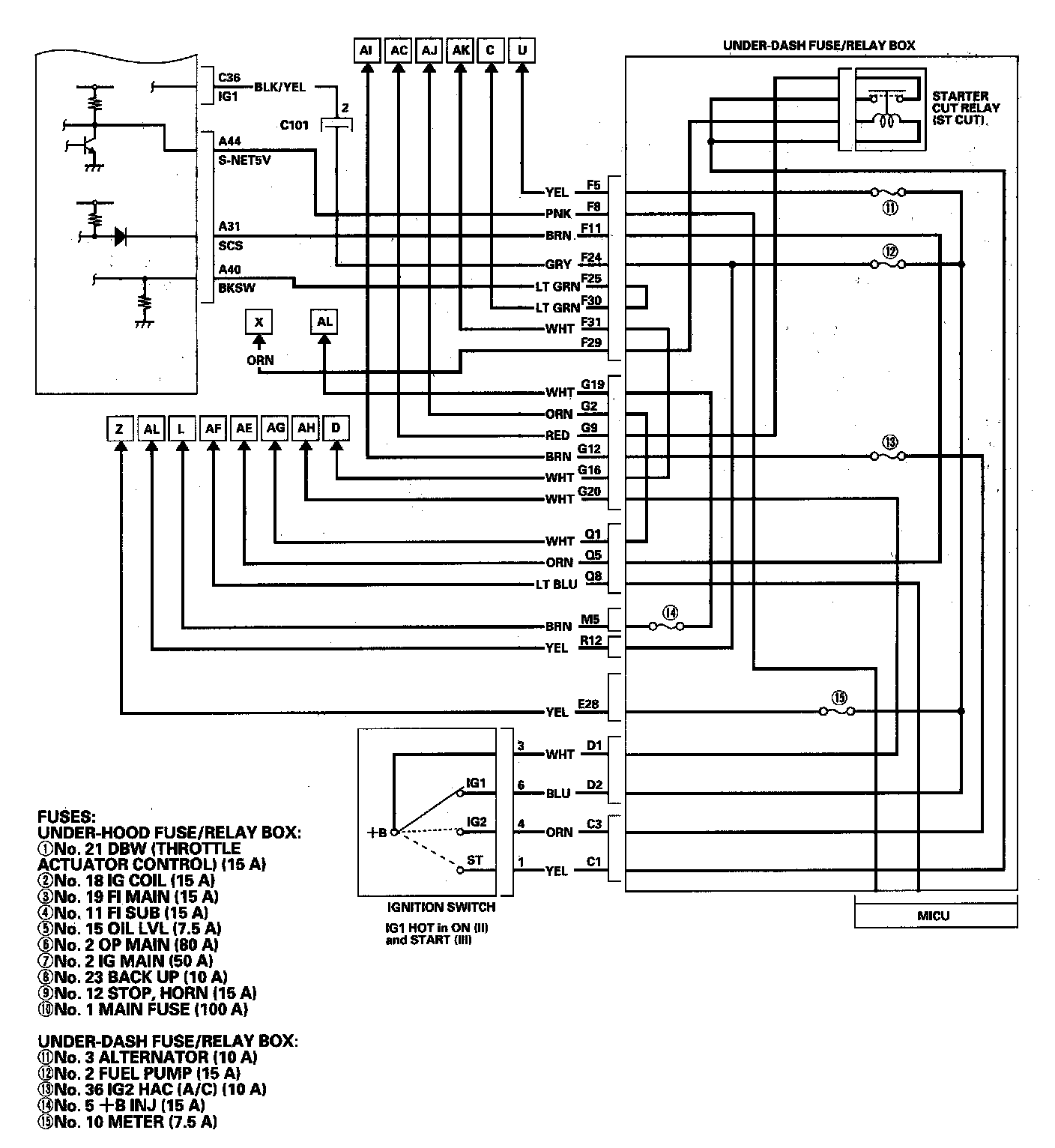

PCM Circuit Diagram (Part 1):

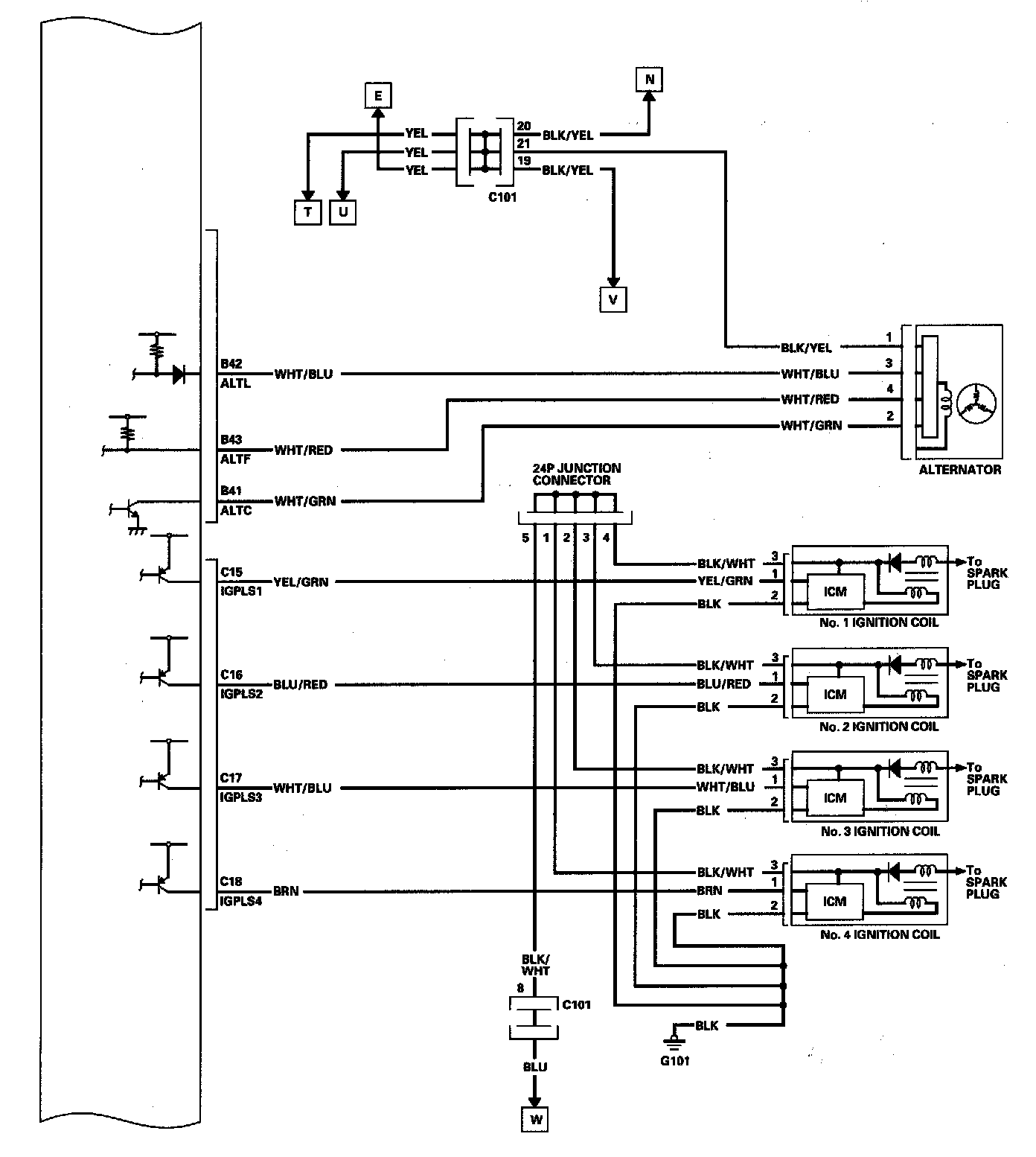

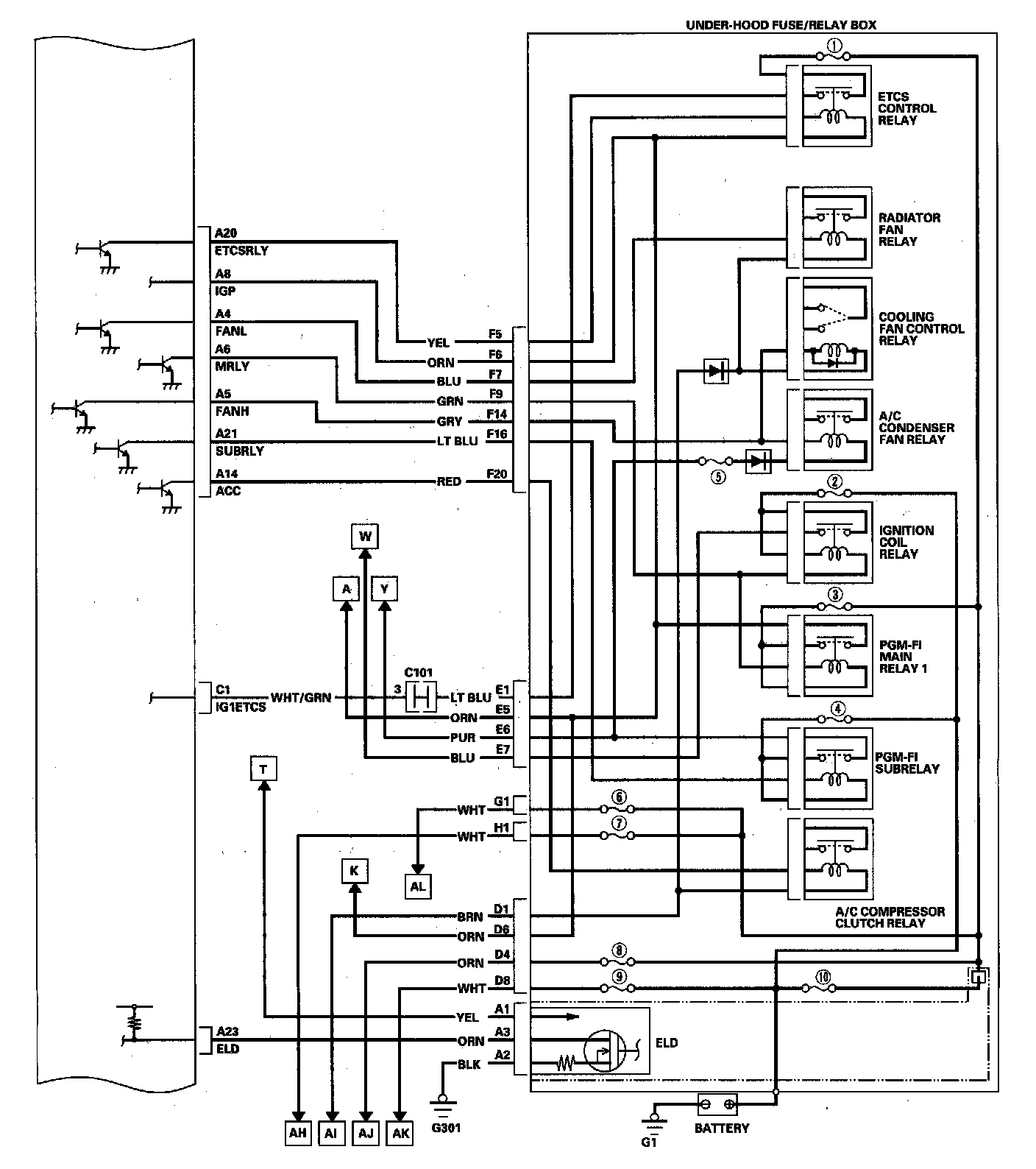

PCM Circuit Diagram (Part 2):

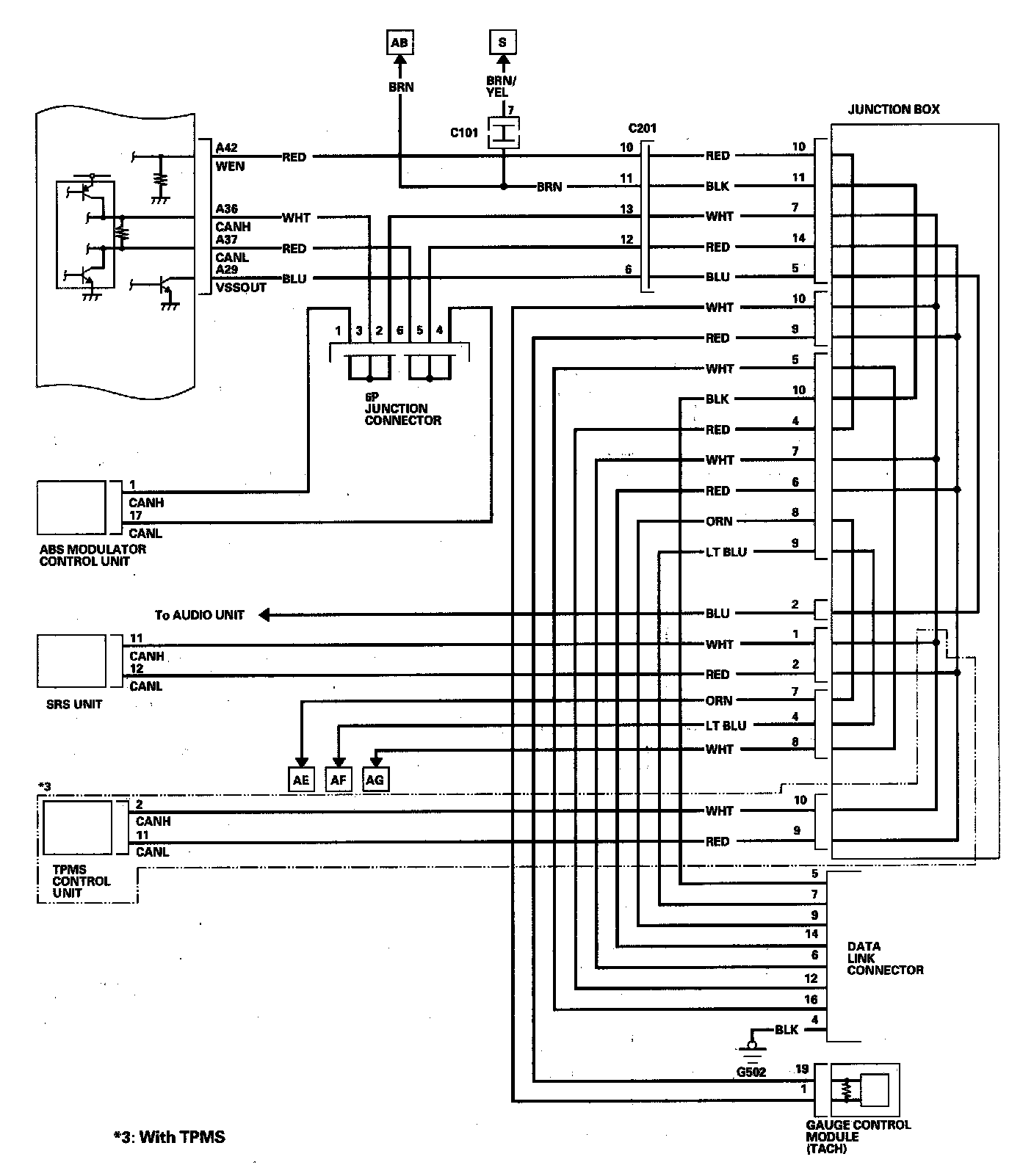

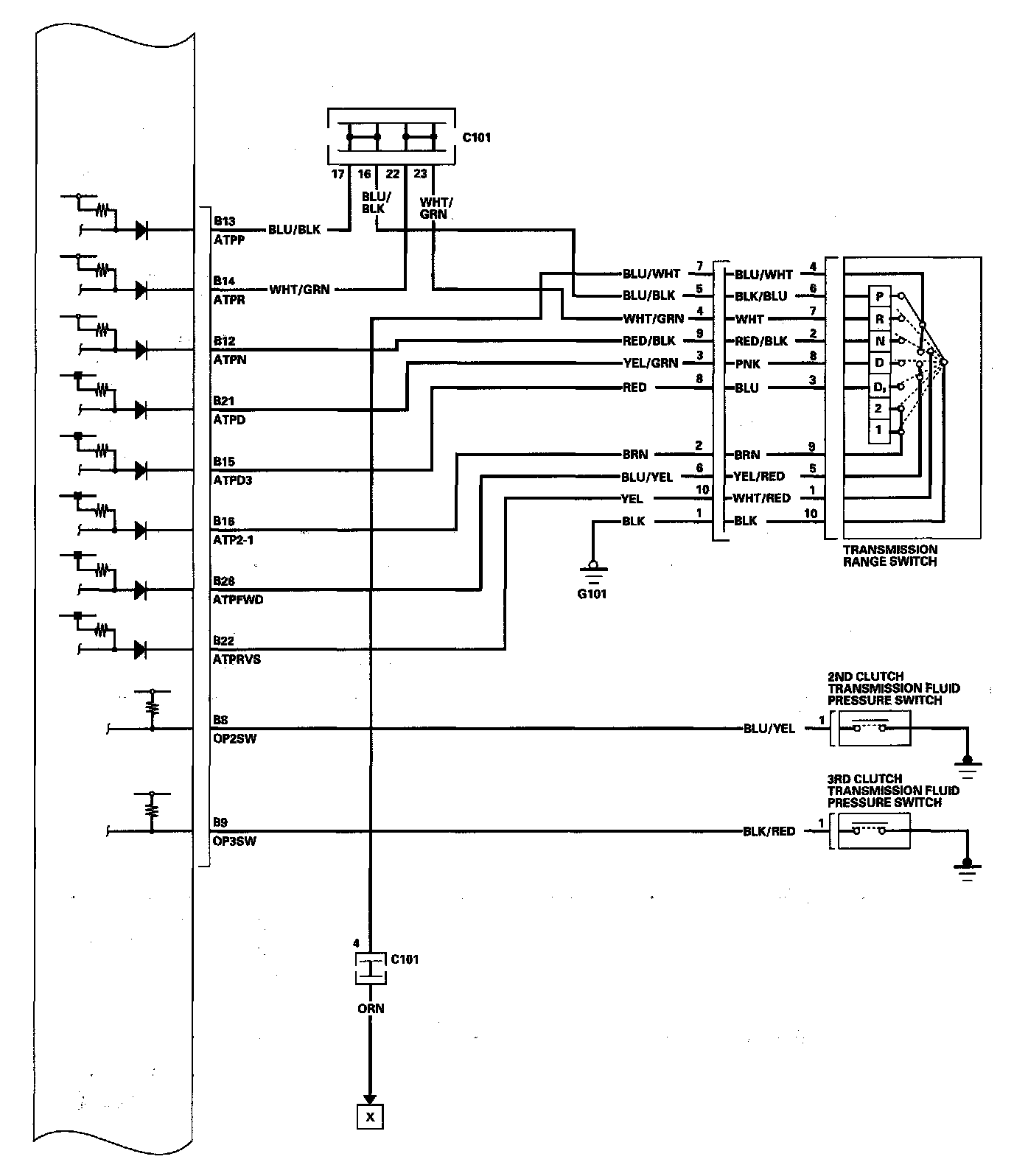

PCM Circuit Diagram (Part 3):

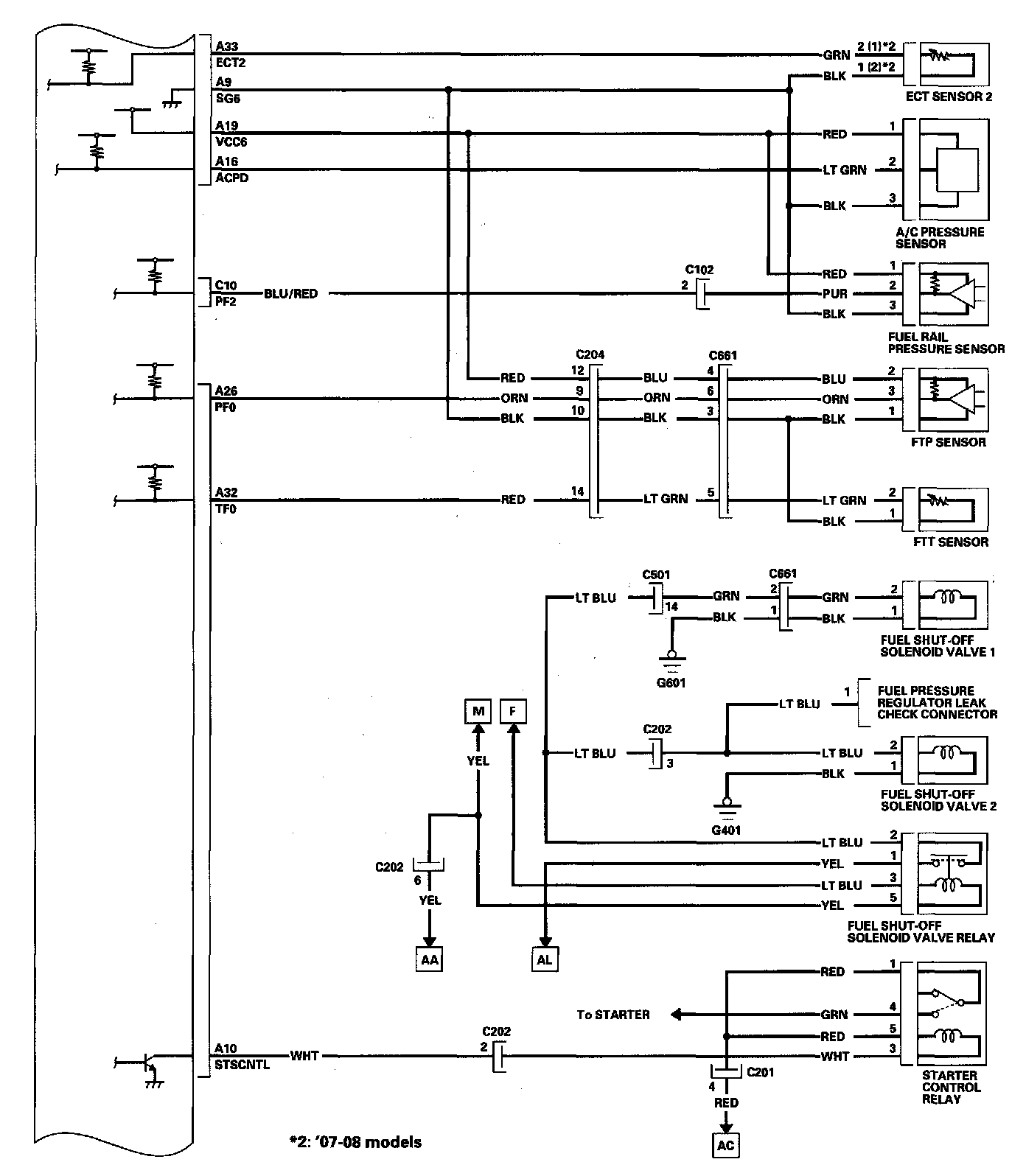

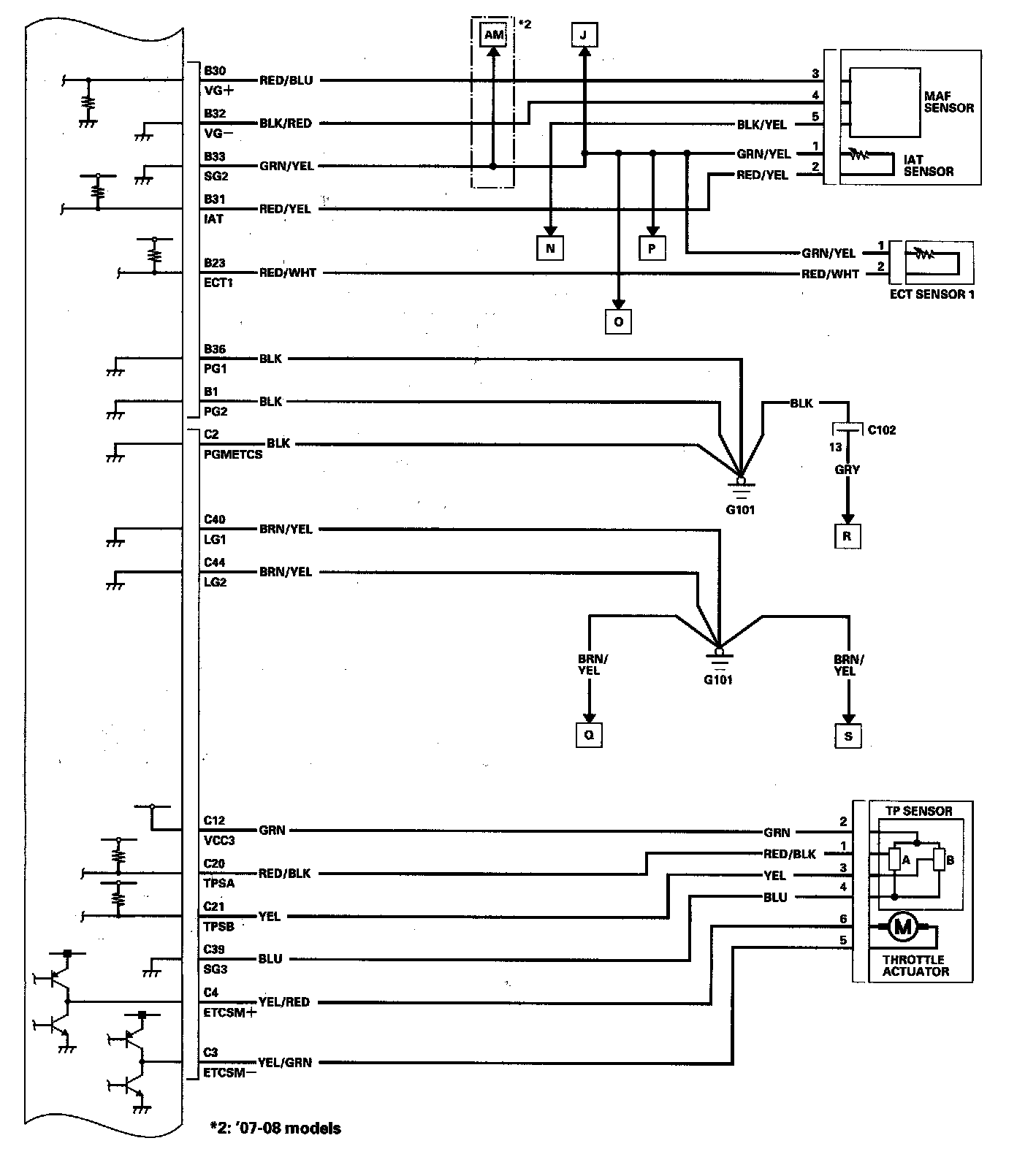

PCM Circuit Diagram (Part 4):



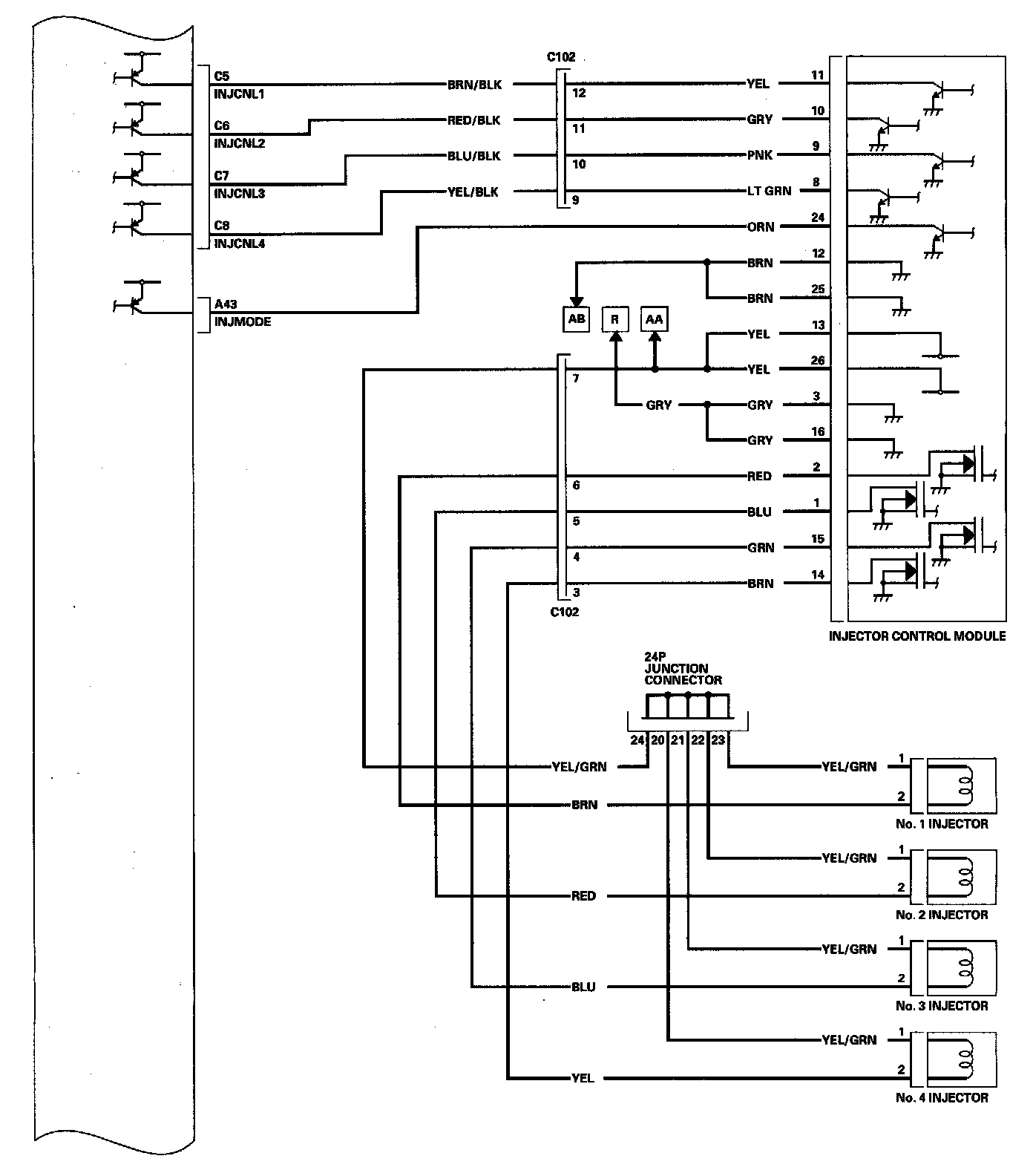

PCM Circuit Diagram (Part 5):



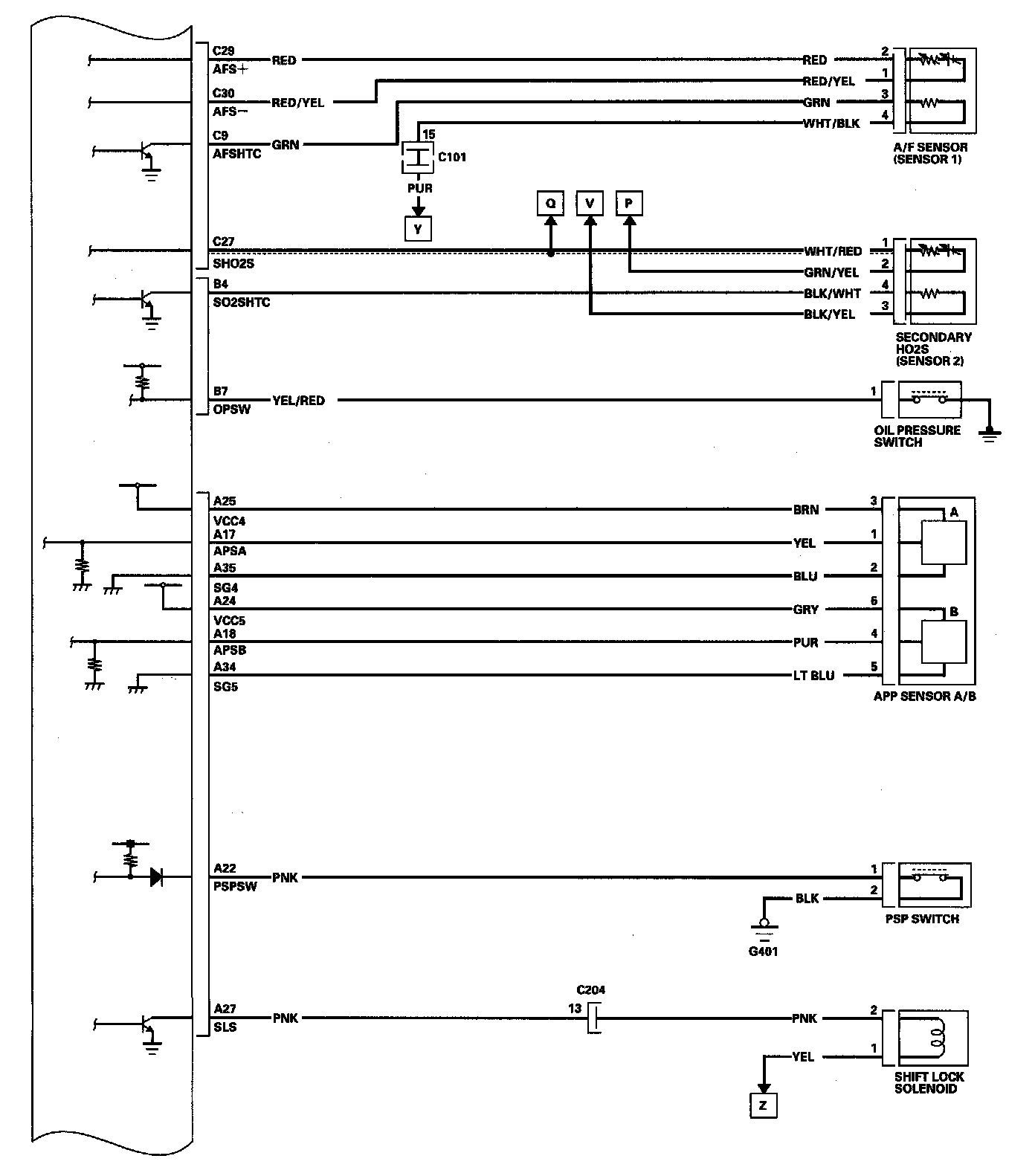

PCM Circuit Diagram (Part 6):



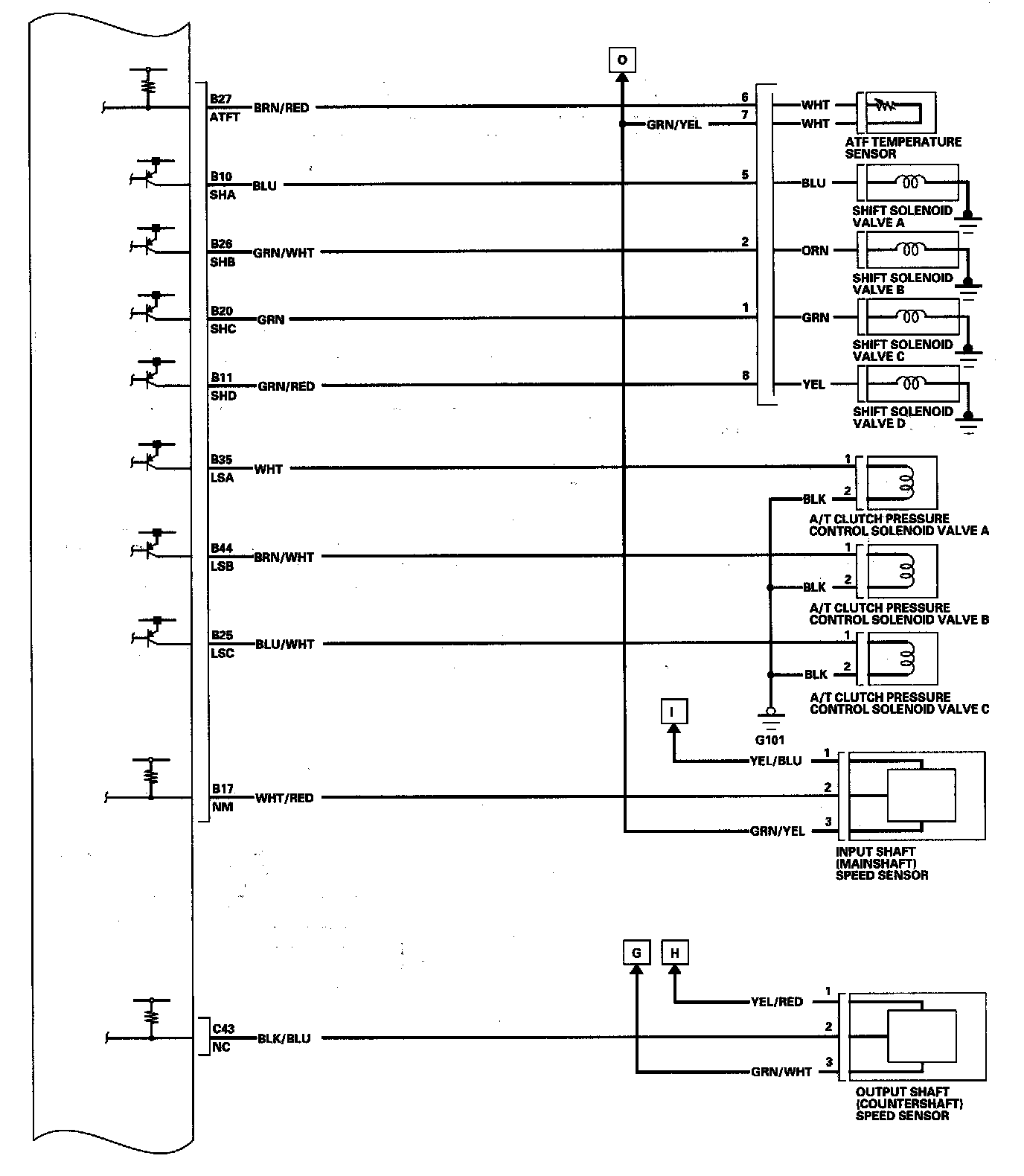

PCM Circuit Diagram (Part 7):



PCM Circuit Diagram (Part 8):



PCM Circuit Diagram (Part 9):



PCM Circuit Diagram (Part 10):



PCM Circuit Diagram (Part 11):



PCM Circuit Diagram (Part 12):
