Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component | Location |
|---|---|

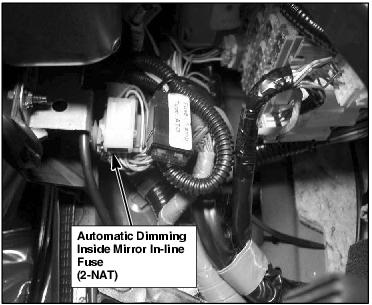

| Automatic Dimming Inside Mirror In-Line Fuse | Under left side of dash. See Figure. |
| Auxiliary Under-Hood Fuse/Relay Box | Left side of engine compartment. See Figure. |
| Back-Up Sensor In-Line Fuse | Right side of cargo area. See Figure. |
| Bass Unit In-Line Fuse | Behind glove box. See Figure. |

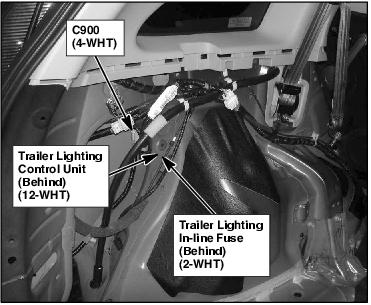

| Trailer Lighting In-Line Fuse | Left side of cargo area. See Figure. |
| Under-Dash Fuse/Relay Box | Under left side of dash. See Figure. |

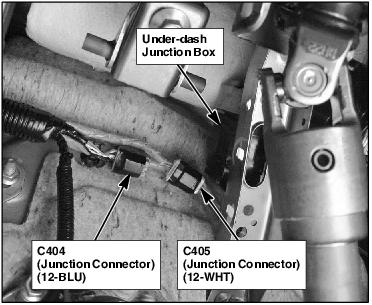

| Under-Dash Junction Box | Under left side of dash. See Figure. |
| Under-Hood Fuse/Relay Box | On left side of engine compartment. See Figure. |
