DTC P0973: Short in Shift Solenoid Valve A Circuit: Notes

Fig 1: Shift Solenoid Valve A - Circuit Diagram
G04816881

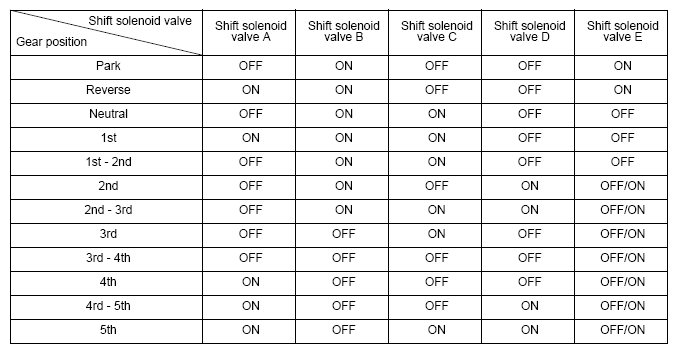

Fig 2: Shift Solenoid Valve Driving Signal Combination Table
G04823338
