Transmission Position Sensor/Switch: Locations

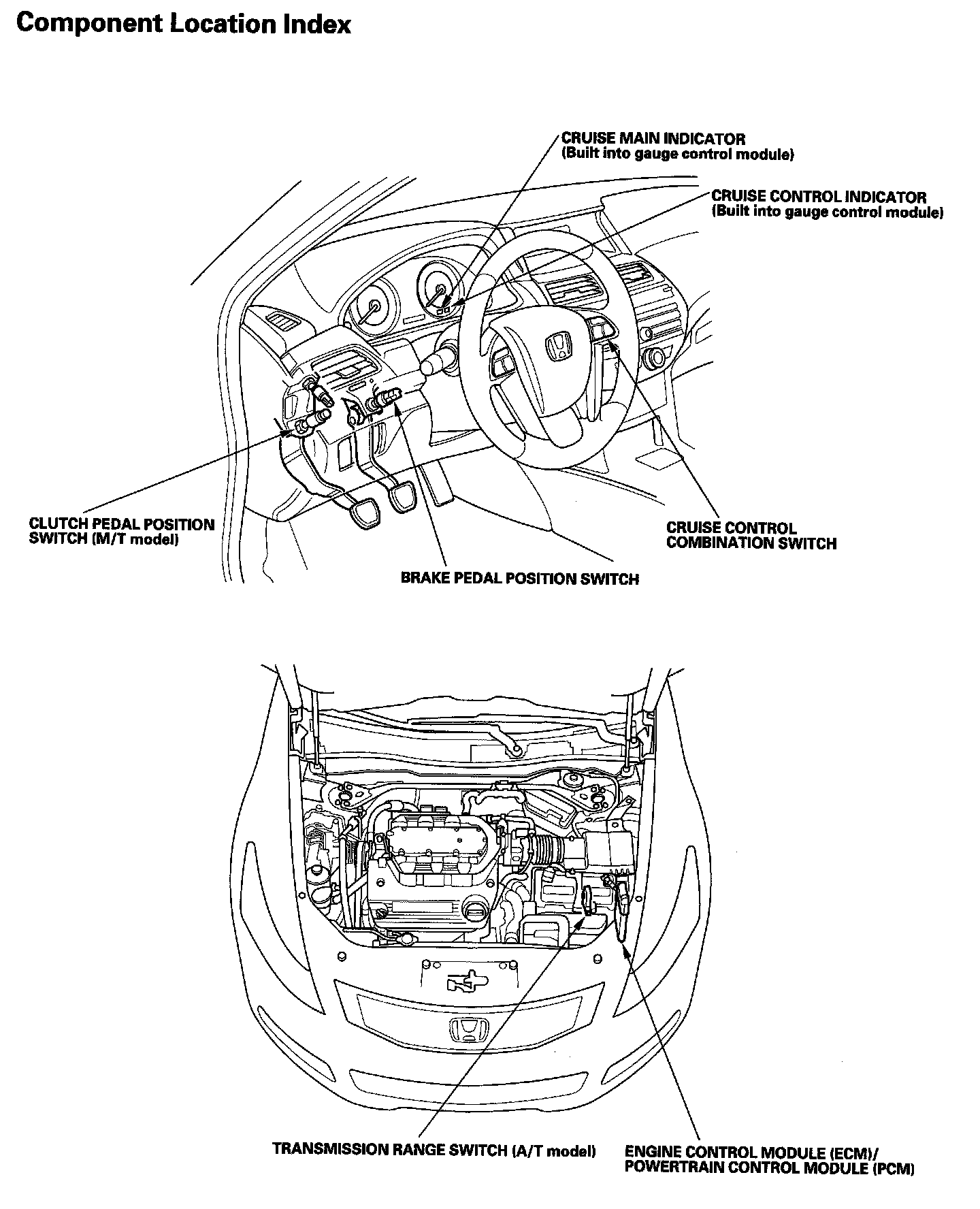

Cruise Control Component Location Index:

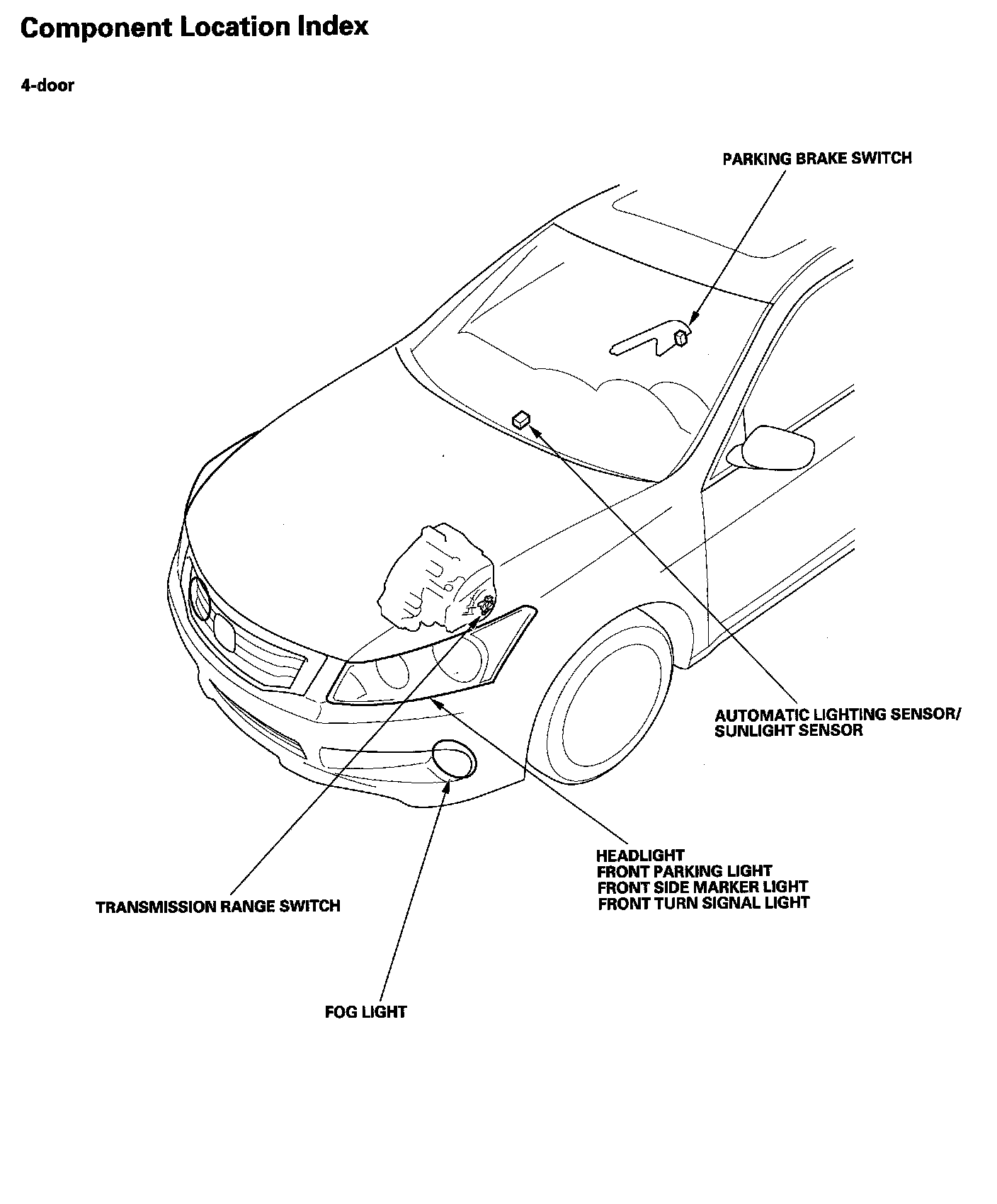

Exterior Lights Component Location Index:

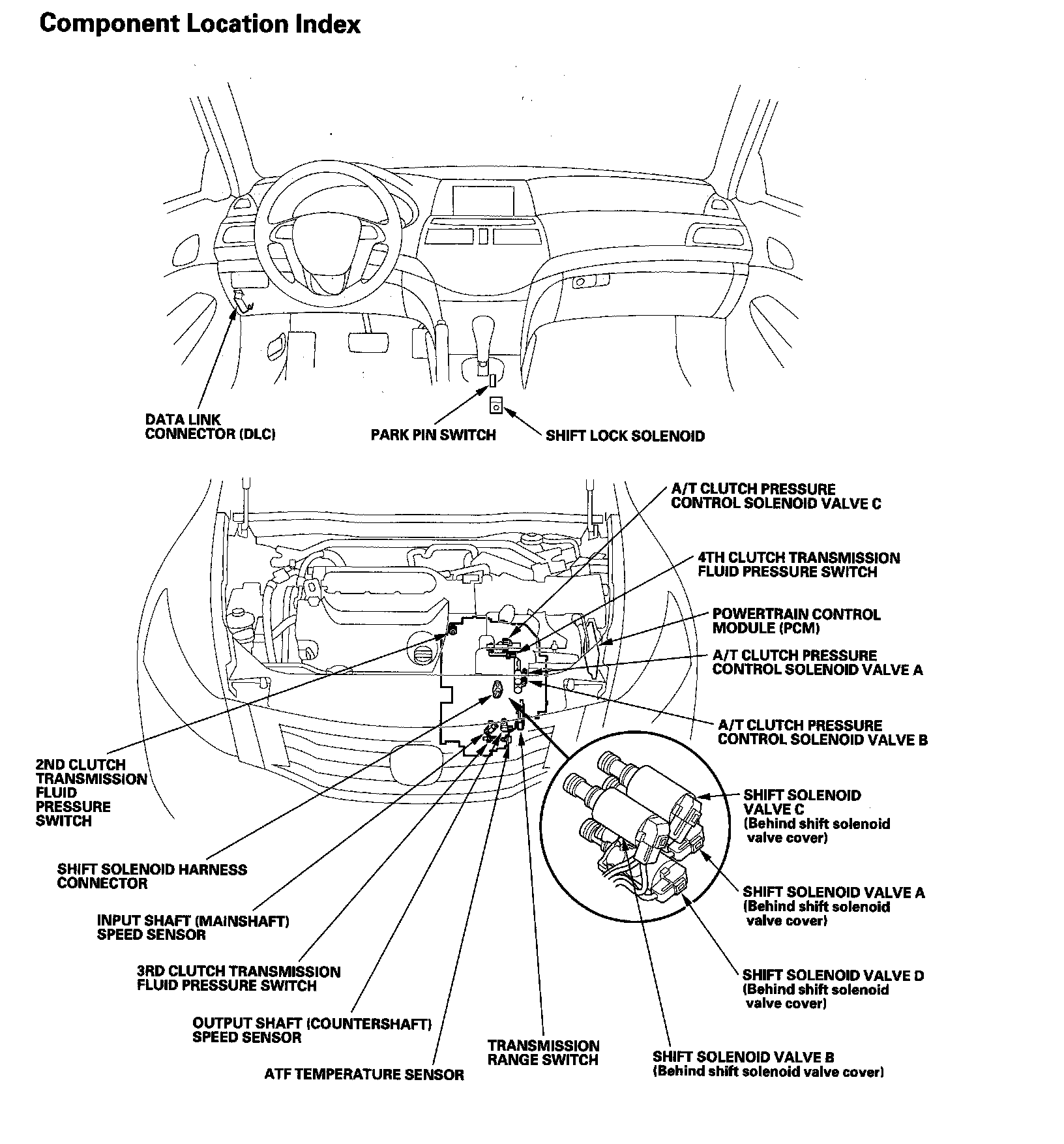

Automatic Transmission Component Location Index V6-3.5L:

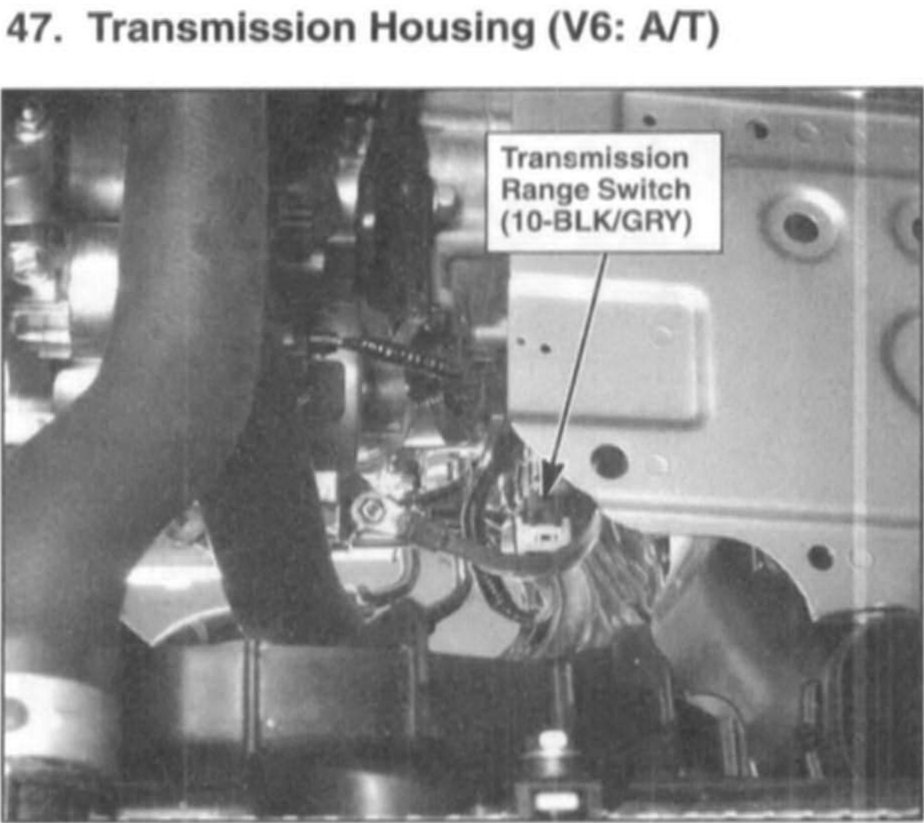

A/T Gear Position Indicator Component Location Index:
