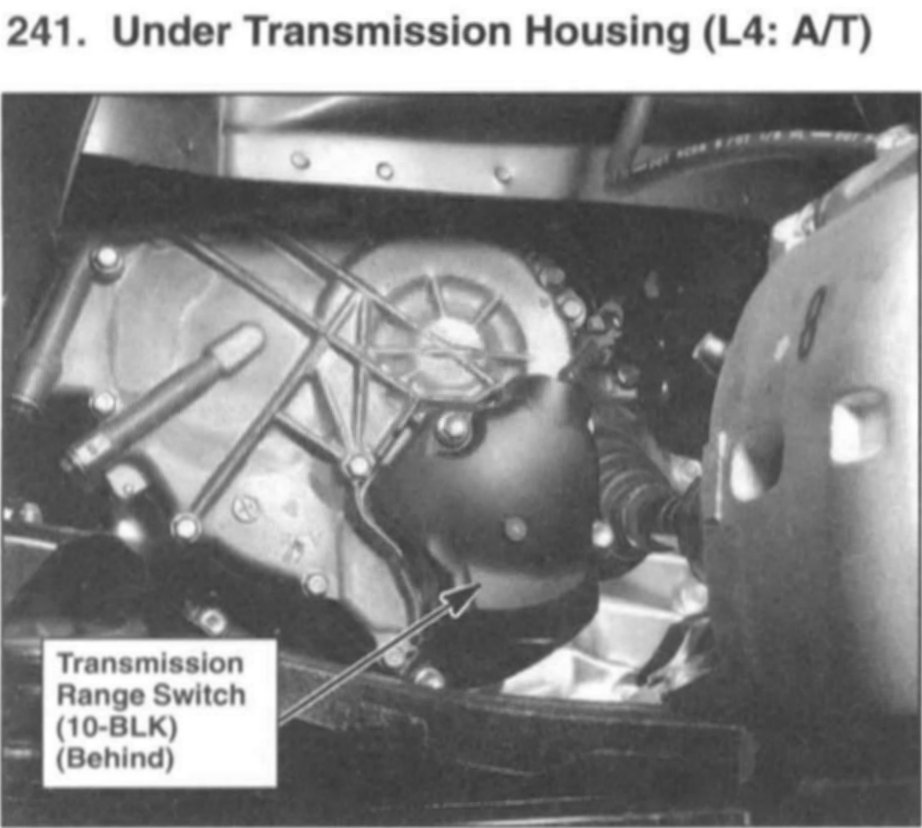

Transmission Position Sensor/Switch: Locations

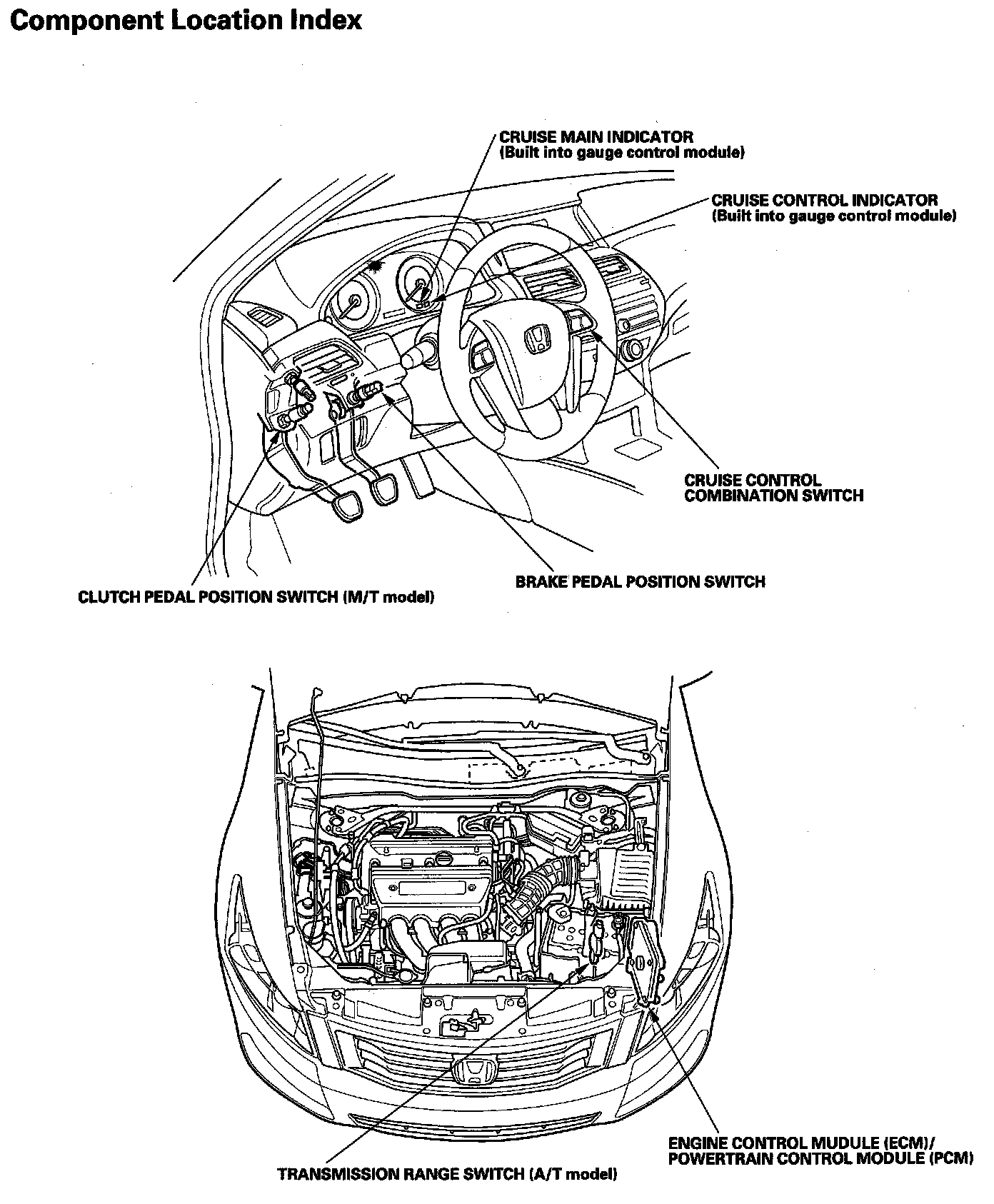

Cruise Control Component Location Index:

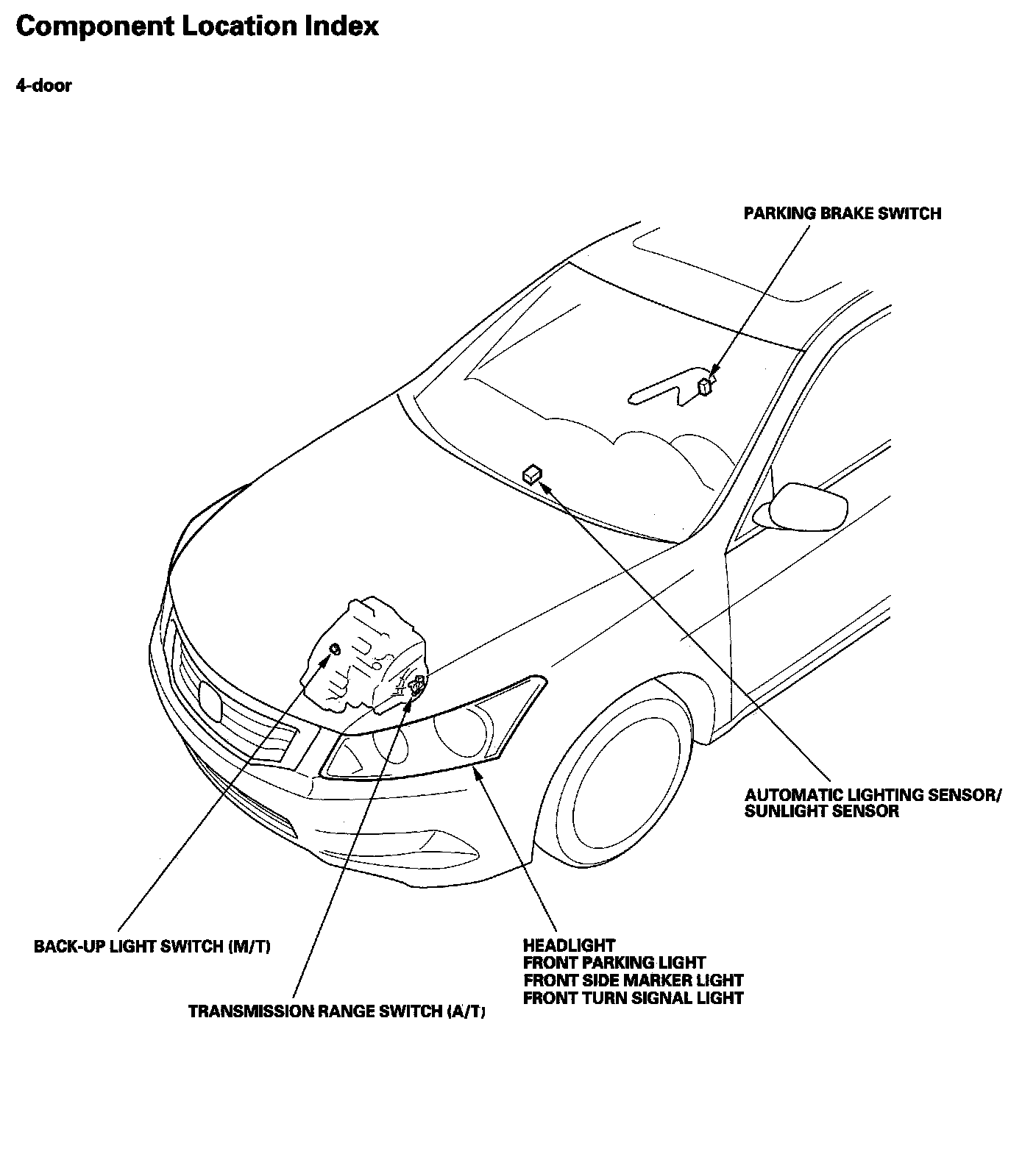

Exterior Lights Component Location Index:

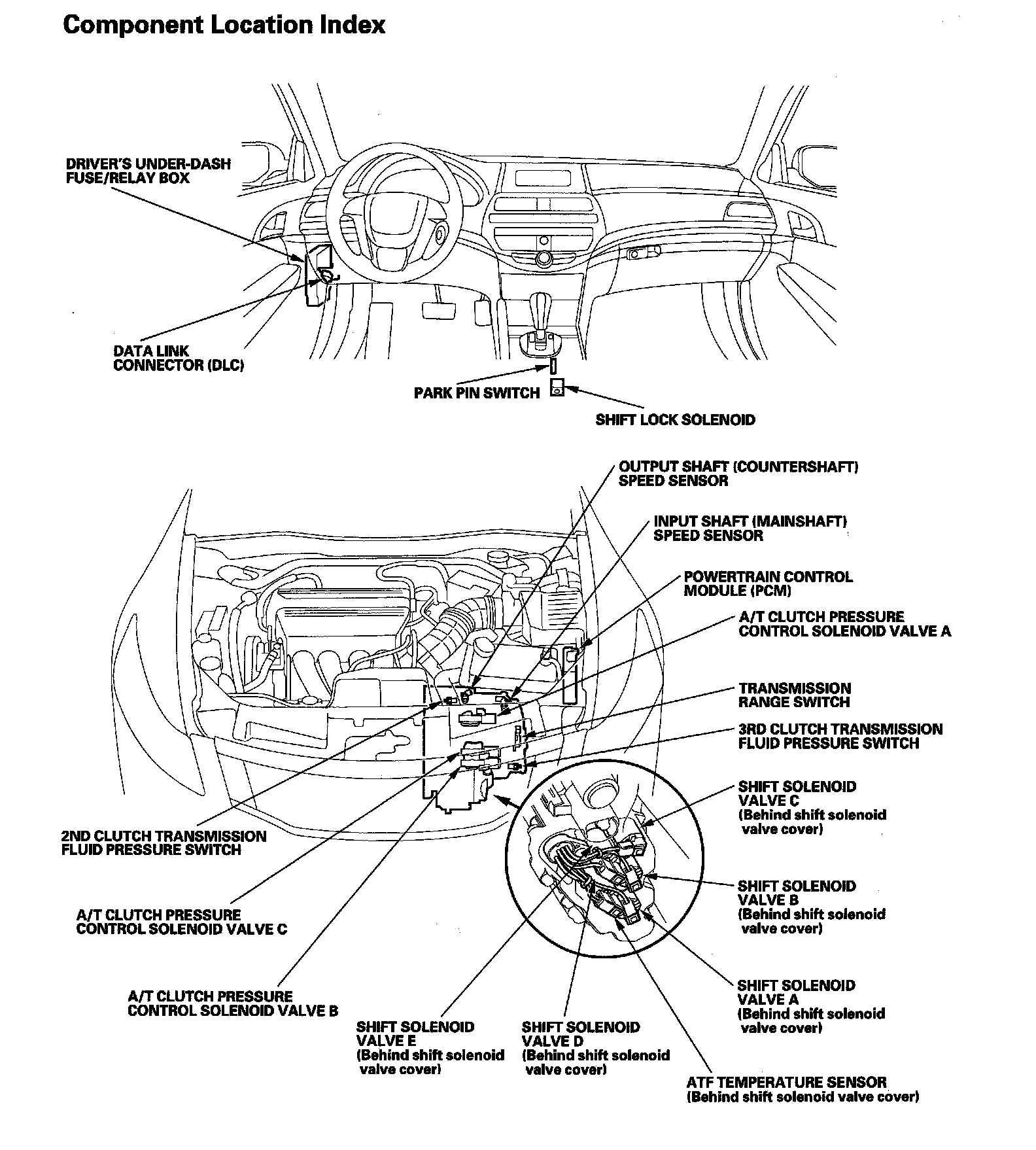

Automatic Transmission Component Location Index L4-2.4L:

A/T Gear Position Indicator Component Location Index L4-2.4L:

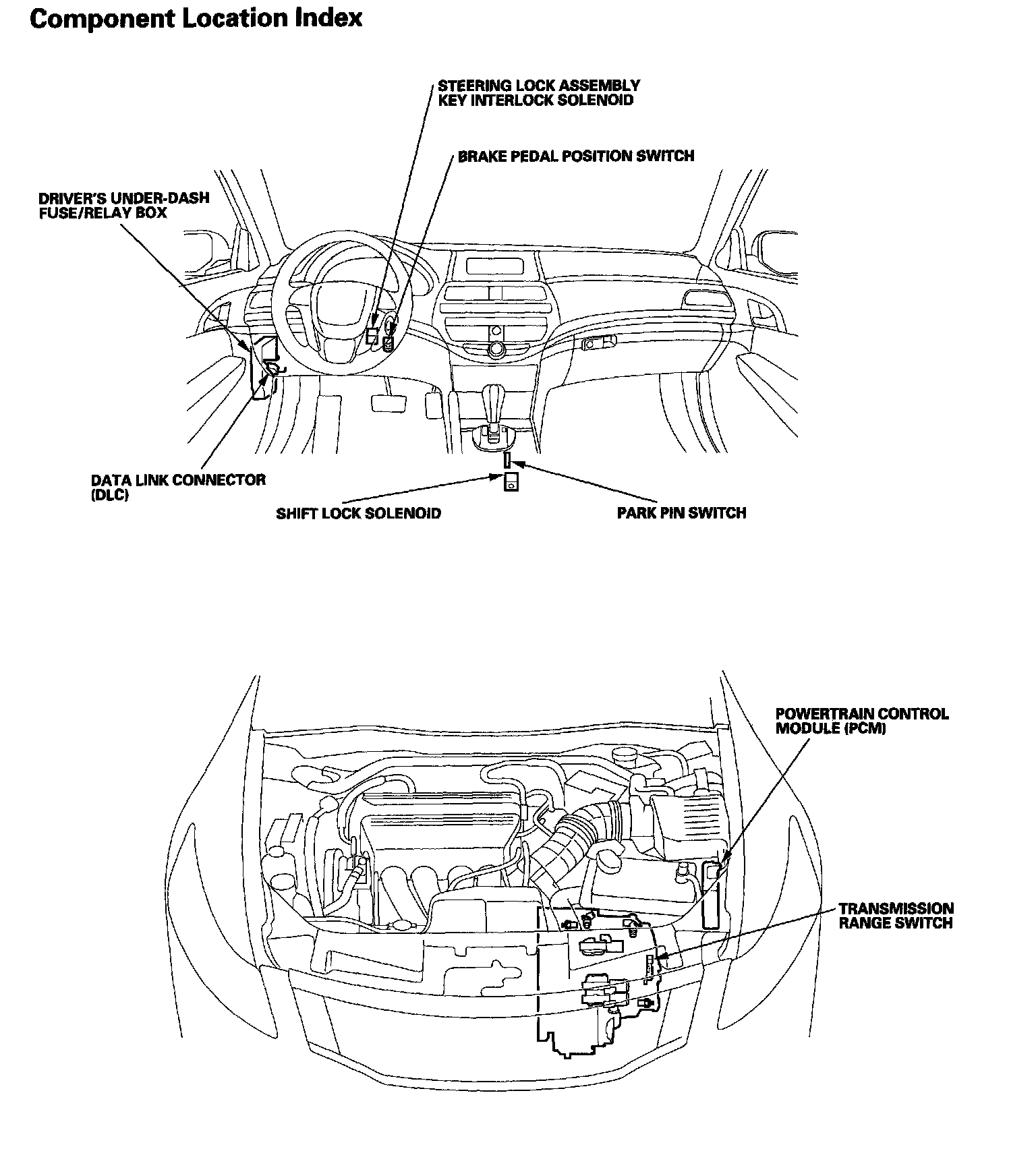

A/T Interlock System Component Location Index L4-2.4L:
