Home >> Honda >> 2008 >> Accord L4-2.4L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Seat Temperature Relay
September 30: LEMON manuals is back up on a temporary server! Slowness is possible

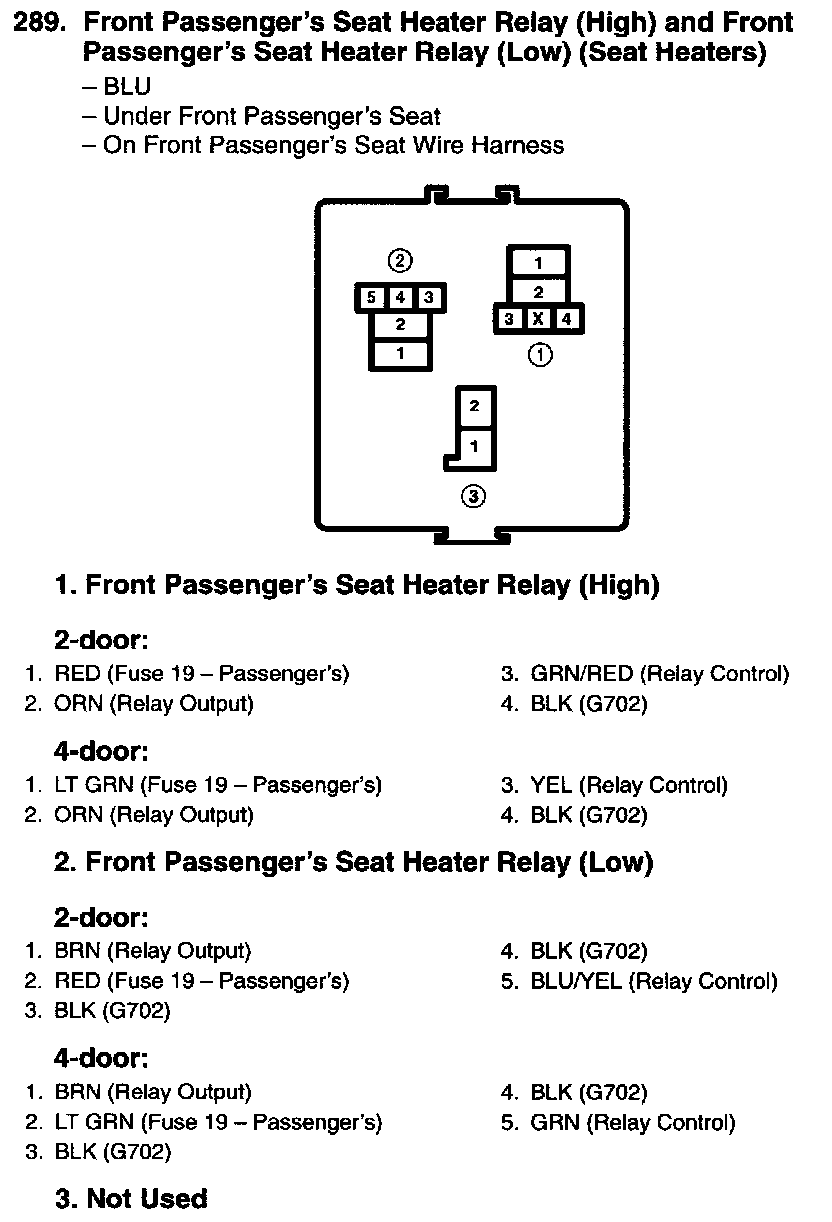

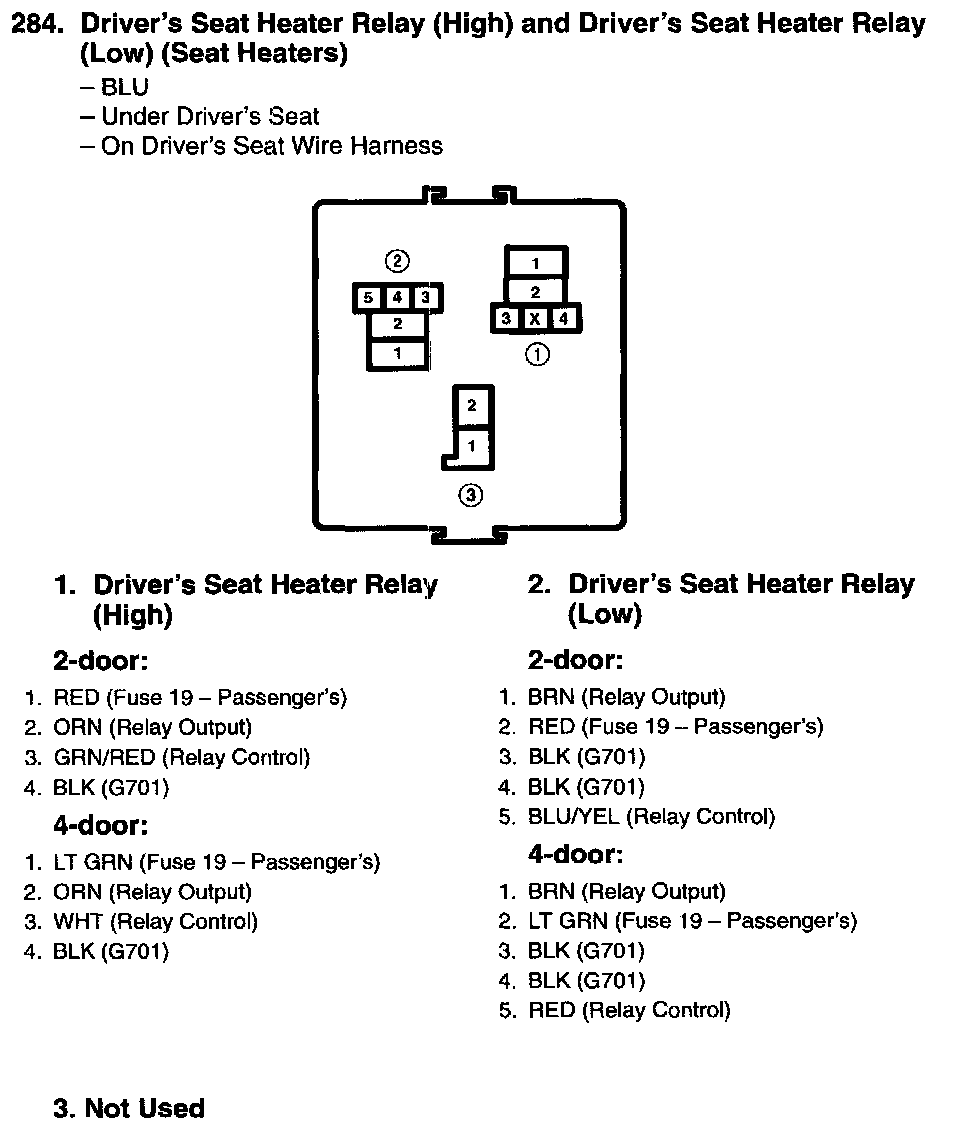

Seat Temperature Relay
