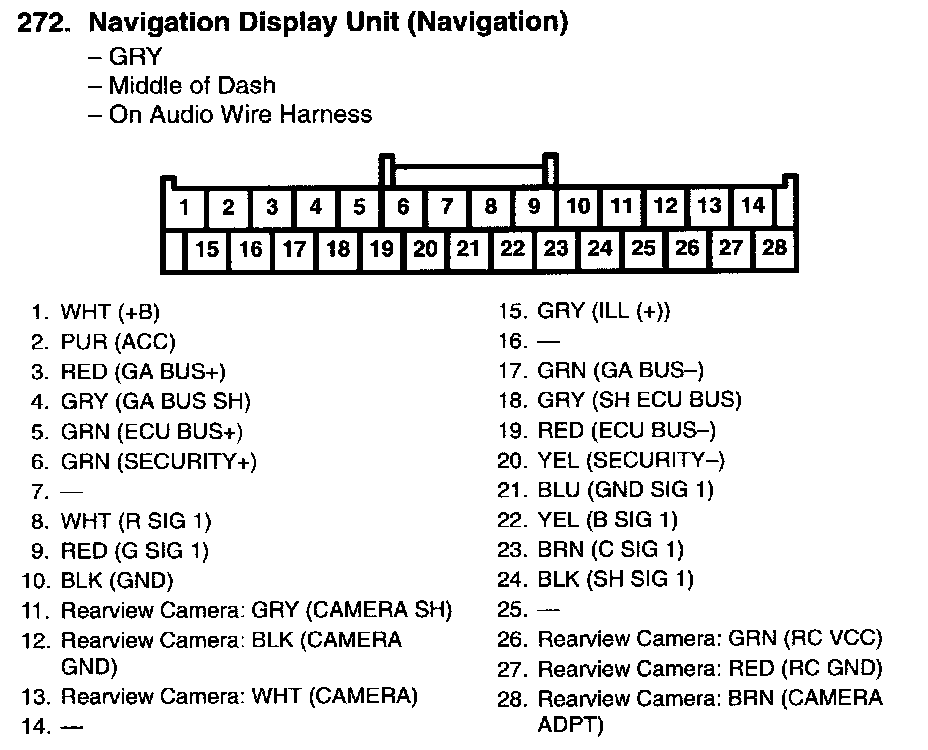

Navigation Display

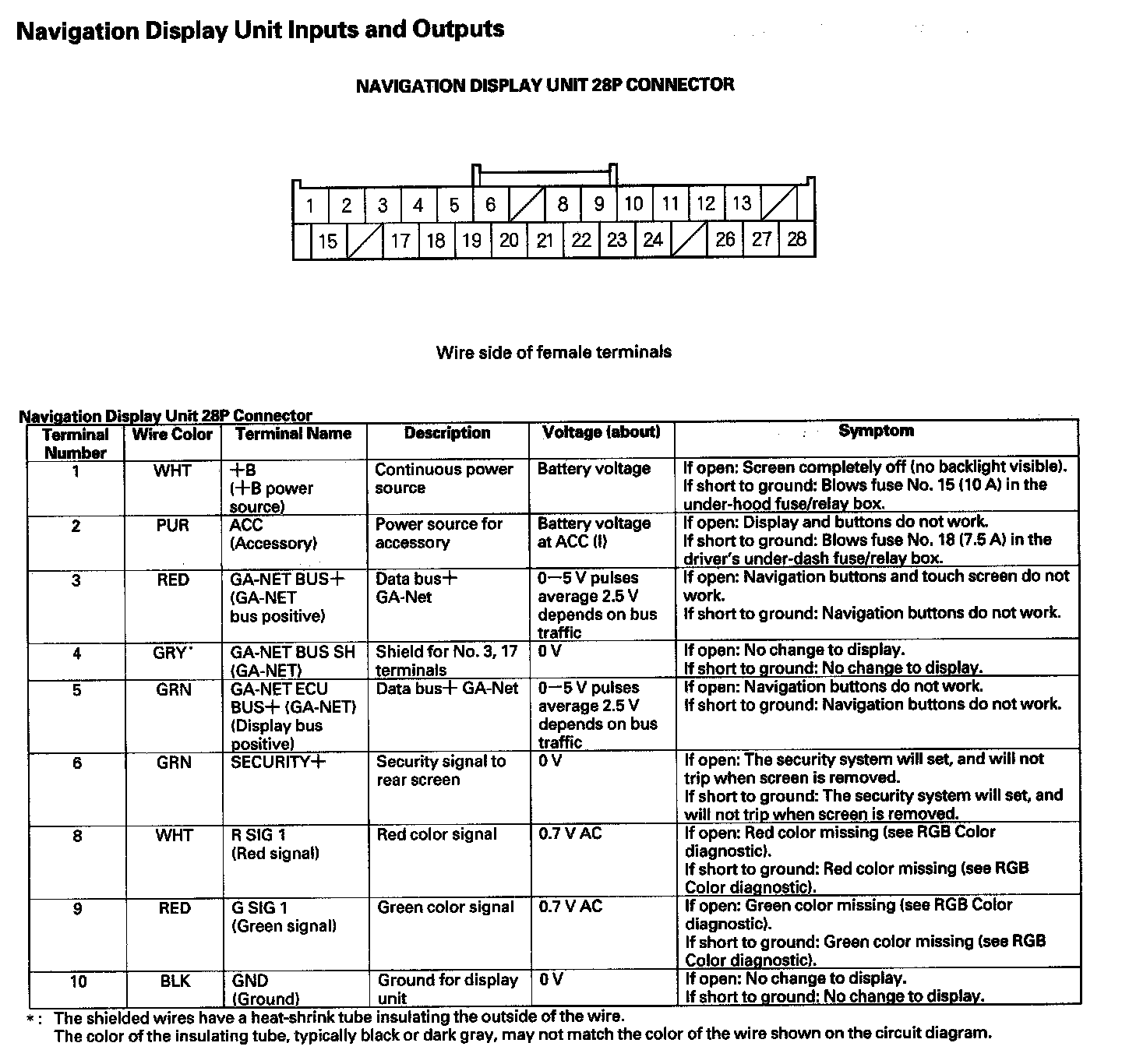

Navigation Display Unit Inputs And Outputs (Part 1):

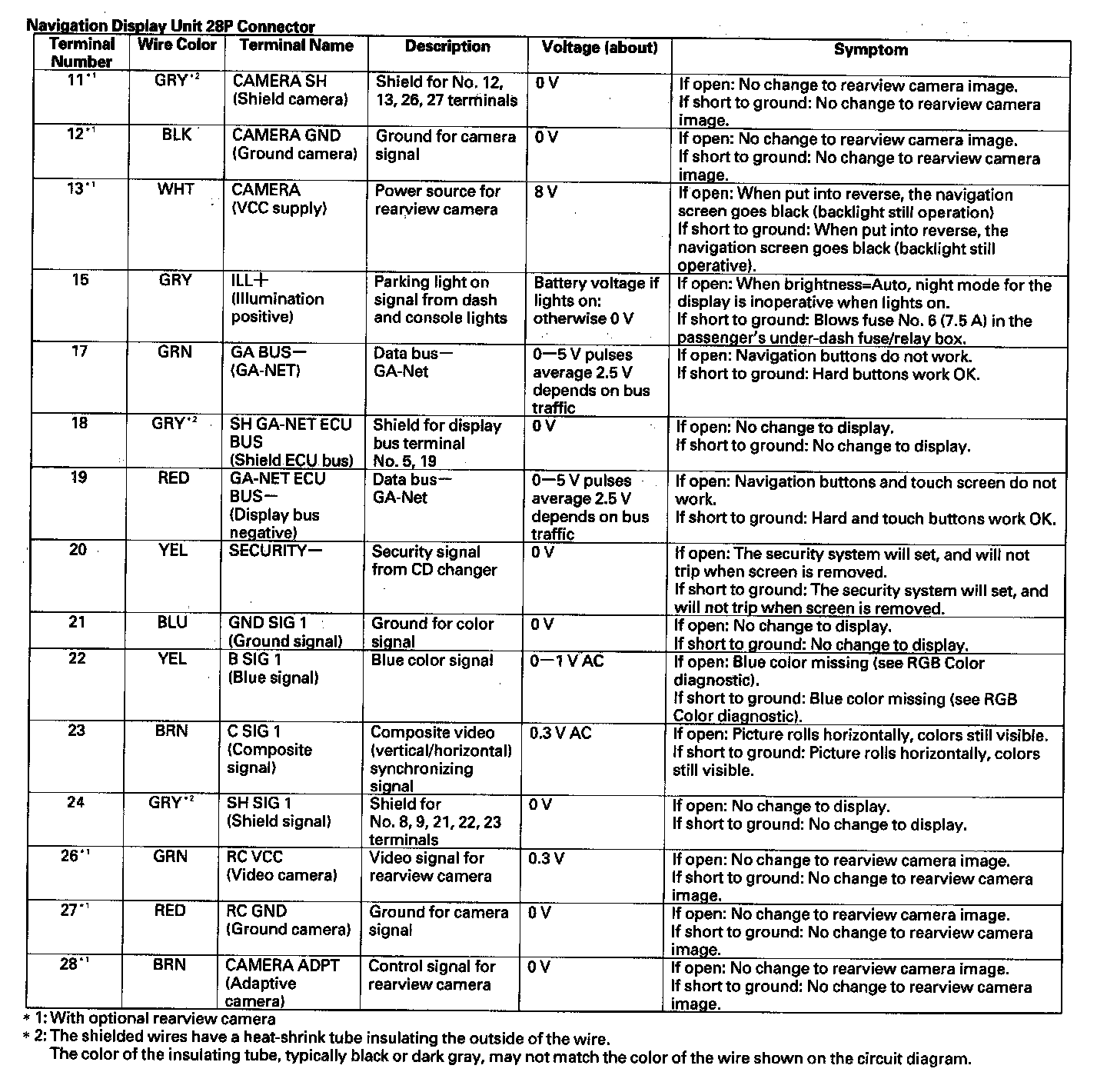

Navigation Display Unit Inputs And Outputs (Part 2):
