Component Locations

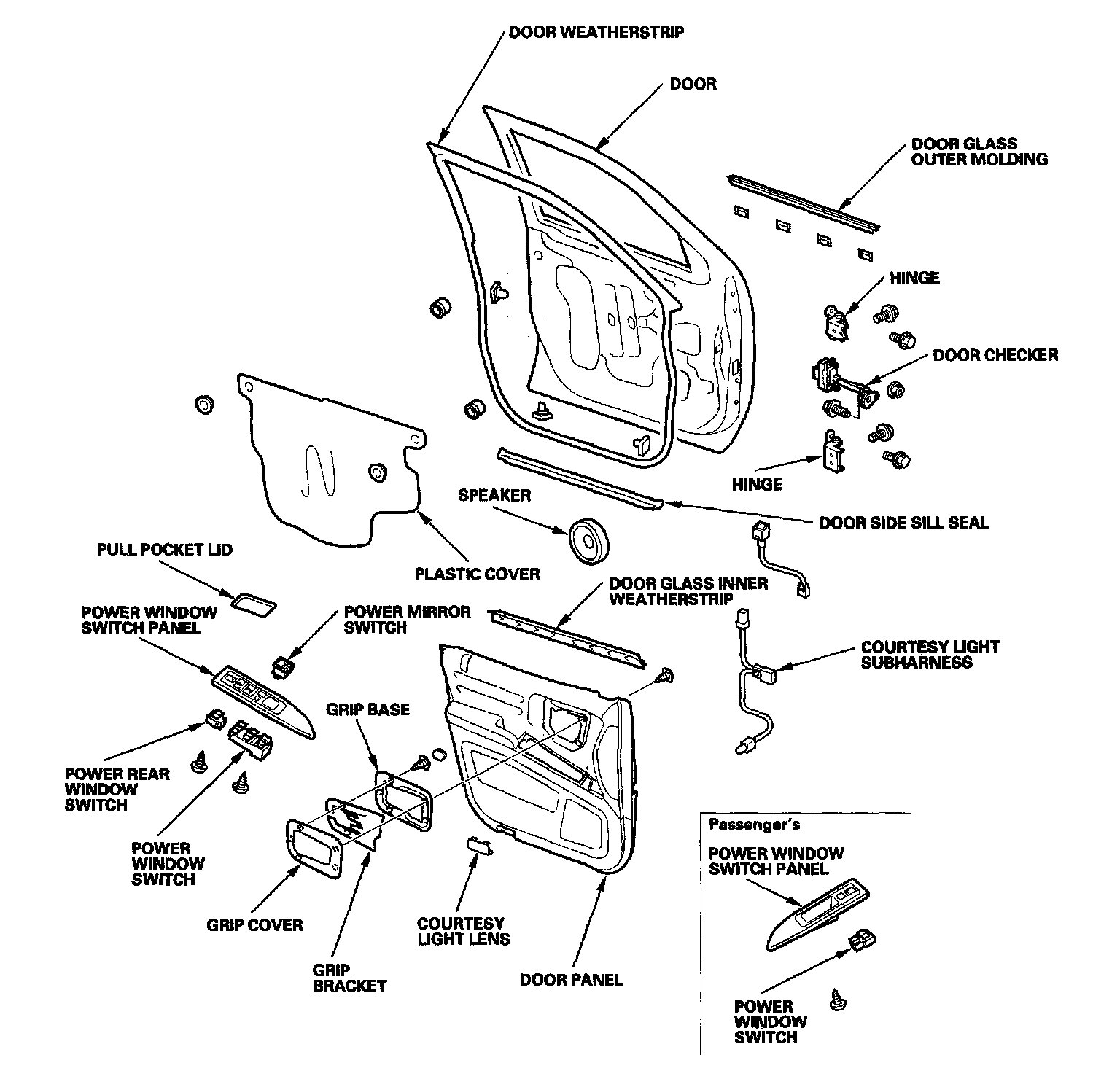

Front Door Component Location Index (Part 1):



Power Windows Component Location Index:



Keyless/Power Door Locks/Security System Component Location Index:

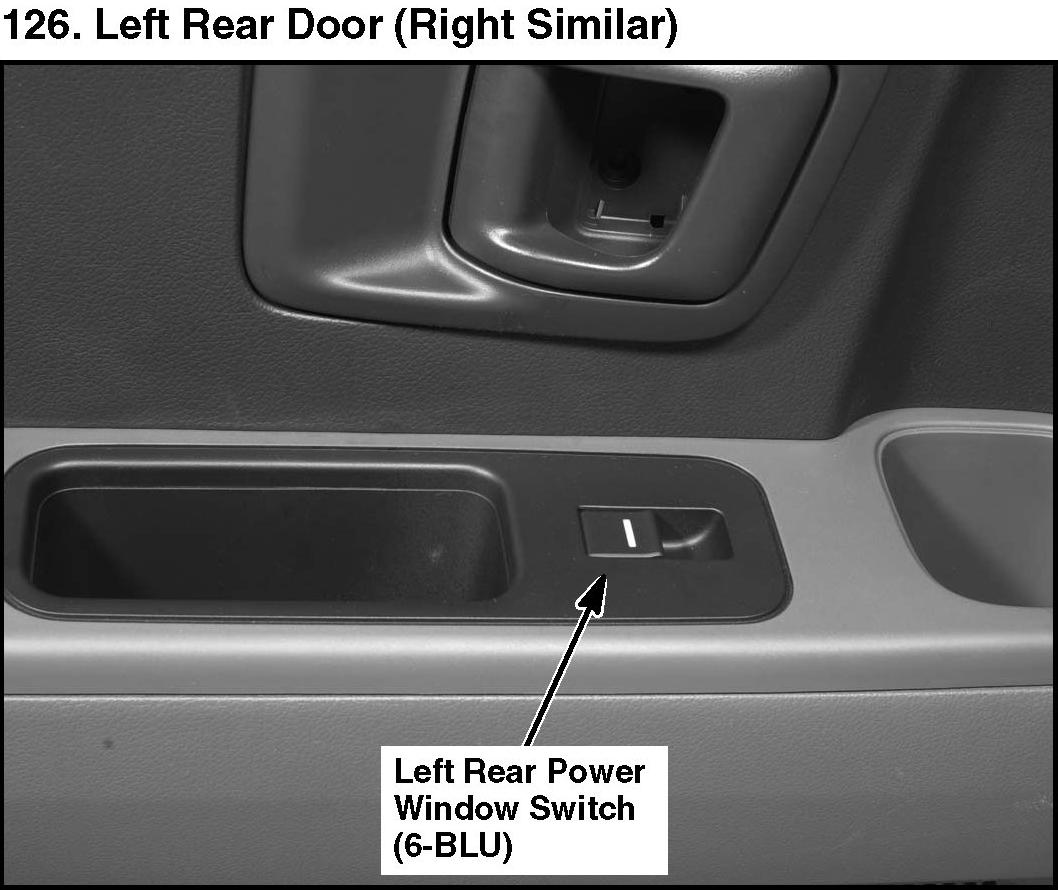

126. Left Rear Door (Right Similar):

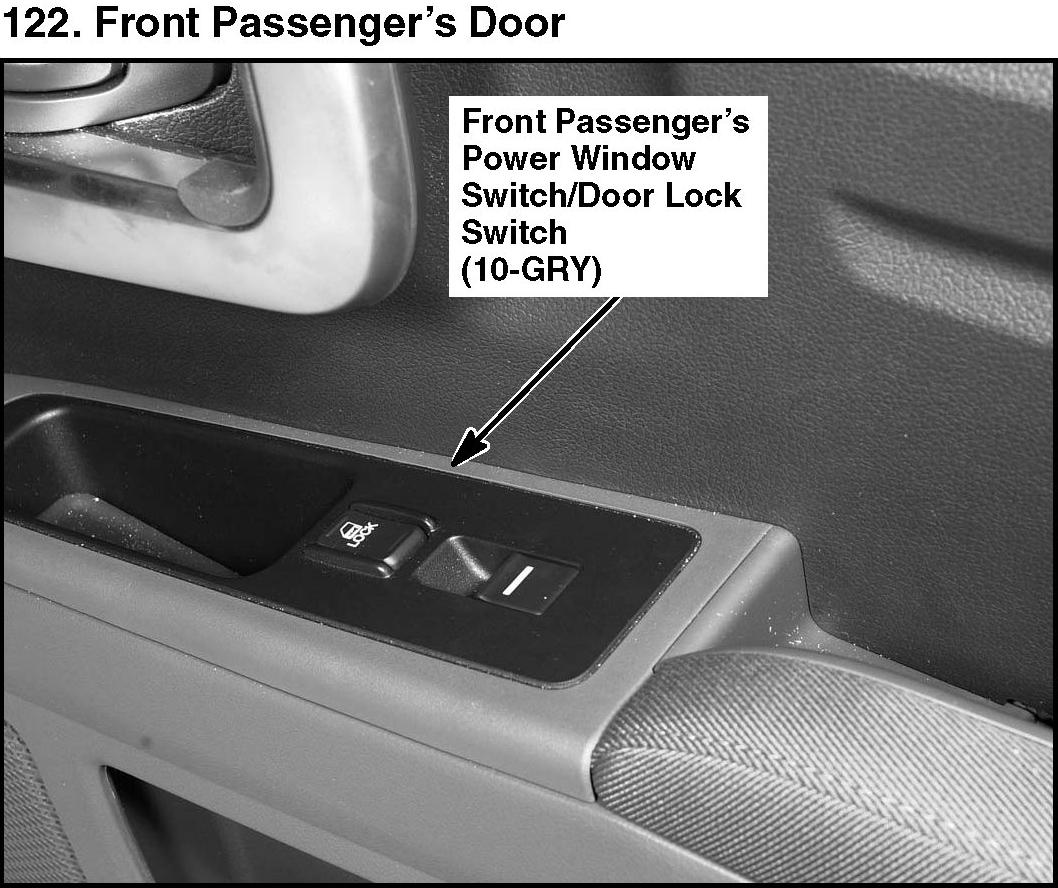

122. Front Passenger's Door:

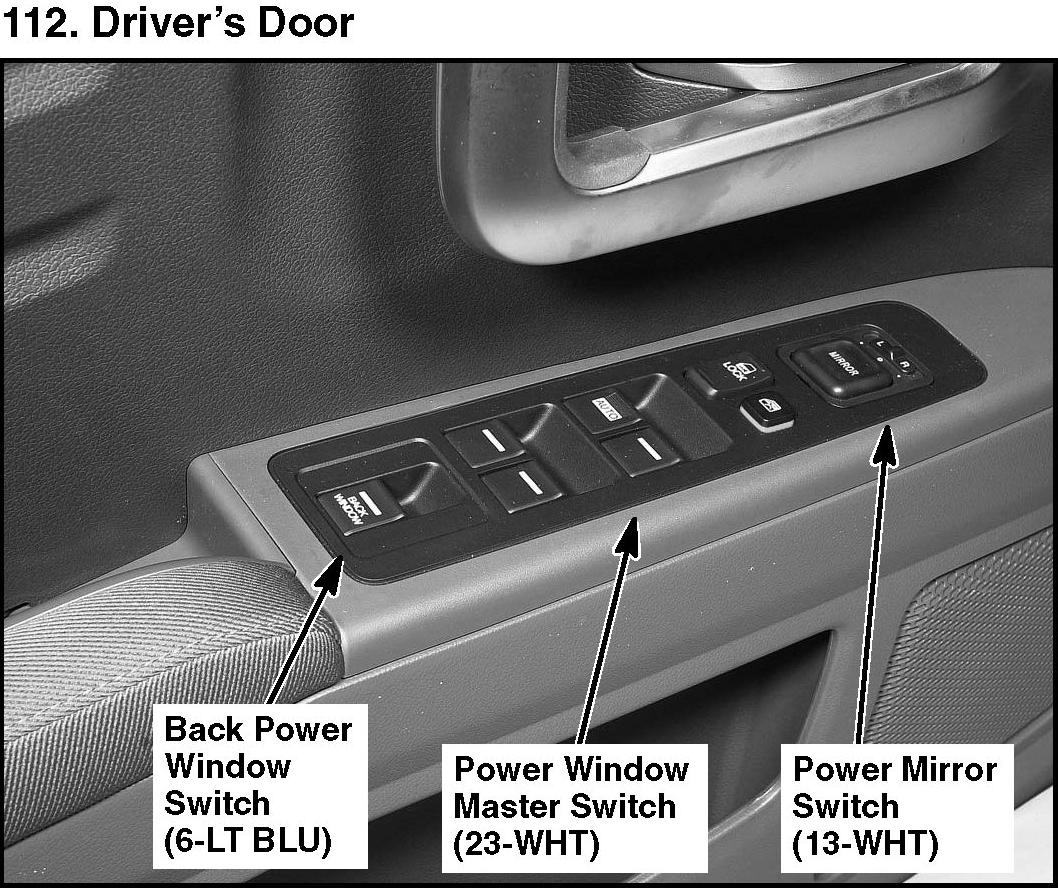

112. Driver's Door:
