Instrument Panel Control Module: Locations

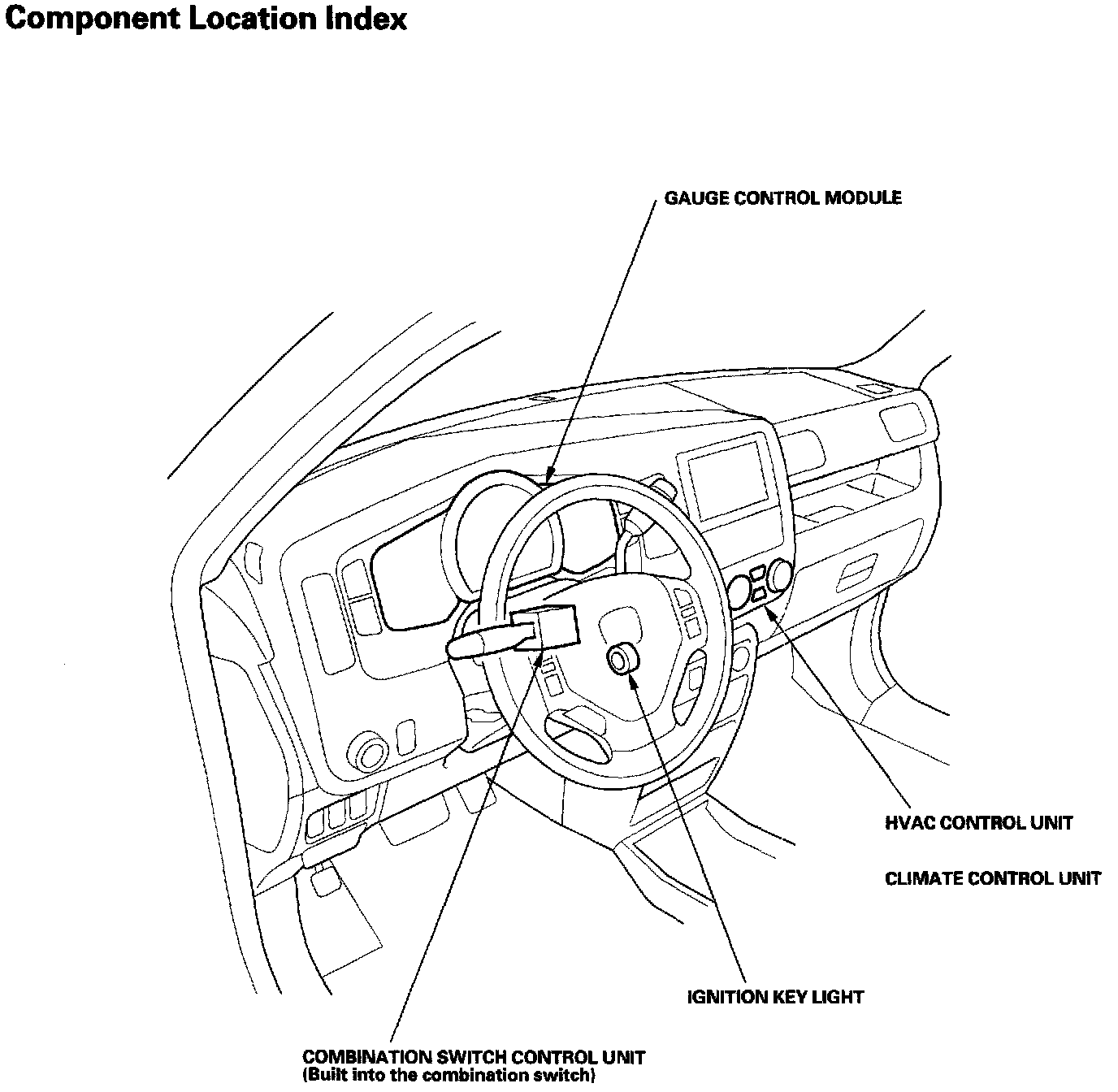

Multiplex Integrated Control System Component Location Index:

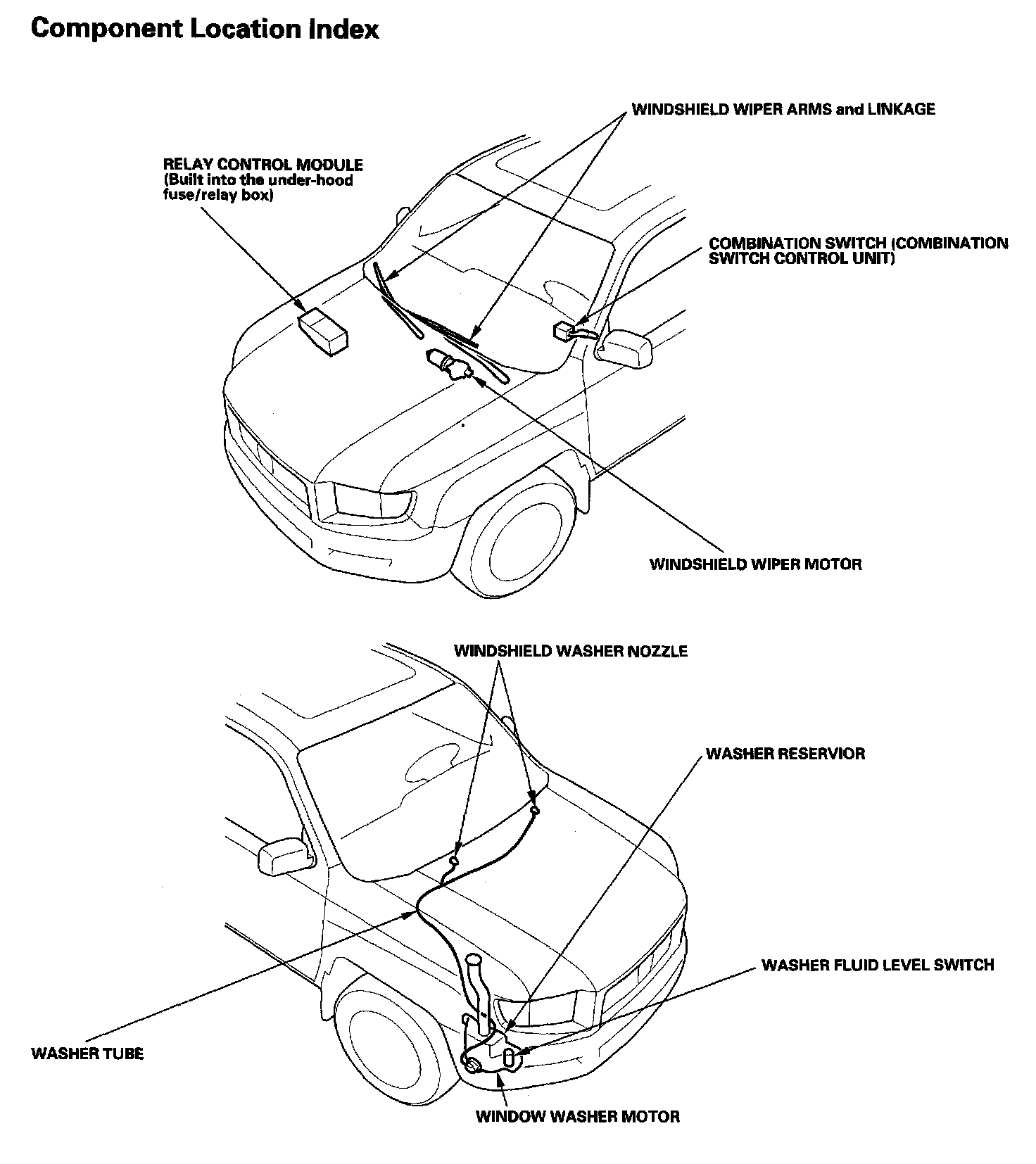

Wipers/Washers Component Location Index:

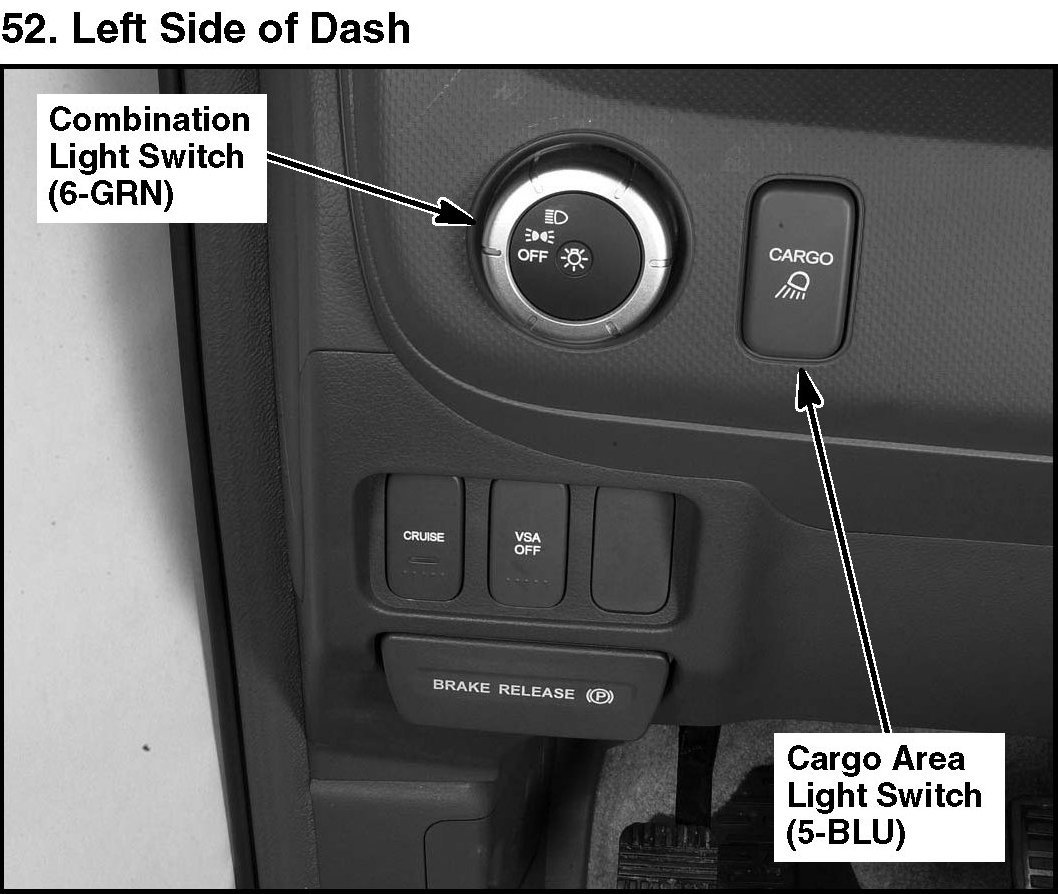

52. Left Side Of Dash:
