PCM A/T Control System Electrical Diagram

Diagram 39-0:

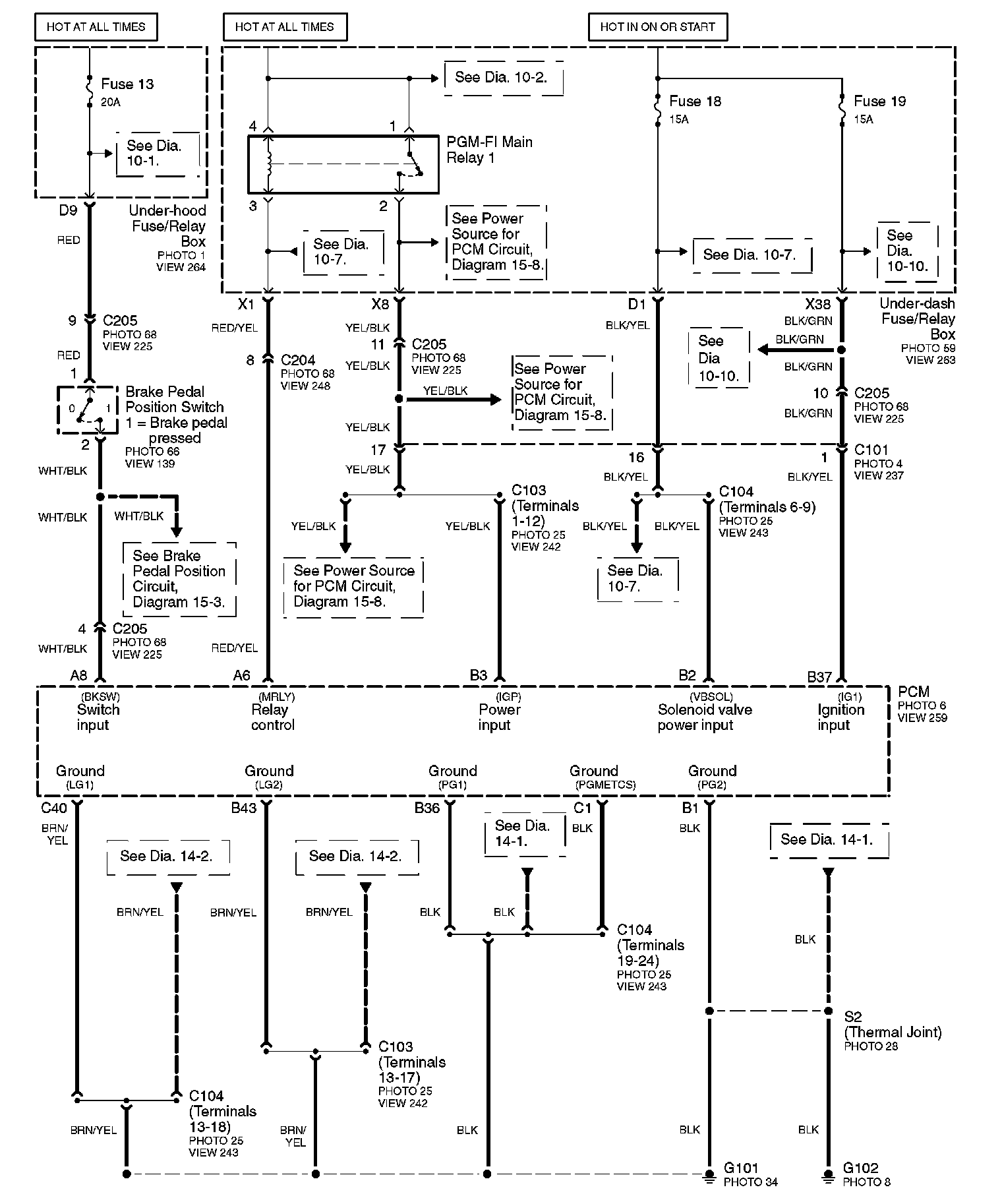

Diagram 39-1:

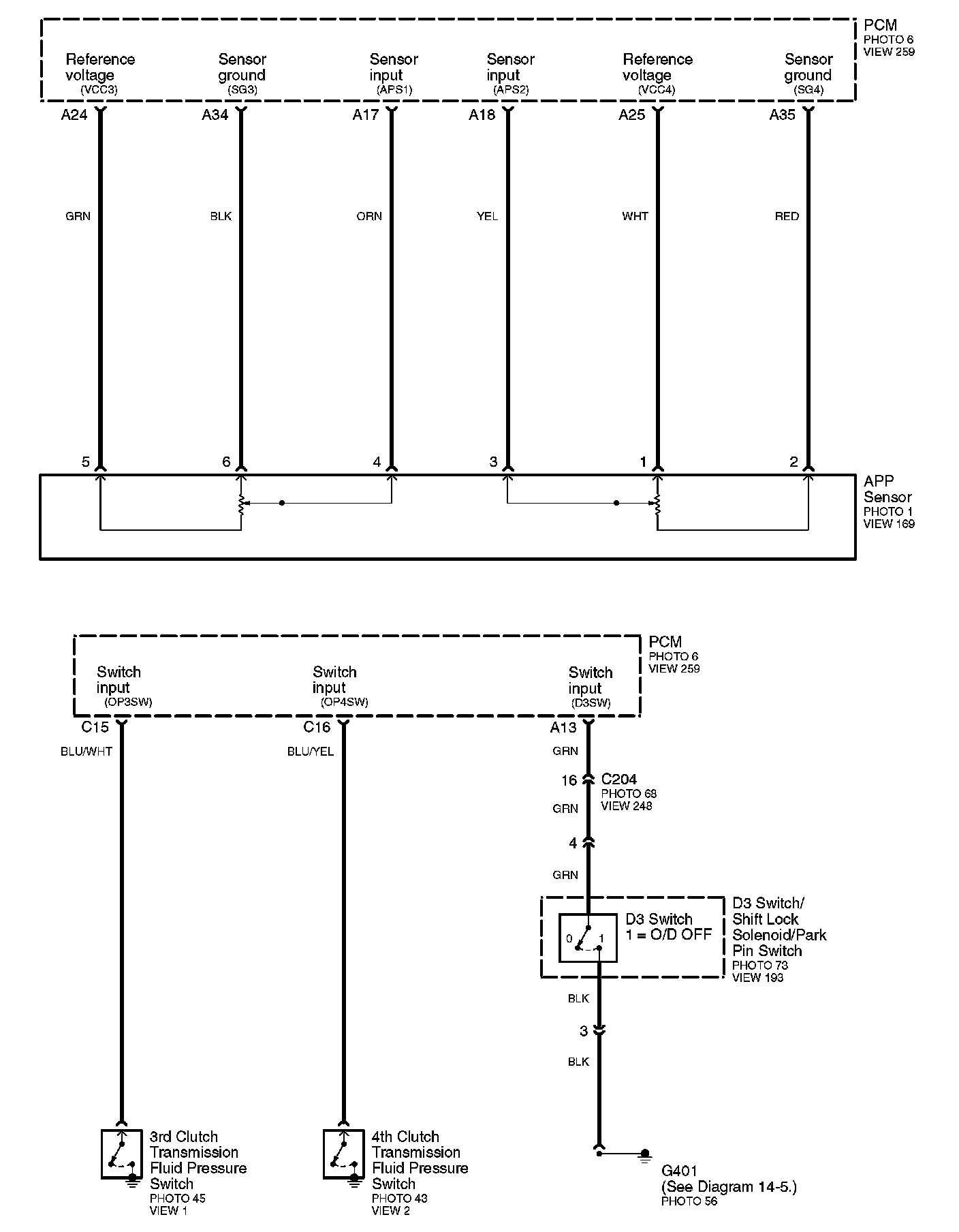

Diagram 39-2:

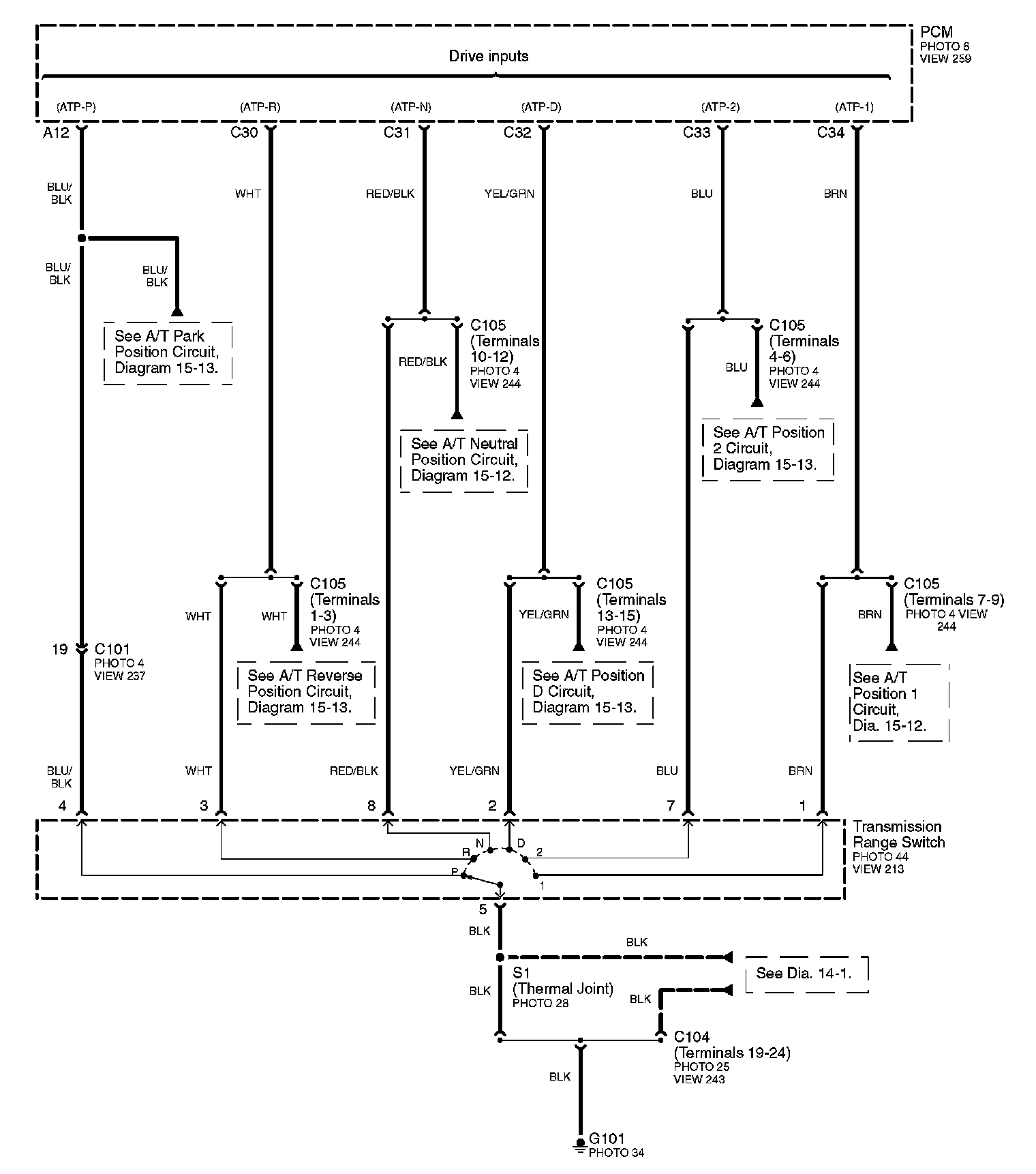

Diagram 39-3:

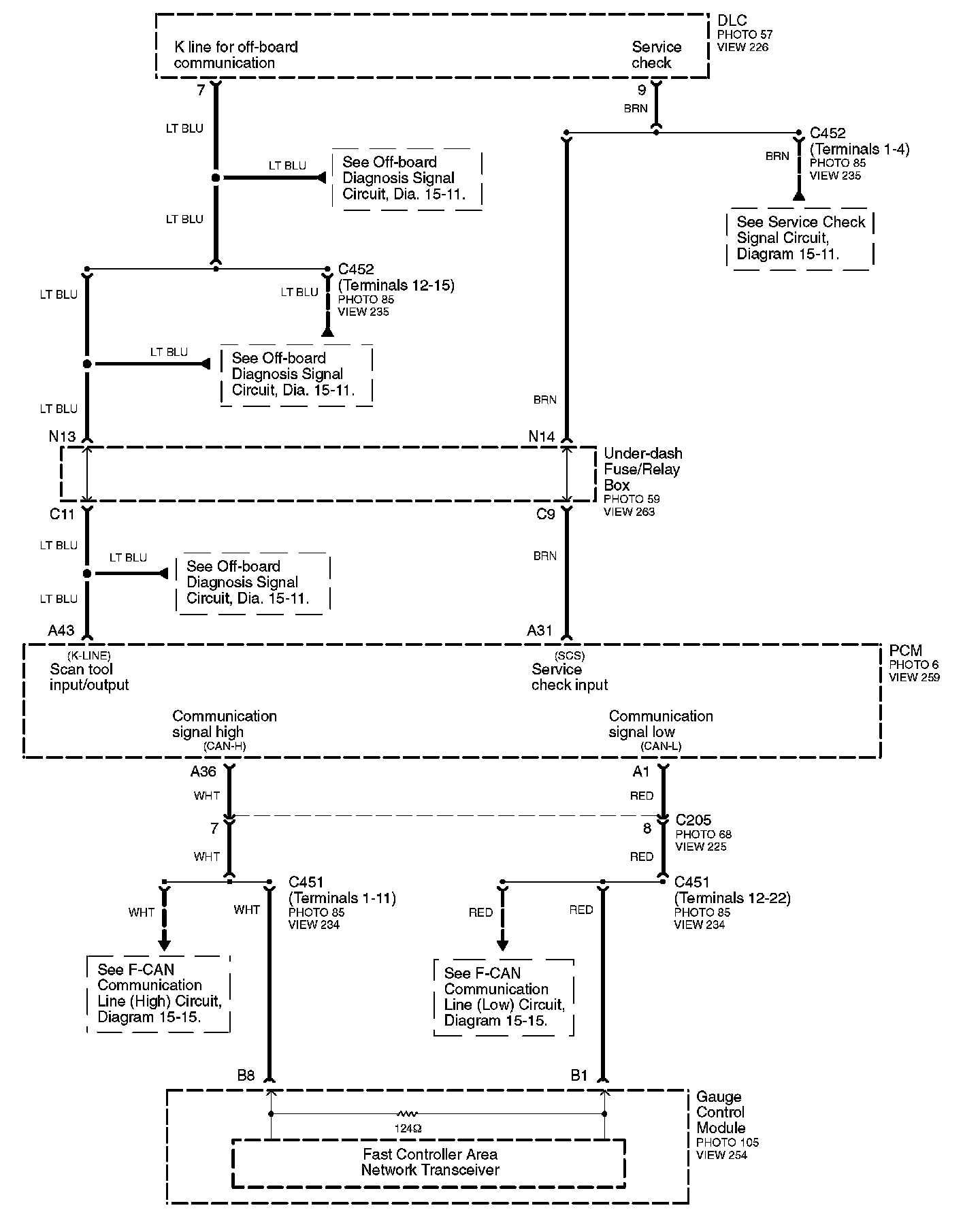

Diagram 39-4:

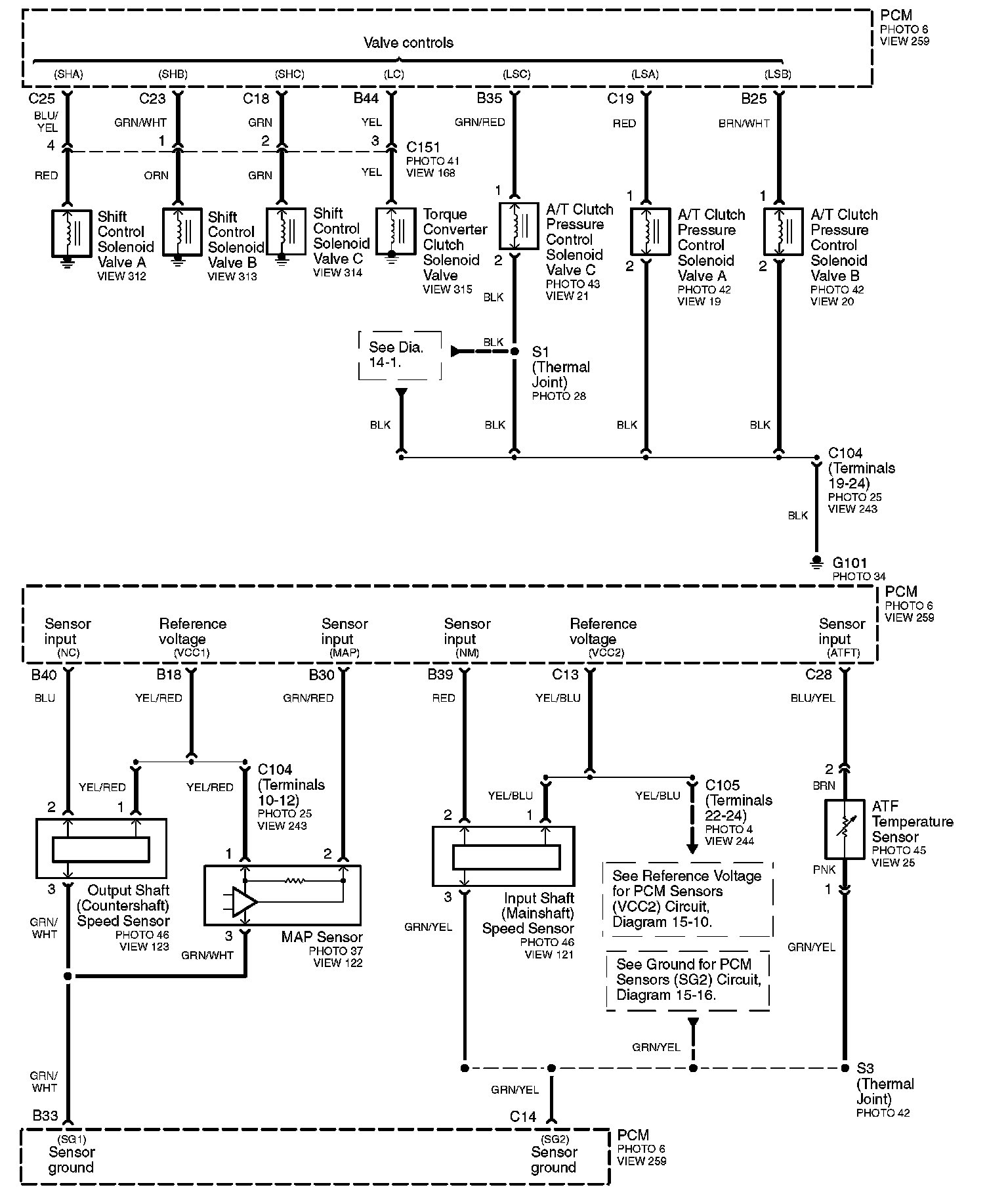

Diagram 39-5:
