Trailer Connector

141. C410 (Trailer Electric Brake Connector):

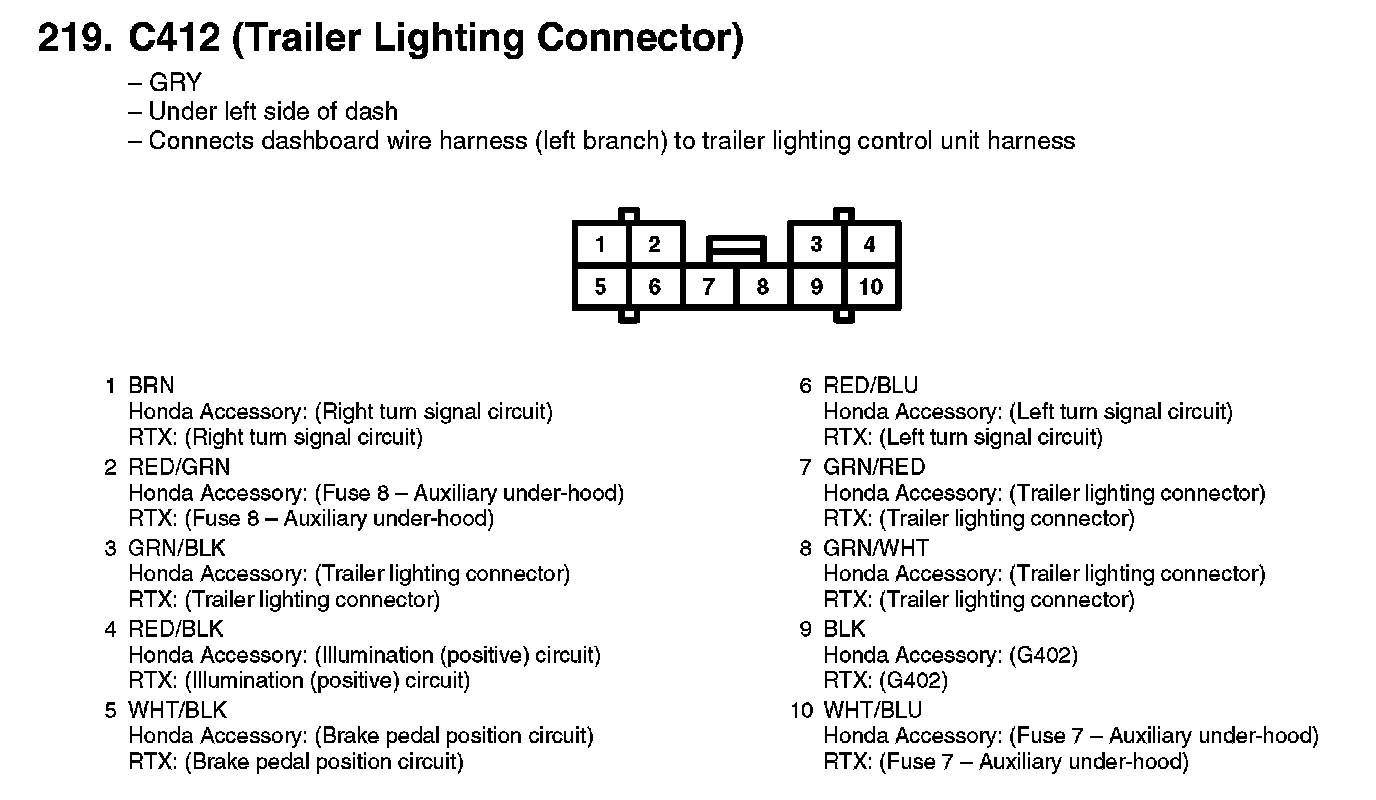

219. C412 (Trailer Lighting Connector):



296. Trailer Connector 1 (RTX; Honda Accessory):



298. Trailer Connector 2 (RTX; Honda Accessory):



307. C411 (Trailer Back-up Lights Connector (RTX; Honda Accessory):
