PCM Inputs and Outputs

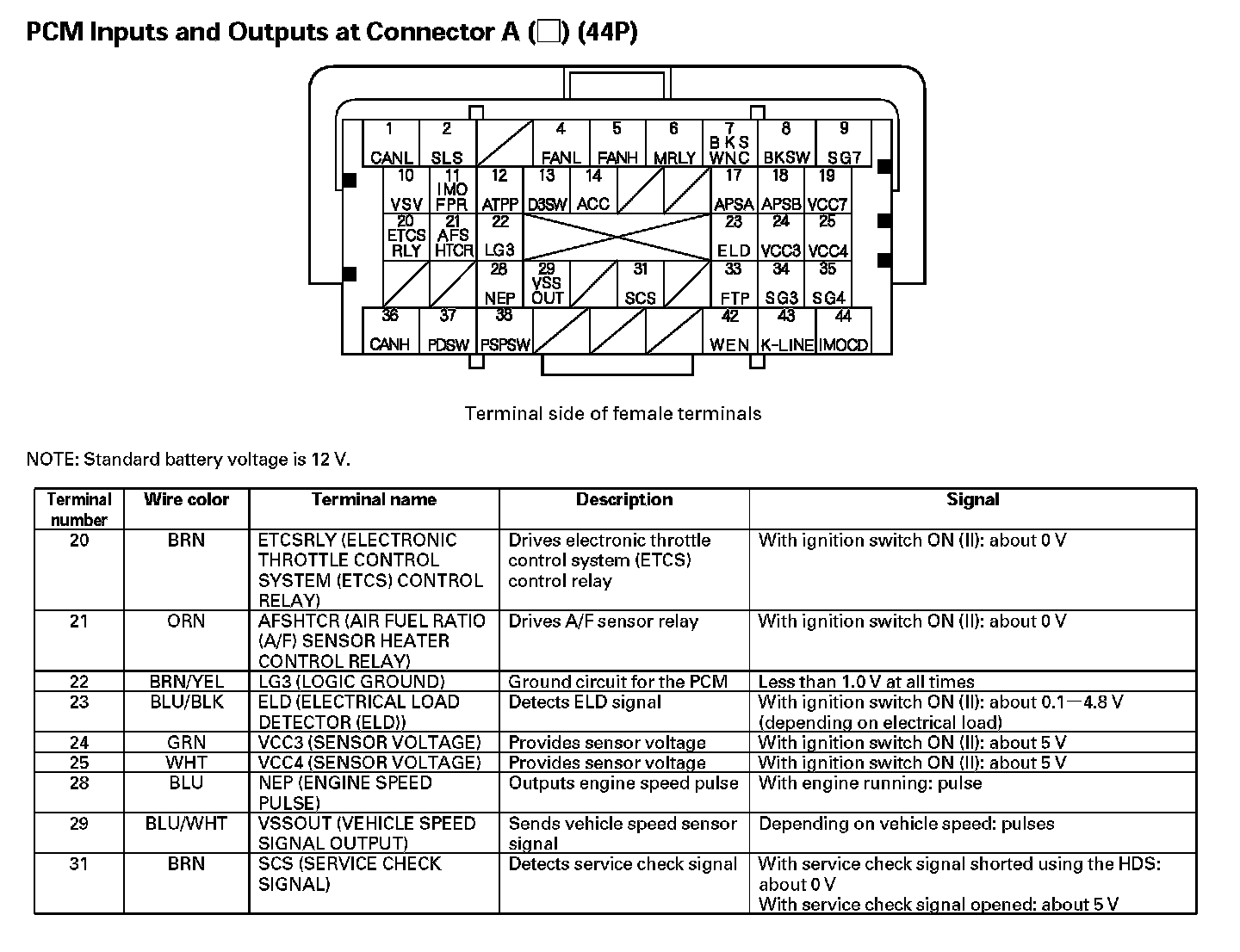

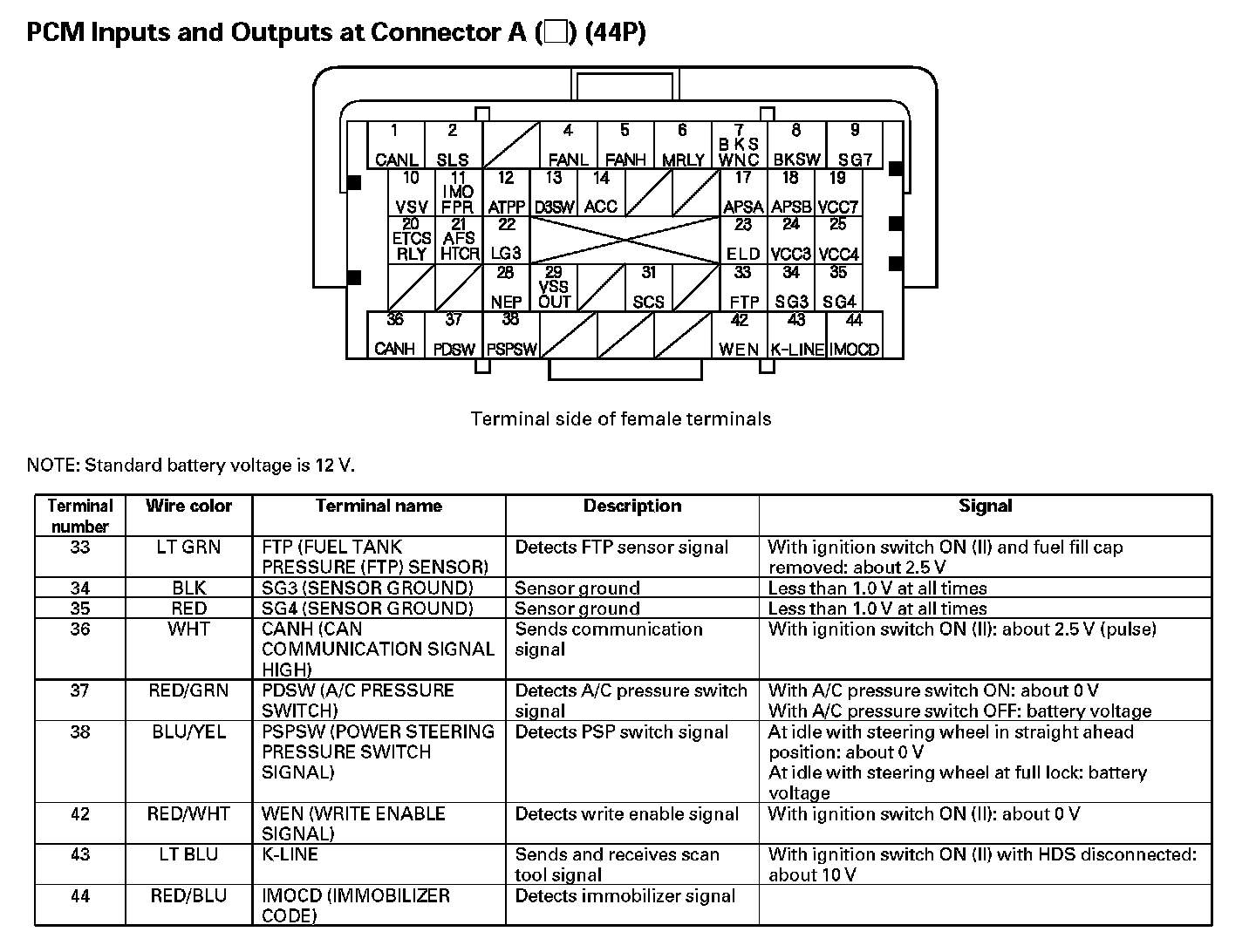

PCM Inputs And Outputs At Connector A (44P) (Part 1):

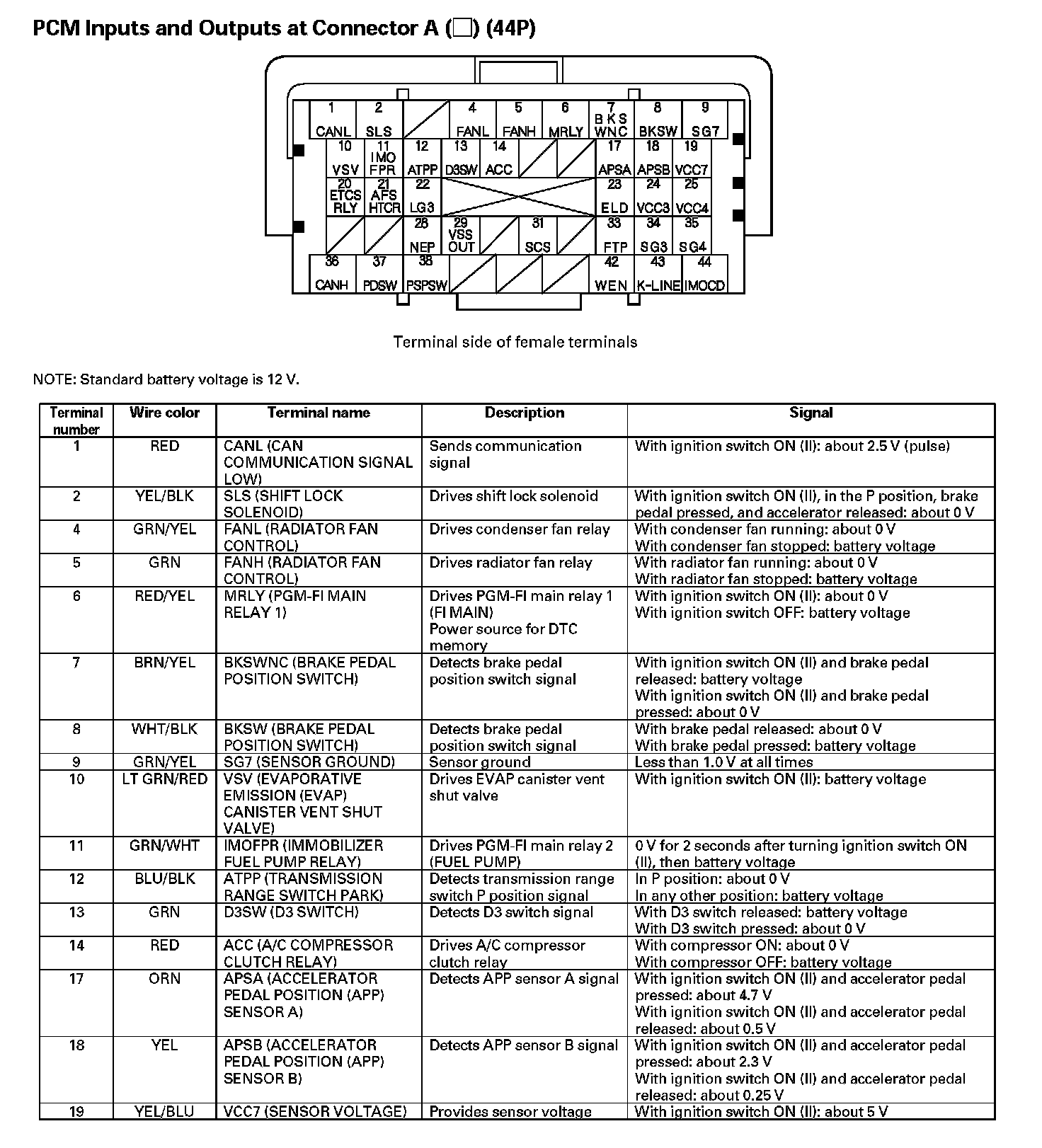

PCM Inputs And Outputs At Connector A (44P) (Part 2):



PCM Inputs And Outputs At Connector A (44P) (Part 3):

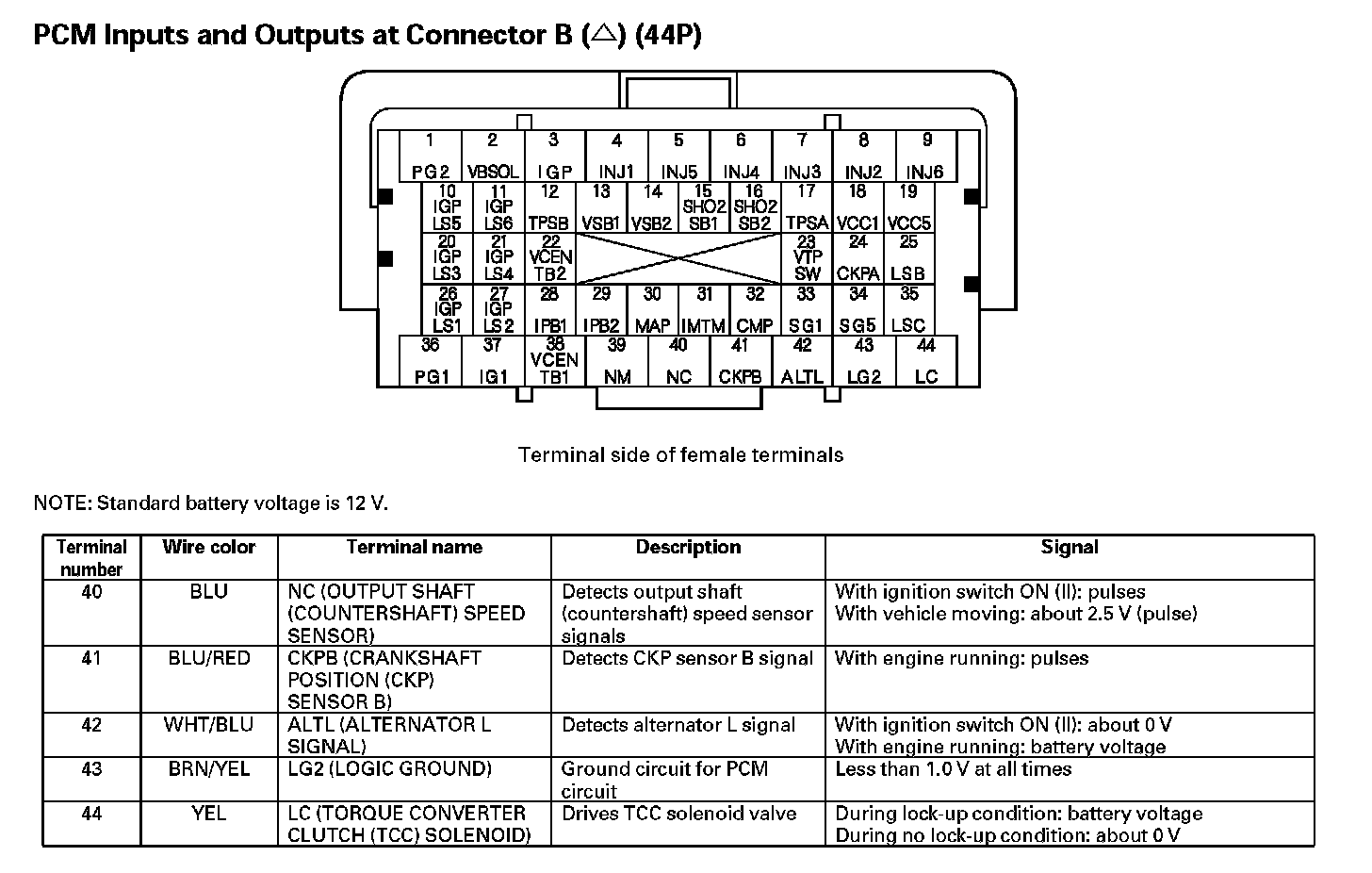

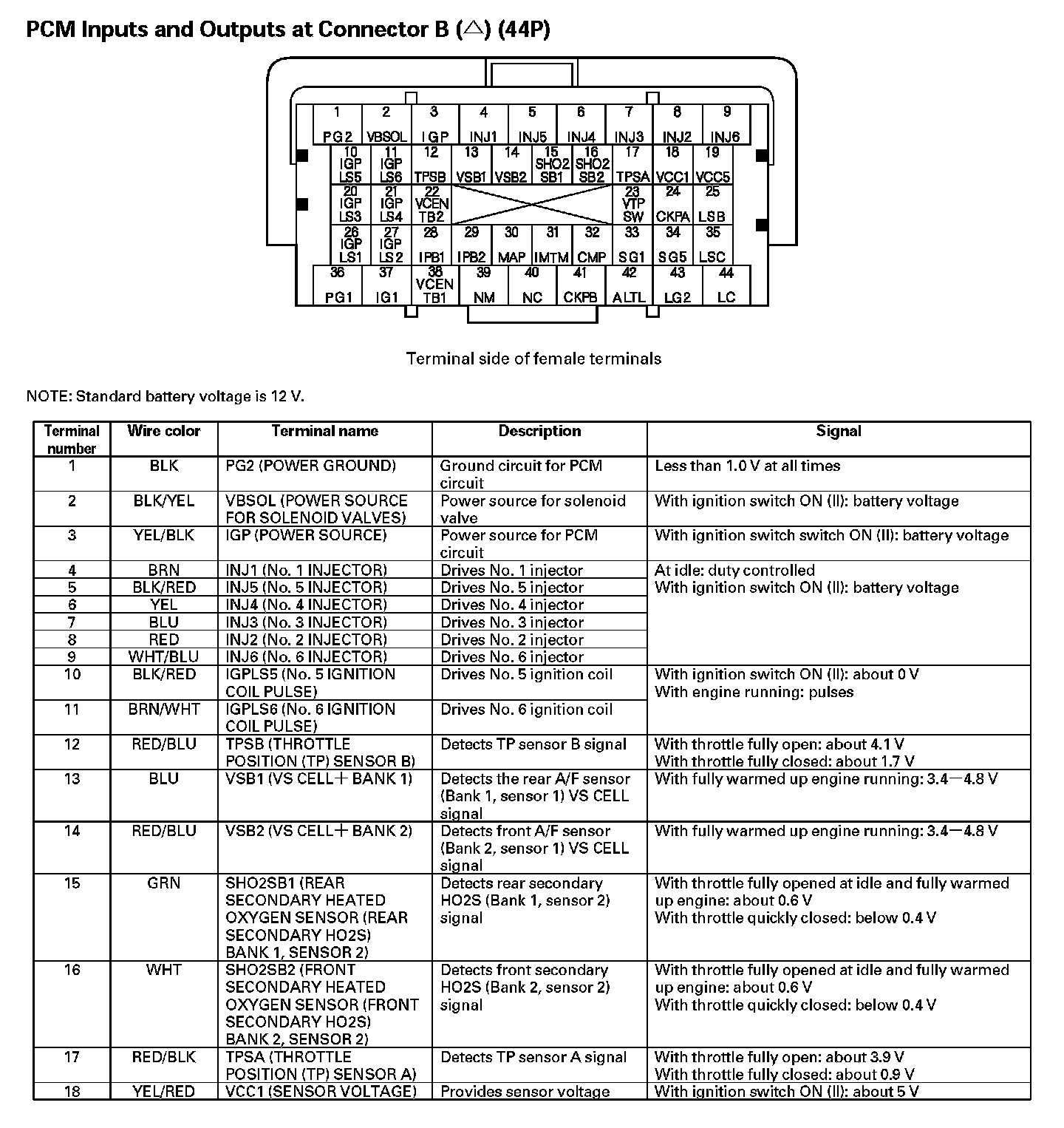

PCM Inputs And Outputs At Connector B (44P) (Part 1):

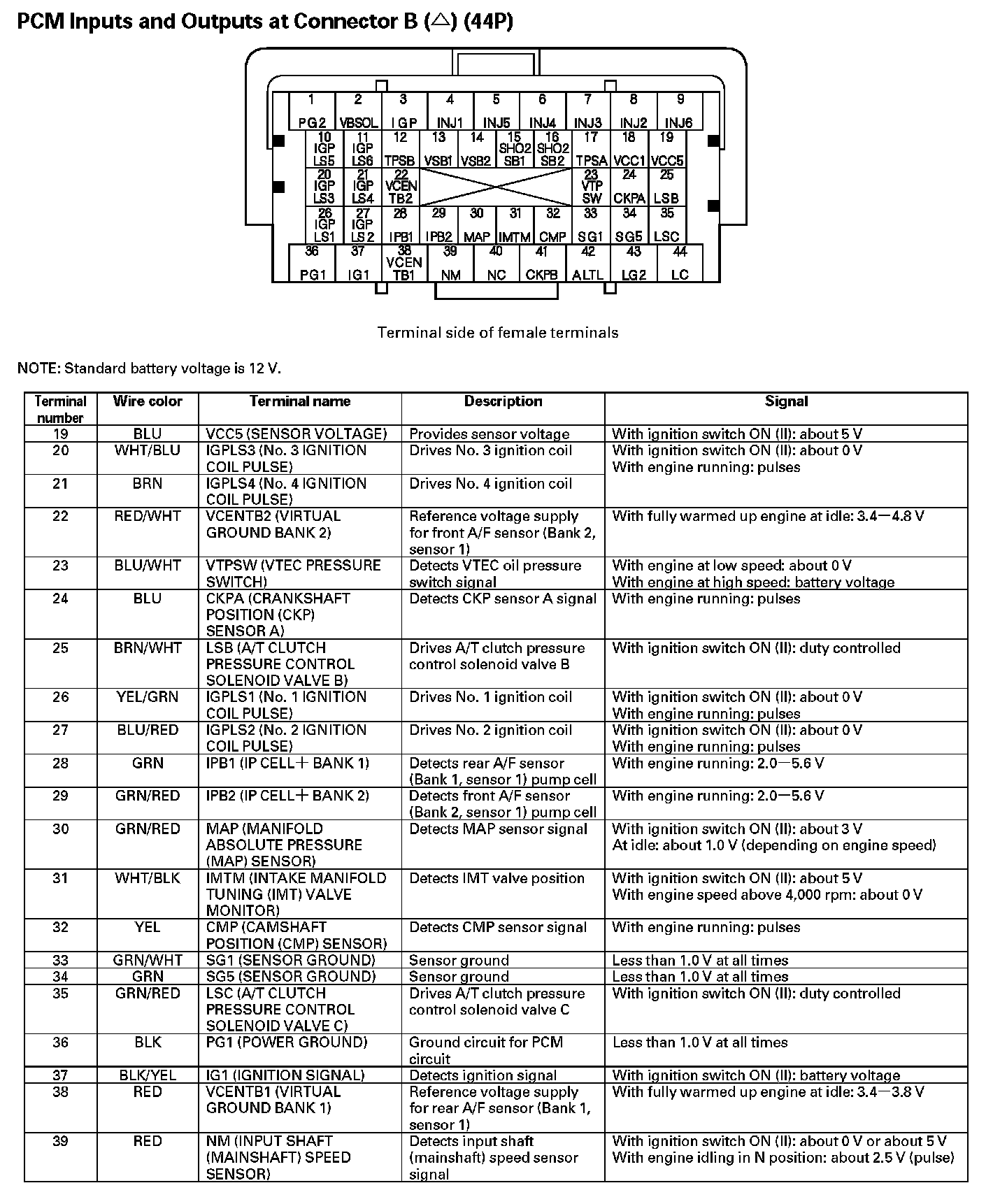

PCM Inputs And Outputs At Connector B (44P) (Part 2):



PCM Inputs And Outputs At Connector B (44P) (Part 3):

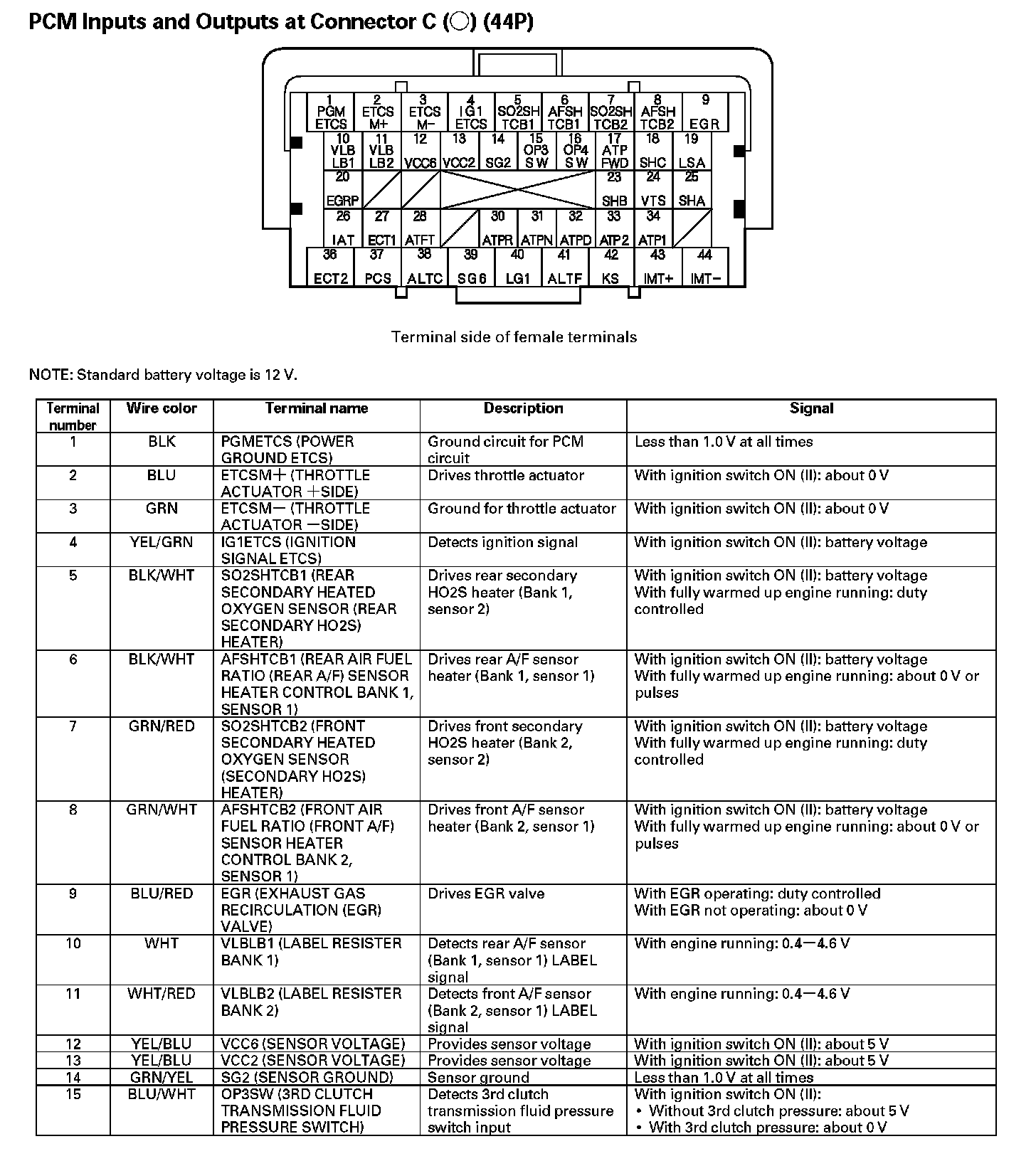

PCM Inputs And Outputs At Connector C (44P) (Part 1):

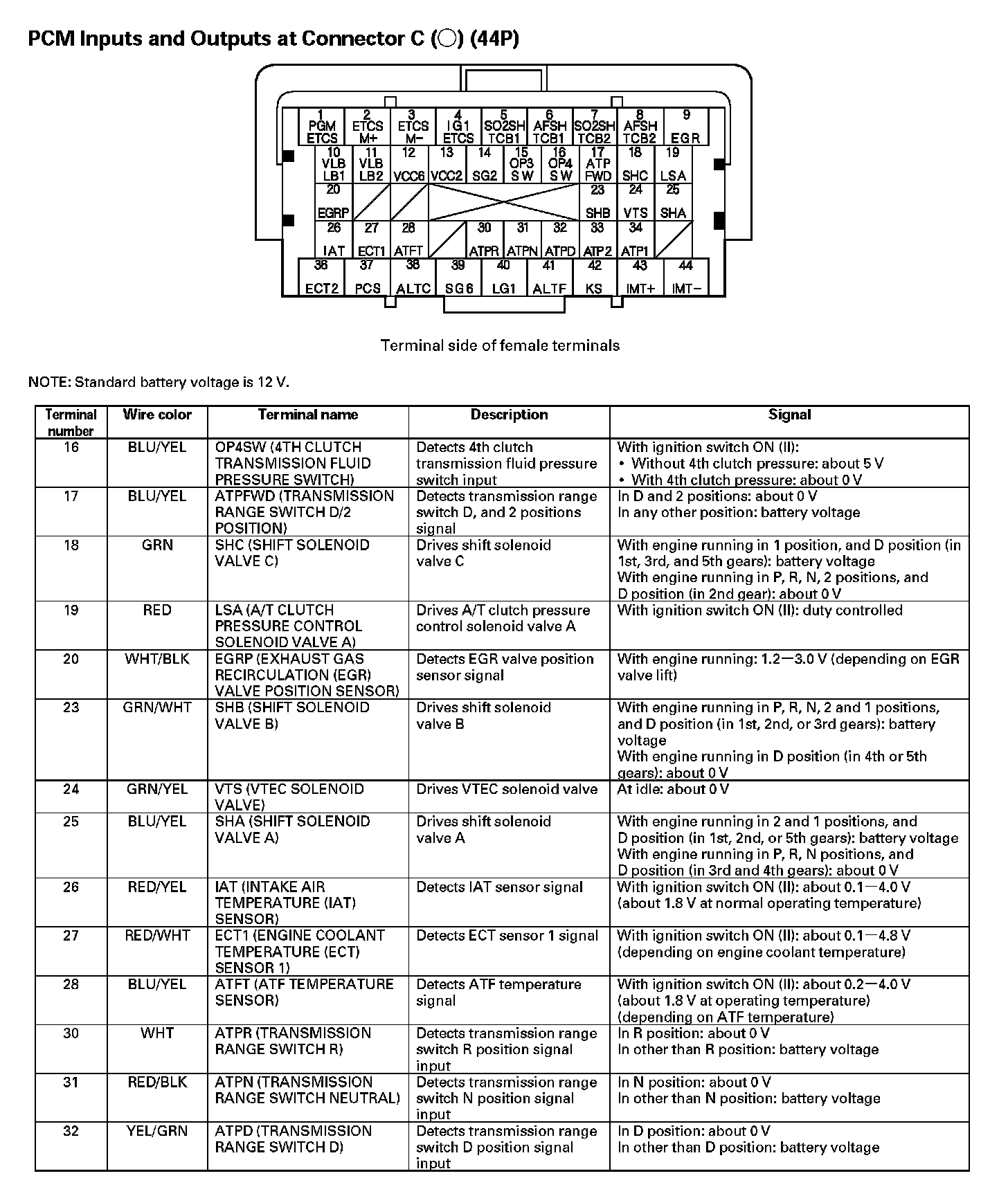

PCM Inputs And Outputs At Connector C (44P) (Part 2):

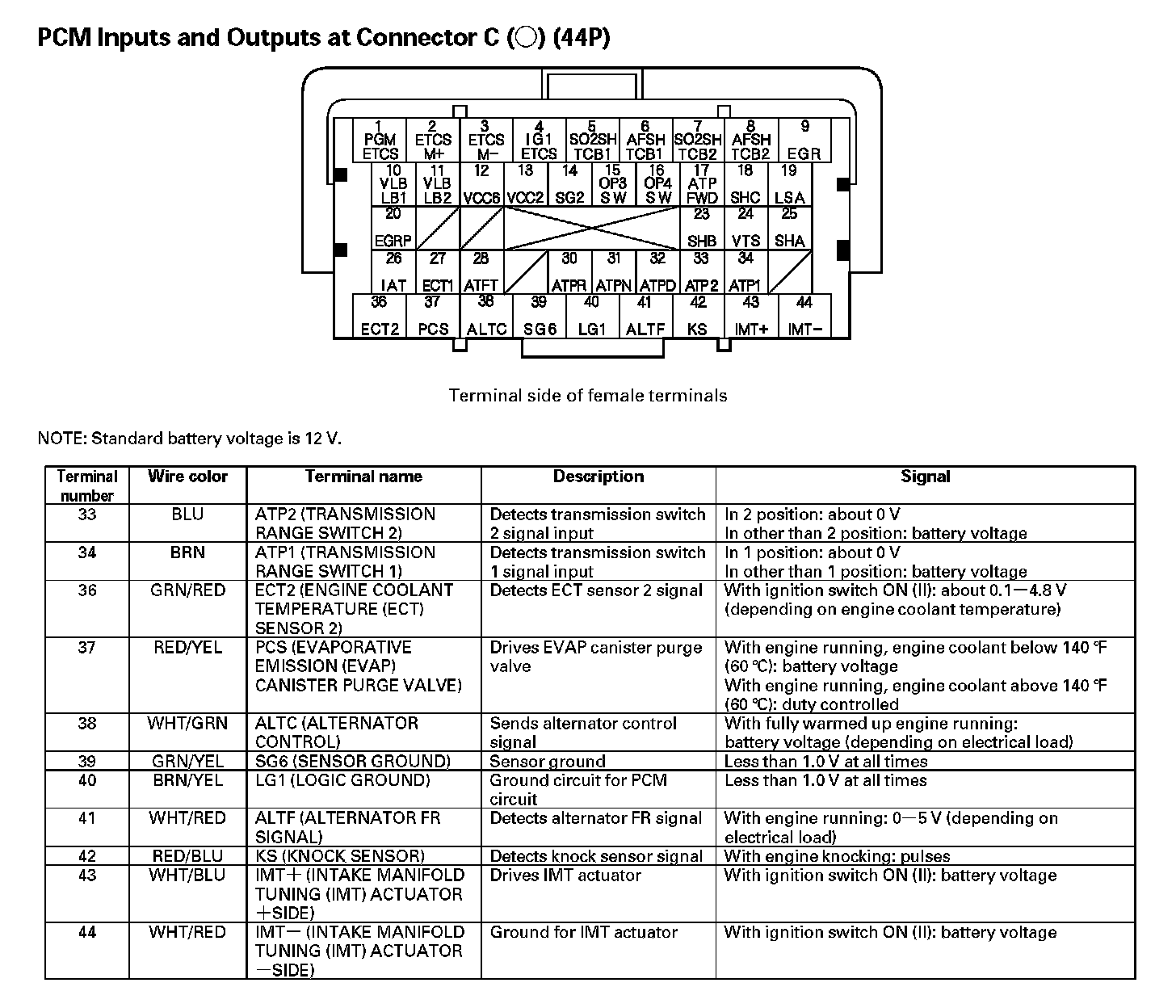

PCM Inputs And Outputs At Connector C (44P) (Part 3):
