Home >> Honda >> 2007 >> Ridgeline V6-3.5L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connector Views By View Number >> View 226-250 >> 237

September 30: LEMON manuals is back up on a temporary server! Slowness is possible

View 226-250: 237

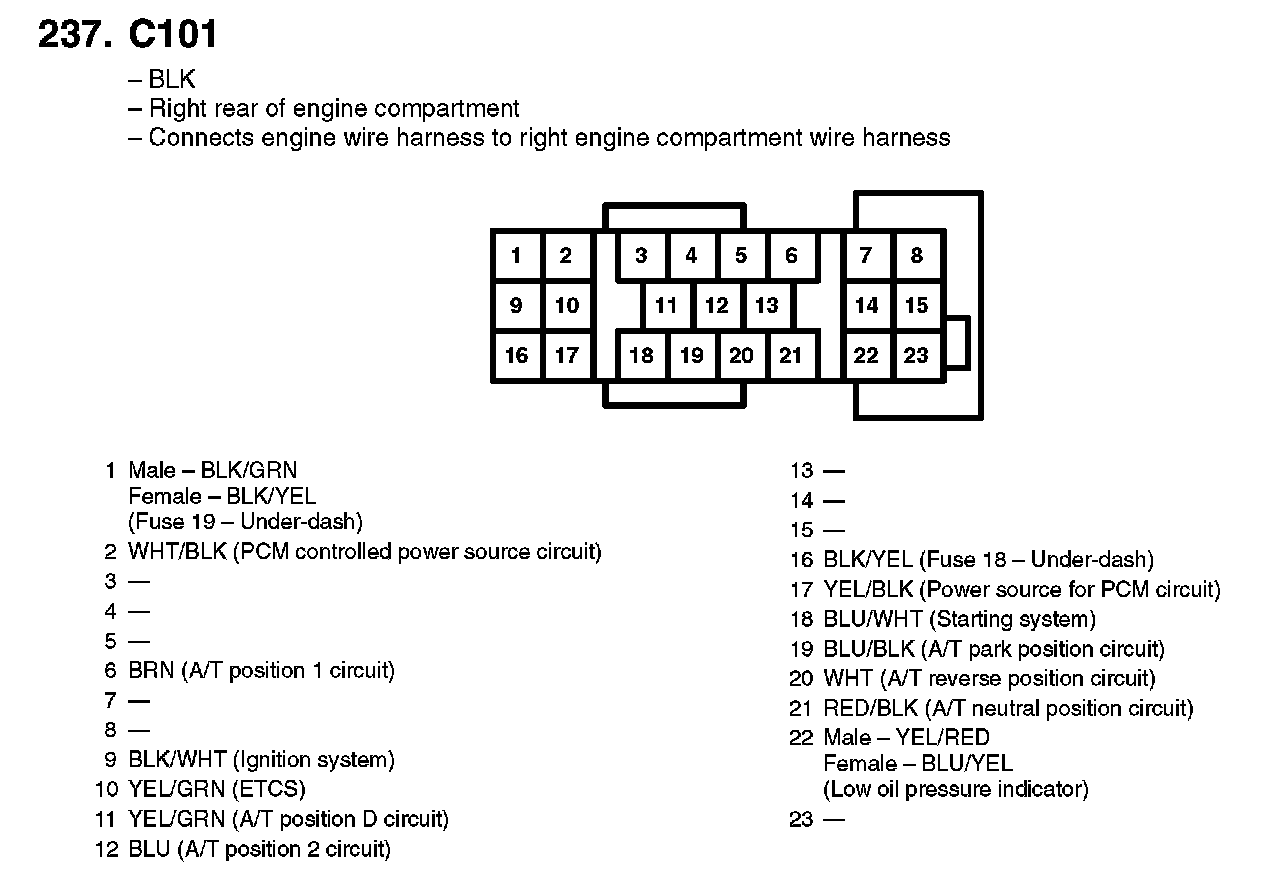

237. C101:
