Washer Fluid Level Switch Test/ Replacement: Canada

WARNING: This page is about a different car, the 2008 Honda Pilot, 2007 Honda Pilot, and 2006 Honda Pilot. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the right front inner fender (see FRONT INNER FENDER REPLACEMENT ).
  2. Disconnect the 2P connector (A) from the washer fluid level switch (B).

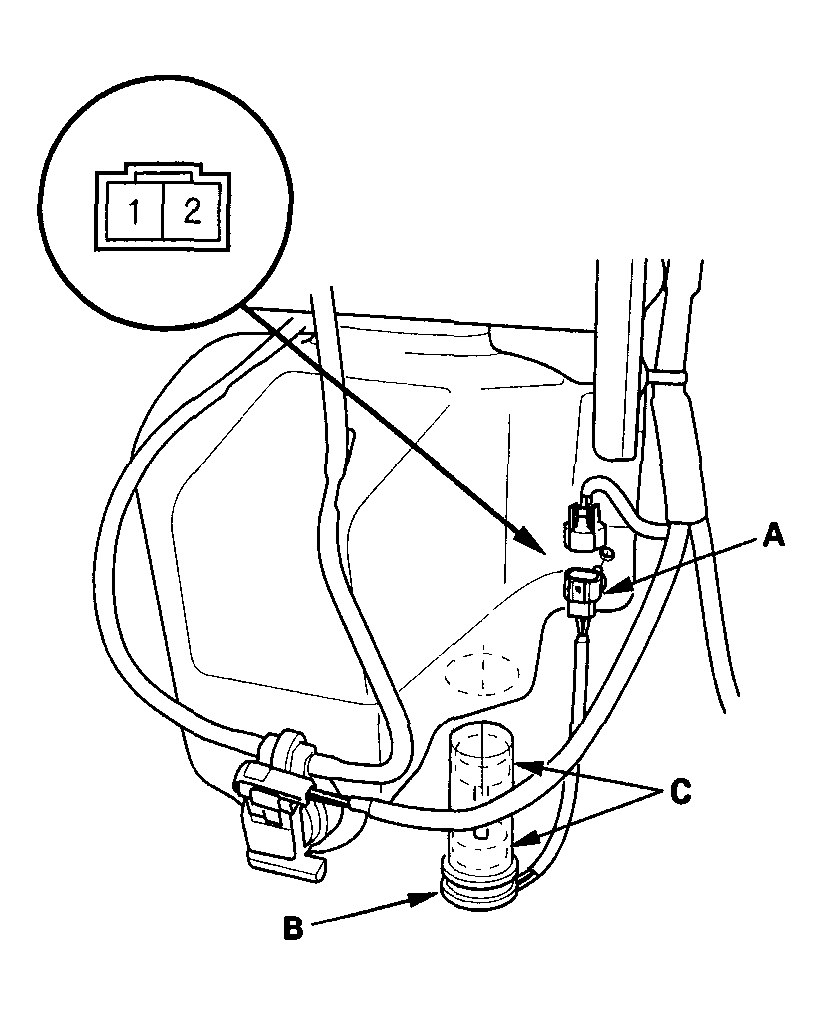

    Fig 1: Disconnecting 2P Connector From Washer Fluid Level Switch
    G04247280Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the washer fluid level switch from the reservoir.
    NOTE: Fluid may flow out of the opening.
  4. Check for continuity between the No. 1 and No. 2 terminals in each float switch position (C).
    • There should be continuity when the float is down.
    • There should be no continuity when the float is up.
  5. If the continuity is not as specified, replace the float switch.
