Exploded View

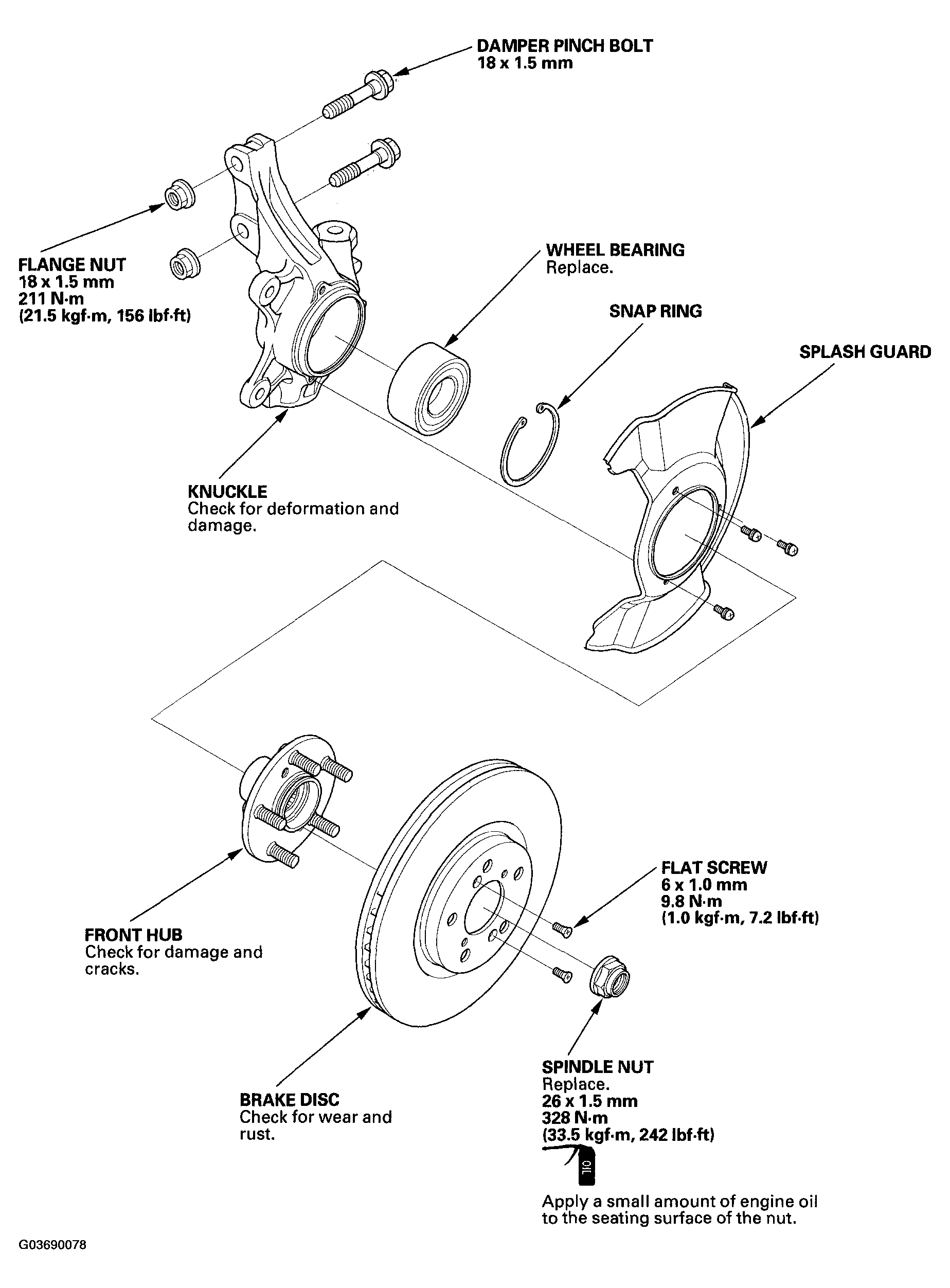

Fig 1: Exploded View Of Knuckle/Hub With Torque Specifications

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Special Tools Required

Ball joint puller 07AAC-SJCA120
Ball joint remover, 32 mm 07MAC-SL0A102
Ball joint thread protector, 14 mm 071AF-S3VA000
Hub dis/assembly tool 07GAF-SD40100
Attachment, 72 x 75 mm 07746-0010600
Driver 07749-0010000
Support base 07965-SD90100
Attachment, 96 mm 07948-SB00101
