Tire Pressure Sensor Replacement: Installation

WARNING: This page is about a different car, the 2008 Honda Pilot, 2007 Honda Pilot, and 2006 Honda Pilot. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • Use only wheels that have a "TPMS" mark (A) on them.
  • The vehicle may be equipped with one of the three types of wheels.

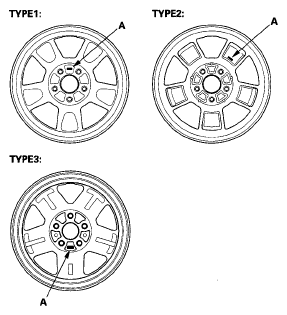

    Fig 1: Identifying Wheel Types And TPMS Mark Location
    G05594711Courtesy of AMERICAN HONDA MOTOR CO., INC.
  1. Assemble the new valve stem (A), new screw (B), and the tire pressure sensor (C).
    NOTE: Always use a new valve stem and new screw.
    Fig 2: Identifying Valve Stem, Screw And Pressure Sensor
    G05594712Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Before installing the tire pressure sensor, clean the mating surfaces on the sensor and the wheel.
  3. Install the tire pressure sensor (A) to the wheel (B), and tighten the valve nut (C) finger tight. Make sure the pressure sensor is resting on the wheel.
    Fig 3: Installing Tire Pressure Sensor To Wheel With Torque Specifications
    G05594713Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Tighten the valve nut to the specified torque while holding the tire pressure sensor toward (D) the wheel. You may hear a snap or pop as you tighten the nut. This is normal.
    NOTE:
    • Do not reuse any nut that has been tightened, even one time, to the specified torque, as it is deformed inside (E).
    • Do not use air or electric impact tools to tighten a valve stem nut.
    • Tightening the nut above the specified torque can damage the nut.
    • Make sure that there is no space between the sensor and the wheel.
  5. Lube the tire bead, and position the wheel so the tire machine (A) and tire iron (B)are next to the valve stem (C) and will move away from it when the machine starts. Then install the tire onto the wheel.
    Fig 4: Installing Tire Onto Wheel
    G05594714Courtesy of AMERICAN HONDA MOTOR CO., INC.
  6. Inflate the tire to 300 kPa (3.1 kgf/cm2 , 44 psi) to seat the tire bead to the rim, then adjust the tire pressure (see PRE-ALIGNMENT CHECKS ), and install the valve stem cap.
    NOTE: Make sure the tire bead is seated on both sides of the rim uniformly.
  7. Check and adjust the wheel balance, then install the wheels on the vehicle.
  8. Remove the jack stands, and lower the jack.
  9. Connect the HDS and memorize the pressure sensor ID(s) (see MEMORIZING THE TIRE PRESSURE SENSOR ID  ).
