System Structure: Wheels
WARNING: This page is about a different car, the 2008 Honda Pilot, 2007 Honda Pilot, and 2006 Honda Pilot. However, it is still accessible from the selected car via links, so may be relevant.

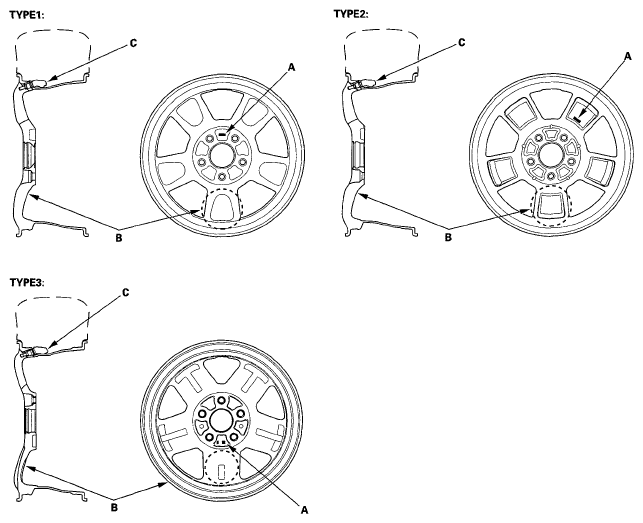

TPMS will not work unless TPMS type wheels are installed on the vehicle. There are three different type wheels used.
The original equipment wheels have a "TPMS" mark on them (A), and a counterweight (B) cast into the opposite side of the spoke to balance the weight of the sensor (C).
