Driver's Switch Panel Removal/Installation

WARNING: This page is about a different car, the 2008 Honda Pilot, 2007 Honda Pilot, and 2006 Honda Pilot. However, it is still accessible from the selected car via links, so may be relevant.

Special Tools Required

KTC trim tool set SOJATP2014 *

* Available through the American Honda Tool and Equipment Program

NOTE:

Use the appropriate tool from the KTC trim tool set to avoid damage when prying components.
Take care not to scratch the dashboard and related parts.

Remove the driver's switch panel (A).
- - Using a flat-tip screwdriver, pry out the bottom portion of the panel to detach the clips.
- - Pull out the panel to release the upper hooks (B), then remove the panel.
- - Disconnect the cruise control main switch connector (C), and interior lights switch connector (D) and moon roof switch connector (E).

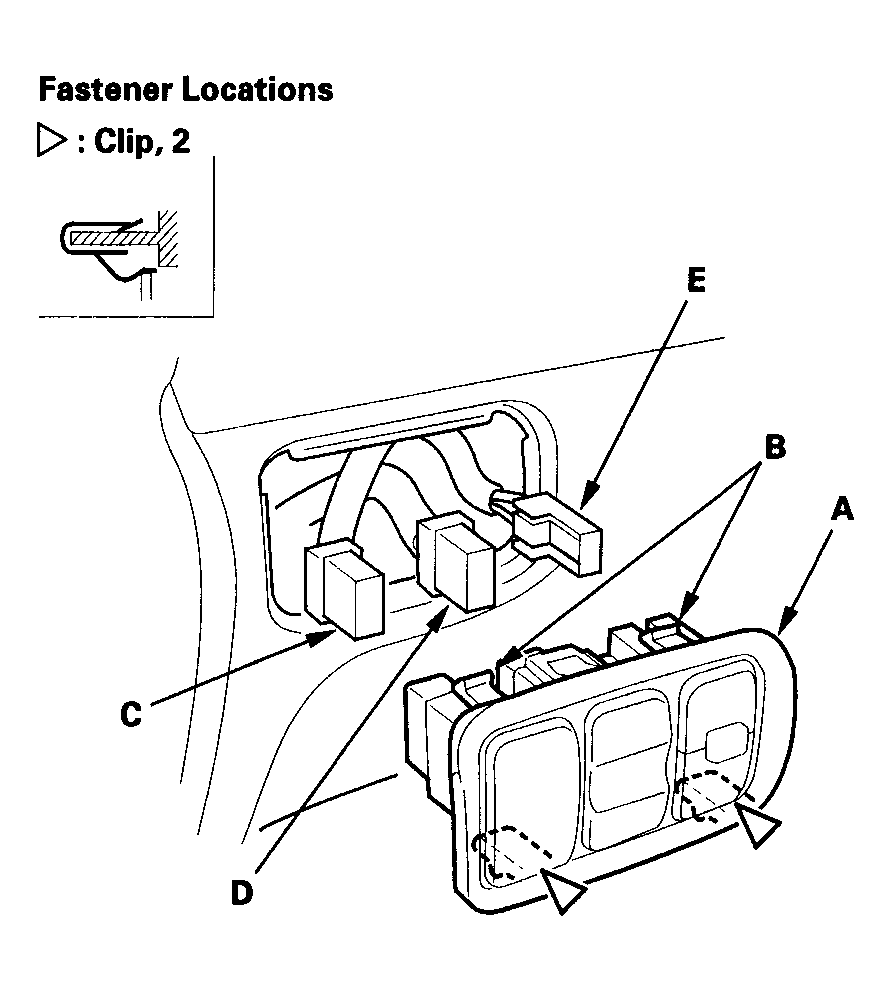

  Fig 1: Removing Driver's Switch Panel
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the panel in the reverse order of removal, and note these items:
- Make sure each connector is plugged in properly.
- Check for damaged or stress-whitened clips, and replace them with a new one.
- Push the clips and hooks into place securely.
