Receiver/Dryer Desiccant Replacement

WARNING: This page is about a different car, the 2008 Honda Pilot, 2007 Honda Pilot, and 2006 Honda Pilot. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the A/C condenser (see A/C CONDENSER REPLACEMENT  ).
  2. Remove the cap (A) from the bottom of the A/C condenser, then remove the O-rings (B), the filter (C) and the desiccant (D).

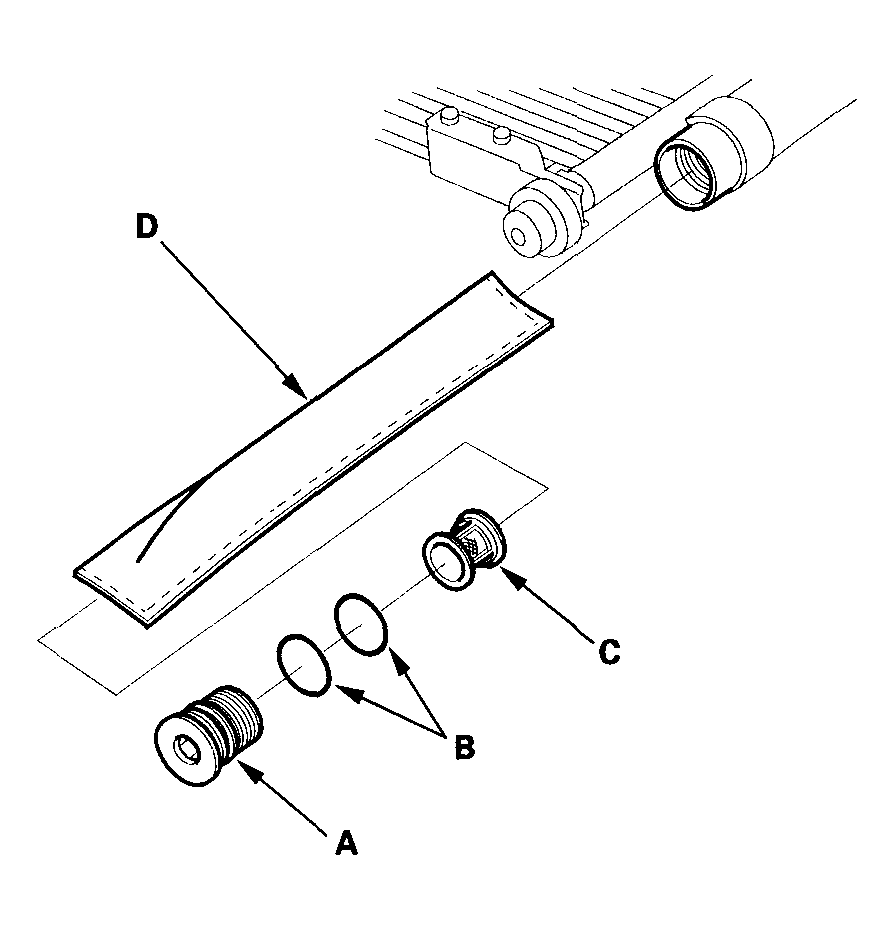

    Fig 1: Removing Cap From Bottom Of A/C Condenser, Then Remove O-Rings, Filter & Desiccant
    G04246903Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Install the desiccant in the reverse order of removal, and note these items:

    Replace the O-rings with new ones, and apply a thin coat of refrigerant oil (DENSO ND-OIL 8) before installing them. Be sure to use the correct O-rings for HFC-134a (R-134a) to avoid leakage.
