Exploded View

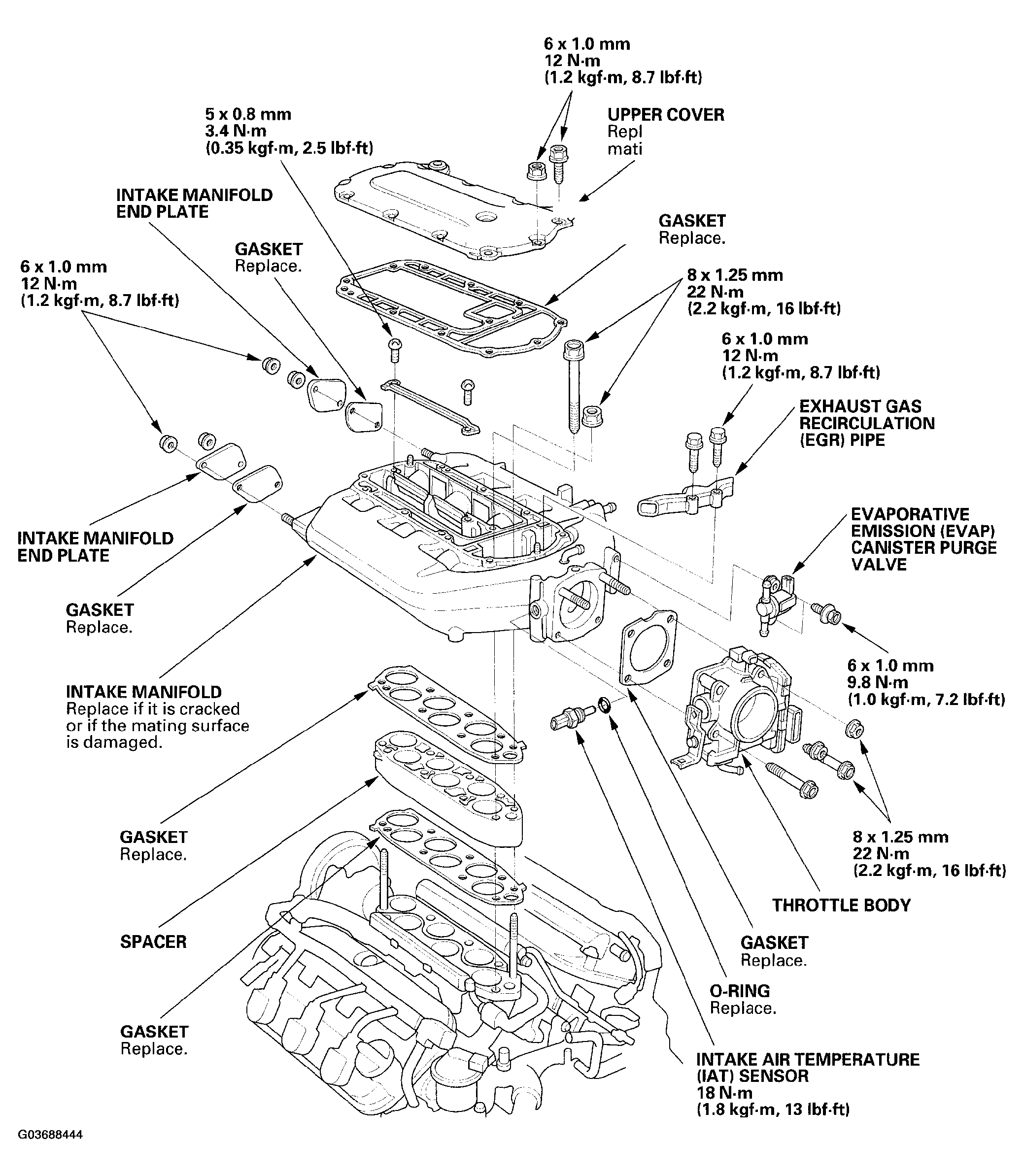

Fig 1: Exploded View Of Intake Manifold With Torque Specifications
G03688444Courtesy of AMERICAN HONDA MOTOR CO., INC.
