Engine Mount Replacement

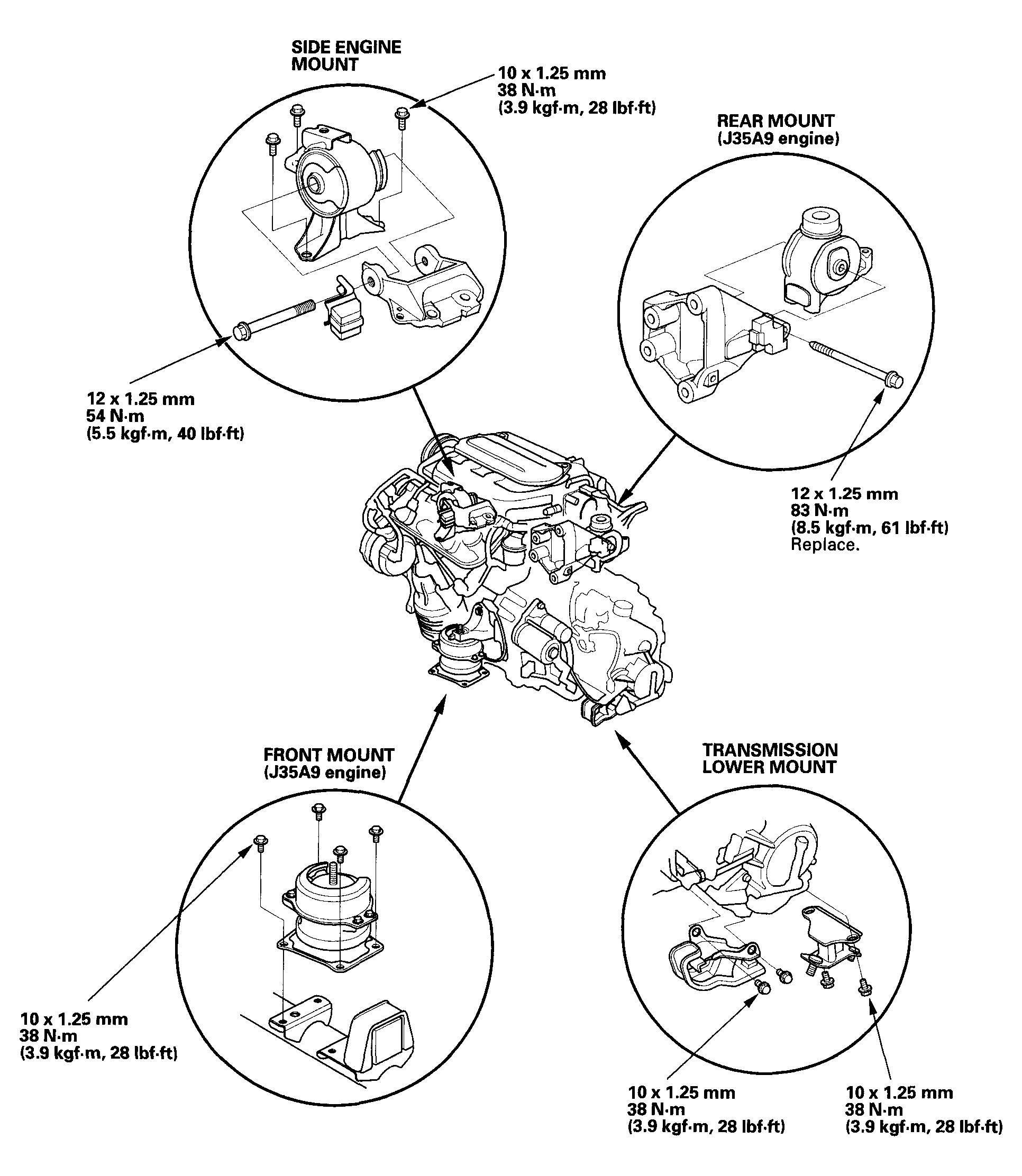

Fig 1: Engine Mount Replacement With Torque Specifications
G04244579Courtesy of AMERICAN HONDA MOTOR CO., INC.
