Air Bag Control Module: Locations

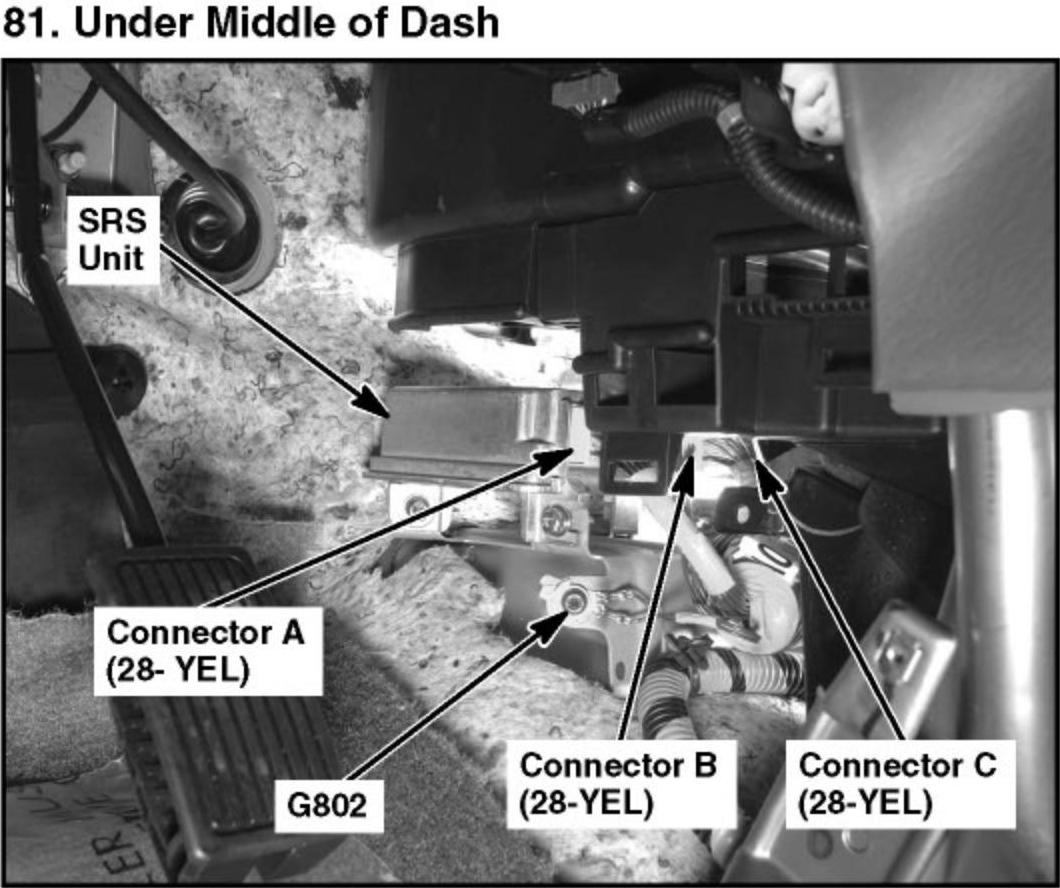

81. Under Middle Of Dash:

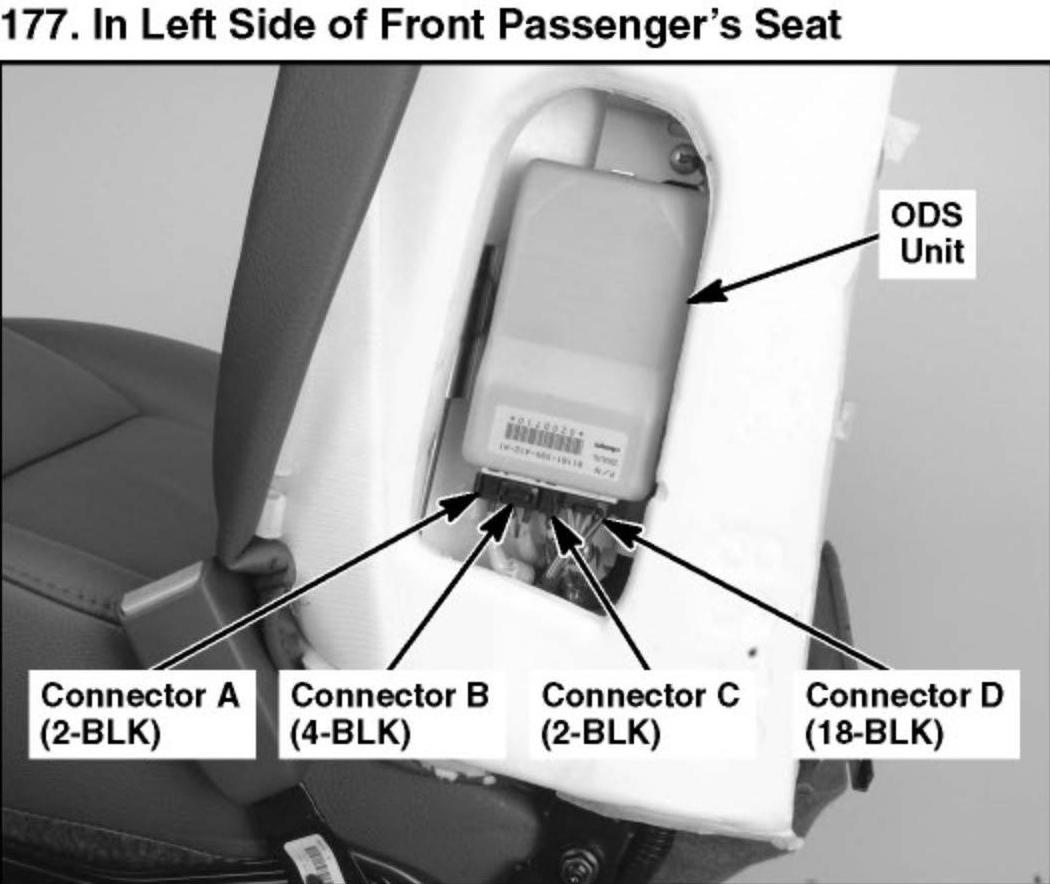

177. In Left Side Of Front Passenger's Seat:

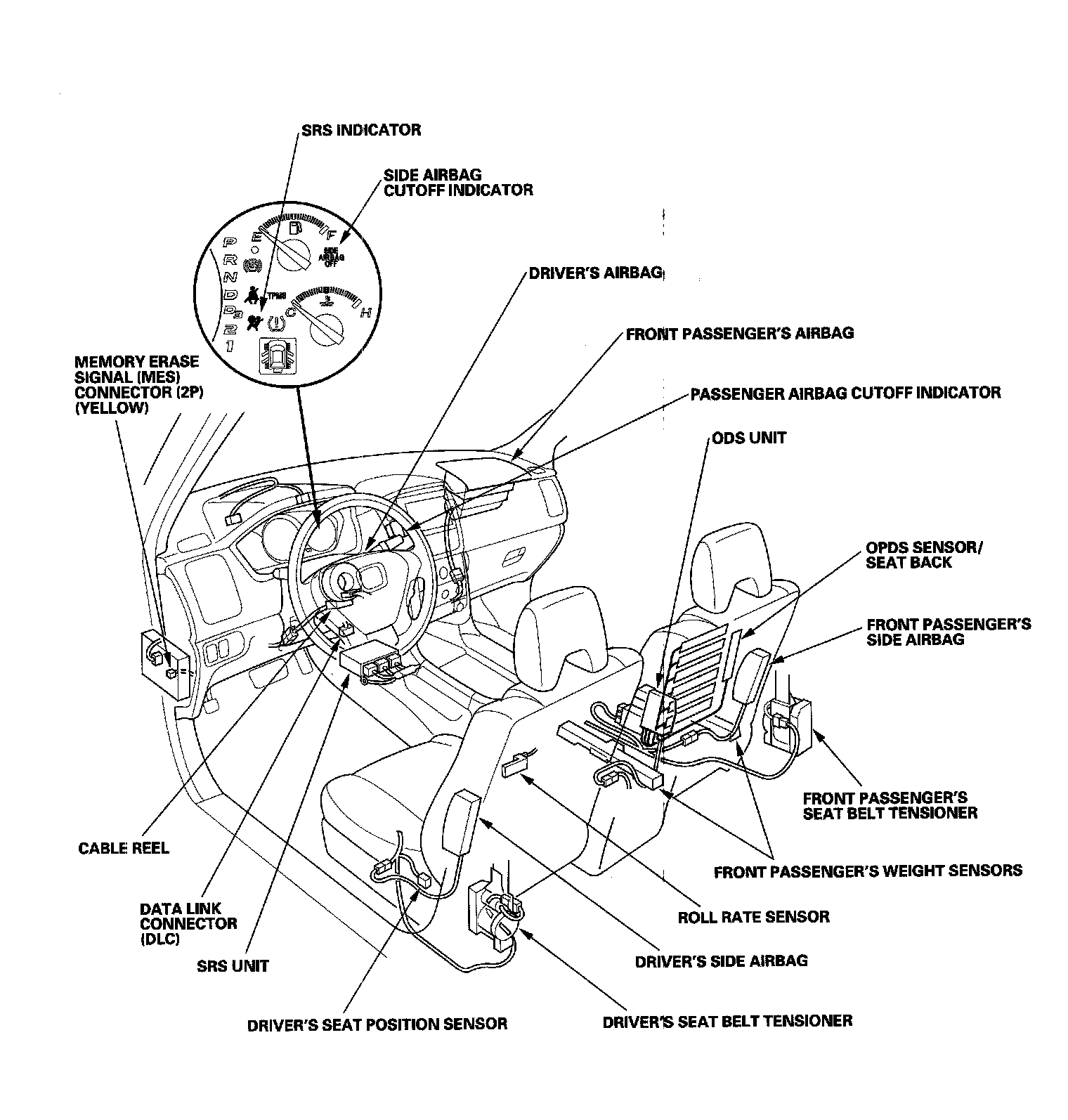

SRS Component Location Index:



Relay And Control Unit Locations Dashboard:



Relay And Control Unit Locations Door And Seat:
