Blower Unit Component Replacement

Blower Unit Component Replacement
Note these items when overhauling the blower unit:

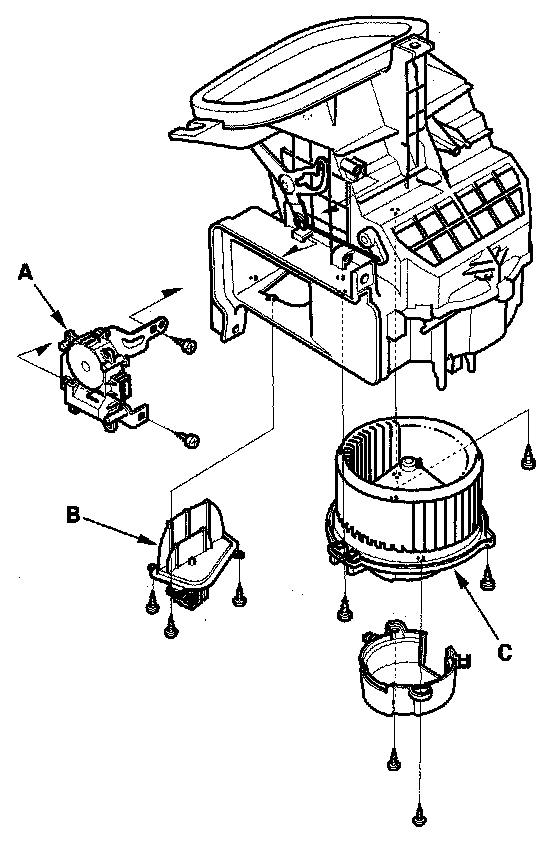

- The recirculation control motor (A), the power transistor (B), and the blower motor (C) can be replaced without removing the blower unit.
- Before reassembly, make sure that the recirculation control linkage and doors move smoothly without binding.
- After reassembly, make sure the recirculation control motor runs smoothly.
