Cylinder Head Assembly

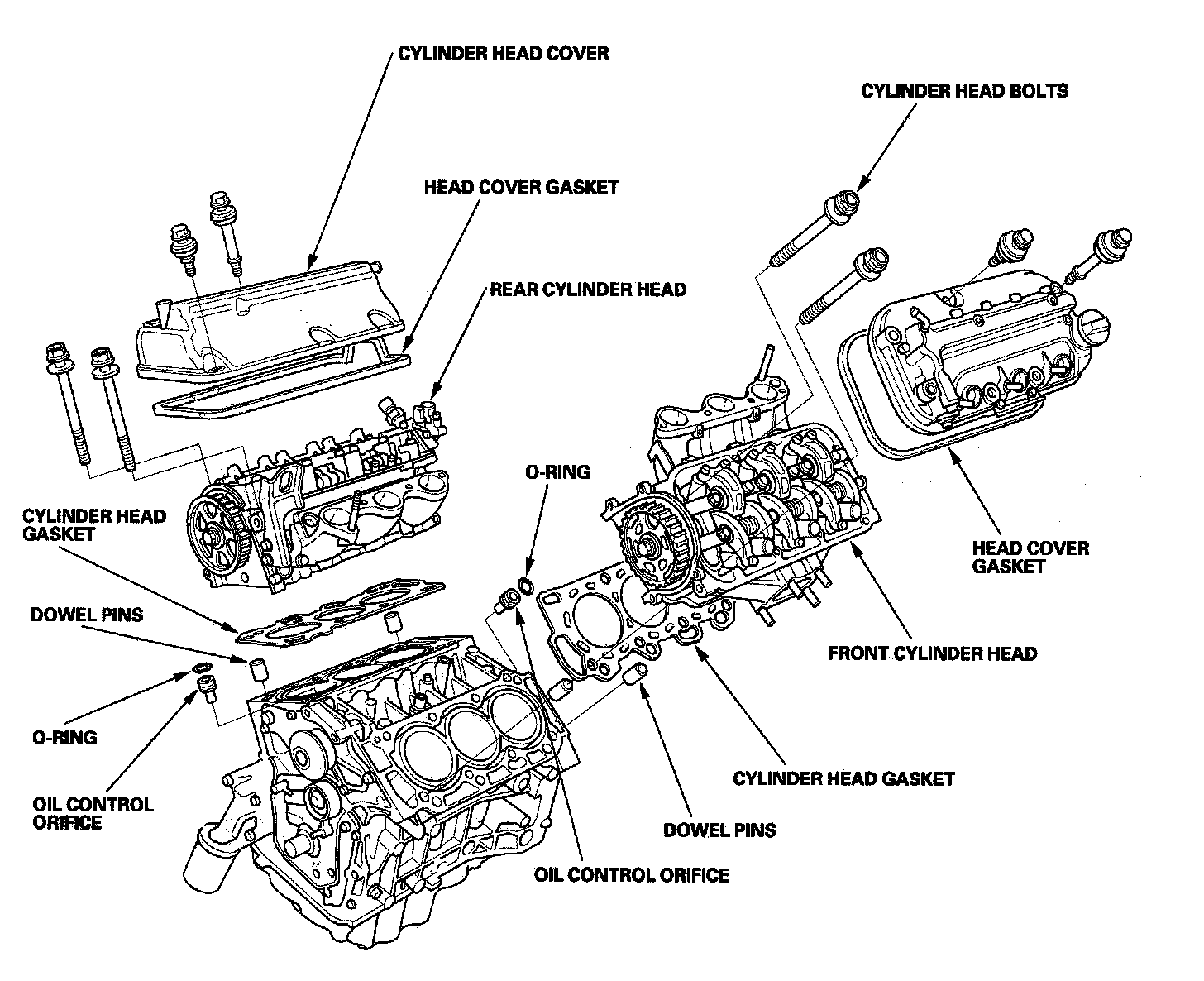

Cylinder Head Component Location Index:

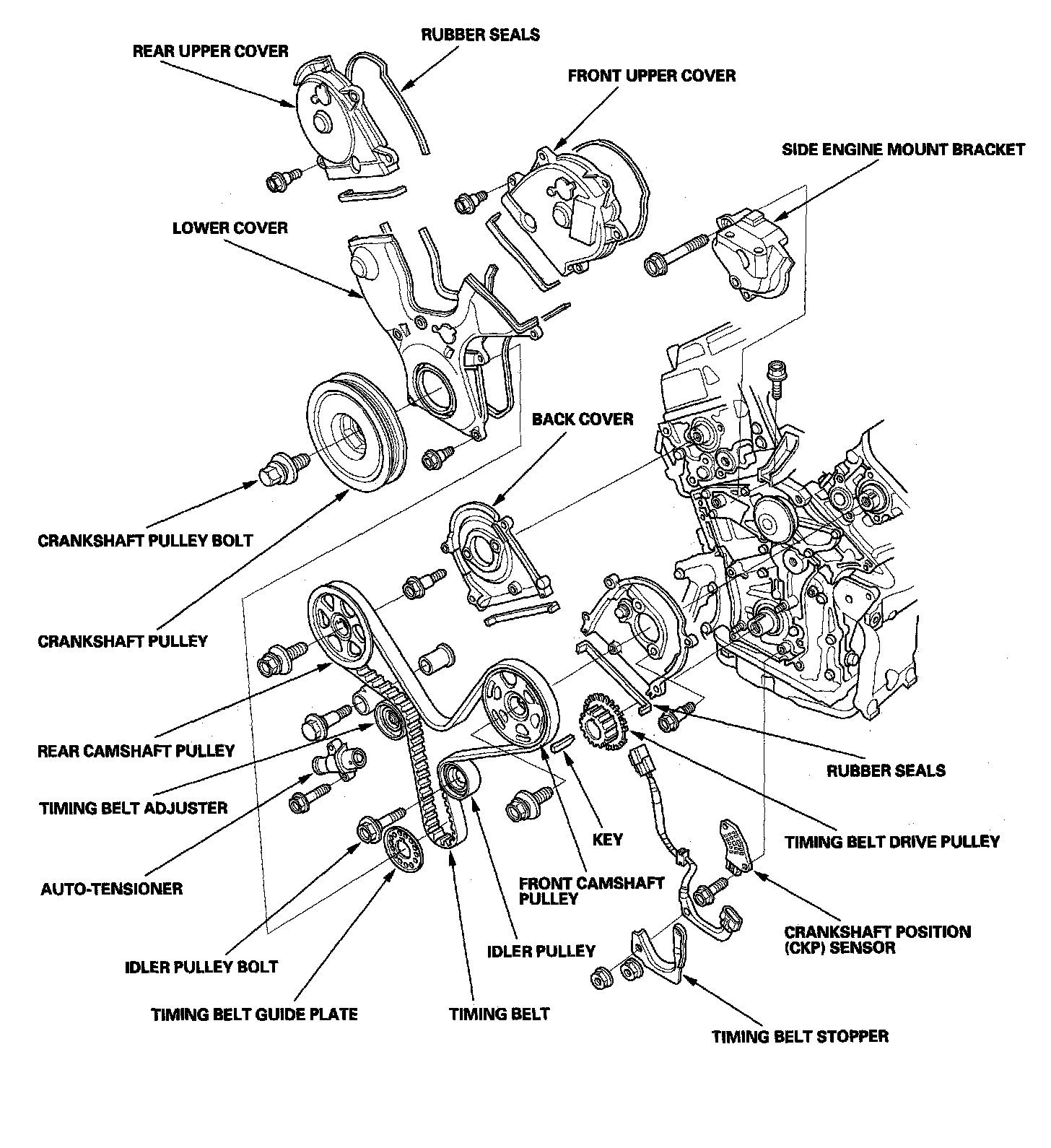

Cylinder Head Component Location Index:

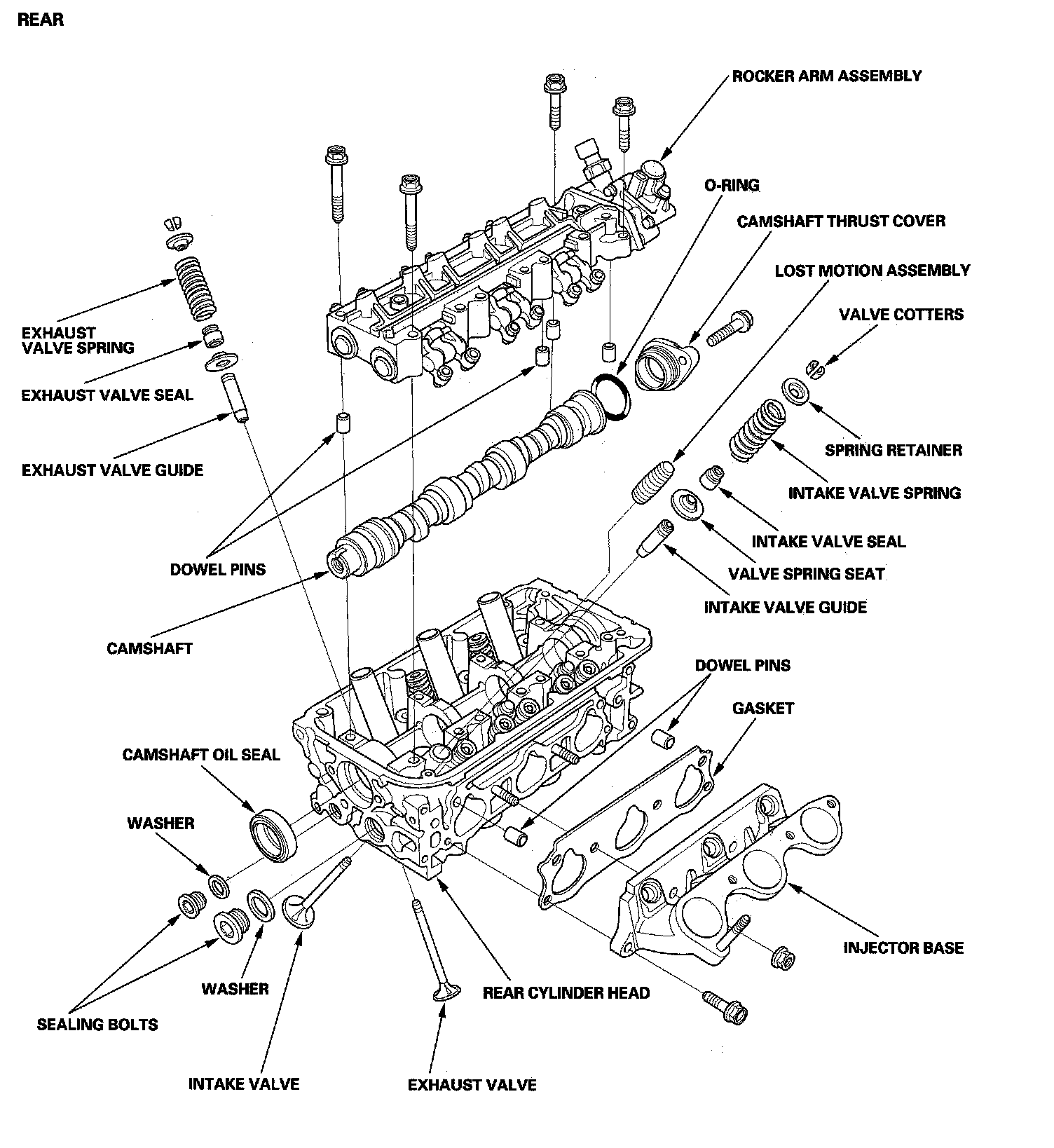

Cylinder Head Component Location Index:

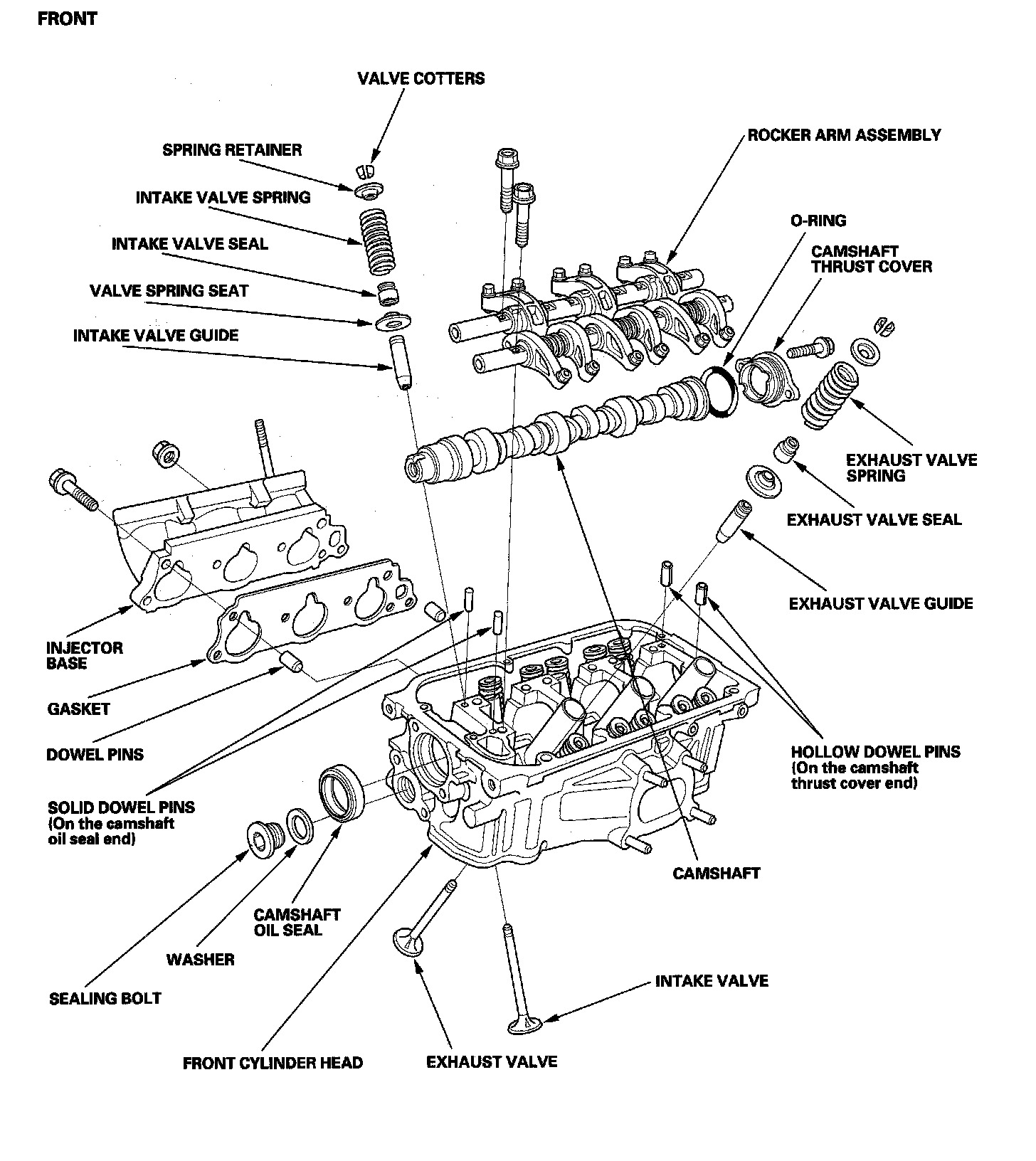

Cylinder Head Component Location Index:
