Inputs and Outputs For Connector

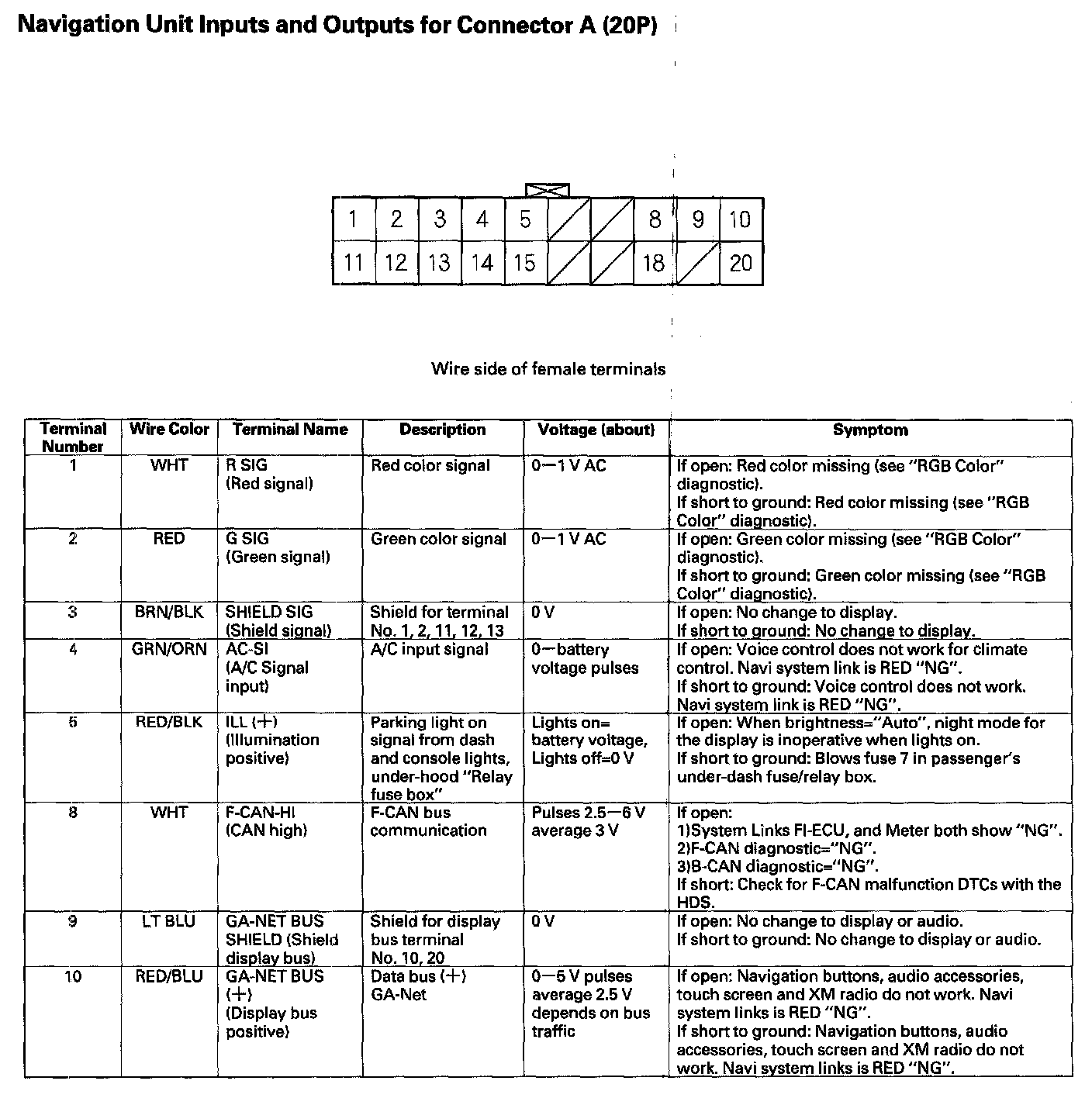

Navigation Unit Inputs and Outputs for Connector A (20P) - Part 1:
Navigation Unit Inputs and Outputs for Connector A (20P) - Part 2:

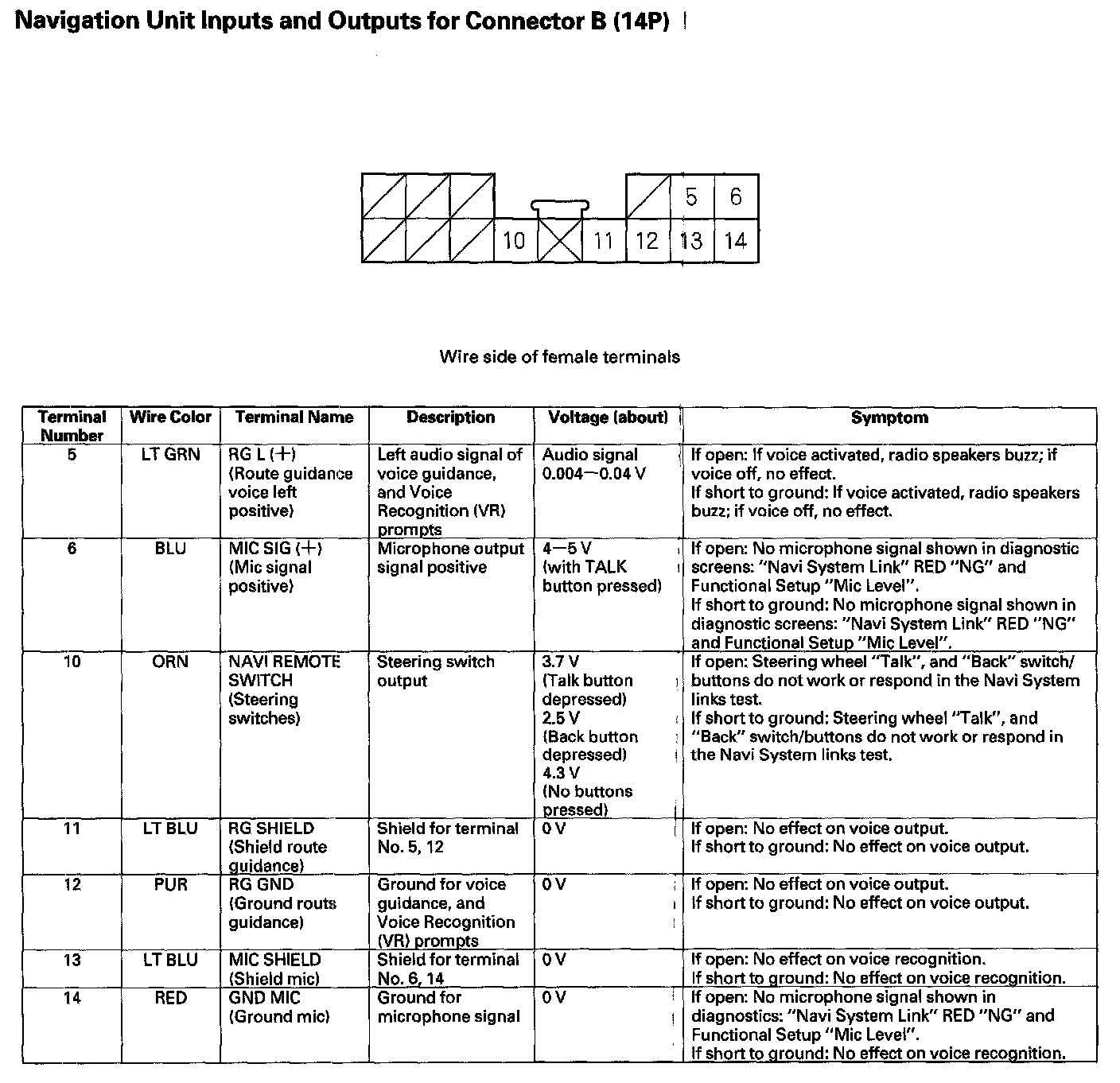

Navigation Unit Inputs and Outputs for Connector B (14P):

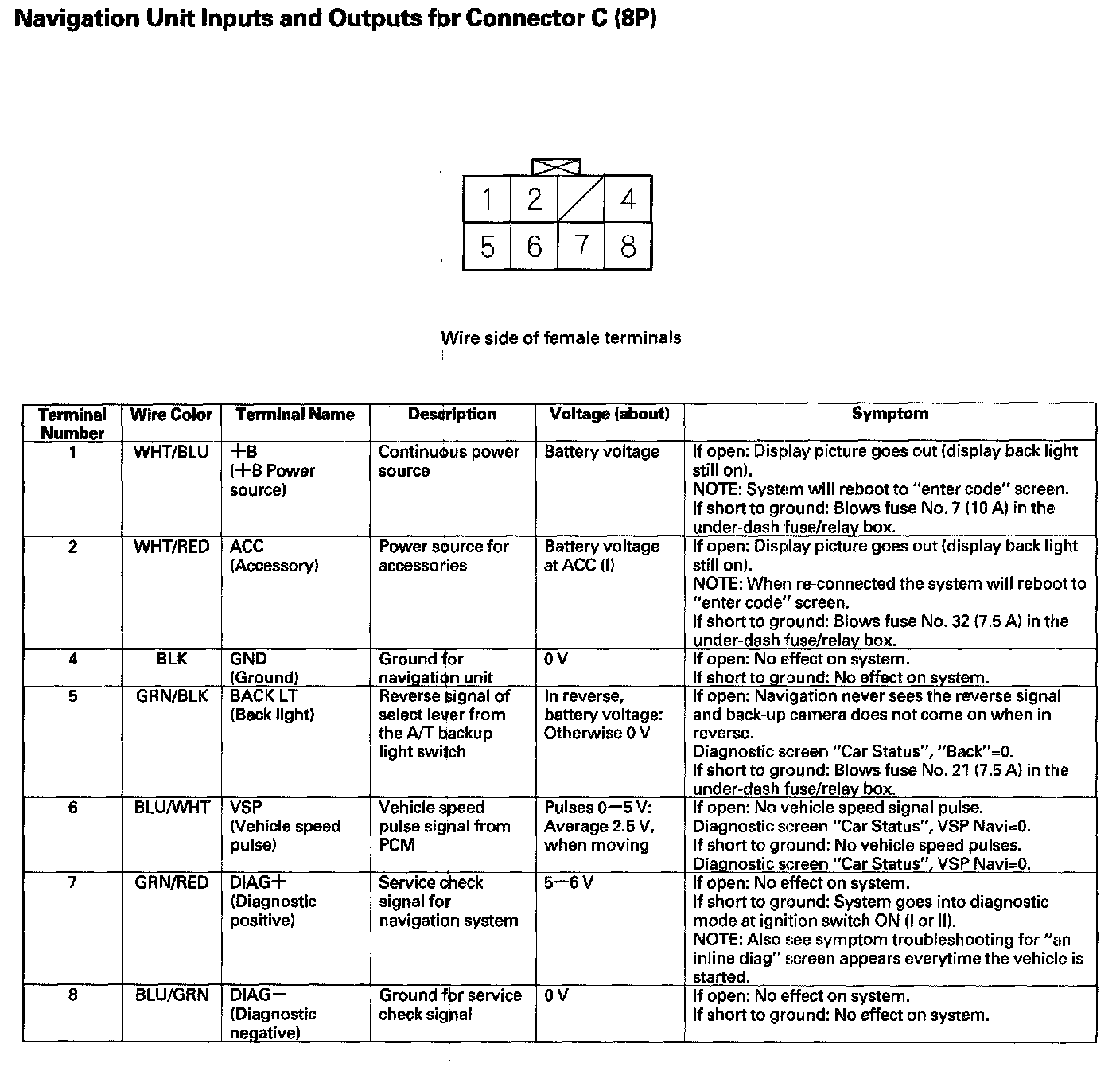

Navigation Unit Inputs and Outputs for Connector C (8P):

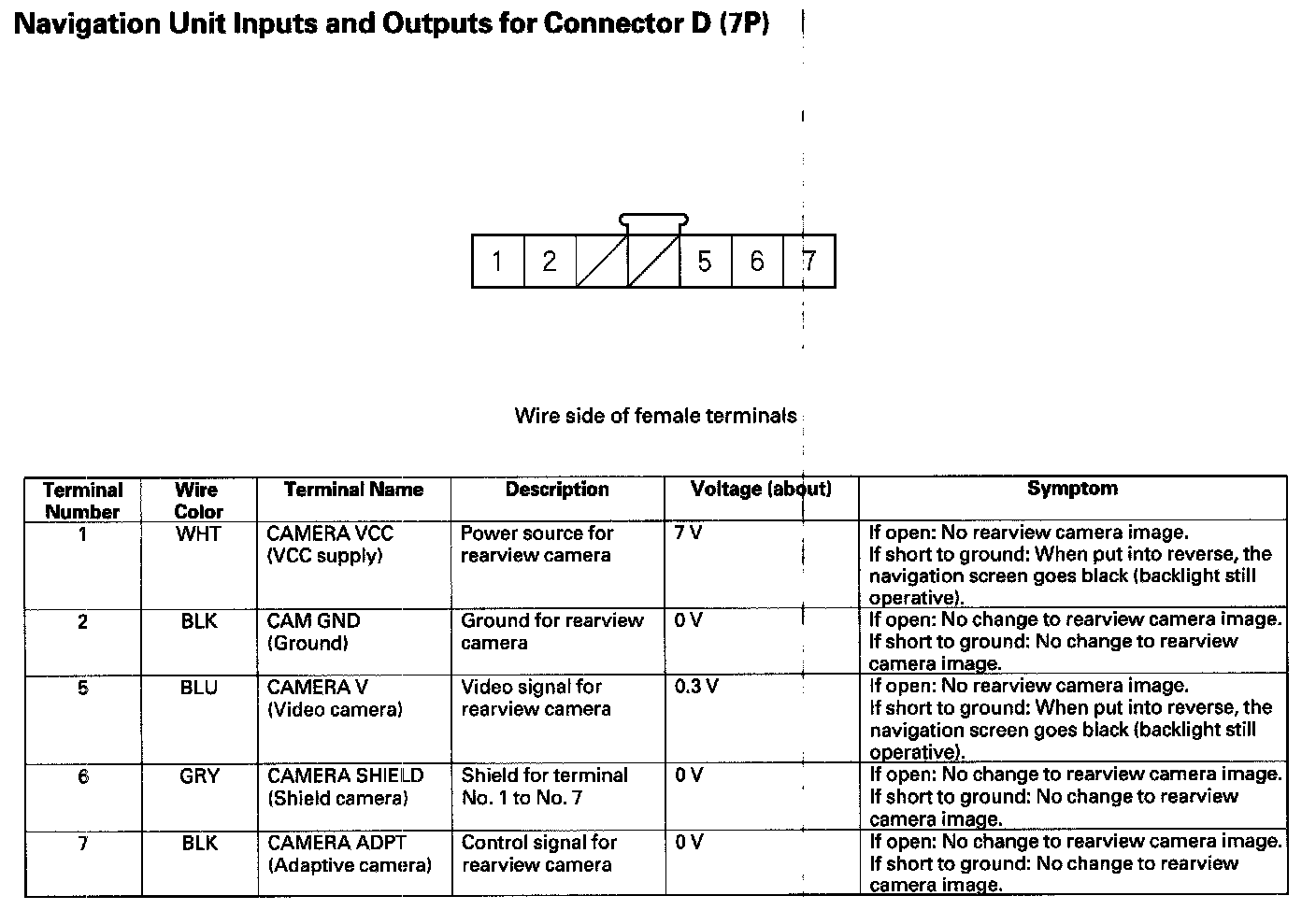

Navigation Unit Inputs and Outputs for Connector D (7P):
Navigation Unit Inputs And Outputs For Connector E (2P):

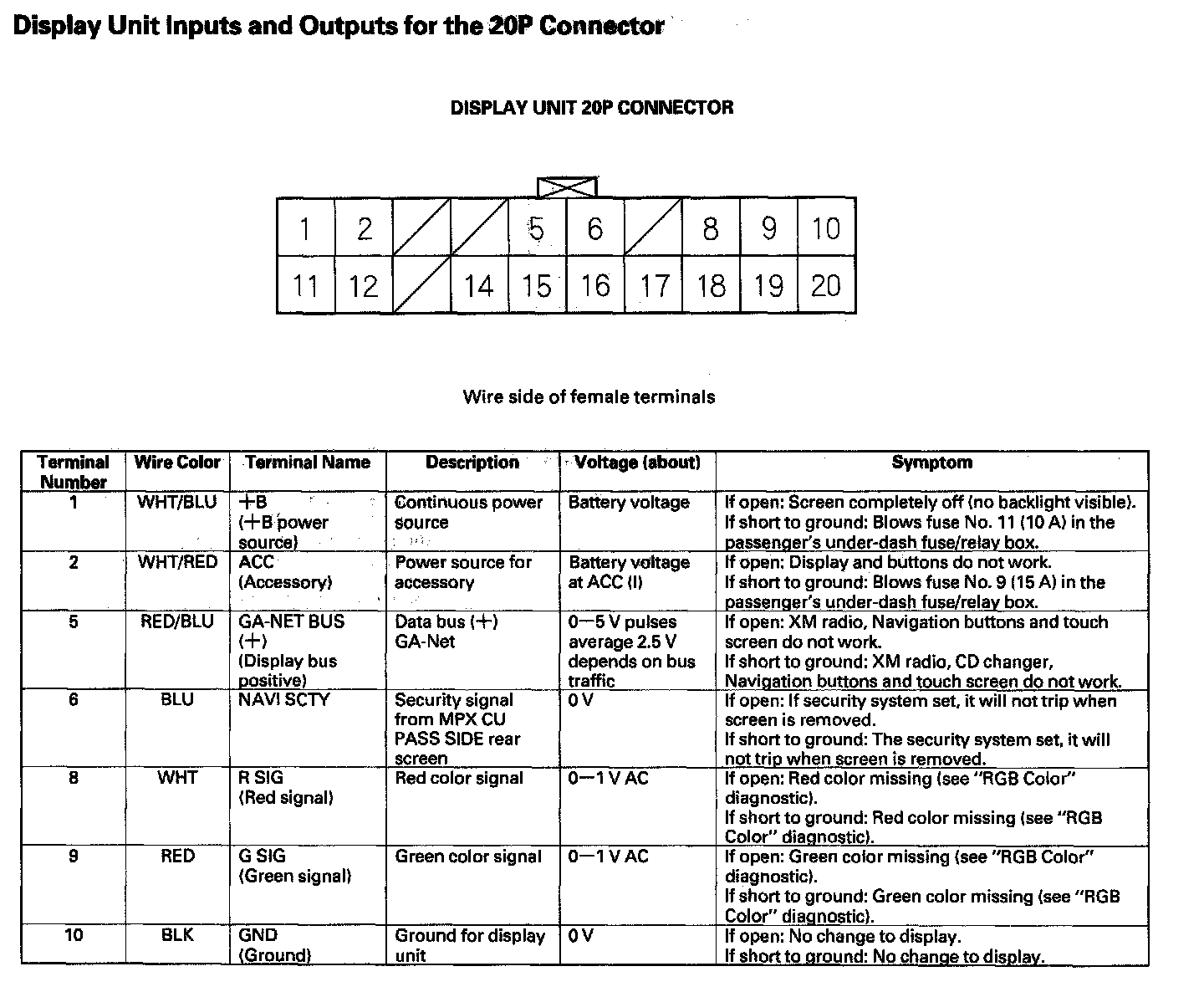

Display Unit Inputs And Outputs For The 20P Connector - Part 1:

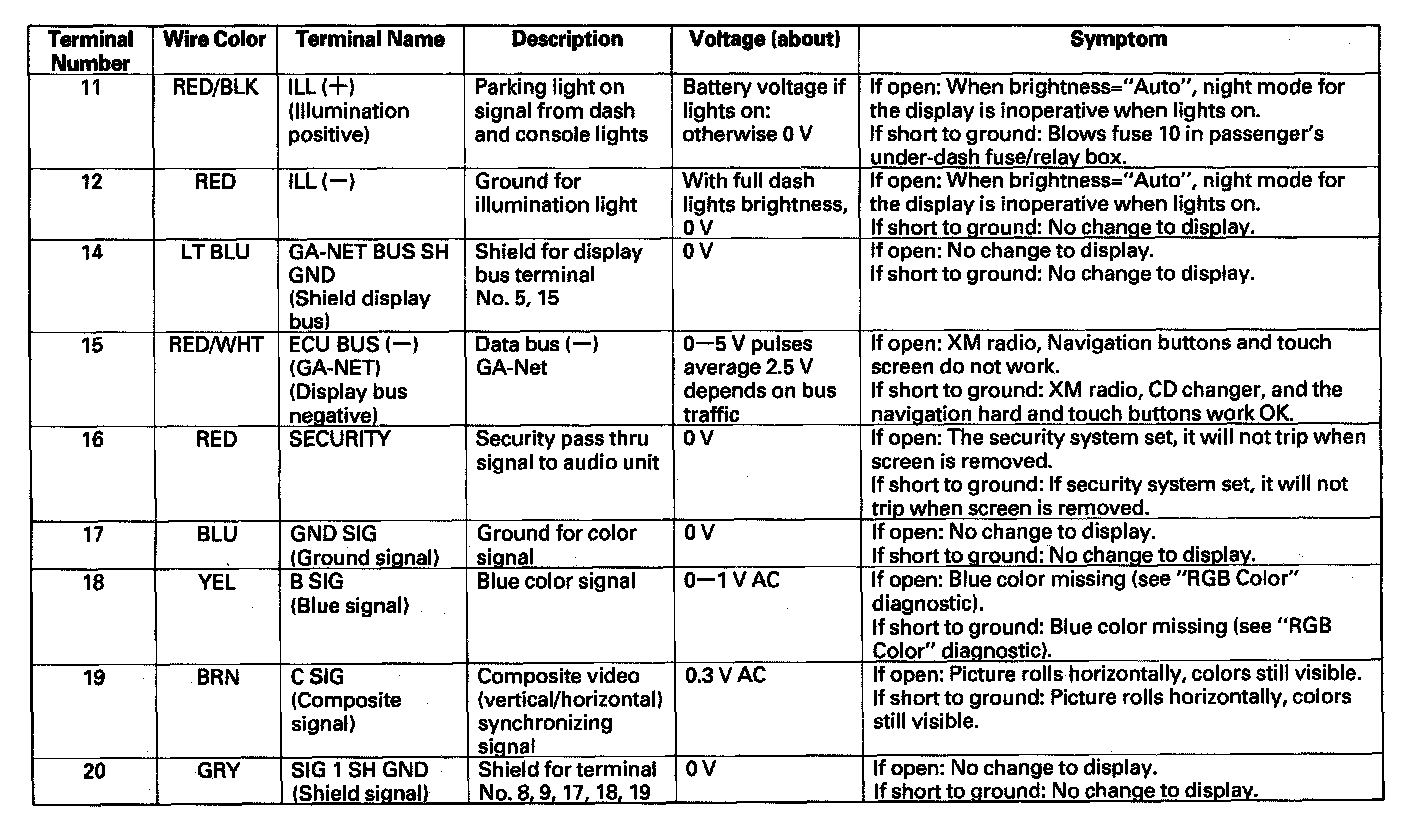

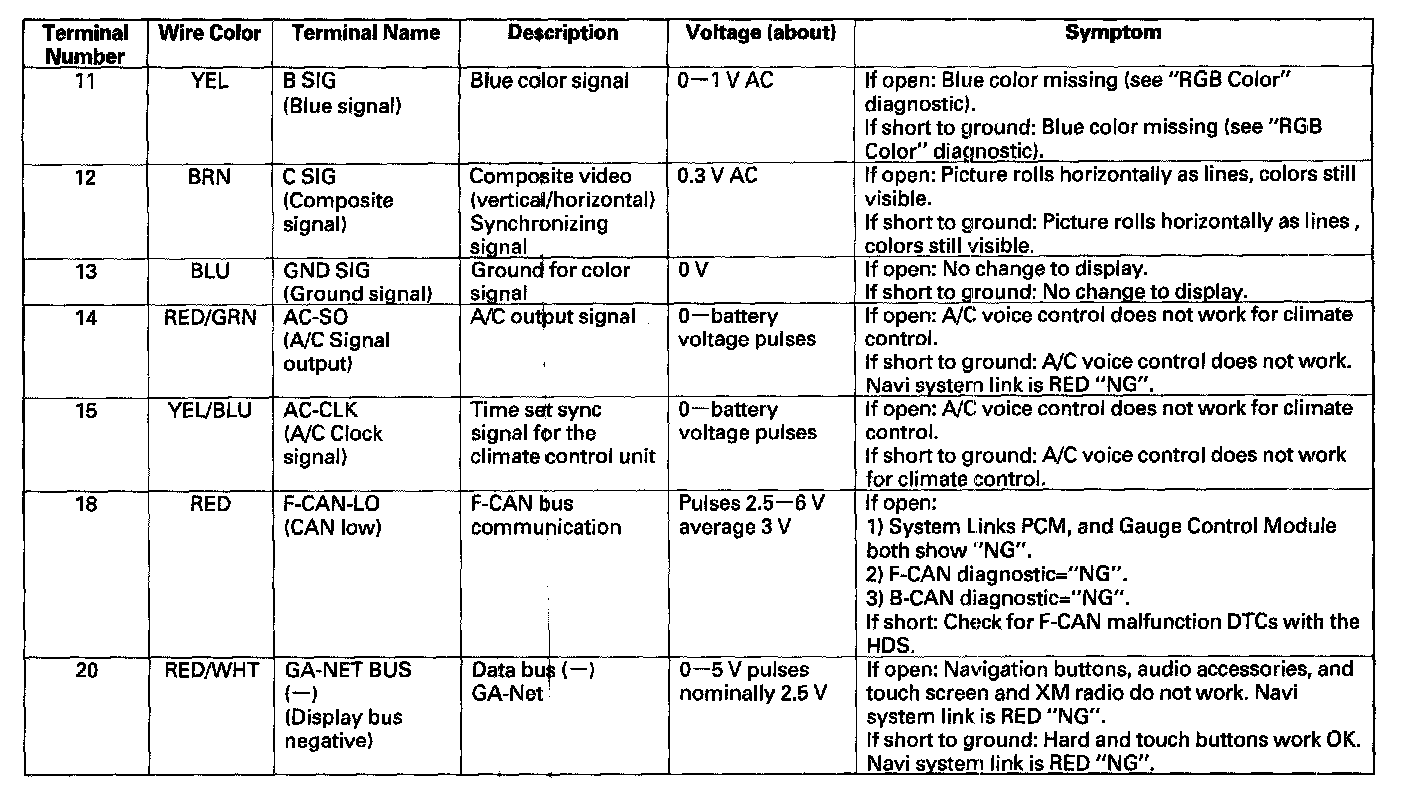

Display Unit Inputs And Outputs For The 20P Connector - Part 2:

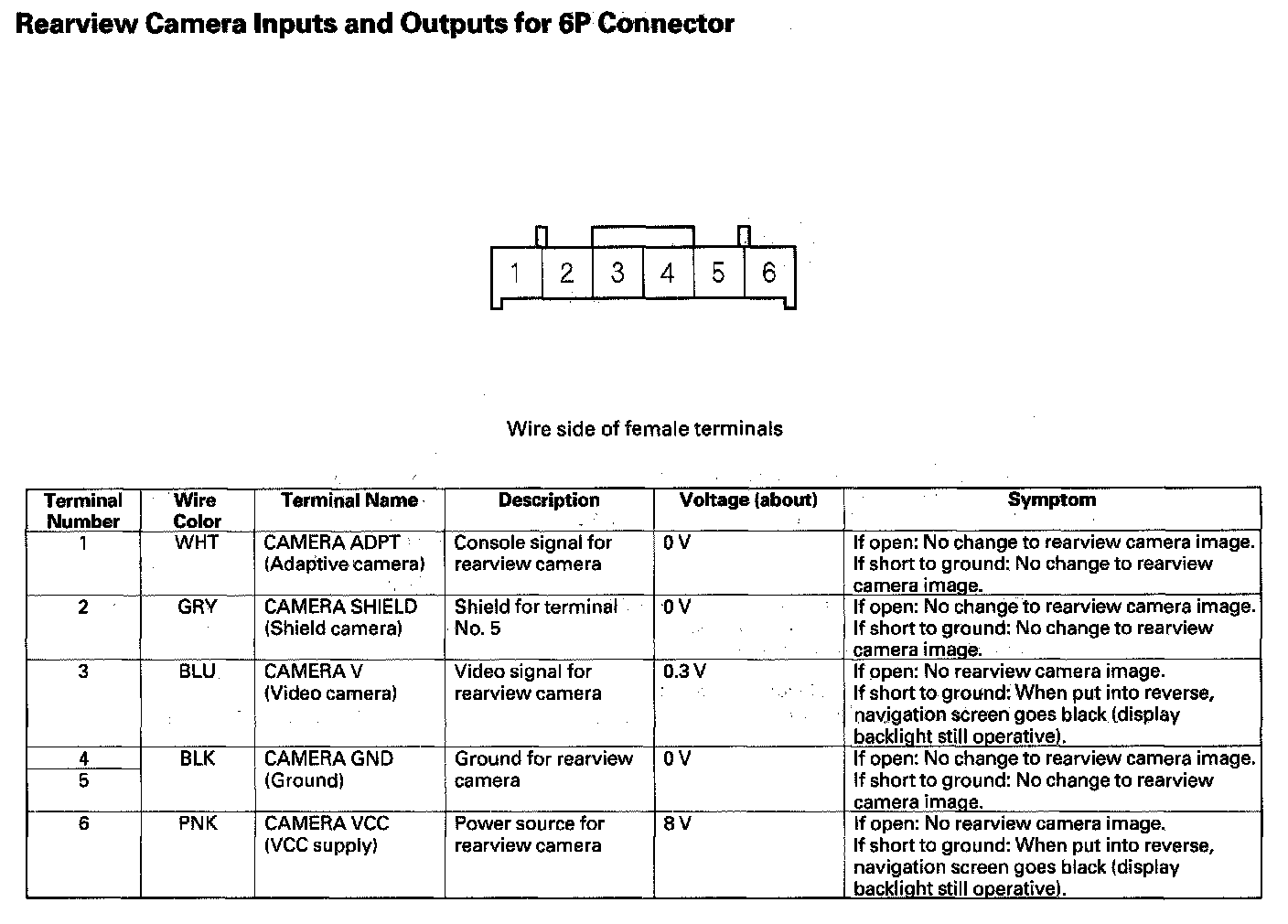

Rearview Camera Inputs And Outputs For 6P Connector:

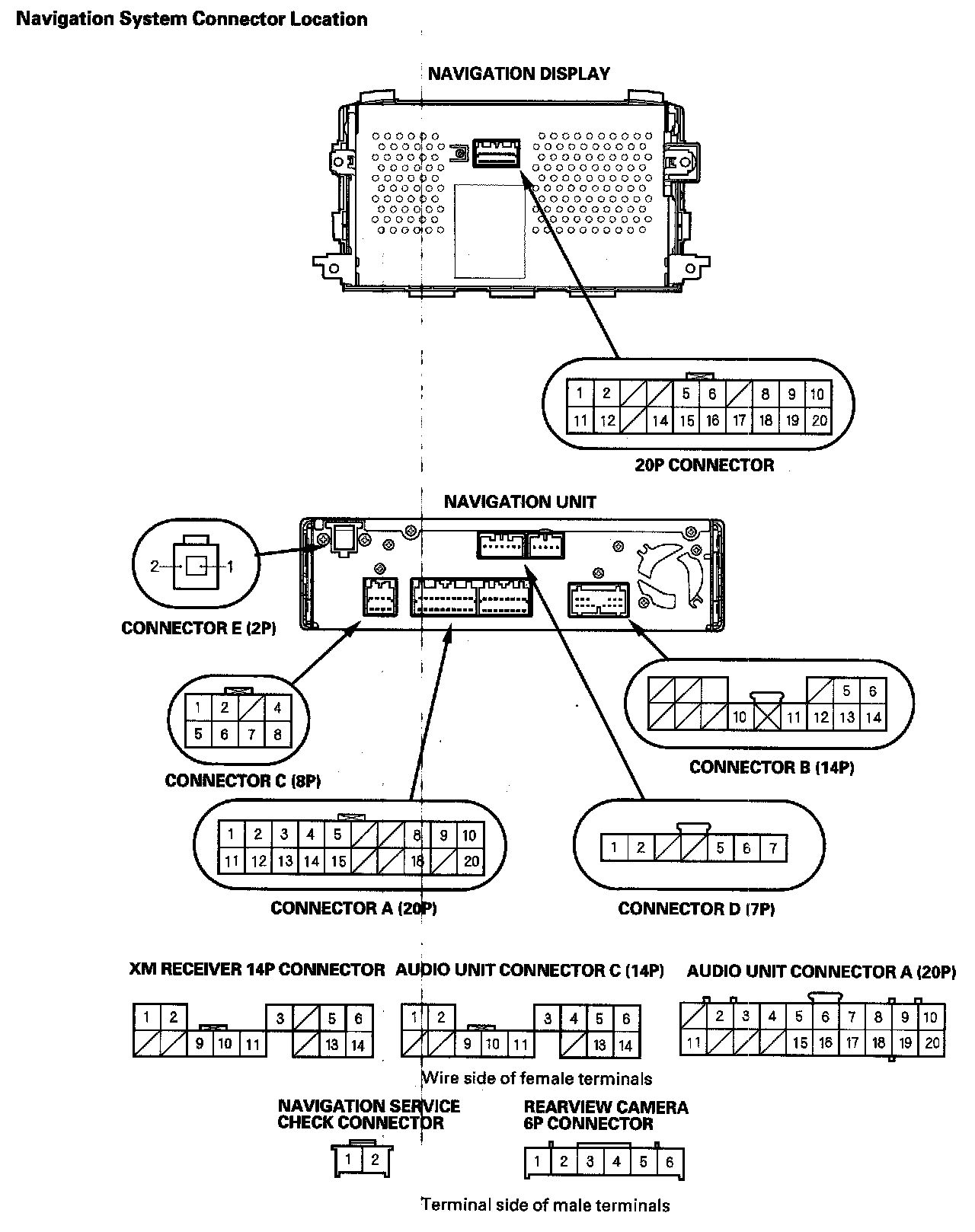

Navigation System Circuit Diagram - Connector Locations:
