Fuse Block

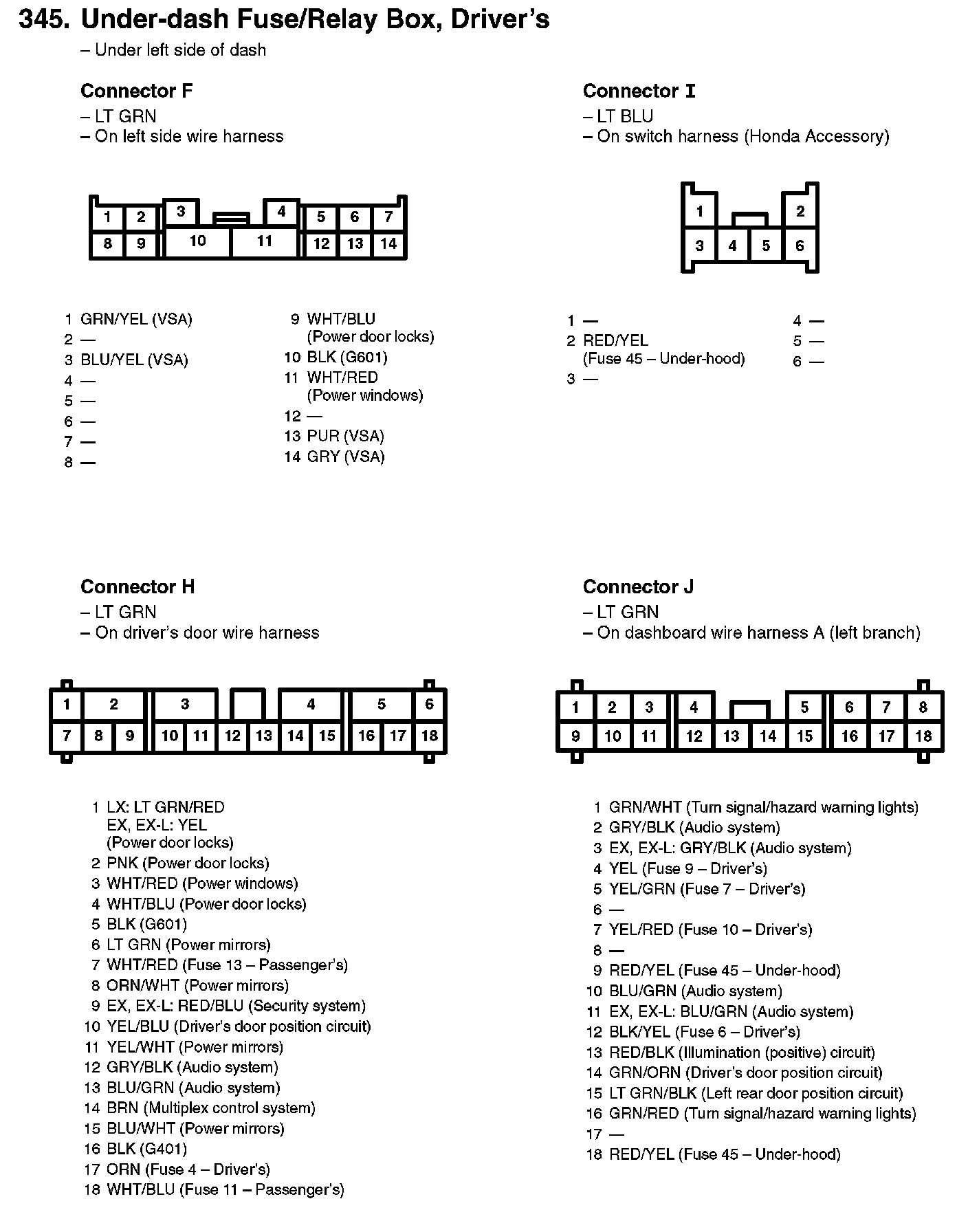

345. Under-dash Fuse/Relay Box, Driver's:

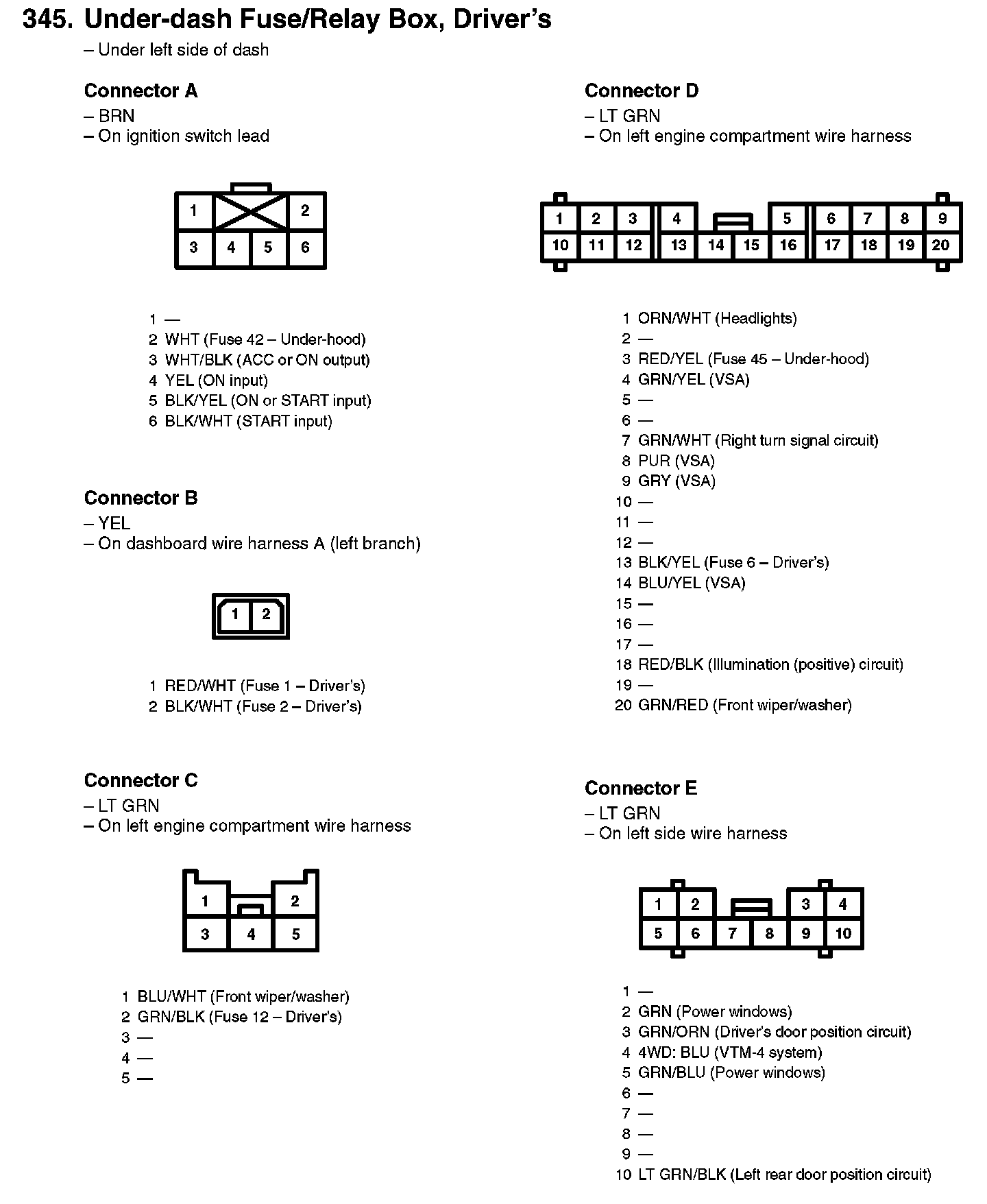

345b. Under-dash Fuse/relay Box, Driver's:

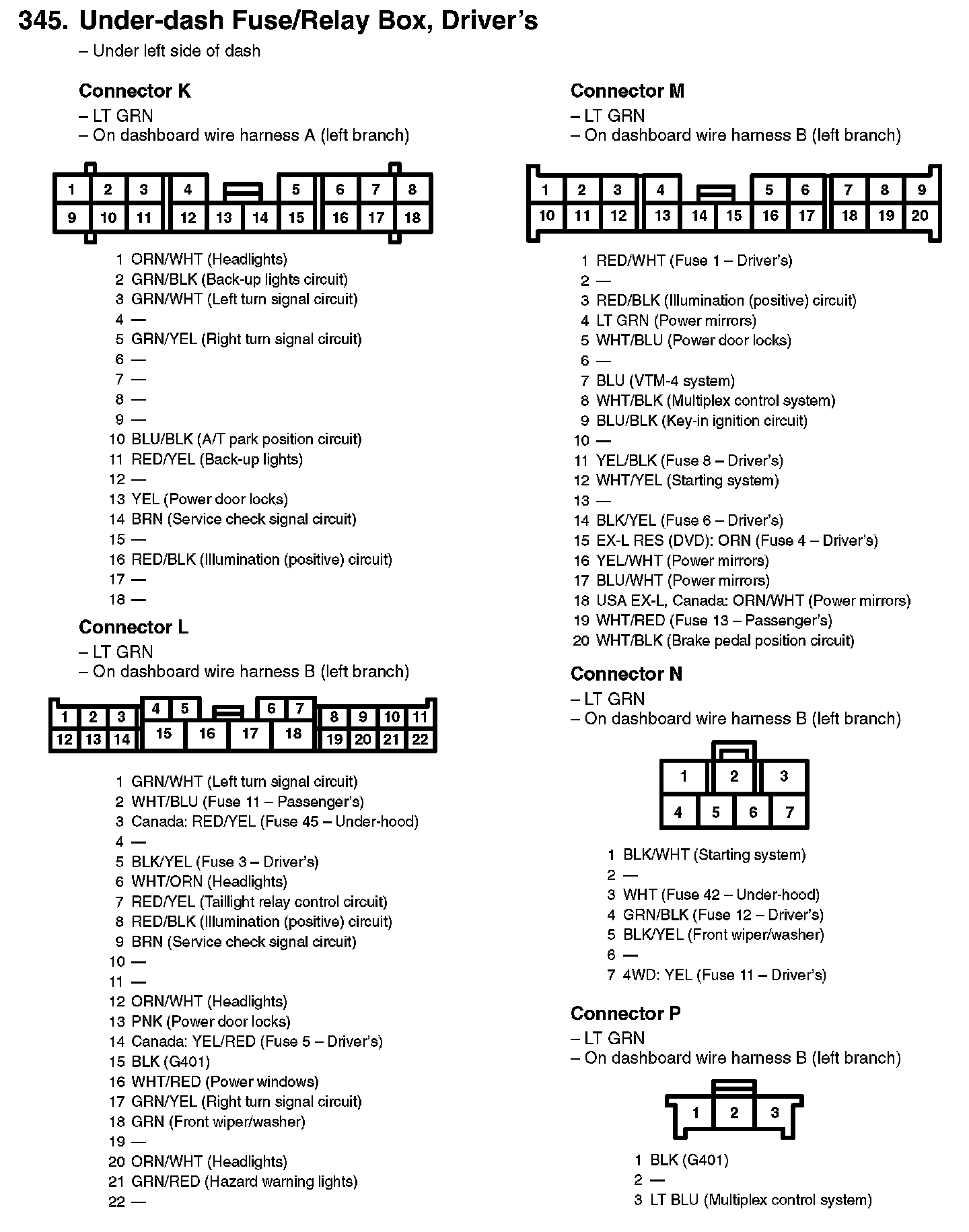

345c. Under-dash Fuse/relay Box, Driver's:

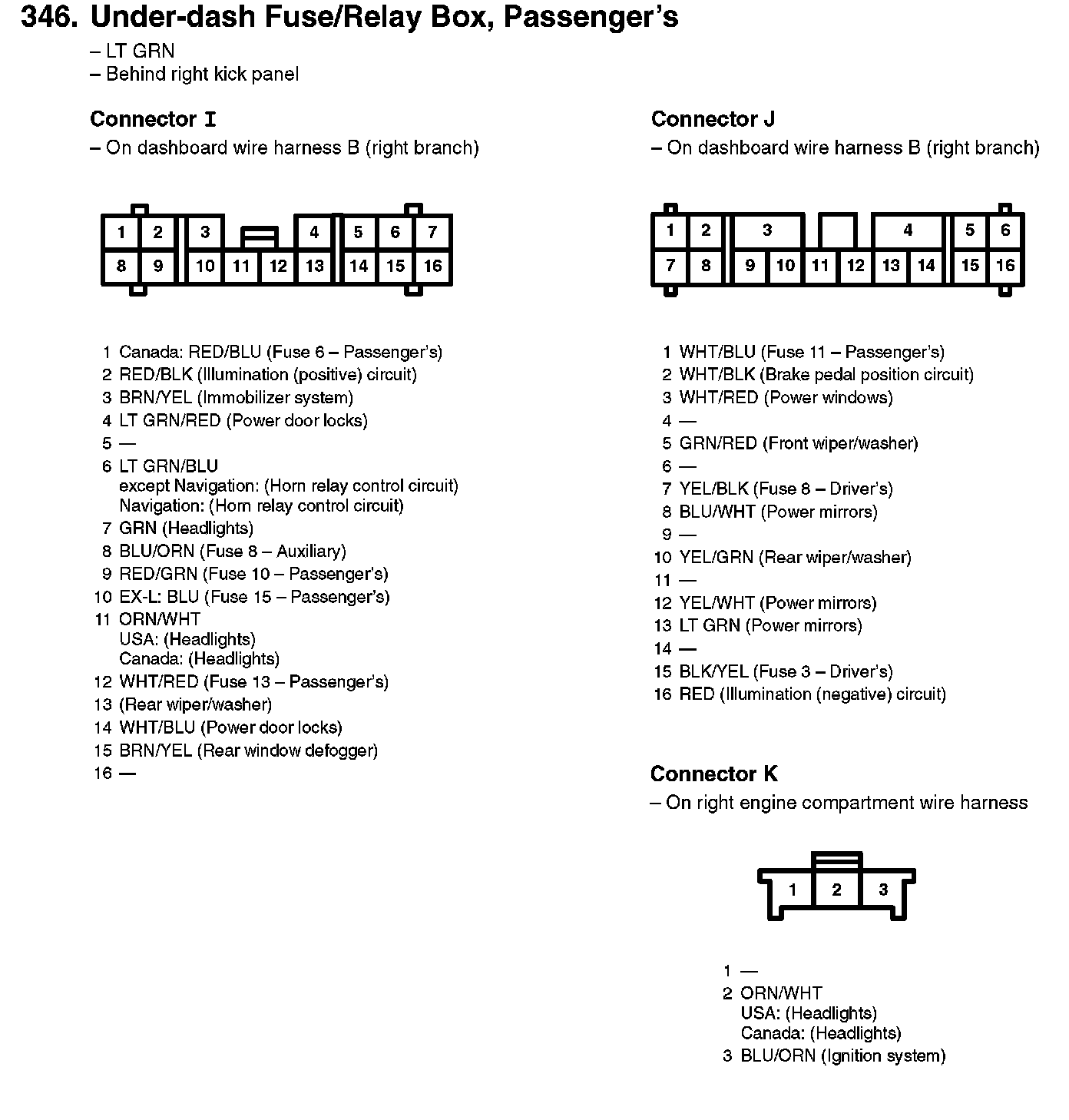

346a. Under-dash Fuse/Relay Box, Passenger's:

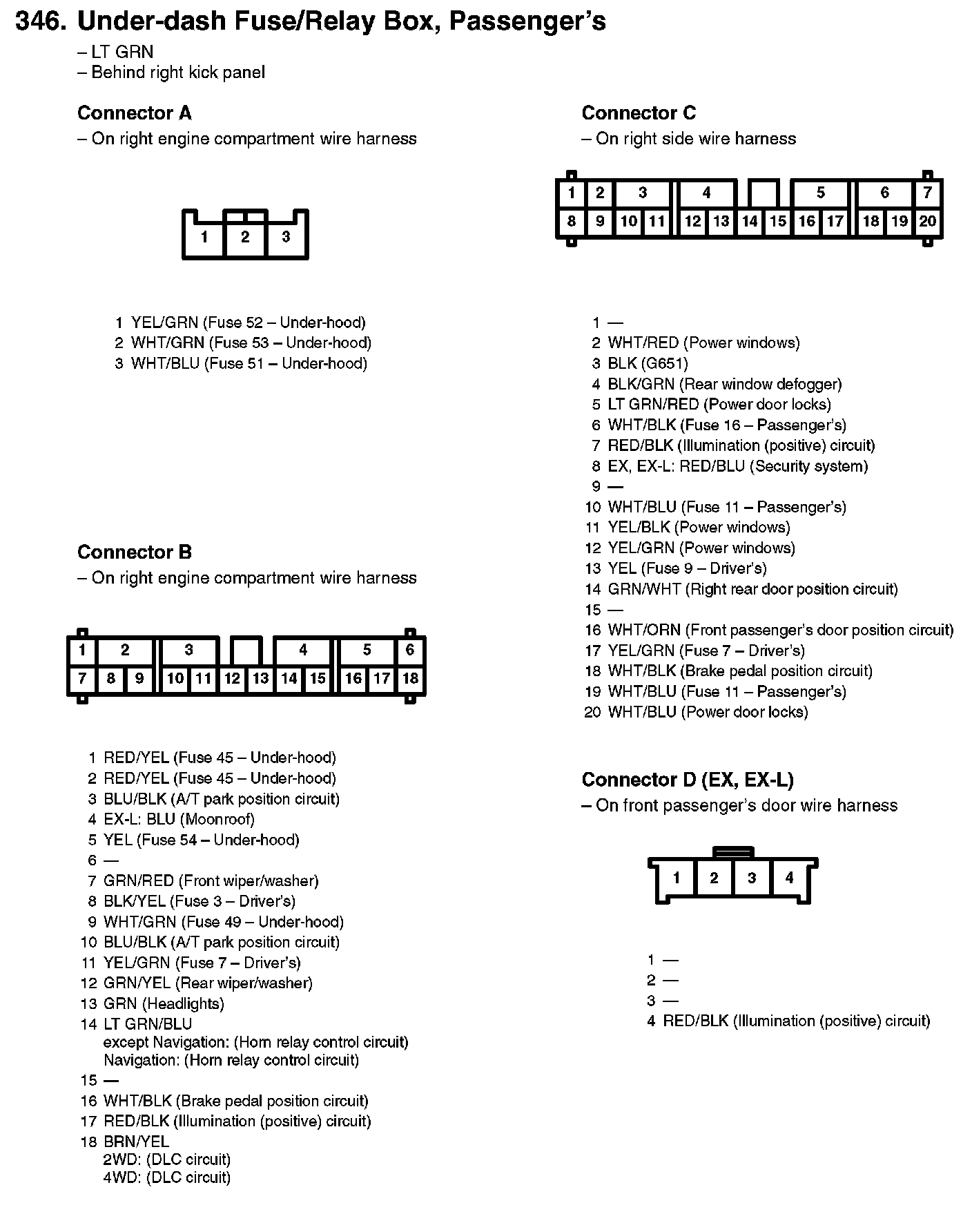

346b. Under-dash Fuse/Relay Box, Passenger's:

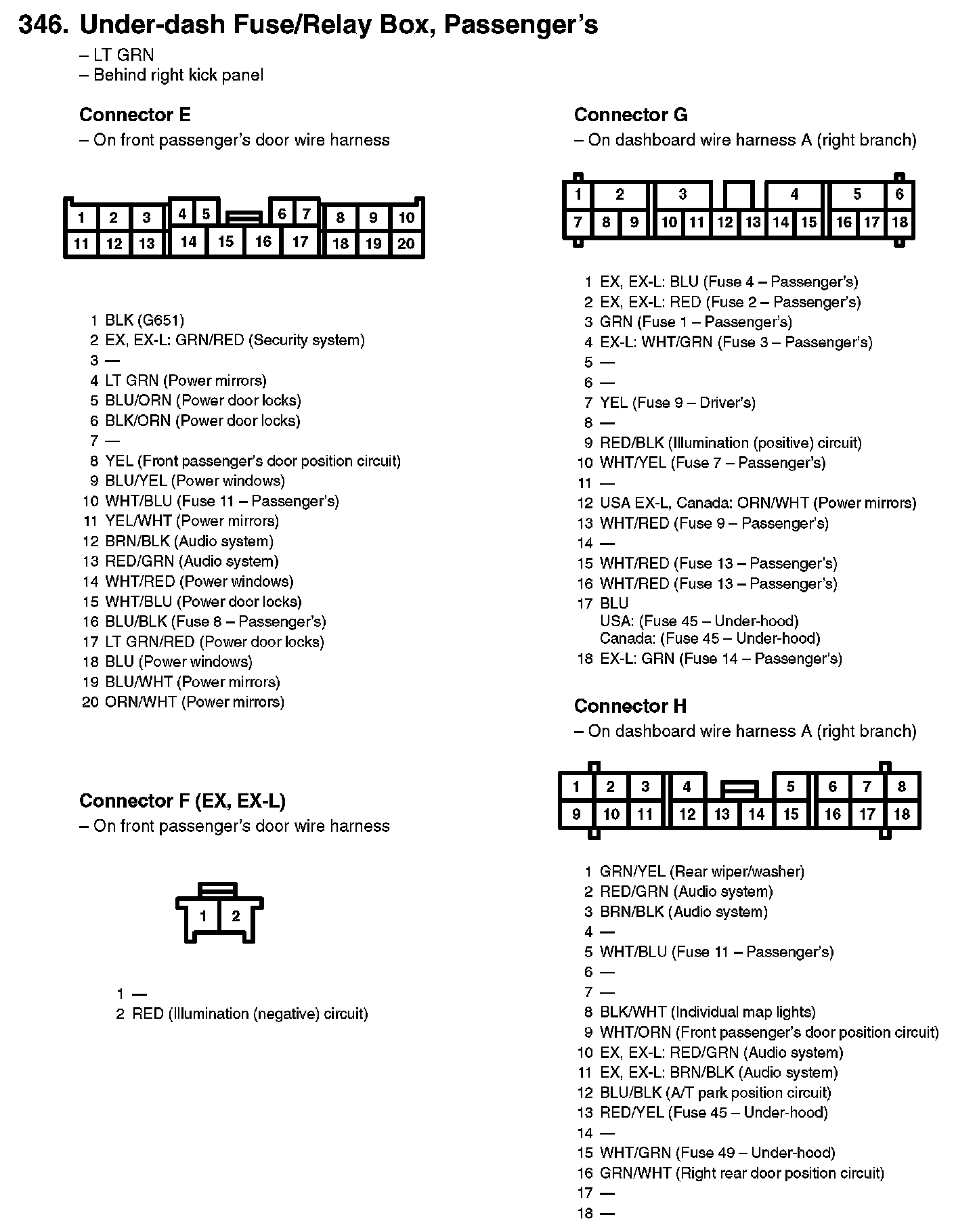

346c. Under-dash Fuse/Relay Box, Passenger's:

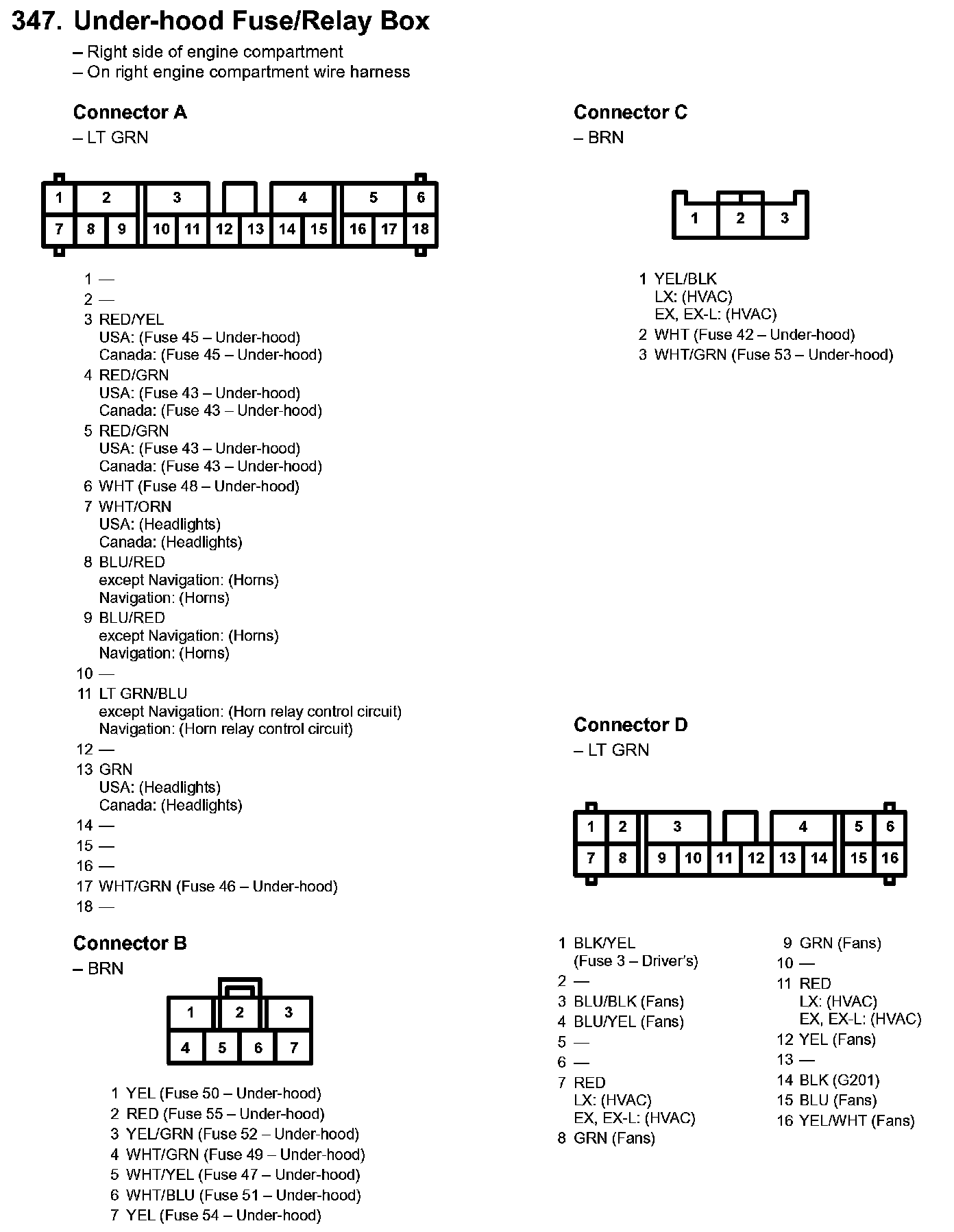

347. Under-hood Fuse/Relay Box:
