Rear Subframe: Service and Repair

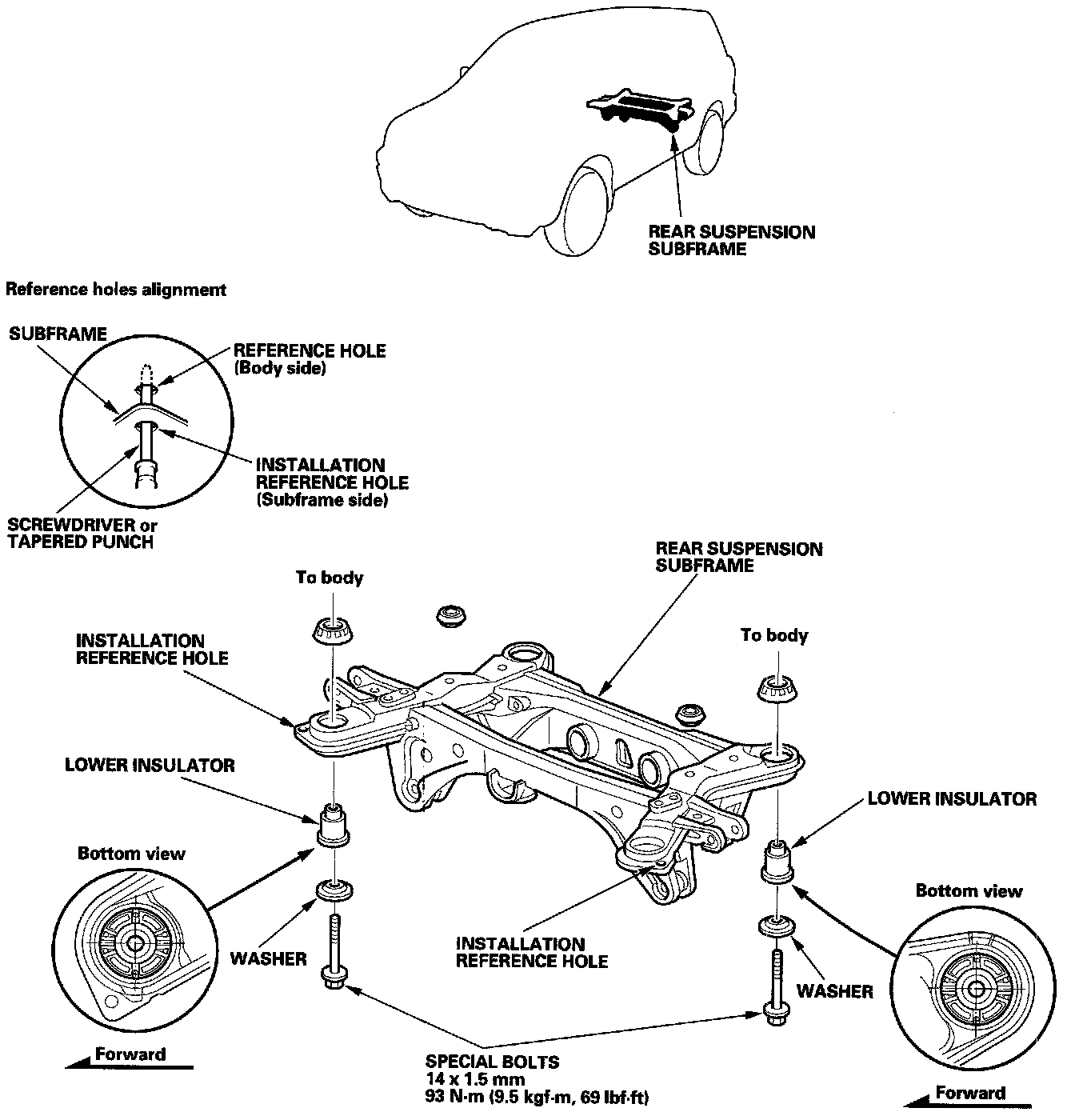

Rear Subframe Replacement

Subframe Torque

After removing the subframe mounting bolts, be sure to replace them with new ones.
