Front Subframe: Service and Repair

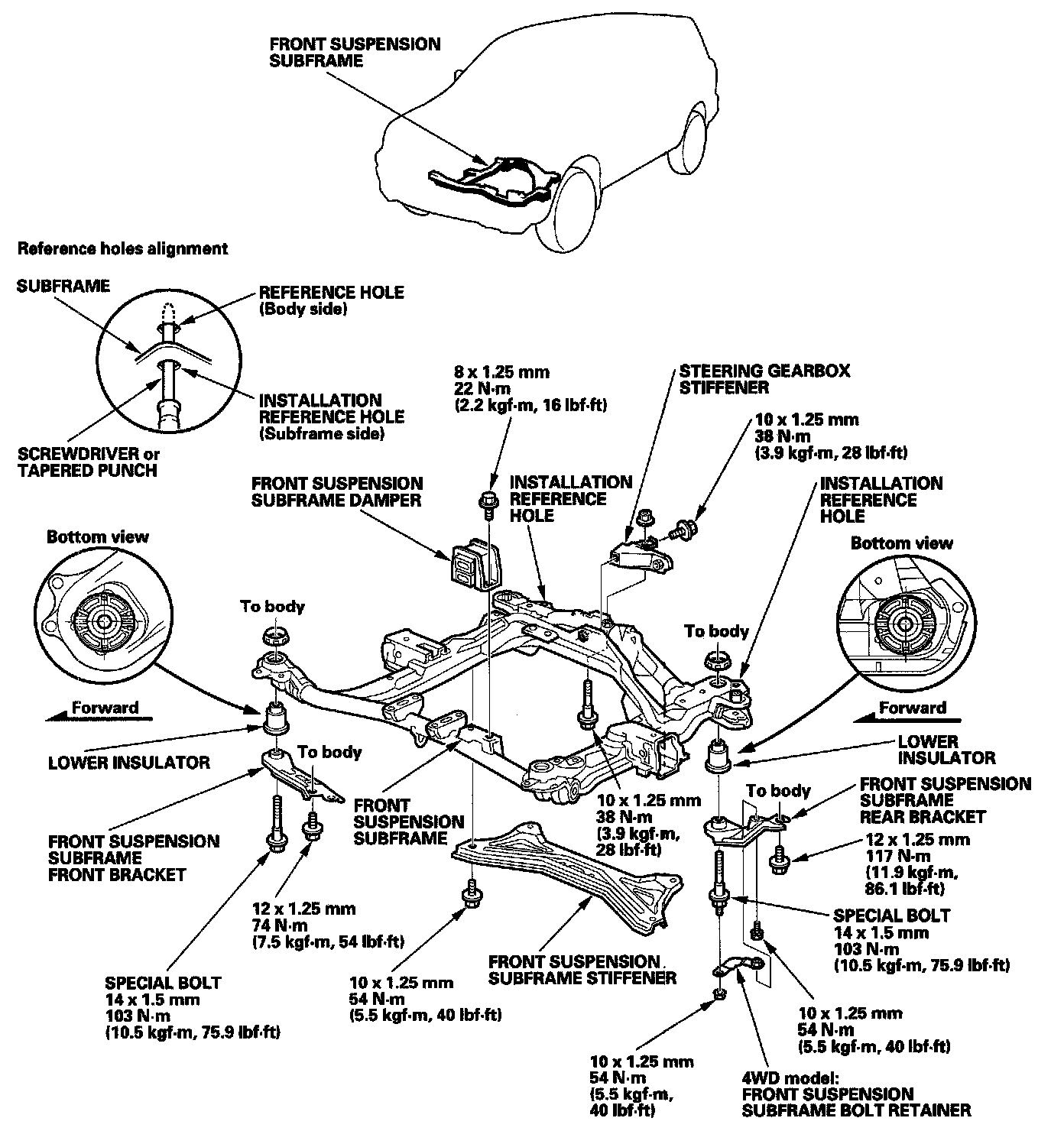

Front Subframe Replacement

Subframe Torque




After removing the subframe mounting bolts and front suspension subframe stiffener mounting bolts, be sure to replace them with new ones.
