Power Sliding Door Module: Locations

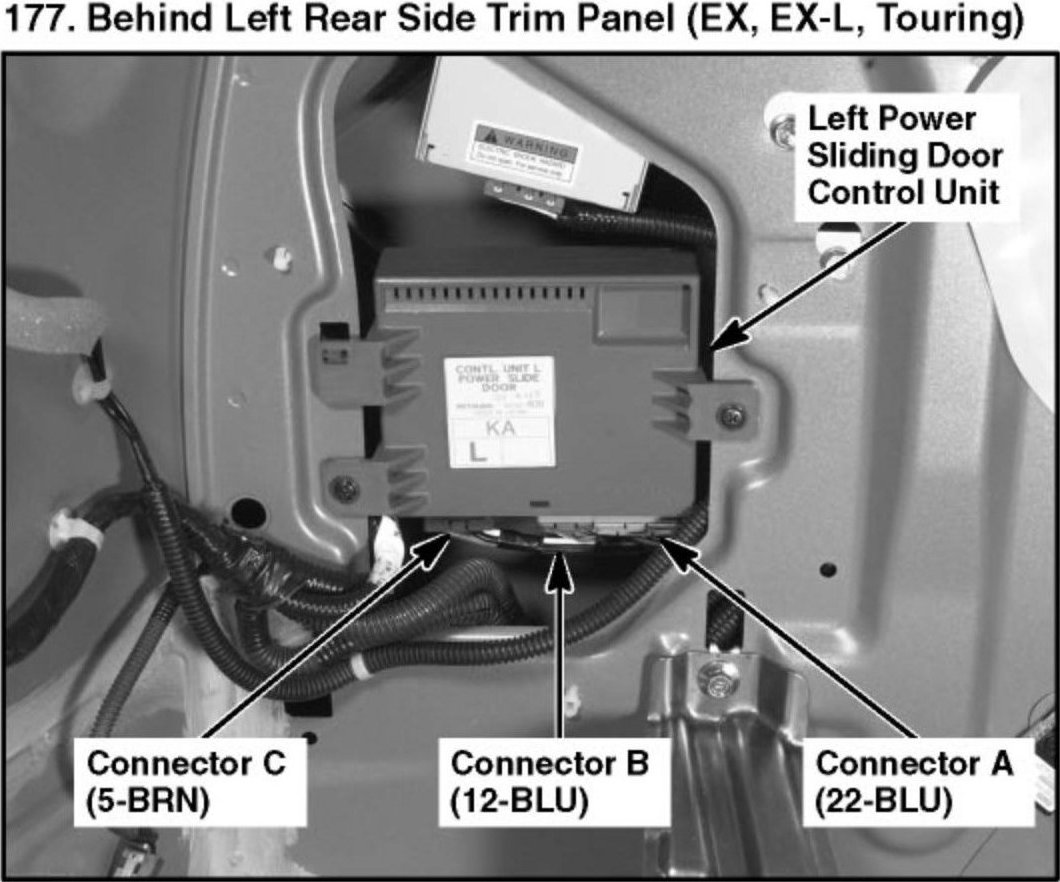

177. Behind Left Rear Side Trim Panel (EX, EX-L, Touring):

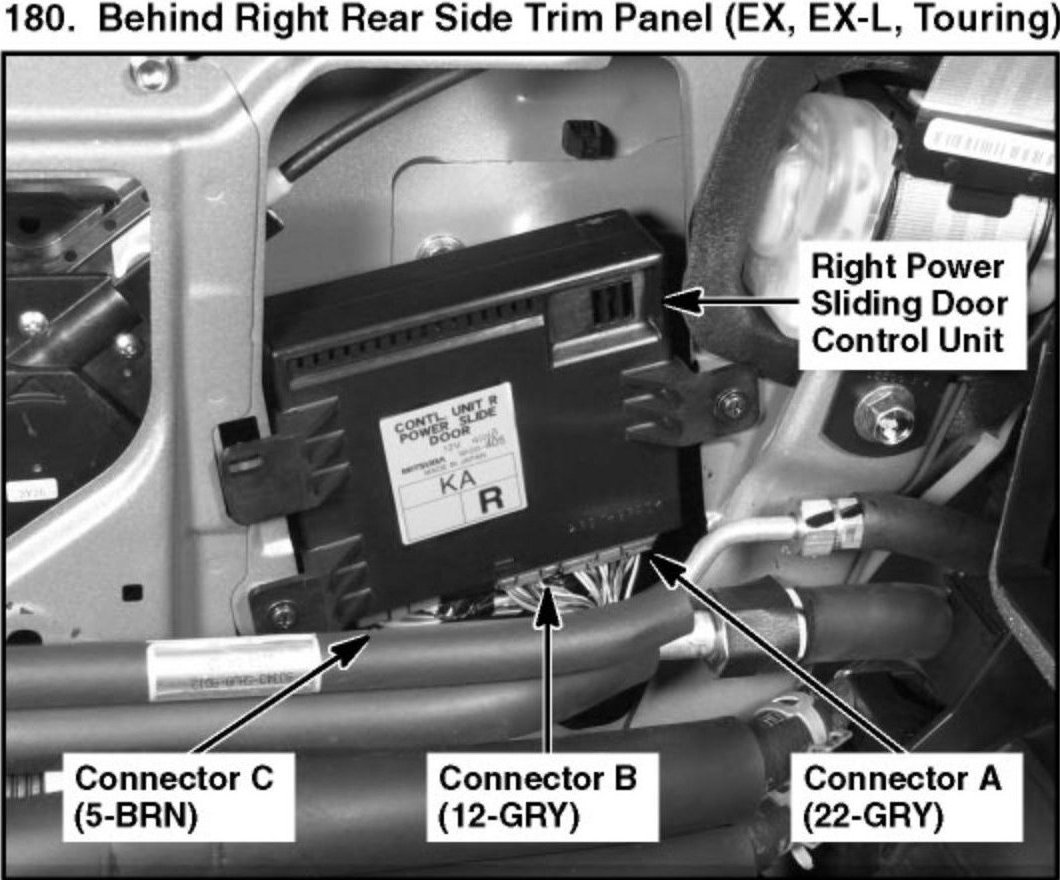

180. Behind Right Rear Side Trim Panel (EX, EX-L, Touring):



Relay And Control Unit Locations Rear Quarter Panel And Sliding Door:

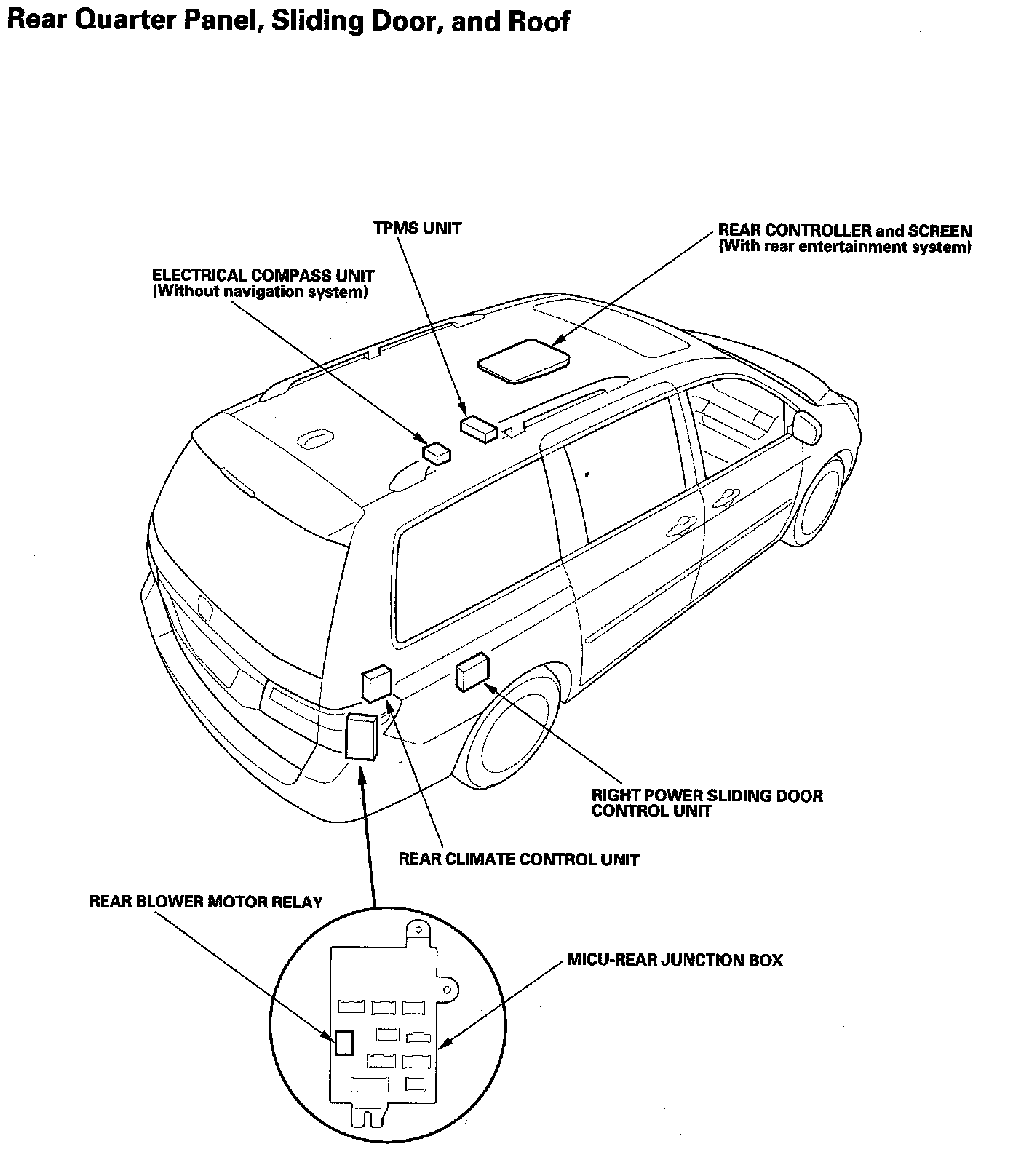

Relay And Control Unit Locations Rear Quarter Panel And Sliding Door, And Roof:



Multiplex Integrated Control System Component Location Index:
