Ignition System: Locations

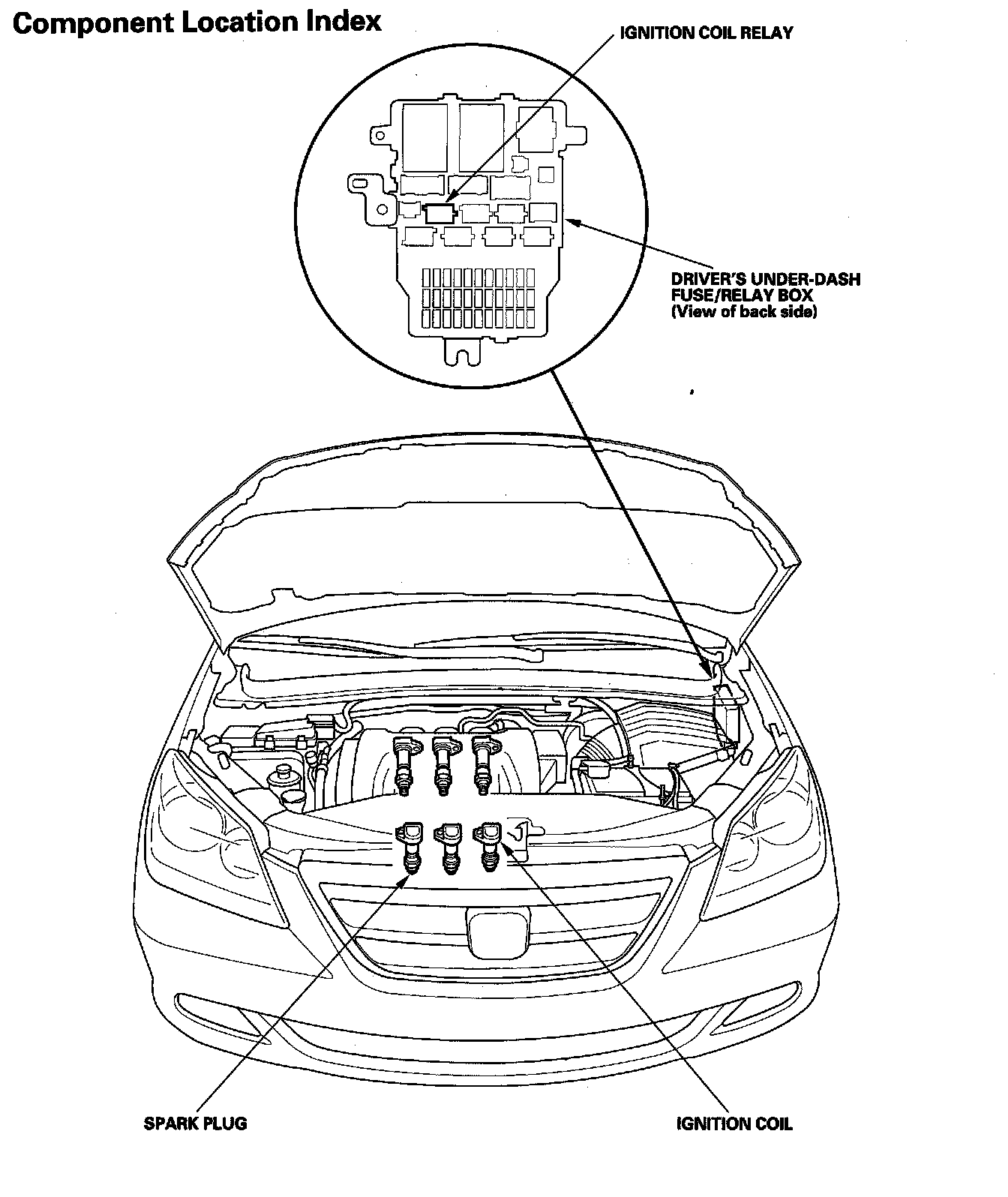

Ignition System Component Location Index:

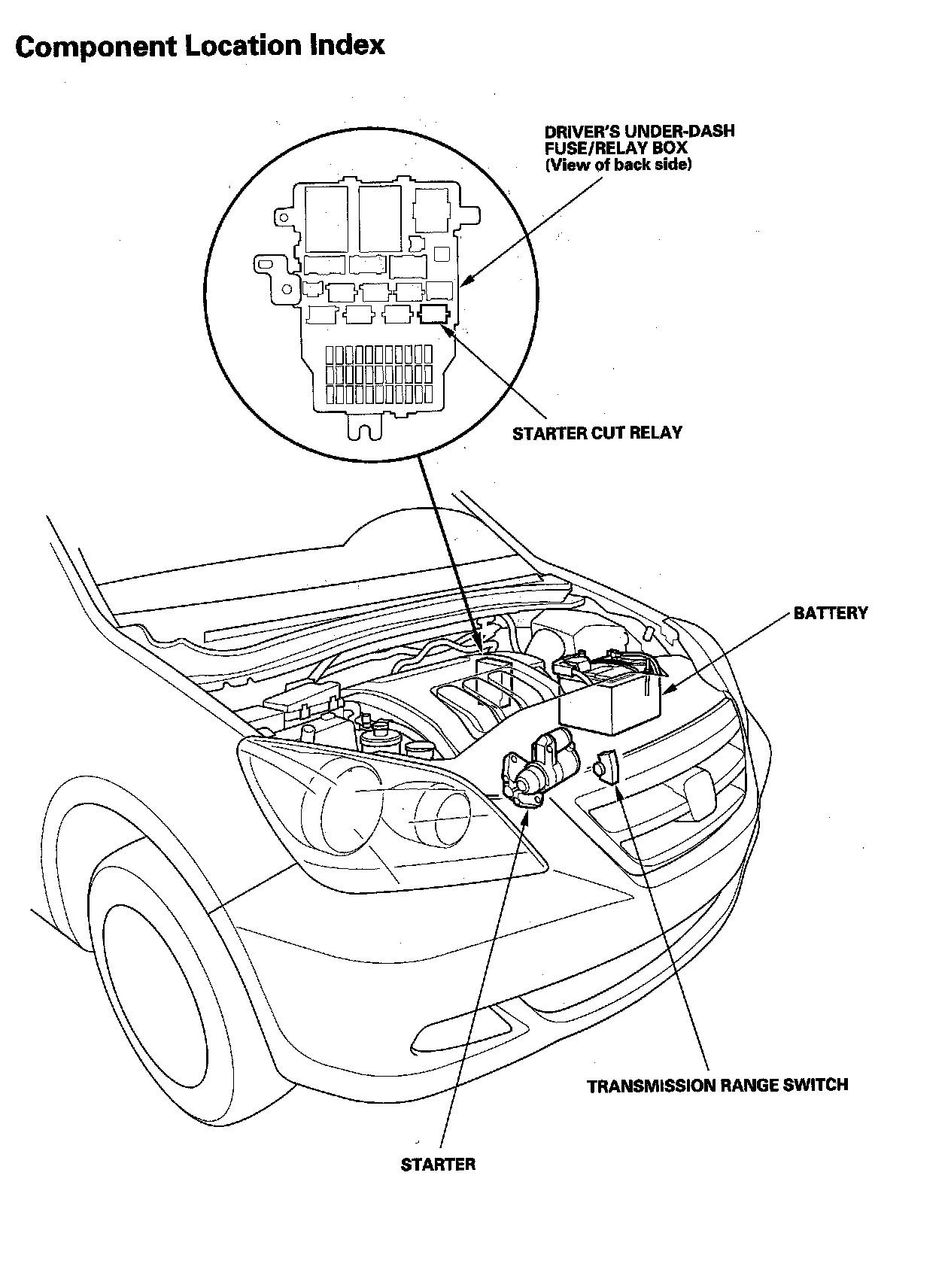

Starting System Component Location Index:

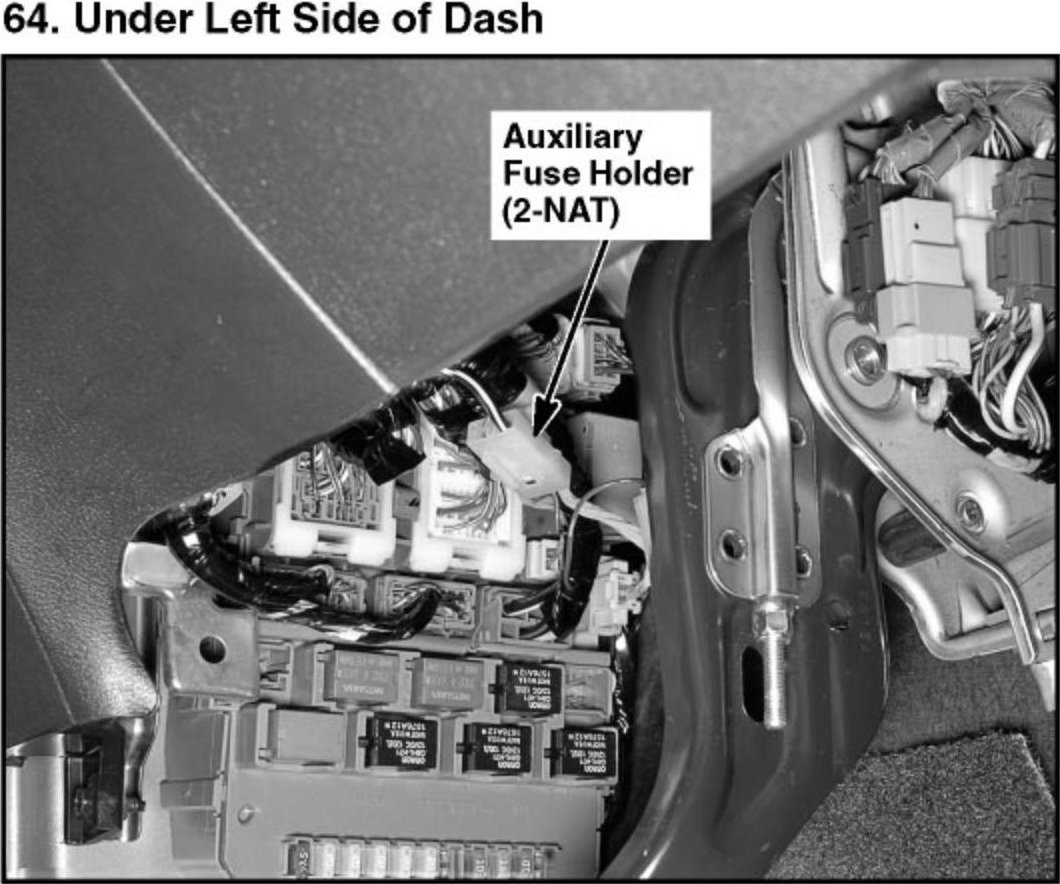

64. Under Left Side of Dash:

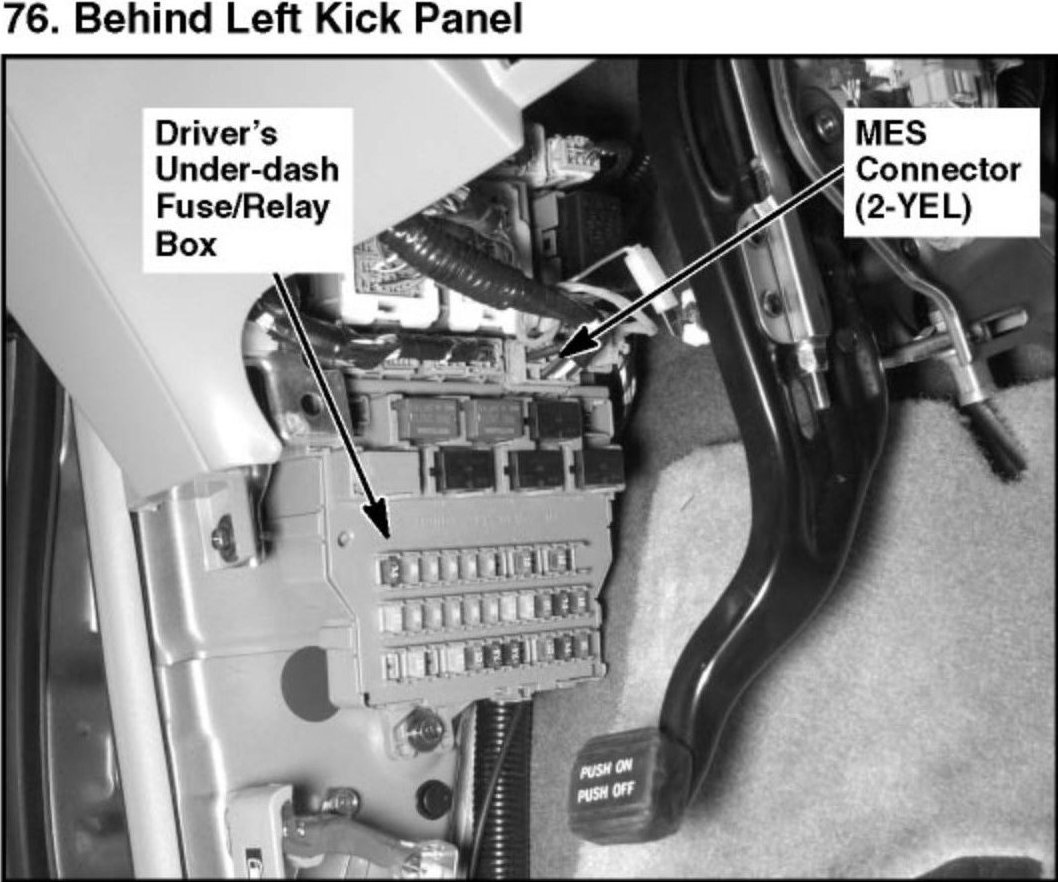

76. Behind Left Kick Panel:
