Navigation Display: Service and Repair

Navigation Display Removal/Installation

1. Remove the climate control panel.

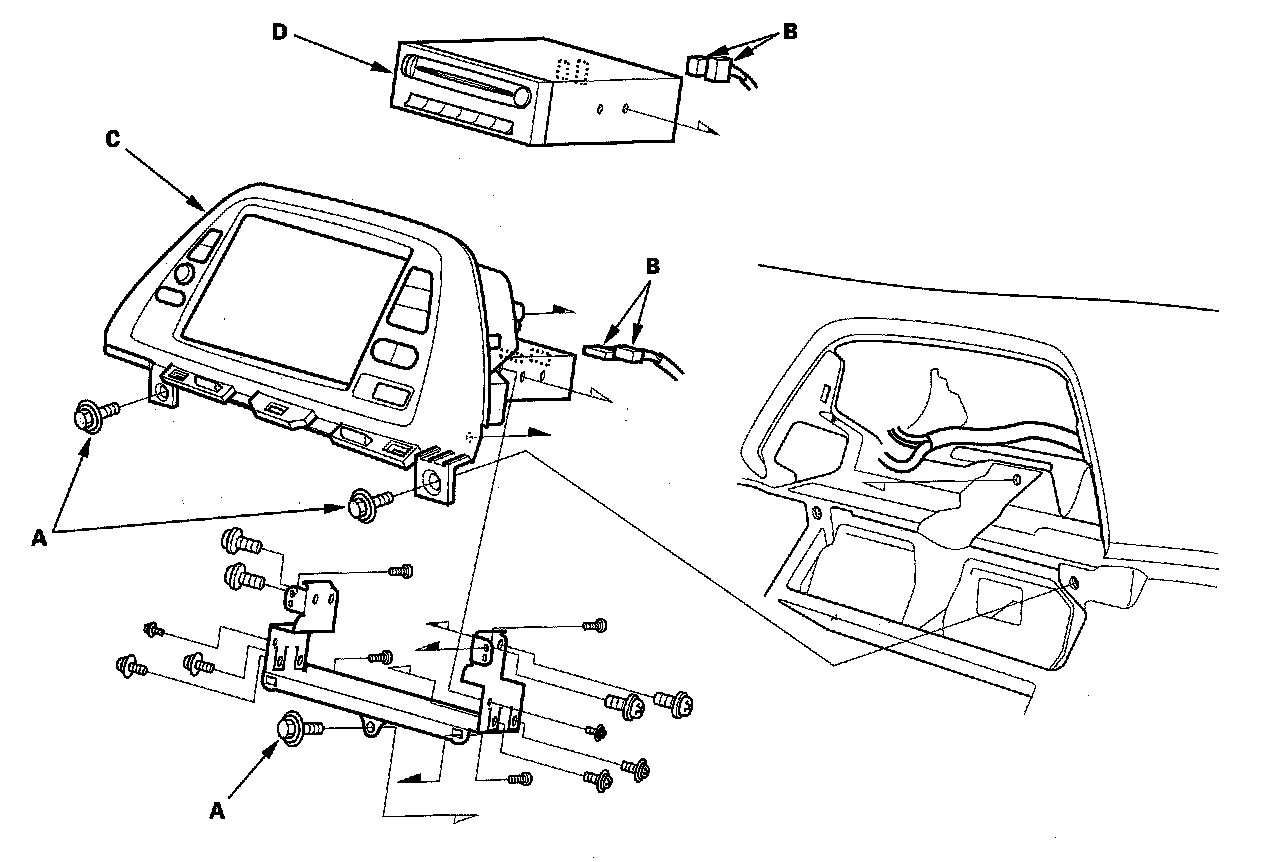

2. Remove the three bolts (A) and disconnect the four connectors (B), and then remove the navigation display (C) with the audio disc changer (D).
3. Separate the navigation display and the audio disc changer from the bracket.
4. Install in the reverse order of removal.
