Fuel and Emissions Systems Diagram

J35A6 engine, J35A7 engine ('07 model)

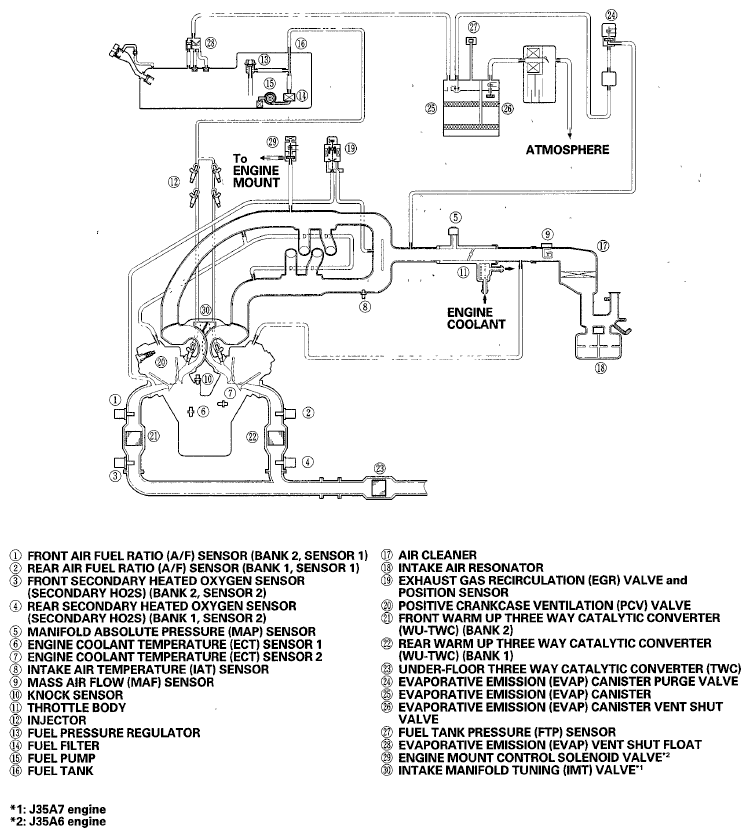

Fig 1: Fuel And Emissions Systems Diagram (J35A6 Engine, J35A7 Engine)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

J35A7 engine ('08-10 models)

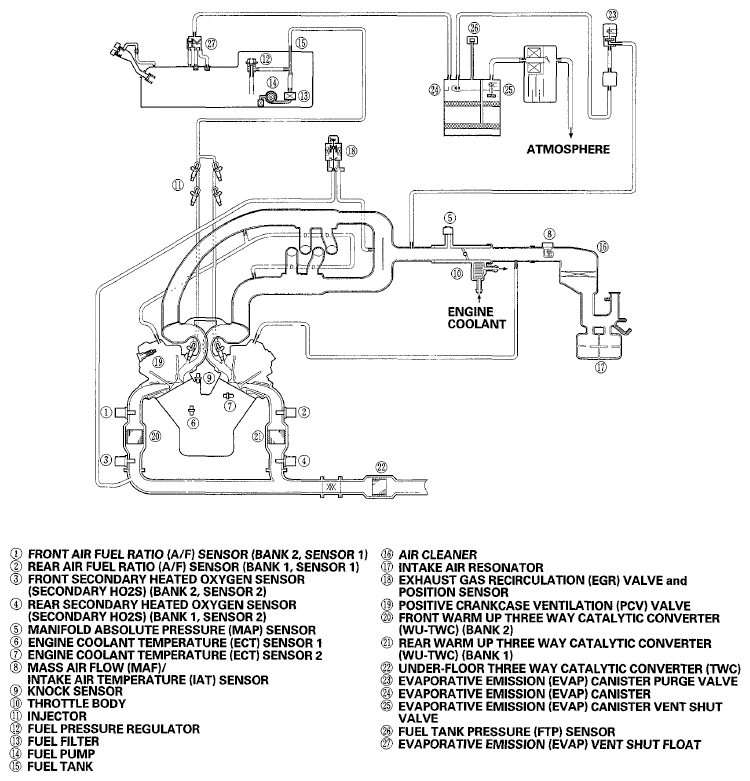

Fig 2: Fuel And Emissions Systems Diagram (J35A7 Engine)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
