Engine Mount Control Unit (EX-L, Touring) Connector End View
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Engine Mount Control Unit (EX-L, Touring) Connector End View

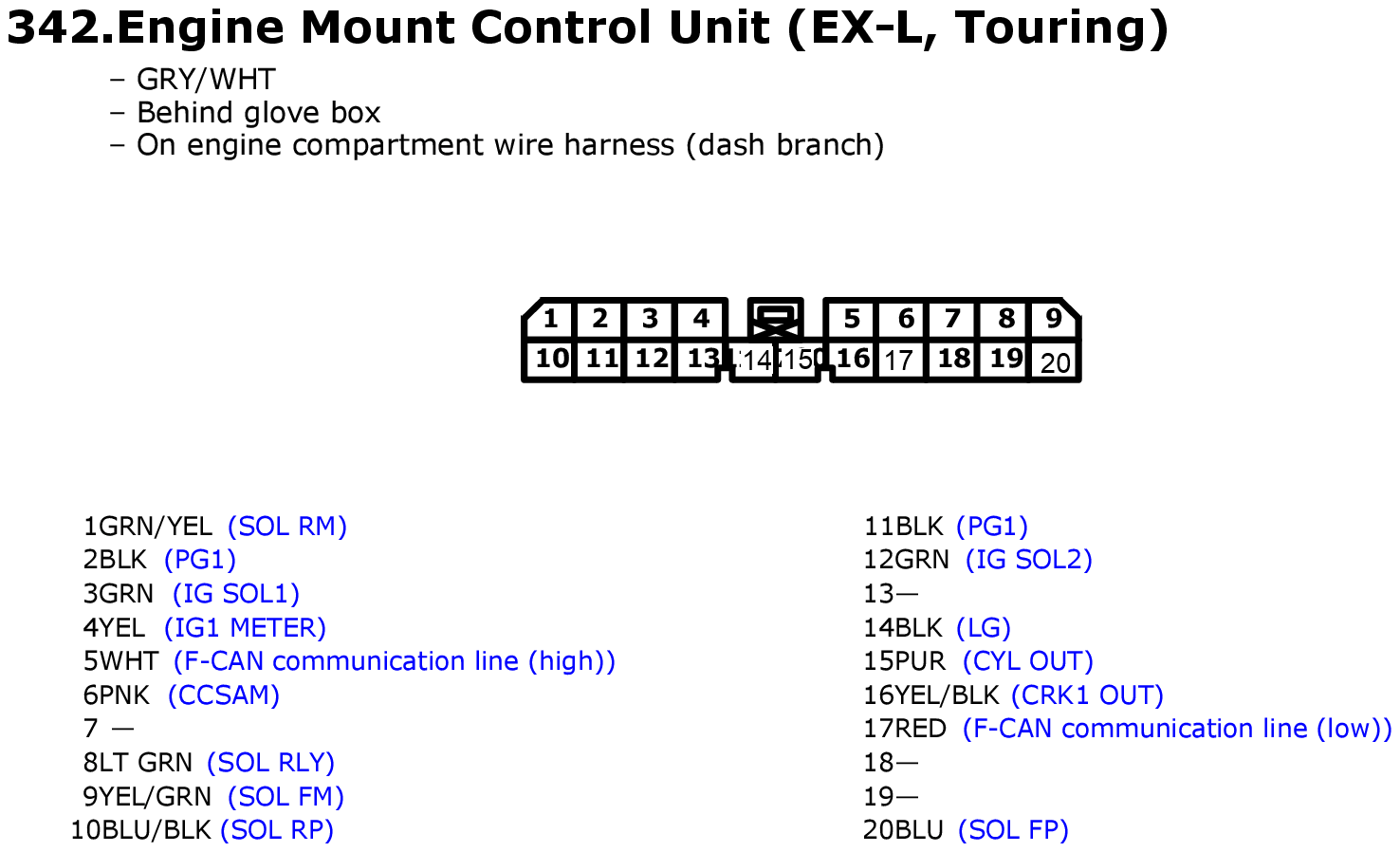

Fig 1: Engine Mount Control Unit (EX-L, Touring) Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
