Fuel Tank Replacement

Relieve the fuel pressure (see FUEL PRESSURE RELIEVING ).
Drain the fuel tank (see FUEL PRESSURE TEST ).
Raise the vehicle on a lift.
Disconnect the fuel pump subharness 4P connector (A).

Fig 1: Identifying Fuel Pump Subharness 4P Connector
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Disconnect the fuel line quick-connect fitting (A).

Fig 2: Identifying Fuel Line Quick-Connect Fitting
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Disconnect the fuel vapor hoses (A), and the filler neck hose and clamp (B), then gently twist the hoses as you pull to avoid damaging them.

Fig 3: Identifying Fuel Vapor Hoses And Filler Neck Hose And Clamp
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Place a jack or other support under the fuel tank (A).

Fig 4: Fuel Tank And Strap Bolts With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the strap bolts (B).
Remove the fuel tank. If it sticks to the undercoated mounts, carefully, pry it off the mounts.

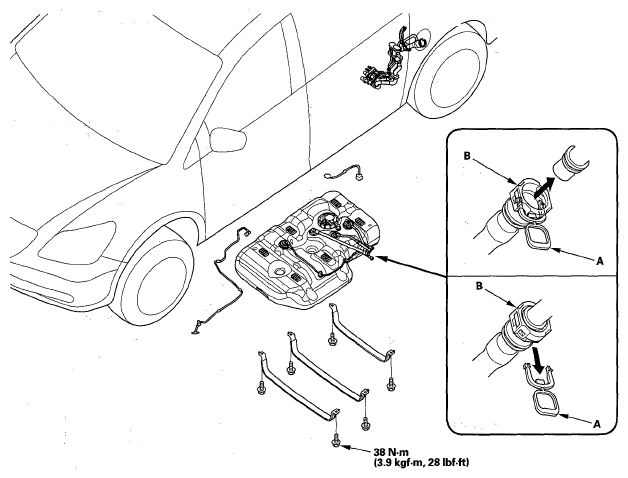

Fig 5: Ring Pull And Fuel Vapor Hose Connector With Torque Specification
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the parts in the reverse order of removal.
NOTE: New fuel tanks have a ring pull (A) at the fuel vapor hose connector (B). When you connect the hose and confirm that the connection is secure, remove the ring pull by pulling it down.
