Front Bank (Bank 2)

Disconnect the front secondary HO2S 4P connector (A), then remove the front secondary HO2S (B).

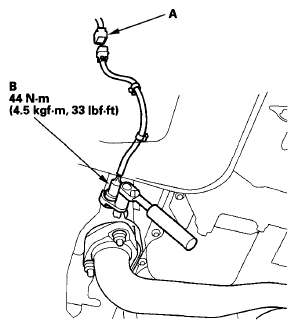

Fig 1: Front Secondary HO2S 4P Connector And Front Secondary HO2S With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the parts in the reverse order of removal.
