PCM Circuit Diagram ('07 model)

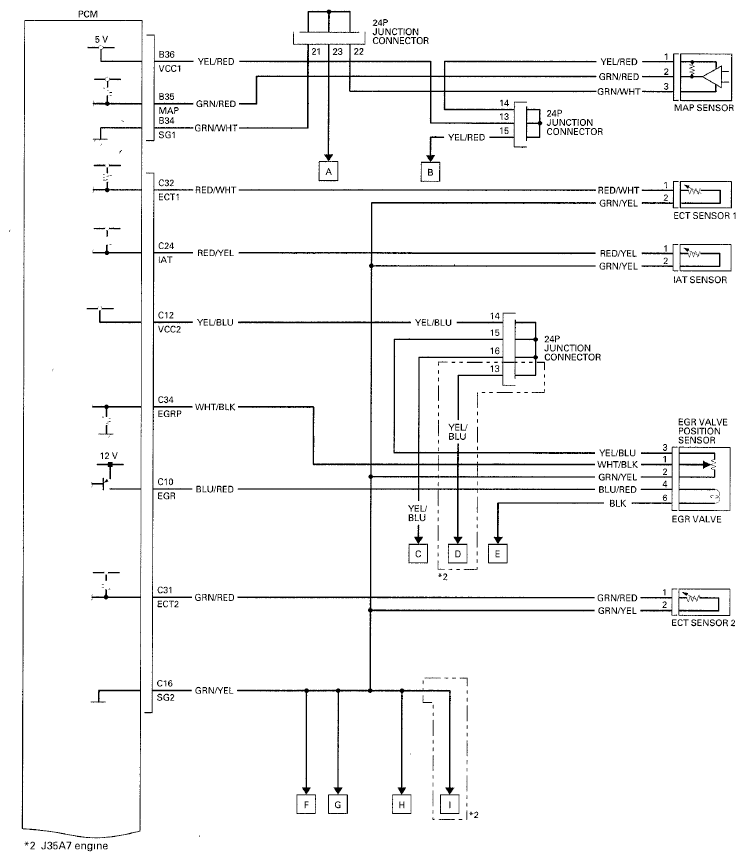

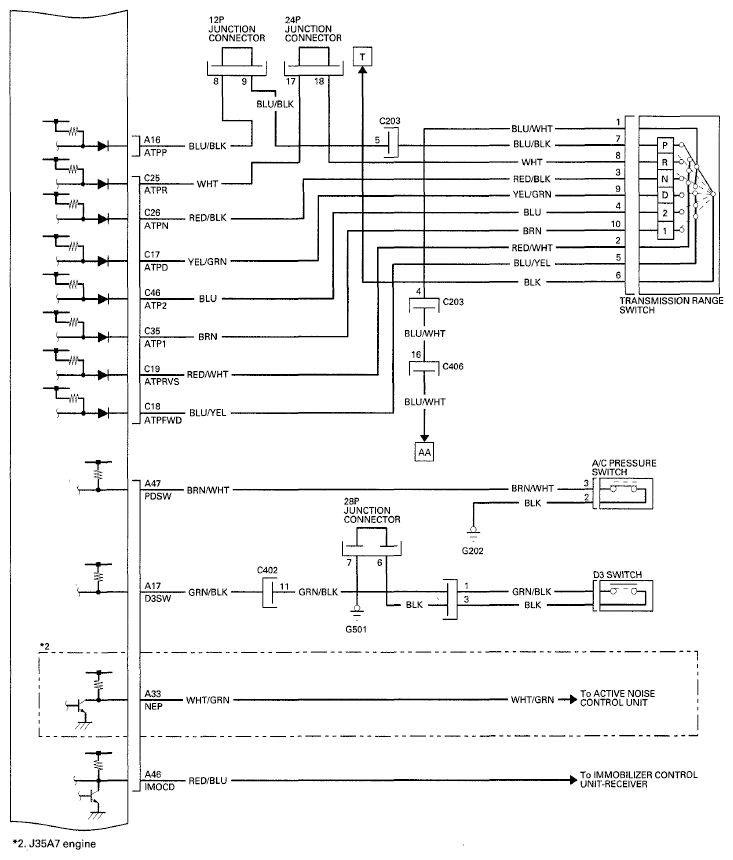

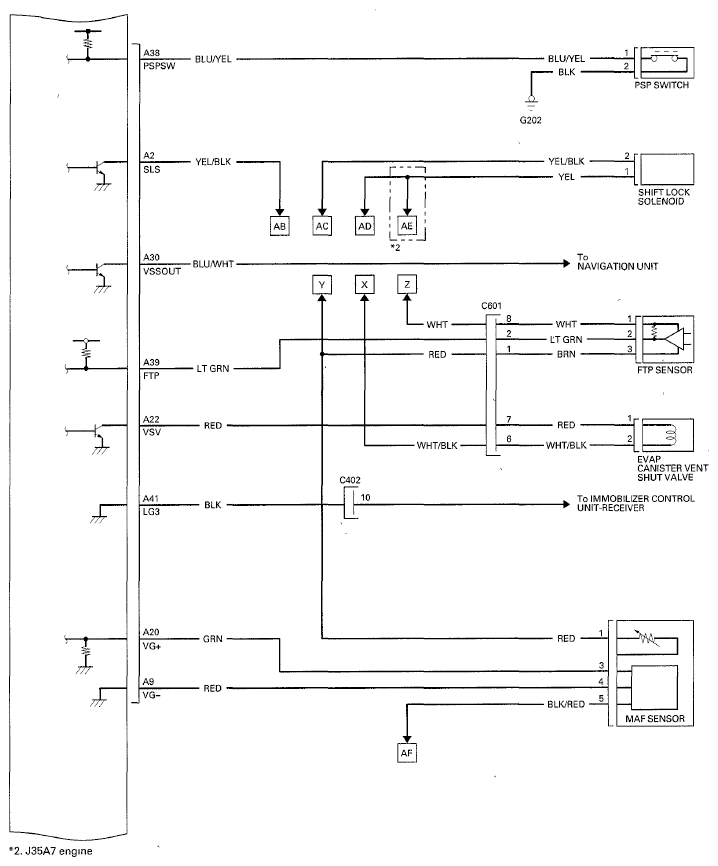

Fig 1: PCM Circuit Diagram - '07 Model (1 Of 14)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

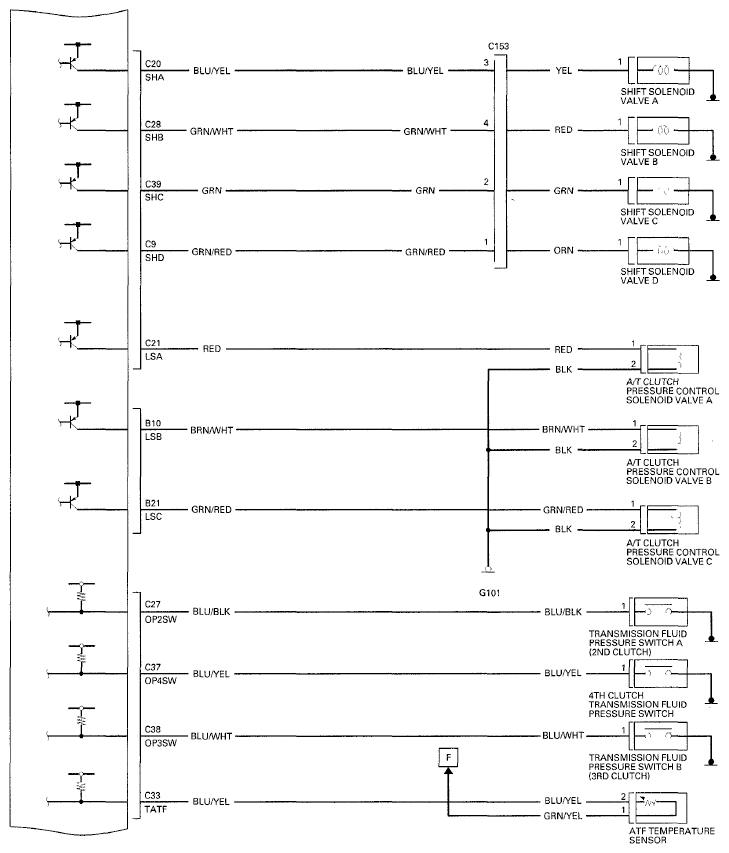

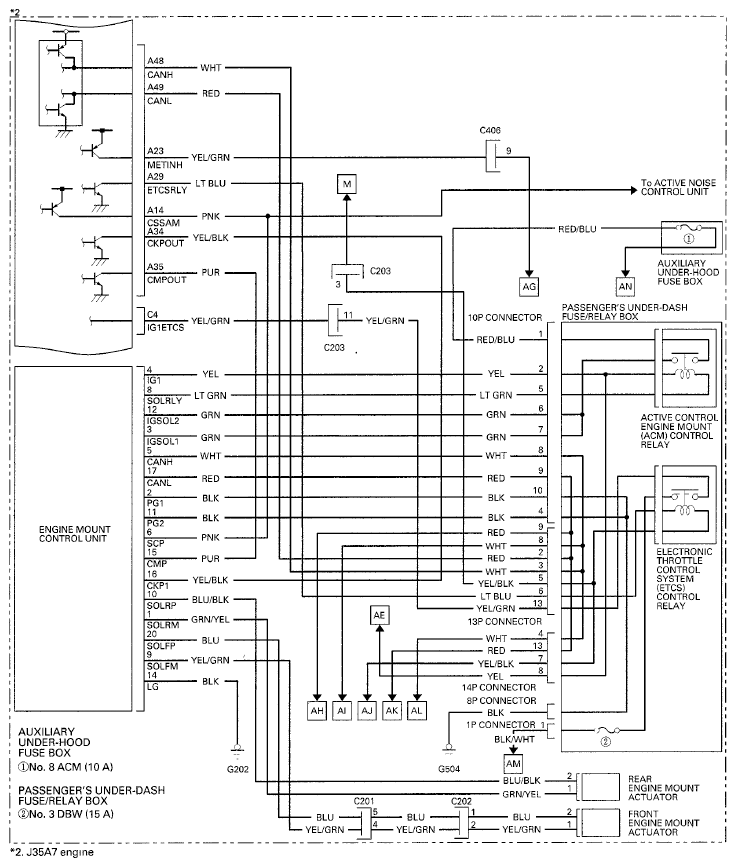

Fig 2: PCM Circuit Diagram - '07 Model (2 Of 14)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

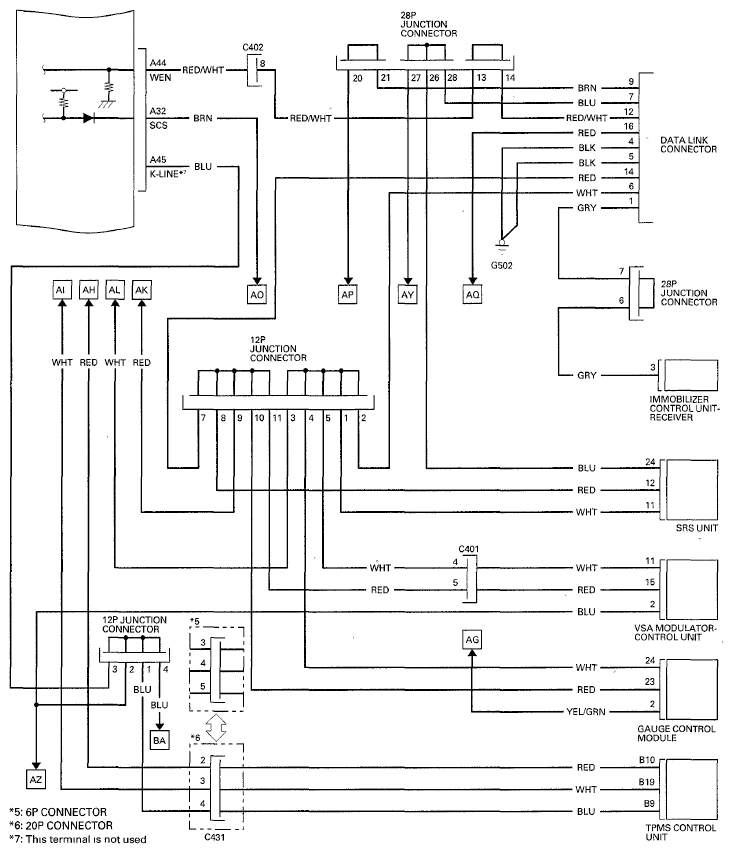

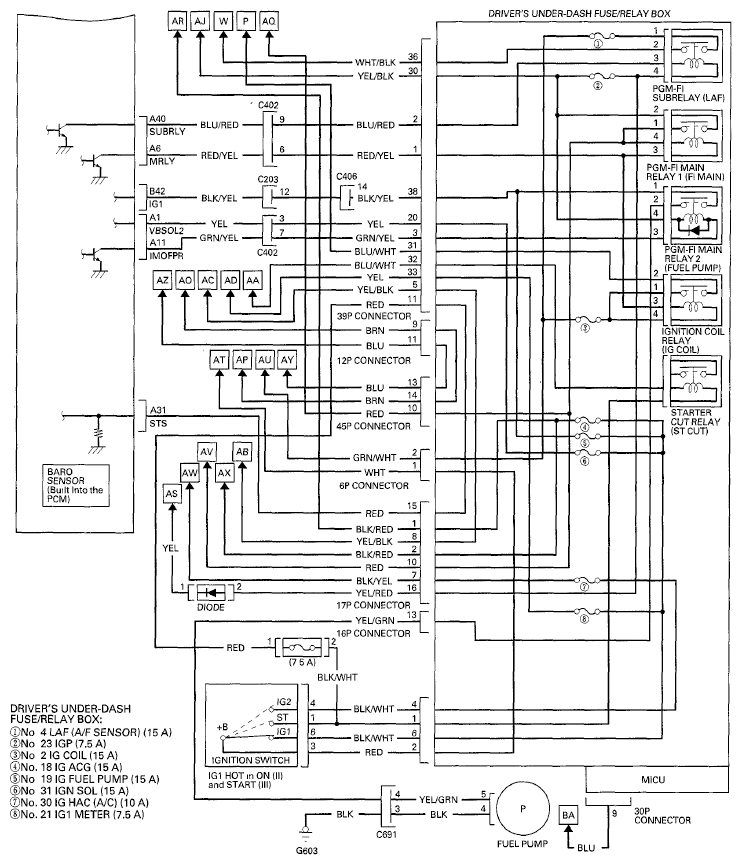

Fig 3: PCM Circuit Diagram - '07 Model (3 Of 14)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

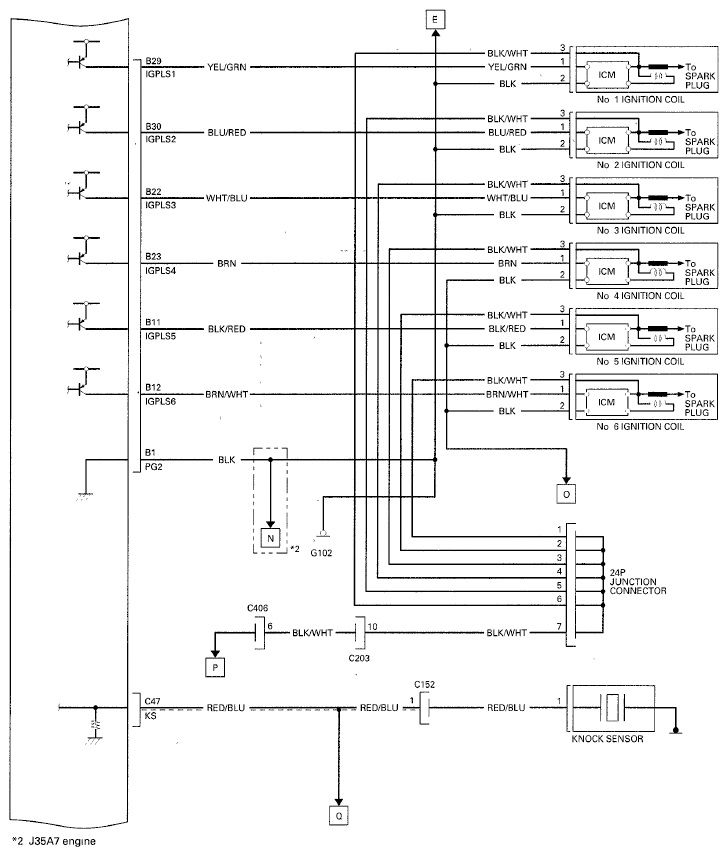

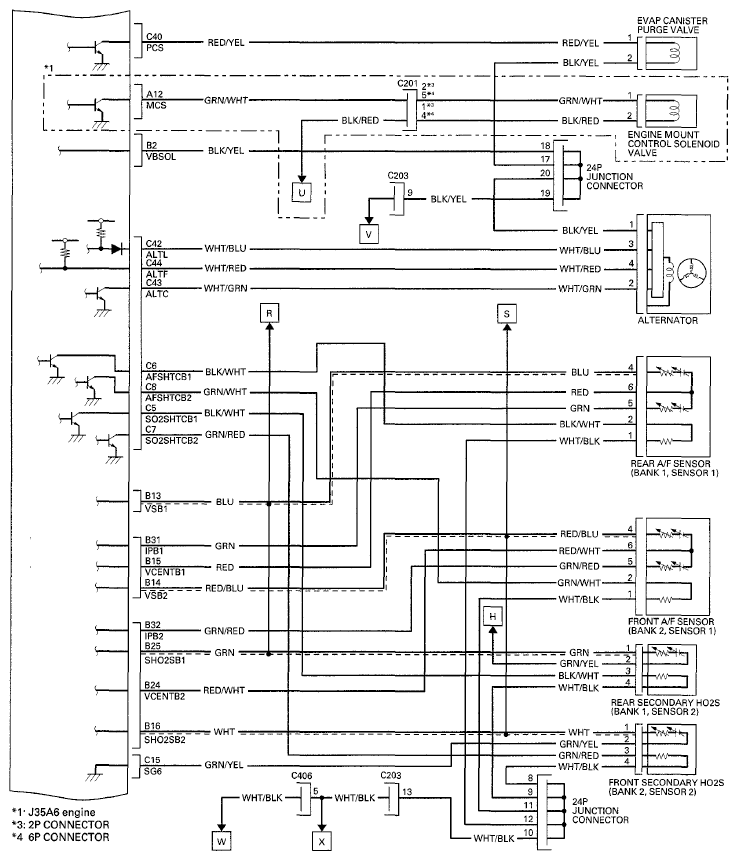

Fig 4: PCM Circuit Diagram - '07 Model (4 Of 14)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

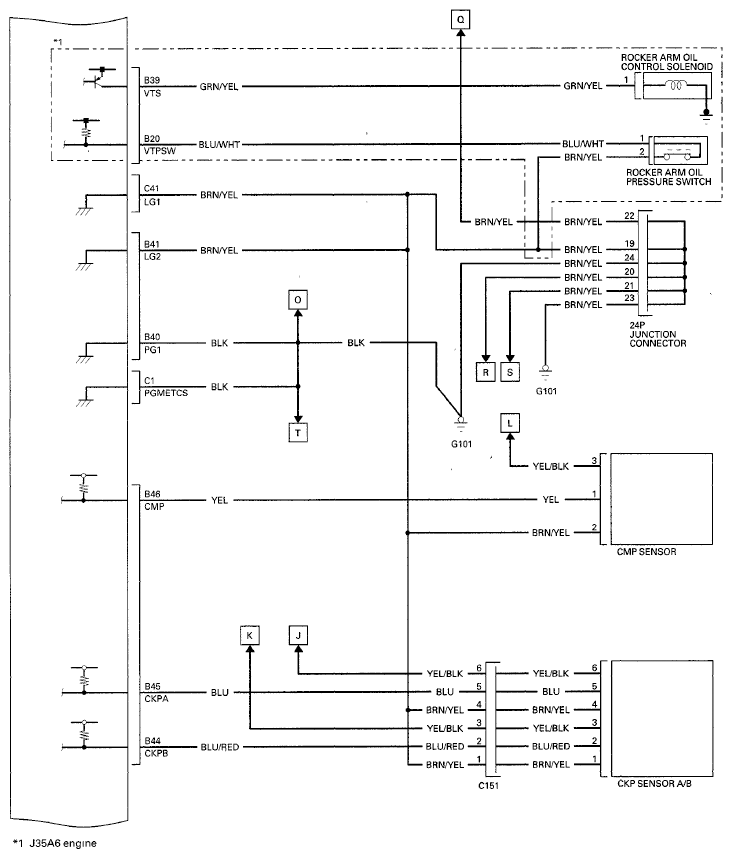

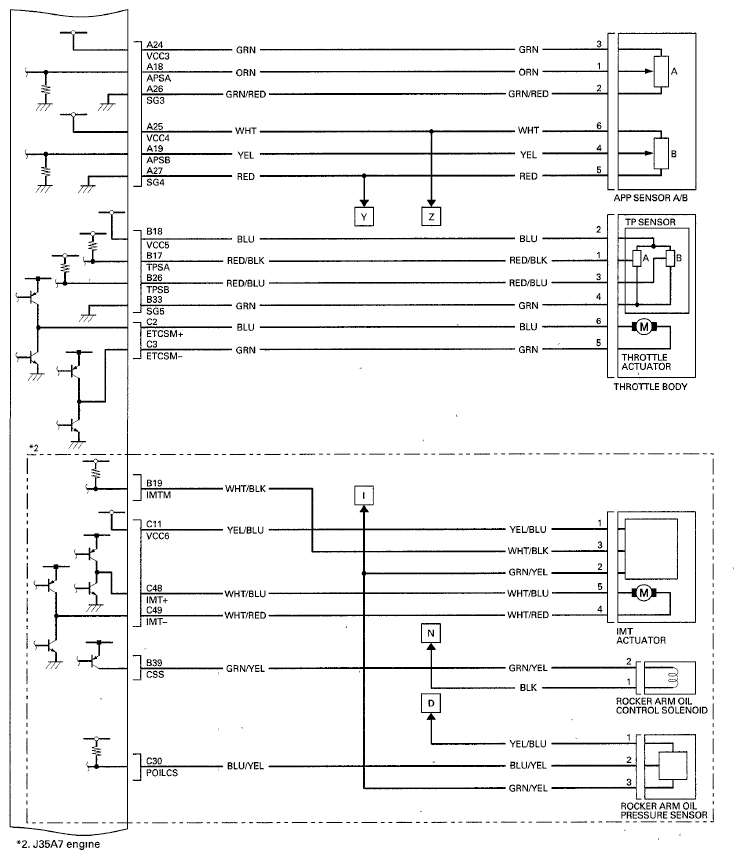

Fig 5: PCM Circuit Diagram - '07 Model (5 Of 14)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

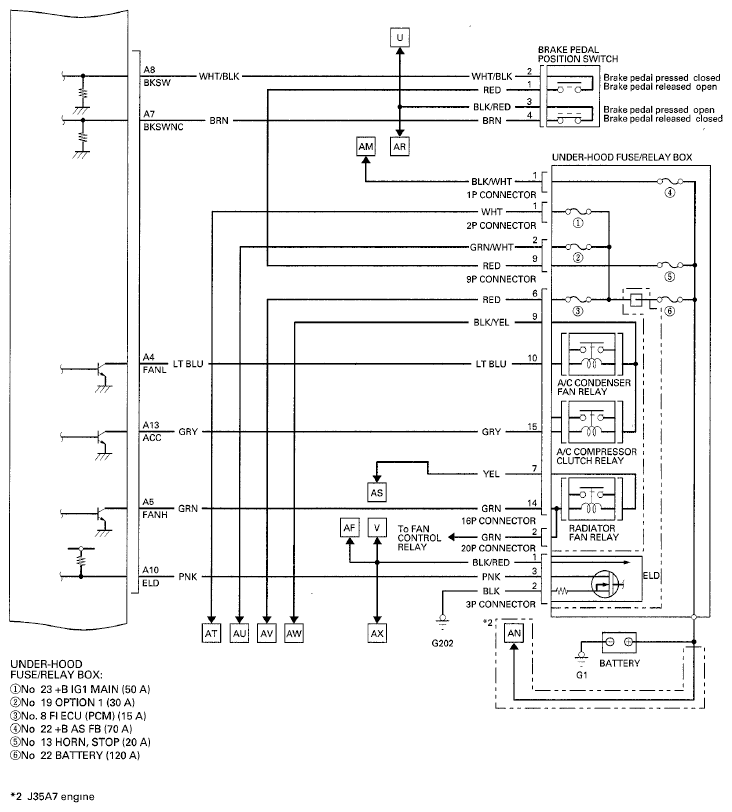

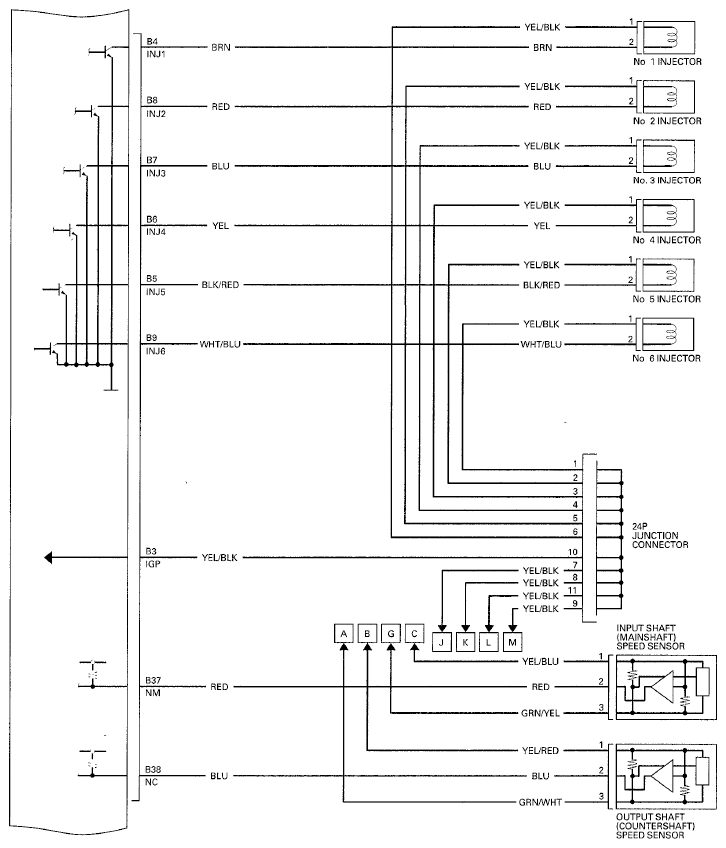

Fig 6: PCM Circuit Diagram - '07 Model (6 Of 14)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

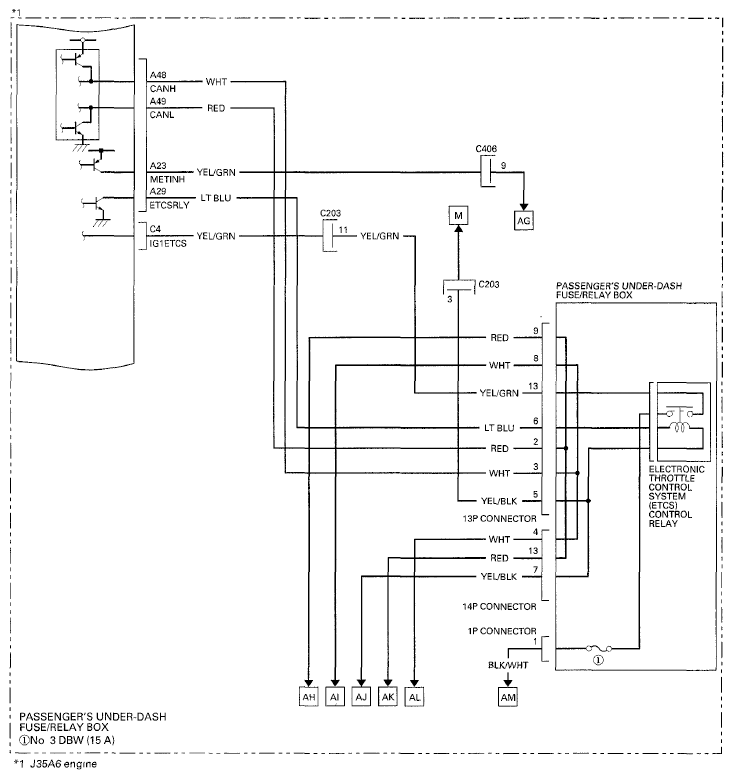

Fig 7: PCM Circuit Diagram - '07 Model (7 Of 14)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 8: PCM Circuit Diagram - '07 Model (8 Of 14)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 9: PCM Circuit Diagram - '07 Model (9 Of 14)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 10: PCM Circuit Diagram - '07 Model (10 Of 14)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 11: PCM Circuit Diagram - '07 Model (11 Of 14)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 12: PCM Circuit Diagram - '07 Model (12 Of 14)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 13: PCM Circuit Diagram - '07 Model (13 Of 14)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 14: PCM Circuit Diagram - '07 Model (14 Of 14)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
