Clutch Switch: Removal

WARNING: This page is about a different car, the 2007 Toyota Tacoma. However, it is still accessible from the selected car via links, so may be relevant.
  1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
  2. REMOVE FRONT FLOOR FOOTREST (See  FRONT FLOOR FOOTREST  )
  3. REMOVE FRONT DOOR SCUFF PLATE LH (for Regular Cab) (See  REMOVAL  )
  4. REMOVE FRONT DOOR SCUFF PLATE LH (for Access Cab) (See  REMOVAL  )
  5. REMOVE FRONT DOOR SCUFF PLATE LH (for Double Cab) (See  REMOVAL  )
  6. REMOVE COWL SIDE TRIM BOARD LH (for Regular Cab) (See  REMOVAL  )
  7. REMOVE COWL SIDE TRIM BOARD LH (for Access Cab) (See  REMOVAL  )
  8. REMOVE COWL SIDE TRIM BOARD LH (for Double Cab) (See  REMOVAL  )
  9. REMOVE INSTRUMENT PANEL UNDER TRAY (for Pedal Type Parking Brake) (See  REMOVAL  )
  10. REMOVE INSTRUMENT PANEL HOLE COVER (for Lever Type Parking Brake) (See  REMOVAL  )
  11. SEPARATE HOOD LOCK CONTROL LEVER SUB-ASSEMBLY (See  DISASSEMBLY  )
  12. REMOVE LOWER NO. 1 INSTRUMENT PANEL FINISH PANEL (See  REMOVAL  )
  13. SEPARATE DRIVER SIDE JUNCTION BLOCK
    1. Remove the 2 bolts and bracket.
    2. Remove the 2 nuts and separate the driver side junction block assembly.

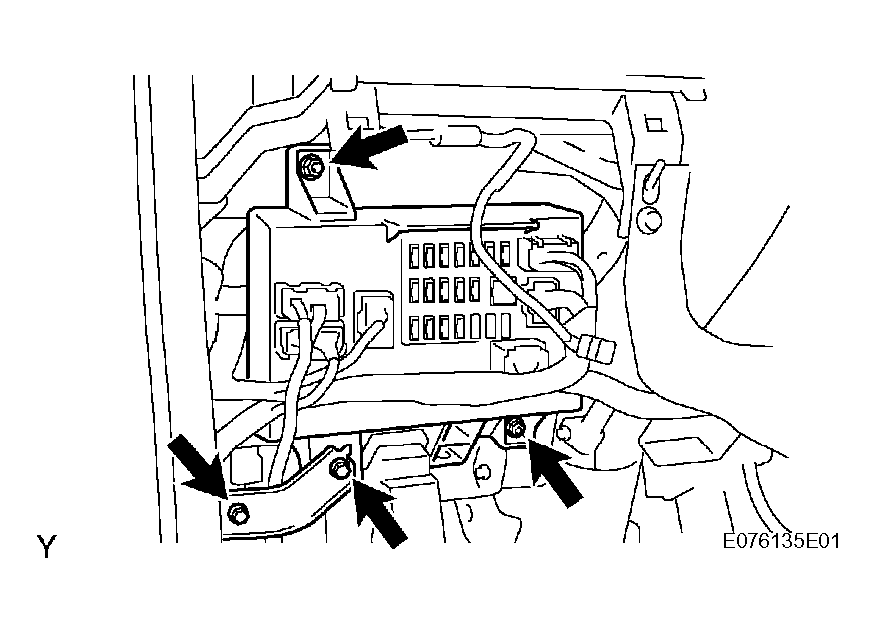

      Fig 1: Removing Driver Side Junction Block Assembly Nuts
      G04412431Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  14. REMOVE CLUTCH SWITCH ASSEMBLY
    1. Disconnect the connector.
    2. Loosen the nut and remove the clutch switch assembly.

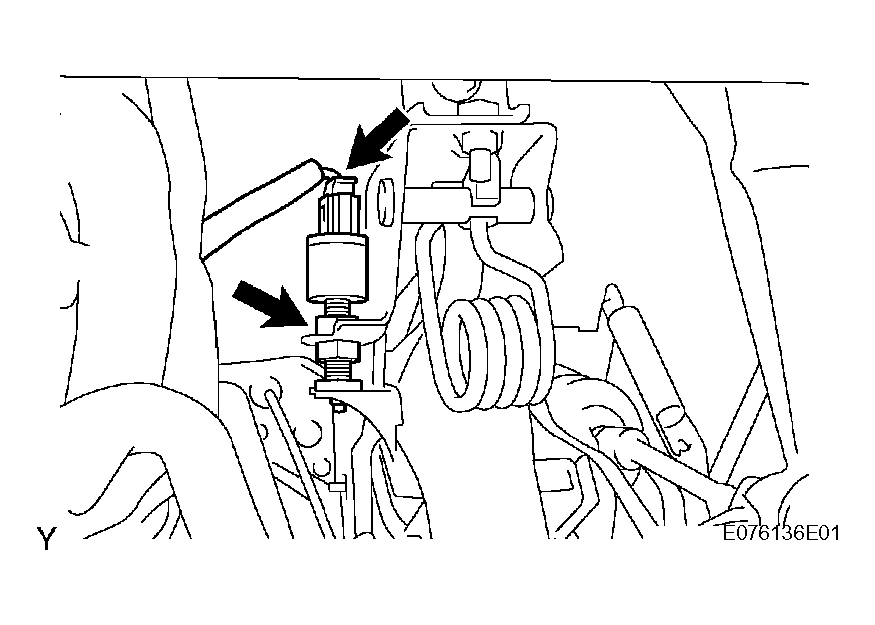

      Fig 2: Loosening Clutch Switch Assembly Nut
      G04412432Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
