Intake Manifold Removal and Installation: Installation

  1. Install a new EGR plate gasket (A).
    Fig 1: Identifying EGR Plate Gasket
    G05454378
  2. Install the intake manifold (B) and tighten the bolts and nuts in a crisscross pattern in three steps, beginning with the inner bolt.
  3. Install the dipstick (A), PCV hose (B) and harness holder (C).
    Fig 2: Identifying Dipstick, PCV Hose And Harness Holder
    G05454379
  4. Install the bolts (A).
    Fig 3: Identifying Bolts
    G05454380
  5. Install the brake booster vacuum hose (A), harness holder (B), MAP sensor connector (C) and bolt (D).

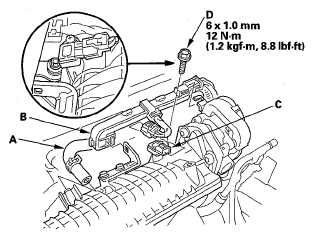

    Fig 4: Identifying Brake Booster Vacuum Hose, Harness Holder, Map Sensor Connector And Bolt
    G05454381
  6. Install the air cleaner assembly (see AIR CLEANER REMOVAL/INSTALLATION ).
  7. Install the engine cover.
    Fig 5: Identifying Engine Cover With Bolts
    G05454382
  8. After installation, check that all tubes, hoses, and connectors are installed correctly.
