ANC/Active Sound Control Microphone Connector for Inputs and Outputs

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2015 Honda Crosstour, 2014 Honda Crosstour, 2013 Honda Crosstour, 2012 Honda Crosstour, and 2011 Honda Accord Crosstour. However, it is still accessible from the selected car via links, so may be relevant.

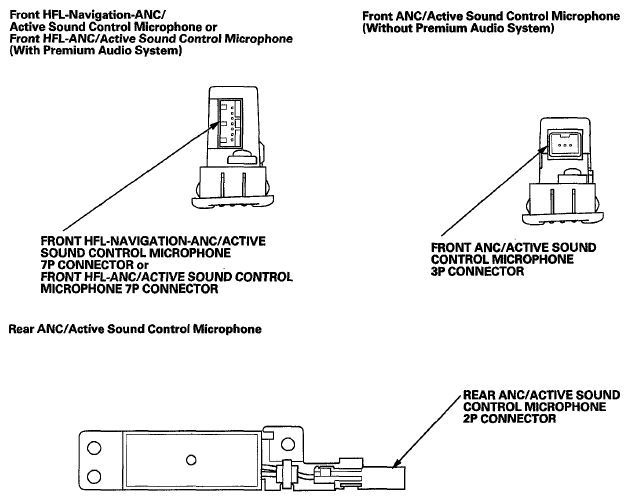

Fig 1: Identifying ANC/Active Sound Control Microphone Connector For Inputs And Outputs
G06424246Courtesy of AMERICAN HONDA MOTOR CO., INC.

FRONT HFL-NAVIGATION-ANC/ACTIVE SOUND CONTROL MICROPHONE 7P CONNECTOR or FRONT

HFL-ANC/ACTIVE SOUND CONTROL MICROPHONE 7P CONNECTOR (With premium audio system)

Fig 2: Identifying Active Sound Control Microphone 7P Connector Terminals
G06424247Courtesy of AMERICAN HONDA MOTOR CO., INC.
WIRE COLOR SPECIFICATION

Cavity Wire Color Terminal Name Connects to
1 WHT + B No. A15 (10 A) fuse in the under-hood fuse/relay box
2 PUR ACC No. B18 (7.5 A) fuse in the driver's under-dash fuse/relay box
3 LT GRN HFL MUTE HandsFreeLink control unit, audio unit
4 WHT ANC F MIC+8V Audio unit
5 YEL MIC+ HandsFreeLink control unit
6 BRN MIC- HandsFreeLink control unit
7 BLK GND Body ground to G401

FRONT ANC/ACTIVE SOUND CONTROL MICROPHONE 3P CONNECTOR (Without premium audio system)

Fig 3: Identifying Front ANC And Active Sound Control Microphone 3P Connector (Without Premium Audio System)
G06424248Courtesy of AMERICAN HONDA MOTOR CO., INC.
WIRE COLOR SPECIFICATION

Cavity Wire Color Terminal Name Connects to
1 WHT ANC F MIC+8V Audio unit
2 Not used Not used --
3 BLK(1) ANC F MIC SH Shield for terminal No. 1
(1) The shielded wires have a heat-shrink tube insulating the outside of the wire. The color of the insulating tube, typically black or dark gray, may not match the color of the wire listed on the schematic.

REAR ANC/ACTIVE SOUND CONTROL MICROPHONE 2P CONNECTOR

Fig 4: Identifying Rear ANC And Active Sound Control Microphone 2P Connector
G06424249Courtesy of AMERICAN HONDA MOTOR CO., INC.
WIRE COLOR SPECIFICATION

Cavity Wire Color Terminal Name Connects to
1 BLU ANC R MIC+8V Audio unit
2 BLK(1) ANC R MIC SH Shield for terminal No. 1
(1) The shielded wires have a heat-shrink tube insulating the outside of the wire. The color of the insulating tube, typically black or dark gray, may not match the color of the wire listed on the schematic.
